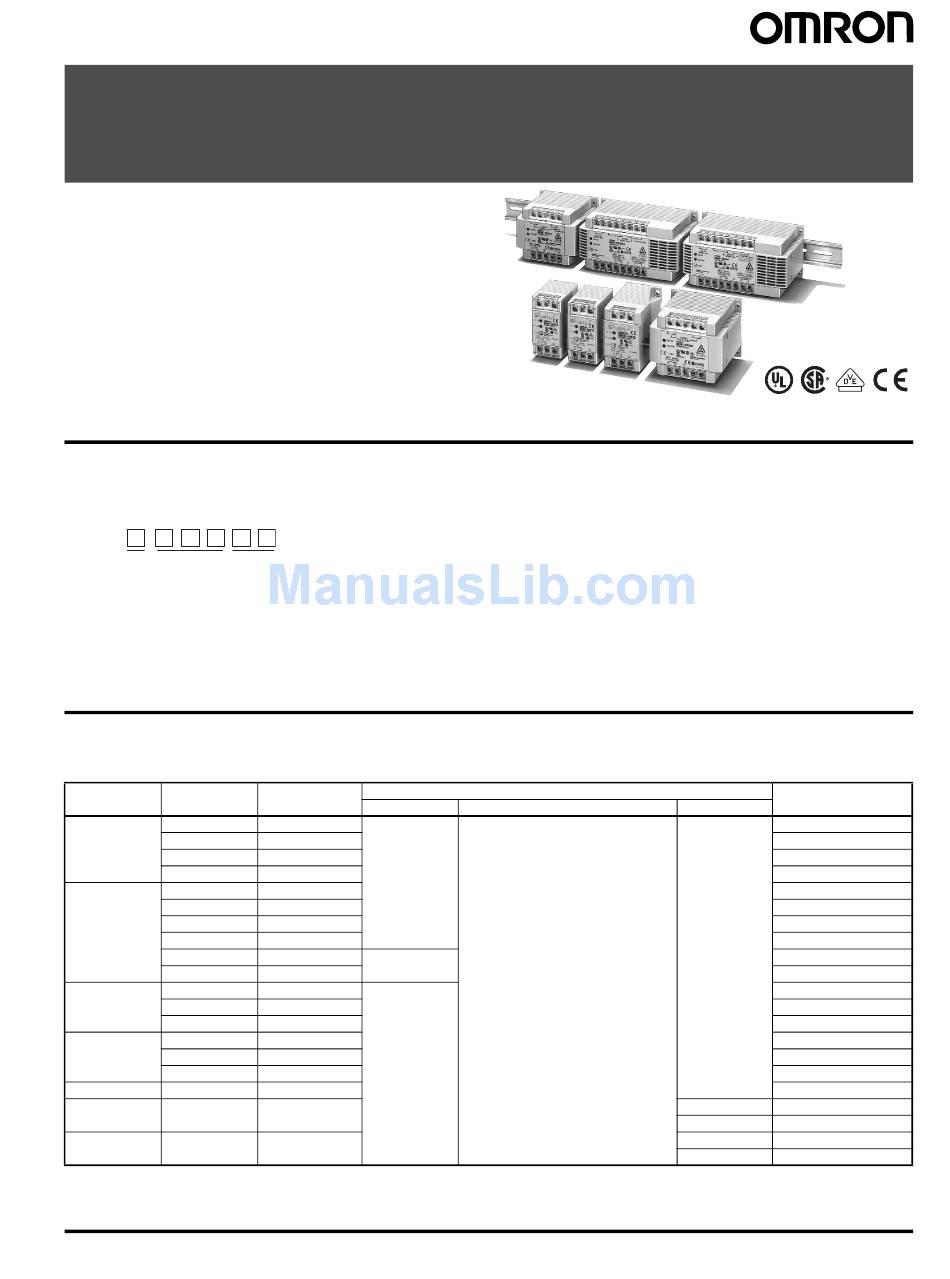

Switch Mode Power Supply
S82K (3/7.5/15/30/50/90/100-W Models)
Ultimate DIN-rail-mounting Power Supply
with a Power Range of 3 to 100 W
• EMI: EN 61204-3 class B
• Input: 85 to 264 VAC (except 90-W and 100-W models)
• Safety standards: UL 60950-1/508, cUL: C22.2, cUR: No.
60950-1/14, Class 2 (UL, CSA), EN 60950-1 (=VDE 0805, Teil 1)
• Undervoltage alarm indication available for standard models.
Note: Refer to "Safety Precautions" on page 13.
Model Number Structure
■ Model Number Legend
Note: Not all combinations are possible. Please refer to the list of models in "Ordering Information" on page 1.
S82K -
1
2
1. Power Factor Correction
None: No
P:
Yes

Ordering Information

■ List of Models
Note: For details on normal stock models, contact your nearest OMRON representative.
Power ratings
Output voltage
3 W
5 V
12 V
15 V
24 V
7.5 W
5 V
12 V
15 V
24 V
±12 V
±15 V
15 W
5 V
12 V
24 V
30 W
5 V
12 V
24 V
50 W
24 V
90 W
24 V
100 W
24 V
Note:1. The output capacity of the S82K-03005 is 25 W.
2. The output current during parallel operation is 3.78 A.
3
2. Power Ratings
003: 3 W
050: 50 W
007: 7.5 W
090: 90 W
015: 15 W
100: 100 W
030: 30 W
Output current
Output
0.6 A
Single output
0.25 A
0.2 A
0.13 A
1.5 A
0.6 A
0.5 A
0.3 A
0.3 A/0.2 A
Dual output
0.2 A/0.2 A
2.5 A
Single output
1.2 A
0.6 A
5.0 A
2.5 A
1.3 A
2.1 A
3.75 A
4.2 A (See note 2.)
3. Output Voltage
05: +5 VDC
12: +12 VDC
15: +15 VDC
Function Configuration
Undervoltage alarm indicator/output
Yes
Switch Mode Power Supply
24: +24 VDC
27: ±12 VDC
28: ±15 VDC
Models
PFC
No
S82K-00305
S82K-00312
S82K-00315
S82K-00324
S82K-00705
S82K-00712
S82K-00715
S82K-00724
S82K-00727
S82K-00728
S82K-01505
S82K-01512
S82K-01524
S82K-03005 (See note 1.)
S82K-03012
S82K-03024
S82K-05024
No
S82K-09024
Yes
S82K-P09024
No
S82K-10024
Yes
S82K-P10024
S82K
1
