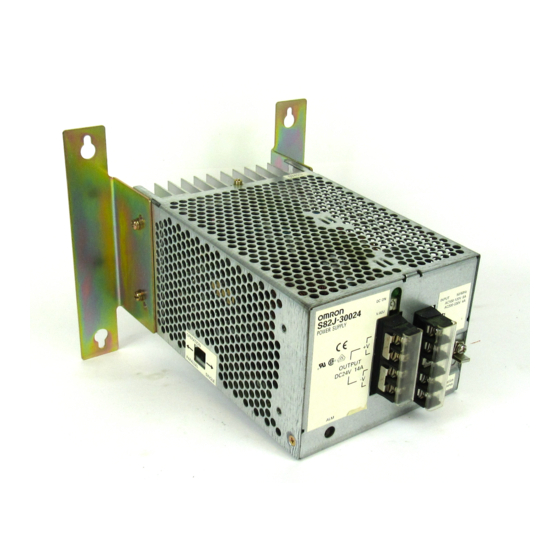

Omron S82J Manual

Switching power supply
Hide thumbs Also See for S82J:
Table of Contents

Advertisement

Quick Links

Download this manual

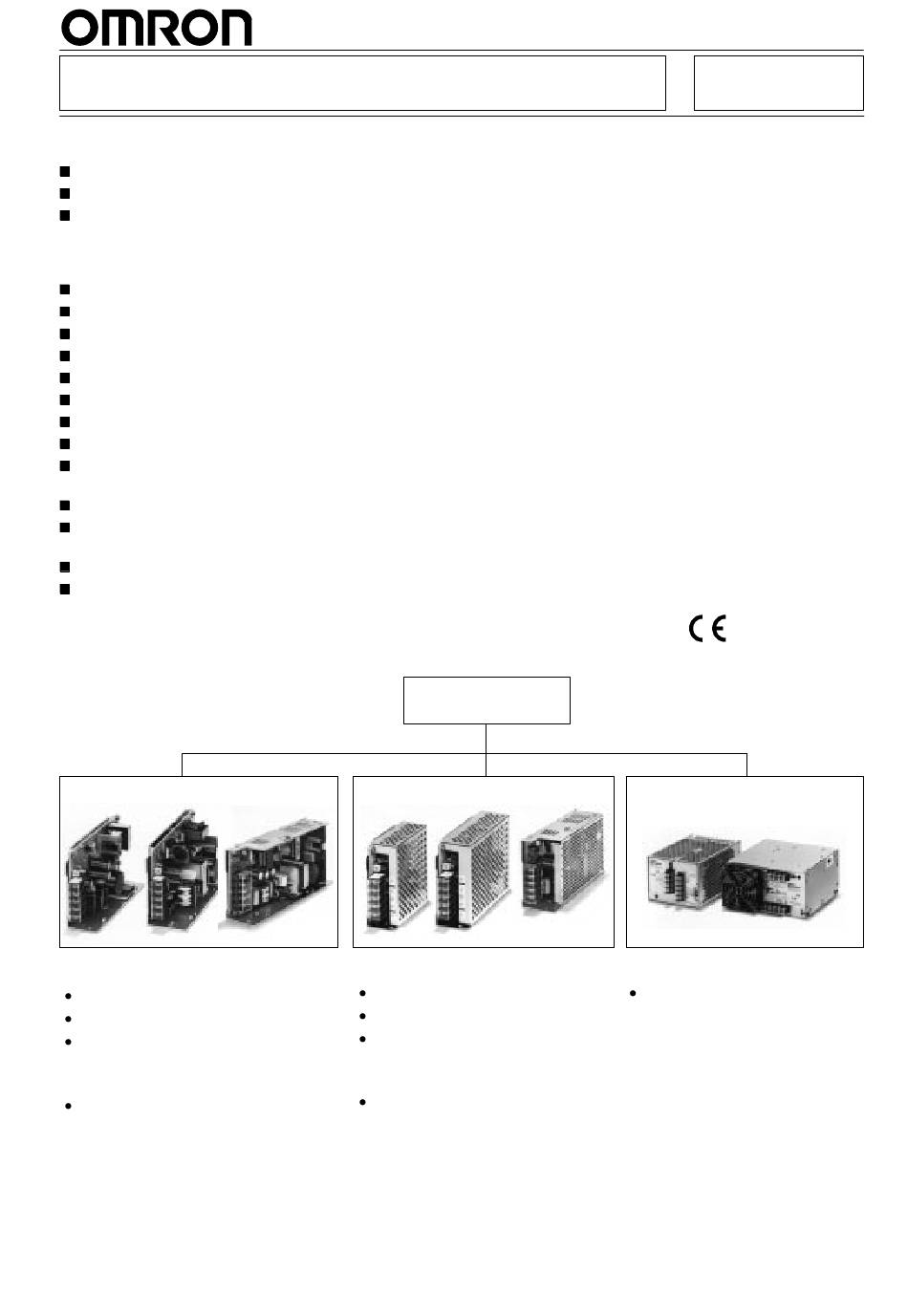

Switching Power Supply
Compact and Economical Switching Power Supplies with Capacities Up to 600 W
Power range from 10 W up to 600 W.
Output Voltages: 5 V, 12 V, 15 V, or 24 V.
Wide AC input range
50-/100-W, 24-V output models: 100 to 240 VAC on one body
150-W models: 100 or 200 VAC selected automatically
300-/600-W models: 100 or 200 VAC selectable
Open-frame and covered types available.
Top terminal- and connector-type available in addition to front terminal type (100-/150-W models).
Mounting brackets provided for mounting to control panels.
Easily mounted to DIN track with S82Y (sold separately).
Maintenance-free up to 300 W due to natural ventilation.
Protection-ON alarm indicator shows valuable protection functions in action (300-/600-W models).
Conforms to EMC standards: EN50081-2 and EN50082-2.
With an external filter, achieves conformance to EN50081-1 for universal usage on EMI (300-/600-W models).
Finger protection terminal block to meet VDE0106/P100
(50-/100-/150-W, 24-V output, covered type)
Class 2 approved (50-W, 24-V output models)
The UL Listed Power Supplies (50-/100-/150-W, 24-V output models) can be used at full rated power at any
location.
Approved by UL/CSA standards, EN60950, and EN50178 (VDE0160).
Six-language instruction manual provided.
Open-frame Type
<10 W to 100 W>
100-VAC input
200-VAC input
100 to 240 VAC (50-/100-W
24-V output models)
<150 W>
100 or 200 VAC (selected
automatically)
S82J
Covered Type
<10 W to 100 W>
100-VAC input
200-VAC input
100 to 240 VAC (50-/100-W
24-V output models)
<150 W>
100 or 200 VAC (selected
automatically)
S82J
uRC
Enclosure Type
<300/600 W>
100 or 200 VAC (selectable)
W
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S82J and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omron S82J

Summary of Contents for Omron S82J

  • Page 1 Switching Power Supply S82J Compact and Economical Switching Power Supplies with Capacities Up to 600 W Power range from 10 W up to 600 W. Output Voltages: 5 V, 12 V, 15 V, or 24 V. Wide AC input range...

  • Page 2: Ordering Information

    S82J S82J Ordering Information S82J Configuration Input Power Output Output Front terminals Top terminals Connector Voltage ratings voltage current Open-frame 100 VAC 10 W S82J-0105 type 12 V S82J-0112 15 V 0.7 A S82J-0115 24 V 0.5 A S82J-0124 25 W...
  • Page 3 S82J S82J Configuration Input Power Output Output Front terminals Top terminals Connector Voltage ratings voltage current Covered type Co e ed ype 100 VAC 10 W S82J-5105 12 V S82J-5112 15 V 0.7 A S82J-5115 24 V 0.5 A S82J-5124...
  • Page 4 S82J S82J Model Number Legend: 50 (24 V)-/100-/150-/300-/600-W Models S82J - 1.Power Ratings 2. Output Voltage 3. Configuration 050: 50 W Open-frame type, front terminals 100: 100 W 12 V Open-frame type, top terminals 150: 150 W 15 V Open-frame type, connector...

  • Page 5: Specifications

    S82J S82J Specifications Ratings/Characteristics 100 VAC input/200 VAC input 100 or 200 VAC 100 to 240 VAC input 100 or 200 Item (selectable) (selected automatic ally) 10 W 25 W 50 W 100 W (5, 300 W 600 W 50 W...
  • Page 6 S82J S82J Item Item 100 VAC input/200 VAC input 100 or 200 VAC 100 to 240 VAC input 100 or 200 (selectable) (selected automatic ally) 10 W 25 W 50 W 100 W (5, 300 W 600 W 50 W...

  • Page 7: Reference Value

    S82J S82J Reference Value Item Value Definition Reliability (MTBF) 135,000 hours MTBF stands for Mean Time Between Failures, which is calculated according to the probability of accidental device failures, and indicates reliability of devices. Therefore, it does not necessarily represent a life of the product.
  • Page 8 S82J S82J 300-W Model Single Operation Parallel Operation Standard mounting Forced air-cooling 20 mm min. 20 mm min. (1 m /min) (Standard mounting) Forced air-cooling (1 m /min) Natural air-cooling (Standard mounting) (Standard mounting) Forced air-cooling (1 m /min) (Side mounting)

  • Page 9: Overload Protection

    To reset the (24 V)-W and 100 (24 V)-W models), the protection function is trig- S82J, turn off the input voltage, leave the S82J for at least three min- gered, decreasing the output voltage. When the output current falls utes, and then apply the input voltage again.

  • Page 10: Operation

    S82J S82J Operation Block Diagrams S82J-j1jj (10 W) S82J-j2jj (25 W) S82J-j5jj (50 W, 5-/12-V Output) Fuse* AC(L) INPUT Noise filter AC(N) Inrush current Rectifier protection circuit DC Output *Fuse capacity: 10 W, 2 A –V Rectifier 25 W, 2 A Drive 50 W, 3.15 A for 100-V input...
  • Page 11 S82J S82J S82J-10024j (100 W, 24-V Output) Fuse (5 A) AC(L) DC Output INPUT Noise filter AC(N) –V Rectifier Inrush current Smoothing Rectifier and protection circuit smoothing circuit circuit Control circuit Overload Detector detection circuit Photocoupler Overload detection circuit Photocoupler...
  • Page 12 S82J S82J S82J-60024j (600 W) Fuse Rectifier and 20 A smoothing circuit Noise filter Inrush current Rectifier and protection circuit smoothing circuit 100/200 V (selectable) Control circuit Overcurrent Detector detector Photocoupler Overheat Note: Short-circuit the input voltage terminals if detector the input is 100 to 120 VAC.
  • Page 13 S82J S82J Dimensions Note: All units are in millimeters unless otherwise indicated. 12 max. 90 1 S82J- 1 (10 W) Mounting Holes (Surface Screw Mounting) Side Mounting 97 1 65 0.5 Two, M3 65 0.5 82 0.5 M3.5 terminal Two, 3.5 dia.
  • Page 14 S82J S82J S82J-10024 (100 W) 12 max. 170 1 Mounting Holes Side Mounting Two, M3 97 1 65 0.5 65 0.5 162 0.5 162 0.5 M3.5 terminal 4.5 dia. screw Three, M4 Bottom Mounting 160 0.5 4.5 dia. Two, M3 25 0.5...
  • Page 15 S82J S82J S82J-60024 (600 W) Eight, M4 holes (depth: 8 max. on both sides) Mounting Holes (Surface Screw Mounting) Side Mounting Four, 4.5 dia. 50 0.5 Four, M4 holes (depth: 8 max. on one side) Four, M4 holes (depth: 8 max.) 150 0.5...
  • Page 16 S82J S82J 300-W Models 10 dia. Two, 5 dia. Note: To provide ventilation space, the body will shift forward by 21.6 mm from t= 1.6 the mounting surface. 600-W Models Note: To provide ventilation space, the body will shift forward by 23.6 mm from the mounting surface.
  • Page 17 By attaching the DIN Track Mounting Bracket to the Switching Power Supply, the Switching Power Supply can be mounted to a DIN-track with ease. Item S82Y-01N S82Y-03N S82Y-05N S82Y-10N Applicable S82J- 1 S82J- 2 S82J- 5 S82J-100 supply unit S82J-15024 Dimensions Power Supply Bracket Two, 4.5-dia holes...
  • Page 18 47 1 Six, M4 C 0.5 Model S82Y-JF3-N S82Y-JF6-N Front-mounting Bracket for 100-W, 24-V (F-type) S82Y-J10F Mounting Holes Three, 4.5-dia. holes Three, M4 Note: The Front Mounting Bracket cannot be used for 5-, 12-, or 15-V S82J (100-, 150-W models).

  • Page 19: Installation

    S82J S82J Installation 10-/25-/50-/100-/150-W Models Note: 10-/25-/50-/100 (24 V)-W models are available only as Front Terminal Models. Front Terminals Model Top Terminals Model Connector Model –V –V –V AC (L) AC (L) AC (L) AC (N) AC (N) AC (N)
  • Page 20 S82J S82J 300-W Models AC (L) AC (N) Side view 6 5 7 600-W Models Side view AC (L) AC (N) 1. DC Output Terminals: Connect the load lines to these terminals. 2. Input Terminals: Connect the input lines to these terminals.
  • Page 21 S82J S82J Precautions Mounting 100 (5, 12, 15 V)/150-/300-/600-W Models (A) Side mounting To improve and maintain the reliability of the Power Supply over a long period of time, adequate consideration must be given to heat (B) Bottom mounting (secured with screws from the inside of the radiation.
  • Page 22 INPUT –V With the S82J-05024 or S82J-10024 , if the load is shorted a reverse voltage may result in the Power Supply causing deteriora- tion and damage. It is recommended that diodes are connected as shown in the previous diagram (D Parallel Operation Only 300- and 600-W models can be in parallel operation.
  • Page 23 S82J S82J ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. Cat. No. M047-E1-5 In the interest of product improvement, specifications are subject to change without notice.
