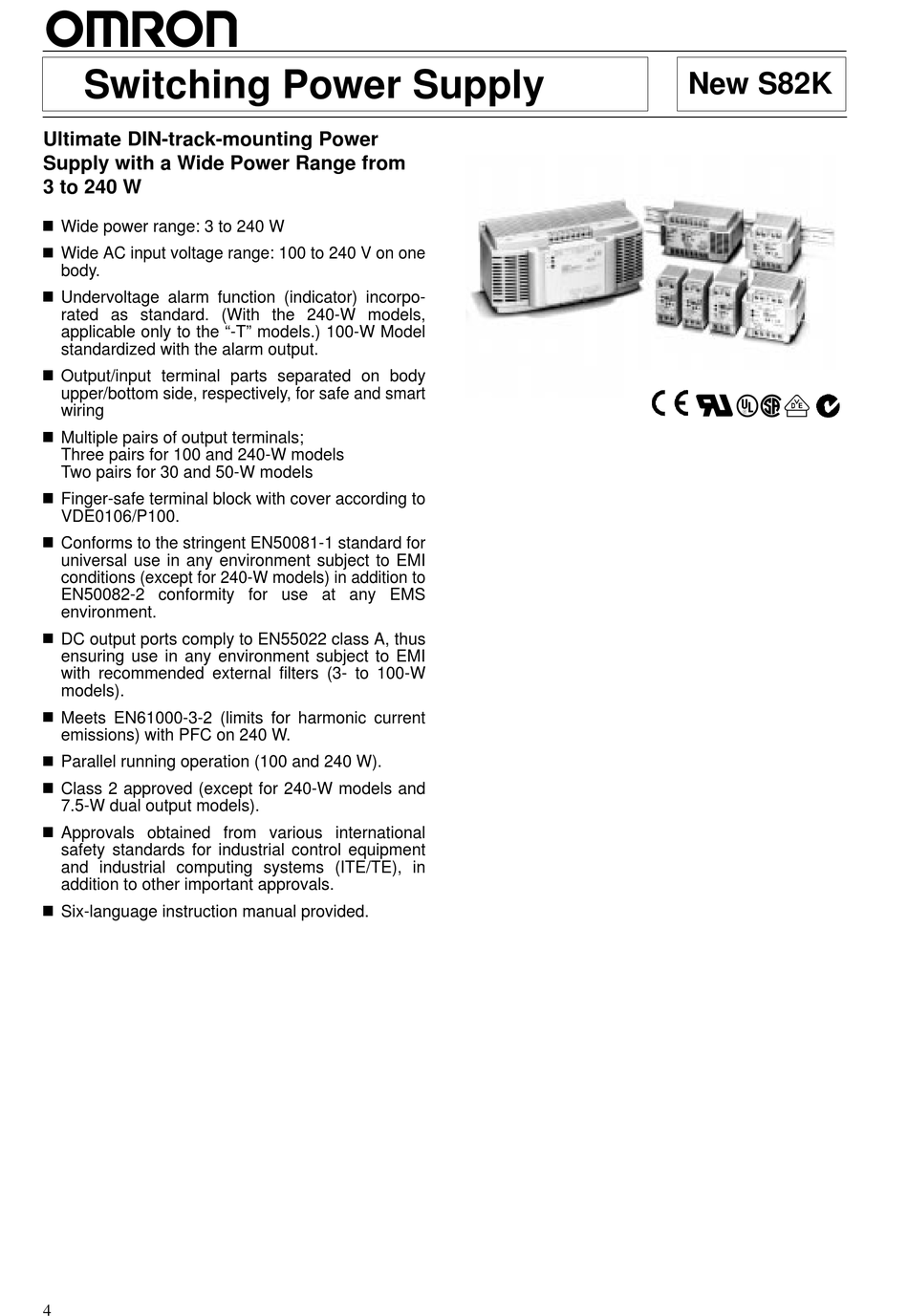

Omron S82K-00305 Manual

Switching Power Supply
Ultimate DIN-track-mounting Power
Supply with a Wide Power Range from
3 to 240 W
Wide power range: 3 to 240 W
Wide AC input voltage range: 100 to 240 V on one
body.
Undervoltage alarm function (indicator) incorpo-
rated as standard. (With the 240-W models,
applicable only to the "-T" models.) 100-W Model
standardized with the alarm output.
Output/input terminal parts separated on body
upper/bottom side, respectively, for safe and smart
wiring
Multiple pairs of output terminals;
Three pairs for 100 and 240-W models
Two pairs for 30 and 50-W models
Finger-safe terminal block with cover according to
VDE0106/P100.
Conforms to the stringent EN50081-1 standard for
universal use in any environment subject to EMI
conditions (except for 240-W models) in addition to
EN50082-2 conformity for use at any EMS
environment.
DC output ports comply to EN55022 class A, thus
ensuring use in any environment subject to EMI
with recommended external filters (3- to 100-W
models).
Meets EN61000-3-2 (limits for harmonic current
emissions) with PFC on 240 W.
Parallel running operation (100 and 240 W).
Class 2 approved (except for 240-W models and
7.5-W dual output models).
Approvals obtained from various international
safety standards for industrial control equipment
and industrial computing systems (ITE/TE), in
addition to other important approvals.
Six-language instruction manual provided.
