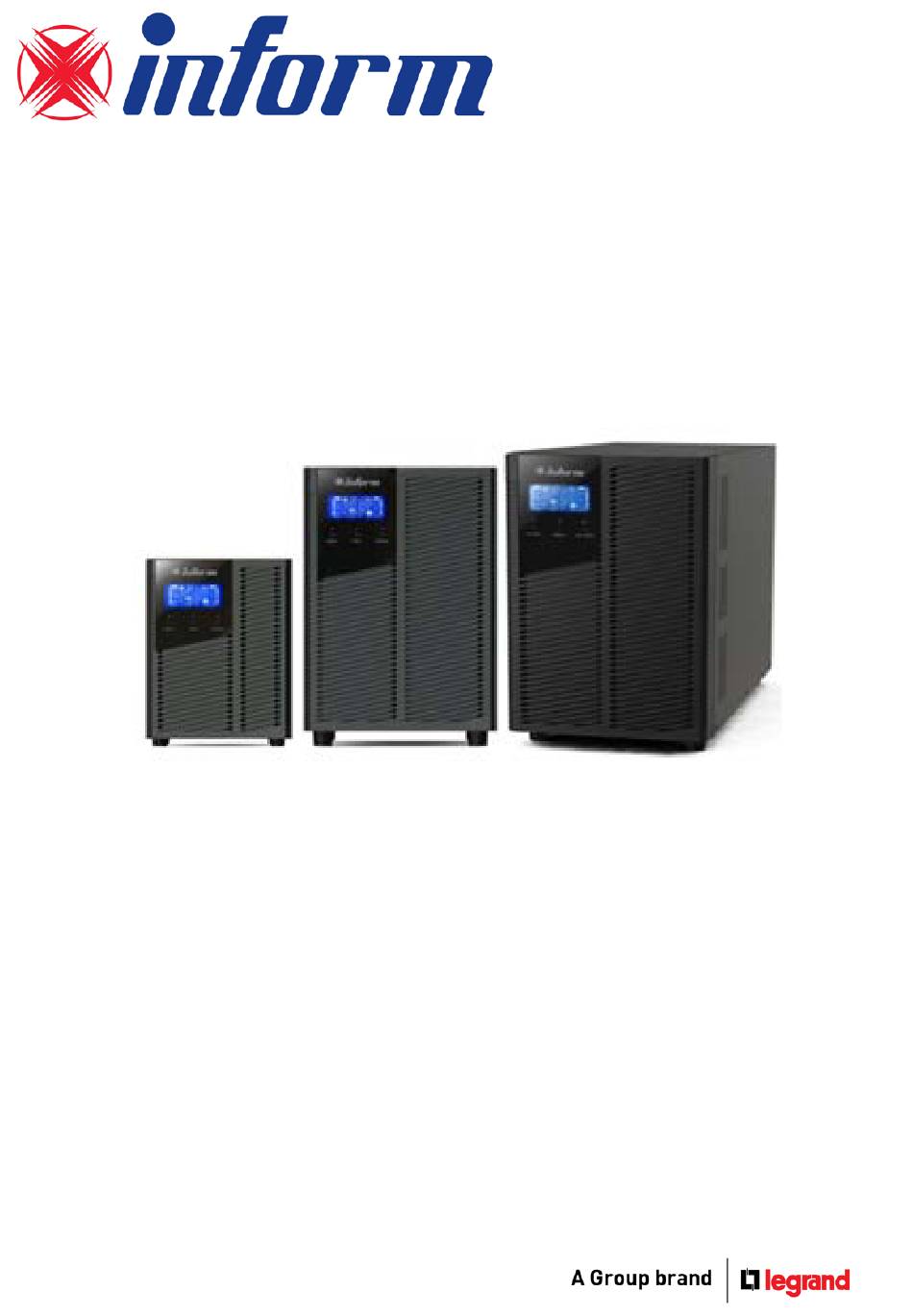

- Page 1 SINUS EVO 1 – 3 kVA USER MANUAL...
- Page 2 Important Notices! Thank you for choosing İNFORM UPS SINUS EVO product to supply your Critical Application. SINUS EVO has been designed with advanced technologies and the latest components generation; realized to satisfy both users and installers in their operational needs of high availability and performance. This manual contains important information about commissioning, usage and technical properties of the UPS.
- Page 3 Description of the Symbols Used in the Manual This symbol points out the instructions which are especially important. This symbol points out the risk of electric shock if the following instruction is not followed. This symbol points out the instructions, which may result with injury of the operator or damage of the equipment if not followed.
-
Page 4: Table Of Contents
INDEX INDEX ..............................IV 1. WARRANTY ............................5 2.1. Terms of Warranty ........................5 2.2. Out of Warranty Terms and Conditions ..................5 2. SAFETY ..............................6 Important Notice for Battery ......................7 3. REQUIREMENT ........................... 8 3.1. Transportation ..........................8 3.2. -
Page 5: Warranty
1. WARRANTY 2.1. Terms of Warranty Warranty is defined by General Conditions of Sale and Delivery. • The UPS including all the internal parts is under the warranty of İNFORM. • If the UPS malfunctions because of component, manufacturing or installation (if it’s done by authorized İNFORM •... -
Page 6: Safety
2. SAFETY Information related to safety of the UPS, battery, load and the user is summarized below. But the equipment should not be installed before reading the manual completely. • This UPS utilizes voltage that may be hazardous. Do not attempt to disassemble the unit. The unit contains no user replaceable parts. -
Page 7: Important Notice For Battery
Important Notice for Battery The batteries may only be installed and commissioned by authorized LEGRAND UPS Technical Service Personnel. • Make sure that the battery quantity is proper for the unit and they are same type and capacity. Otherwise danger •... -
Page 8: Requirement
3. REQUIREMENT 3.1. Transportation The UPS must be placed and stand in a vertical position throughout the transportation. The equipment shall be packed properly during transportation. Therefore it is recommended to keep the original package for future need. All packing material must be recycled in compliance with the laws in force in the country where the system is installed. -
Page 9: Installation
4. INSTALLATION When the UPS is delivered, examine the packaging and product carefully to see if any damage occurred during transport. If either possible or ascertained damage is found report it immediately to: • the carrier; • İNFORM Technical Assistance Centre. Make sure that the unit received corresponds to the material specified on the delivery document. -
Page 10: Ups Input Connection
4.2. UPS Input Connection Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension cords. • For 208/220/230/240VAC models: The power cord is supplied in the UPS package. • For 110/115/120/127VAC models: The power cord is attached to the UPS. The input plug is a NEMA 5-15P for 1K model and NEMA 5-20P for 2K model. -
Page 11: Display
5. DISPLAY 5.1.Button Operation Button Function • Turn on the UPS: Press and hold ON/Mute button for at least 2 seconds to turn on the UPS. • Mute the alarm: When the UPS is on battery mode, press and hold this button for at least 5 seconds to disable or enable the alarm system. - Page 12 Display Function Remaining backup time information Indicates the remaining backup time in pie chart. Indicates the remaining backup time in numbers. H: hours, M: minute, S: second Fault information Indicates that the warning and fault occurs. Indicates the warning and fault codes, and the codes are listed in details in 3-5 section.
-
Page 13: Audible Alarm
5.3.Audible Alarm Battery Mode Sounding every 4 seconds Low Battery Sounding every second Overload Sounding twice every second Fault Continuously sounding Bypass Mode Sounding every 10 seconds 5.4.LCD Display Wordings Index Abbreviation Display content Meaning Enable Disable Escape High loss Low loss Battery Converter... - Page 14 • 01: Output Voltage Setting Interface Setting Parameter 3: Output voltage For 208/220/230/240 VAC models, you may choose the following output voltage: 208: presents output voltage is 208Vac 220: presents output voltage is 220Vac 230: presents output voltage is 230Vac (Default) 240: presents output voltage is 240Vac For 110/150/120/127 VAC models, you may choose the following output voltage:...
- Page 15 • 05: ECO Voltage Range Setting Interface Setting Parameter 2 & 3: Set the acceptable high voltage point and low voltage point for ECO mode by pressing Down key or Up key. HLS: High loss voltage in ECO mode in parameter 2. For 208/220/230/240 VAC models, the setting range in parameter 3 is from +7V to +24V of the nominal voltage.
- Page 16 • 8: Autonomy Limitation Setting Interface Setting Parameter 3: Set up backup time on battery mode for general outlets. 0-999: setting the backup time in minutes from 0-999 for general outlets on battery mode. 0: When setting as “0”, the backup time will be only 10 seconds. 999: When setting as “999”, the backup time setting will be disabled.
-
Page 17: Operating Mode Description
5.6.Operating Mode Description Operating Mode Description LCD Display When the input voltage is within acceptable range, UPS will provide pure and stable AC power to Online mode output. The UPS will also charge the battery at online mode. Energy saving mode: When the input voltage is within voltage regulation ECO mode range, UPS will bypass voltage to output for energy... -
Page 18: Fault Code Table
5.7.Fault Code Table Fault Event Fault Code Icon Fault Event Fault Code Icon Bus start fail Inverter output short Bus over Battery voltage too high Bus under Battery voltage too low Bus unbalance Over temperature Inverter soft start failure Overload Inverter voltage high Charger failure Inverter voltage Low... -
Page 19: Troubleshooting
6.TROUBLESHOOTING If the UPS system does not operate correctly, please solve the problem by using the table below. Symptom Possible cause Remedy The AC input power is not Check if input power cord firmly connected well. connected to the mains. No indication and alarm even though the mains is normal. -
Page 20: Appendix-1: Technical Specifications
Appendix-1: Technical Specifications MODEL Sinus EVO 1-3 KVA Output Power Factor INPUT Input Voltage Range 120- 300VAC Input Frequency Range 40Hz ~ 70 Hz ≧ 0.99 @ nominal voltage (input voltage) Phase 1PH - N - PE Power Factor OUTPUT Output Voltage 110/115/120/127VAC or 208/220/230/240VAC Voltage Regulation... - Page 21 PHSICAL 1kVA 282 X 145 X 220 Dimensions W X D X H 2kVA 397 X 145 X 220 (mm) 3kVA 421 X 190 X 318 1kVA Weight (kg) 2kVA 17,0 3kVA 27,6 LCD Display (mm) 55x27.5 ENVIRONMENTAL Humidity - Temperature 95 % RH @ 0- 40°C (non-condensing) Acoustic (@ 1m ) <50dBA...
