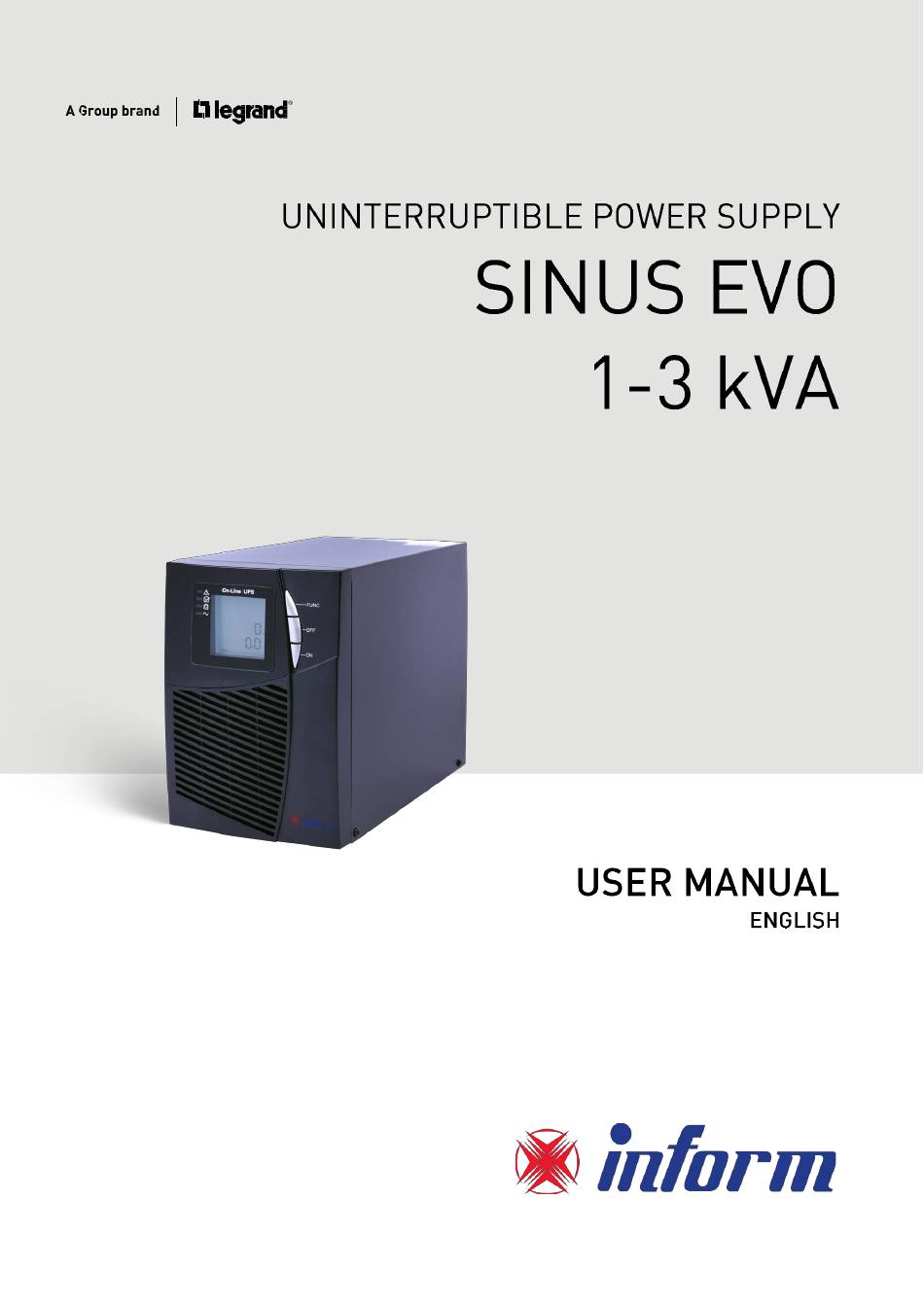

  • Page 1 288717297 KULL.KILAV.SINUS EVO 1-3kVA (ING) INF511-Y01-U819-1-02...
  • Page 2 Important Notices! Thank you for choosing Inform UPS Systems. This manual contains important information about technical properties, installation, comissioning of the UPS and contains safety information for users and loads. Learning and applying of the subjects in this manual is necessary to use UPS safely and correctly. Read the manual completely before working on this equipment! Keep this manual near UPS for easy consultation! Reproduction, adaptation, or translation of this manual is prohibited without prior...
  • Page 3 Description of the Symbols Used in the Manual This symbol points out the instructions which are especially important. This symbol points out the risk of electric shock if the following instruction is not obeyed. This symbol points out the instructions, which may be resulted with the injury of the operator or damage of the equipment if not obeyed.

  • Page 4: Table Of Contents

    Contents 1. WARRANTY .............................1 1.1. Terms of Warranty ........................1 1.2. Out of Warranty Terms and Conditions ..................1 2. SAFETY ............................2 2.1. Important Notice for UPS ......................2 2.2. Important Notice for Battery ....................3 3. REQUIREMENT ..........................4 3.1. Transportation...........................4 3.2. Placement..........................4 3.3.
  • Page 5 7.4. LCD Display Functions.......................22 7.5. Operation..........................23 7.6. Parameter Setting........................23 7.6.1 ECO Mode Setting .......................23 7.6.2 Bypass Mode Setting......................24 7.6.3 Output Voltage Setting .......................25 7.6.4 Battery Pack (EBP) Number and Type Setting ..............25 7.6.5 Automatic Battery Test Mode setting ................26 7.6.6 Warning Code Display Mode Setting ..................26 7.6.7 EPO Input Polarity Setting....................

  • Page 6: Warranty

    WARRANTY 1.1. Terms of Warranty Warranty period begins from the date of commissioning of the UPS by Inform or authorized Inform distributor technical personnel. The UPS including all the internal parts is under the warranty of Inform. If the UPS is malfunctioned because of component, manufacturing, or installation (if it’s done by authorized personnel) problems during the warranty period, the UPS will be repaired without asking any price for spare parts and labor cost.

  • Page 7: Safety

    2. SAFETY 2.1 Important Notice for UPS Information related to safety of the UPS, battery, load and the user is summarized below. But the equipment should not be installed before reading the manual completely. The equipment may only be installed and commissioned by authorized Technical Personnel. This manual contains important instructions that you should follow during installation and maintenance of the UPS and batteries.

  • Page 8: Important Notice For Battery

    Important Notice for Battery The batteries may only be installed and commissioned by authorized technical personnels. Make sure that the battery qty is proper for the unit and they are same type and capacity. Otherwise danger of explosion and fire is within the bounds of possibility. Do not dispose of batteries in a fire.

  • Page 9: Requirement

    3. REQUIREMENT 3.1 Transportation The UPS must be placed and stand in a vertical position throughout the transportation. Use suitable equipment to remove the UPS from the pallet. The equipment shall be packed properly during transportation. Therefore it is recommended to keep the original package for feature need.

  • Page 10: Product Introduction

    4. PRODUCT INTRODUCTION 4.1 UPS Uninterruptible Power Supplies (UPS) most important function is the protection of critical and sensitive loads from the irregular mains voltage conditions. They are used to supply uninterruptible energy to these loads in such irregular mains voltage conditions and provide regulated energy supply to the equipment present in the IT room, industrial workshop and offices.
  • Page 11 Front Panel View（2kVA\3kVA） 2-3kVA Rear Panel View...

  • Page 12: Ups Blog Diagram

    4.3 UPS Blog Diagram Input & Output EMI Filter: These filters (EMI – Electro Magnetic Interference) prevent electromagnetic interference between the mains and the load. Additionally, protect UPS and loads from any surge. Bypass: In case any inverter fault occurs; Bypass thyristor transfers the energy electronically from input to output without any cut at the output.

  • Page 13: Model

    4.5 Model MODEL NO REMARK Sinus EVO 1KVA Internal 1A charger, 2 PCS 9AH batteries Sinus EVO 2KVA Internal 1.5A charger, 4 PCS 9AH batteries Standard Sinus EVO 3KVA Internal 1.5A charger, 6 PCS 9AH batteries 5. UNPACKING AND INSTALLATION 5.1 Unpacking The UPS must always stands in a vertical position.

  • Page 14: Ups Output Connection

    5.3 UPS Output Connection...

  • Page 15: Operating

    6. OPERATING 6.1 Operations（1kVA） Button Function ➢ Turn on the UPS: Press and hold ON button for at least 2 seconds to turn on the UPS. ➢ Down key: Press this button to display next selection ON Button in UPS setting mode. ➢...
  • Page 16 Input voltage Battery voltage Output voltage Load...
  • Page 17 Temperature (EnvironmentTemperatu Firmware Version & UPS model. CODE (Operational status and mode) Alarm Code(Warming Message) All alarm codes are present when abnormal behavior(s) occur(s)

  • Page 18: Ups Setting

    The charging status can also be shown on the screen as below while the charger is Cc MODE Cv MODE 6.3 UPS setting The setting fuction is controled by 3 buttons (Func,Off/up ▲, On/down▼): Func +Off/up ▲---goes into the setting page, Func --- value adjustment; Off ▲ & On ▼---for choosing different pages. After the UPS turn ON, press buttons Func &...
  • Page 19 Output voltage setting Press Func button to change the setting (200,208，220, 230, 240). Press UP button ▲ to select the previous setting. Press DOWN ▼ button to select the next setting. Frequency setting Press Func button to change the setting (50 or 60Hz). Press UP button ▲...

  • Page 20: Operating Mode Description

    Bypass voltage upper limit setting Press Func button to change the setting(The bypass voltage upper limit range is 230-264Vac ). Press UP button ▲ to select the previous setting. Press DOWN ▼ button to select the next setting. Bypass voltage lower limit setting Press Func button to change the setting(The bypass voltage lower limit range is 170-220Vac).

  • Page 21: Operational Status And Mode(S)

    at online mode. Energy saving mode: ECO mode Bypass led light When the input voltage is within voltage regulation range, UPS will bypass voltage to output for energy saving. When the input voltage is beyond the Battery mode Battery led light acceptable range or power failure and alarm is sounding every 4 second, UPS will backup power from battery.
  • Page 22 DC bus unbalance Beep continuously Fault LED lit Soft start failed Beep continuously Fault LED lit UPS Inside Over Temperature Twice per second Fault LED lit Heatsink Over Temperature Twice per second Fault LED lit Battery over voltage Once per second Fault LED blinking Input voltage reversed Twice per second...

  • Page 23: Troubleshooting

    6.7 Troubleshooting If the UPS system does not operate correctly, please solve the problem by using the table below. Symptom Possible cause Remedy Check if input power cord The AC input power is not firmly connected to the No indication and alarm connected well.

  • Page 24: Operations（2~3Kva

    7. Operations（2~3kVA） 7.1 Operating Modes Bypass Mode LED indications on front panel in bypass mode are as following: Bypass yellow LED is on, the buzzer beeps once every 2 minutes . The warning red LED is on when beeping, LCD displays are according to the exact load and battery capacity.

  • Page 25: Keys Function

    Fault mode (LCD interface on which the fault code display) When UPS has fault. The warning LED is on and the buzzer beeps. UPS will turn to fault mode. UPS cuts off the output and LCD display fault codes. At the moment, you can press the mute key to make the buzzer stop beeping temporarily to wait for maintenance.

  • Page 26: The Function Of Led Indicators

    Function setting key Non-function setting mode: Press and hold the key for more than 2 seconds: Function setting interface. Function setting mode: Press and hold the key for more than half a second (less than 2 seconds): Affirm the set option. Press and hold the key for more than 2 seconds, exit from this function setting interface.

  • Page 27: Lcd Display Functions

    7.4 LCD Display Functions The LCD displays as following Fig. LCD display comprises numerical value section, capacity graphics section, fan-status graphics section and charger- status graphics section. Numerical value section－display the corresponding numerical value of inquiring items(output, load, temperature, input, battery), for example, as the graphics shows above, the output voltage is 230v, the output frequency is 50Hz. Capacity graphics section－display the capacity of the battery and load.

  • Page 28: Operation

    7.5 Operation Start-up Operation Turn on the UPS in line mode Once mains power is plugged in, the UPS will charge the battery, at the moment, LCD shows that the output voltage is 0, which means UPS has no output. If it is expected to have output of bypass, you can set the bps “ON”...

  • Page 29: Bypass Mode Setting

    Confirm the ECO selecting interface. After selecting ON or OFF, press and hold the function setting key for more than half a second (less than 2 seconds). Now, the ECO setting function is completed and the “ON” or “OFF” below the “ECO” will light without flash. Set the ECO tolerance range.

  • Page 30: Output Voltage Setting

    7.6.3 Output Voltage Setting Enter the setting interface. Press and hold the function setting key for more than 2 seconds, then come to setting interface, Press and hold the inquiring key for more than half a second(less than 2 seconds), select the function setting, choose output voltage setting interface, at the moment, the letters “OPU”...

  • Page 31: Automatic Battery Test Mode Setting

    set the battery type in the same way. Exit from the setting interface. Press and hold function setting key for more than half a second (less than 2 seconds), exit from the setting interface and return to main interface. 7.6.5 Automatic Battery Test Mode setting Enter the setting interface.

  • Page 32: Epo Input Polarity Setting

    Confirm the “wc” selecting interface. After selecting ON or OFF, press and hold the function setting key for more than half a second (less than 2 seconds). Now, the “wc” setting function is completed and the “ON” or “OFF” below the “wc” will light without flash. Exit from the setting interface.

  • Page 33: Frequency Converter Mode Setting

    Set the Eod tolerance range. Short press the scroll key for more than half a second (shorter than 2 seconds)to select the voltage range in percentage. 10.0V, 10.5V, 11.0V (default is 10.0V)，then short press function setting key for more than half a second (shorter than 2 seconds)to confirm the selection, then to set the minus range After the minus range is confirmed.
  • Page 34 Load: Display the numerical value of the active power(WATT) and apparent power(VA) of the load. For example, as the following graphics shows: the WATT of the load is 100w, VA is 100VA (when disconnect load, it is a normal phenomenon to show a small numerical value of WATT and VA). Temperature: Display the temperature of the inverter in the UPS.

  • Page 35: Led Indication And Warning Table

    Battery Remaining Time: Display the battery remaining time when under battery mode. The number is from 0 to 999 minutes. As the following graphics shown: there are 686 minutes left for discharging. System Software Version: Display the system software version. As the following graphics shows: the System software Version is 04.

  • Page 36: Warning And Fault Codes

    7.7.1 Warning and Fault Codes 77.2 The Corresponding Working Status of Indications Indication Working status Warning Remarks Line mode Normal voltage ● None High/low voltage Once every four ★ protection, turn to ● ● seconds battery mode Battery mode Once every four ★...
  • Page 37 ● _indicator lights for a long time ★ _indicator flashes ▲ _the status of indicator depends on other conditions When UPS has fault, it is convenient for you to know the working status of UPS and the exact information about the fault promptly by referring to the two tables listed above.

  • Page 38: Troubleshooting

    8. TROUBLESHOOTING In case the UPS can not work normally, it might be wrong in installation, wiring or operation. Please check these aspects first. When the fault occurs, firstly, perform troubleshooting by referring to the troubleshooting table. If the fault still exists, please contact the franchiser.

  • Page 39: Maintenance

    9. MAINTENANCE Maintenance includes fully control of all the electronic and mechanical components in UPS. And they needed to be replaced after their lifetime is over. Systematic maintenance ensures to improve UPS’s efficiency and to extend life - time. INFORM recommends every 4 to 6 months of period for systematic maintenance after warranty by authorized service.

  • Page 40: Appendix -1: Technical Specifications

    Appendix -1: Technical Specifications MODEL SINUS EVO 1K SINUS EVO 2K SINUS EVO 3K Nominal Power (VA) 1000 2000 3000 INPUT Voltage 110VAC - 300VAC 50/60 Hz ±%5 (Auto-sense) Frequency ≥0.98 Power Factor OUTPUT Power Factor Voltage 200*/208*/220/230/240VAC ±%2 Voltage Regulation Frequency 50/60 Hz ±...

  • Page 41: Appendix-2: Rs232 Communication Port Definition

    Appendix-2: RS232 Communication Port Definition This UPS provides a standard DB9 communication interface on its rear panel, the definition of the pins is as following: RS232 Cable Specifications When connecting the UPS with PC by RS232 cable, it needs to use the standard RS232 cable, the detailed cable NO. are as following: PIN 1（hole）to computer serial port PIN 2（needle）to UPS serial port...

  • Page 42: Appendix-3: Epo

    Appendix-3: EPO EPO is used to shut down the UPS from a distance. This feature can be used for shutting down the load and the UPS by thermal relay, for instance in the event of room overtemperature. When EPO is activated, the UPS shuts down the output and all its power converters immediately.
  • Page 43 4256-8979 A...
