288717264
KULL.KILAV.GUARDIAN 600-2000VA
(ING) A5 INF511-Y01-U794-1-00
UNINTERRUPTIBLE POWER SYSTEM
LINE-INTERACTIVE UPS
GUARDIAN
GUARDIAN 600A/AP
GUARDIAN 800A/AP
GUARDIAN 1000A/AP
GUARDIAN 1200A/AP
GUARDIAN 1500A/AP
GUARDIAN 2000A/AP
GUARDIAN LCD 600A/AP
GUARDIAN LCD 800A/AP
GUARDIAN LCD 1000A/AP
GUARDIAN LCD 1200A/AP
GUARDIAN LCD 1500A/AP
GUARDIAN LCD 2000A/AP
USER
MANUAL
ENGLISH
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND Inform GUARDIAN 600A
Summary of Contents for LEGRAND Inform GUARDIAN 600A

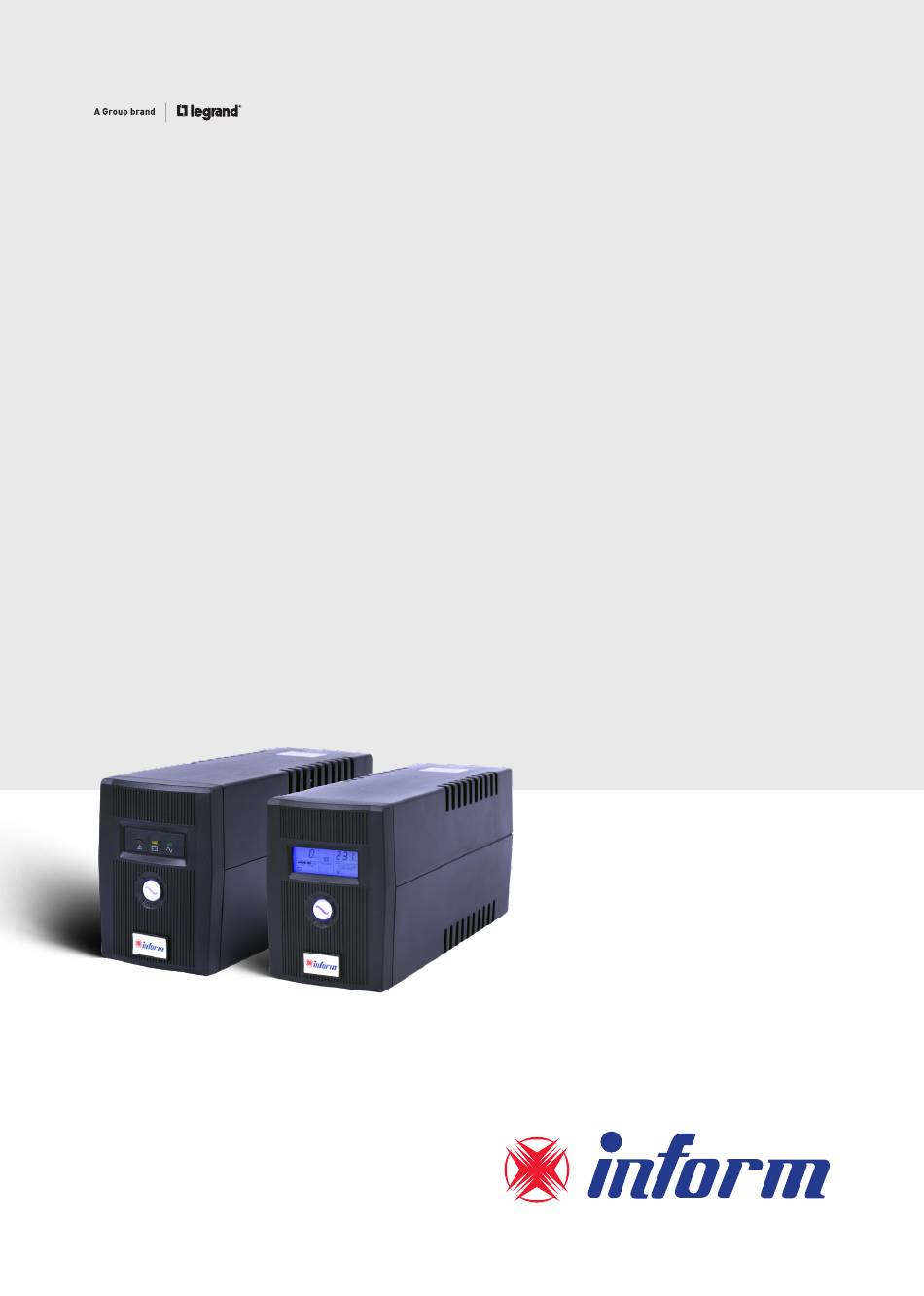

- Page 1 LINE-INTERACTIVE UPS UNINTERRUPTIBLE POWER SYSTEM GUARDIAN GUARDIAN 600A/AP GUARDIAN 800A/AP GUARDIAN 1000A/AP GUARDIAN 1200A/AP GUARDIAN 1500A/AP GUARDIAN 2000A/AP GUARDIAN LCD 600A/AP GUARDIAN LCD 800A/AP GUARDIAN LCD 1000A/AP GUARDIAN LCD 1200A/AP GUARDIAN LCD 1500A/AP GUARDIAN LCD 2000A/AP USER MANUAL ENGLISH 288717264 KULL.KILAV.GUARDIAN 600-2000VA (ING) A5 INF511-Y01-U794-1-00...
-
Page 2: Table Of Contents
Table Of Content IMPORTANT SAFETY INSTRUCTIONS ........3 INTRODUCTION ............... 4 INSTALLATION & OPERATION ..........6 TROUBLE SHOOTING ..............7 TECHNICAL SPECIFICATIONS ..........8... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS • The utilized voltages by this UPS may be hazardous. Do not attempt to disassemble the unit. The unit contains no user replaceable parts. Only authorized service personnel may perform repairs. • Internal battery voltage is 12V DC per one battery. Sealed, lead-acid, 6 cells battery. -
Page 4: Introduction
• A battery can present a risk of electrical shock and high short circuit current. The following precautions should be taken when working on batteries : Remove watches, rings, or other metal objects from the hands. Use tools with insulated handles. Wear rubber gloves and boots. -
Page 5: System Description
SYSTEM DESCRIPTION Front panel: 1. Power Switch 2. LED Indicators – AC Mode: Green LED lighting (600-1200VA) / The left green LED lighting & the 1st to 4th green LEDs gradually lighting indicating load leve (1500-2000VA) Battery Mode: Yellow LED Flashing (600-1200VA) / The left green LED flashing & the 1st to 4th green LEDs gradually lighting indicating battery capacity (1500-2000VA) Fault Mode: Red LED Lighting 3. -
Page 6: Installation & Operation
INSTALLATION & OPERATION 1) INSPECTION Inspect the UPS upon receipt. Notify the carrier and dealer if there is damage. The package is recyclable; save it for reuse or dispose of it properly. 2) PLACEMENT Install the UPS in a protected area that is free of excessive dust and has adequate air flow. Please place the UPS away from other units at least 20 cm to avoid interference. -
Page 7: Trouble Shooting
6) DC START All Series are equipped with DC Start. To start the UPS when AC utility power is not available, simply press the power switch. 7) GREEN POWER FUNCTION All UPS is equipped with Green Power Function. For saving power and protecting battery, the method of deep discharging protection is adapted on inverter mode. -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS Model 600-800 A/AP 1000-1200 A/AP 1500-2000 A/AP VA/W 600VA/360W 1000VA/600W 1500VA/900W CAPACITY 800VA/480W 1200VA/720W 2000VA/1200W Voltage 200VAC ya da 230VAC INPUT Voltage Range 162-290VAC Voltage 220/230VAC Voltage Regulation +/-10% (Batt. Mode) OUTPUT Frequency 50Hz or 60Hz Frequency Regulati- +/-1 Hz on (Batt Mode) Output Waveform... - Page 12 www.informups.com...
