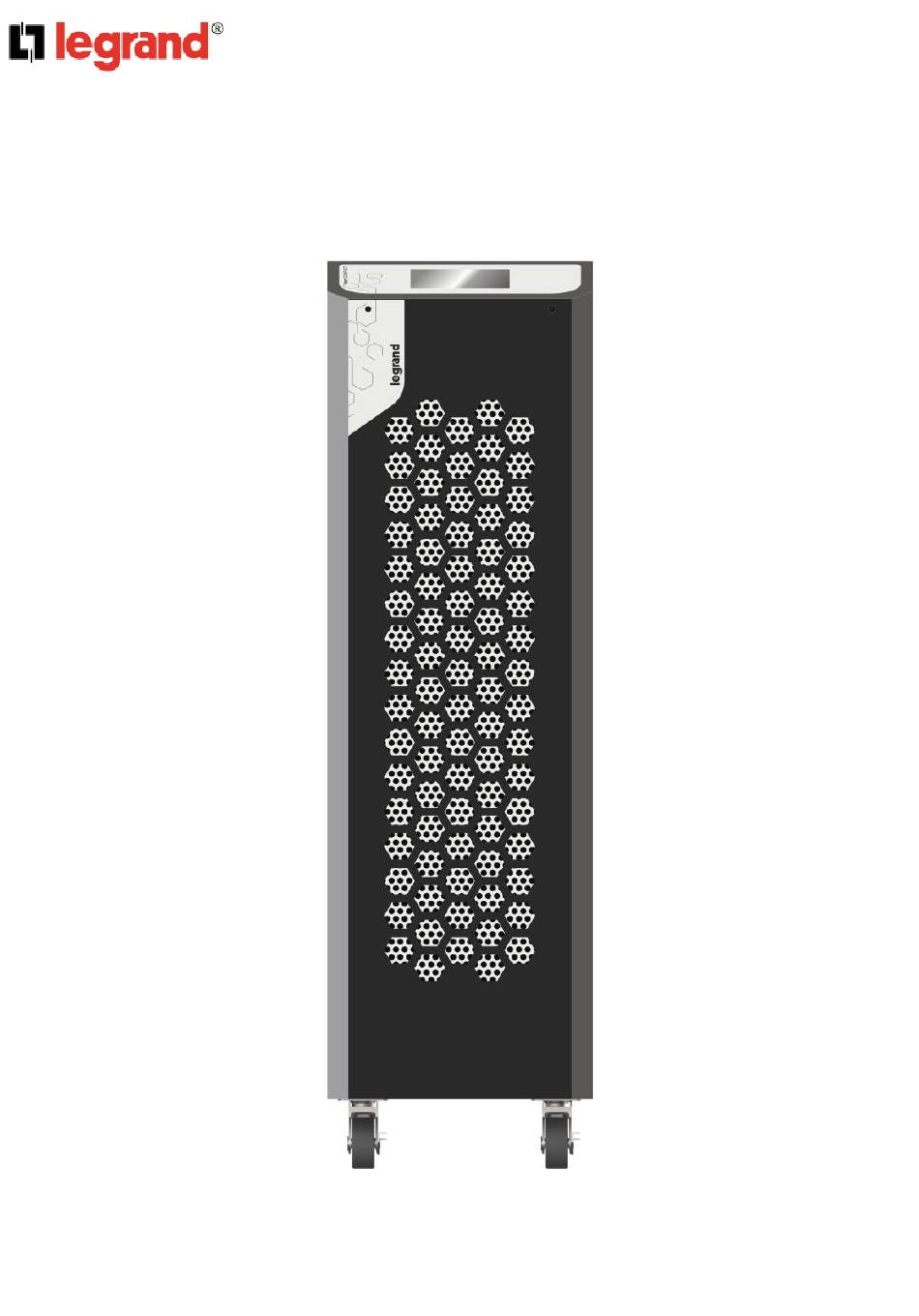

KEOR COMPACT
Installation and User Manual
LE12675AA
– 2021/03
The copying, redistribution, use or publication of such contents is strictly prohibited without Legrand authorization

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KEOR COMPACT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LEGRAND KEOR COMPACT

Summary of Contents for LEGRAND KEOR COMPACT

  • Page 1 KEOR COMPACT Installation and User Manual LE12675AA – 2021/03 The copying, redistribution, use or publication of such contents is strictly prohibited without Legrand authorization...

  • Page 2: Table Of Contents

    KEOR COMPACT Table of Contents 1. Introduction ......................3 2. Regulatory and safety requirements ..............9 3. Transportation and placement ................14 4. Installation ......................19 5. Configuration and start-up ................. 35 6. Maintenance ...................... 46 7. Warehousing ...................... 48 8.

  • Page 3: Introduction

    Purpose of the manual The purpose of this manual is to provide the skilled technician (see paragraph 2.2.1) with instructions for safely installing the Keor Compact UPS, also called “equipment” in the rest of the manual and carry out ordinary maintenance procedures.
  • Page 4 - modifications made to the equipment, software, functioning logic unless they have been authorized by the Manufacturer in writing; - repairs that have not been authorized by the LEGRAND Technical Support Service; - damage caused intentionally, through negligence, by acts of God, natural phenomena, fire or liquid infiltration;...
  • Page 5 The guarantee terms may vary depending on the country where the UPS is sold. Check the validity and duration with LEGRAND's local sale representative. If there should be a fault in the product, contact the LEGRAND Technical Support Service which will provide all the instructions on what to do.
  • Page 6 KEOR COMPACT General UPS description The UPS systems described in this manual are on-line, double conversion; the inverter included in the UPS always supplies energy to the load, whether the mains is available or not (according to the battery autonomy time).
  • Page 7 KEOR COMPACT • Inverter [4] It converts the direct voltage coming from the rectifier or from the DC battery into alternating AC voltage stabilized in amplitude and frequency. The fully digital control of the output sinewave allows to achieve high performances, among which a very low voltage distortion even in presence of high-distorting loads.
  • Page 8 KEOR COMPACT • Bypass operation The load can be switched to bypass either automatically or manually. The manual changeover can be performed by display forcing the load to bypass. In case of failure of the bypass line, the load is switched back to inverter without interruption.

  • Page 9: Regulatory And Safety Requirements

    The professional that will carry out the installation, start up and ordinary maintenance is called “Skilled Technician”. This definition refers to people qualified by LEGRAND who have the specific technical qualification and are aware of the method of installing, assembling, repairing, bringing online and using the equipment safely.
  • Page 10 KEOR COMPACT Some typical activities the operator is expected to carry out are: - the use of the equipment in its normal functioning state and the restore of the functioning after it shuts down; - the adoption of the necessary provisions for maintaining the quality performance of the UPS;...
  • Page 11 The UPS works with dangerous voltages. Only skilled technicians qualified and authorized by LEGRAND must perform the installation and ordinary maintenance operations. No part of the UPS can be repaired by the operator. Extraordinary maintenance operations must be carried out by LEGRAND Technical Support Service personnel.
  • Page 12 KEOR COMPACT DANGER The UPS is powered by its own DC energy source (batteries). The output terminals may have a dangerous voltage even if the UPS is not connected to the AC power network. Disconnect all batteries before performing any installation and/or maintenance operation.
  • Page 13 KEOR COMPACT CAUTION Keor Compact 10 kVA is a category C2 UPS product. In a residential environment, this product may cause radio interference, in which case the user may be required to take additional measures. All the other models of Keor Compact are products for commercial and industrial application in the second environment - installation restrictions or additional measures may be needed to prevent disturbances.

  • Page 14: Transportation And Placement

    - the technical rating plate data on the label applied to the UPS correspond with the material described in the delivery documentation; - the documentation accompanying the equipment includes the installation and user manuals. In case of discrepancy, immediately inform the LEGRAND Technical Support Service before commissioning the equipment. INDICATION...
  • Page 15 KEOR COMPACT Unpacking To remove the packaging material, comply with the following procedure: - bring the UPS to the installation site using a forklift and/or a transpallet with suitable characteristics; - remove the packaging material, cut straps and cardboards protecting the UPS;...
  • Page 16 KEOR COMPACT - remove the UPS from the pallet; - block the wheel-brakes to fix the UPS; - raise the wheel-brakes to move the UPS;...
  • Page 17 The Keor Compact UPS has six wheels at the bottom of the cabinet. Before installations and while it is still empty, it can be moved by hand by at least two people.
  • Page 18 KEOR COMPACT Positioning constraints The UPS must be positioned respecting the following conditions: Top Side >300mm Rear Side Front Side >300mm Other >1000mm Equipment - keep at least 1000 mm of free space in front of the UPS for air flow and future maintenance purposes;...

  • Page 19: Installation

    KEOR COMPACT 4. Installation DANGER All UPS installation operations must be carried out exclusively by a SKILLED TECHNICIAN (paragraph 2.2.1). Safety regulations DANGER Before carrying out any installation operation you must read and apply the following: - The UPS has a high leakage current. The earthing connection must be connected before cabling the UPS input.
  • Page 20 KEOR COMPACT Views 4.2.1 Rear View 1. Communication Slot 1 2. Communication Slot2 3. Dry Contacts 4. External Battery Temperature Connector 5. RS-232 Port for Setting Software 6. Parallel Communication Ports (Option) 7. Communication Selector for Service Only 8. USB Port for Service Only 9.
  • Page 21 KEOR COMPACT 4.2.2 Internal Right View Battery Tray 4.2.3 Internal Top View Jumpers (J1~J3) for SD Card Slot each output contact...
  • Page 22 KEOR COMPACT Electrical connections The electrical hook-up of the UPS to the switchgear or to the external battery cabinets is part of the installation that is not normally performed by the UPS manufacturer. For this reason, the indications that follow are to be considered approximate and it is recommended that the electrical connections are based on local installation standards.
  • Page 23 KEOR COMPACT If the UPS is installed in a TN-C system, it is necessary to connect together the input, bypass and output neutral on the terminals during the installation as shown in the following picture. For the connecting cable between X40-2N and X50-3N, use a cable with a maximum cross section of 10 mm2 to be terminated together with the neutral cable with a tube terminal.
  • Page 24 KEOR COMPACT 4.3.3 Internal battery installation 4.3.3.1 Keor Compact 20 kVA...
  • Page 25 KEOR COMPACT 4.3.3.2 Keor Compact 15 kVA...
  • Page 26 KEOR COMPACT 4.3.3.3 Keor Compact 10 kVA...
  • Page 27 KEOR COMPACT 4.3.4 Terminals configuration The electrical configuration must be done on the distribution terminal strip. WARNING Always check that the connection jumper screws are tightened properly. 4.3.4.1 Factory configuration: THREE PHASE input – THREE PHASE output with common bypass input line The UPS default configuration is set in the factory according to the following diagram.
  • Page 28 KEOR COMPACT 4.3.5 Input cables installation The installation must be done according to the following steps: check that the available mains power is at least the same of the UPS nominal power; check that the cables to connect to the UPS are isolated upstream and no voltage is present;...
  • Page 29 KEOR COMPACT 4.3.7 Output cables installation The installation must be done according to the following steps: - check that the nominal power of the UPS is at least the same of the nominal power of the load; - check that the cables to connect to the UPS are isolated upstream and no voltage is present;...
  • Page 30 KEOR COMPACT Parallel connections The UPS can be operated in parallel to extend the capacity and to enhance the system reliability. Up to 6 UPS units can be operated in parallel. ◼ Recommended N+1 parallel for dual inputs system configuration...
  • Page 31 KEOR COMPACT The parallel communications cable must be plugged as shown below.
  • Page 32 KEOR COMPACT Communication devices • Dry Contacts The UPS provides 3 output dry contacts and1 input contact. Specification of Output dry contacts：250 VAC/ 2 A; 30 VDC/2 A There are 3 jumpers (J1~J3) to set NC/NO for each output contact. Jumper (J1~J3) are displayed in Internal Top View (see paragraph 4.2.3).
  • Page 33 KEOR COMPACT • Communication Slot1 This slot can install relay card or RS-485 MODBUS card. • Communication Slot2 This slot can install Relay card or SNMP card. Ensure the SW2 switch to correct position when this slot is used. •...
  • Page 34 KEOR COMPACT • Backfeed Trip The UPS provide a backfeed protection contact to trip the external electromechanical device for isolation from the power circuit. The backfeed protection is for ensuring personnel safety against any risk of accidental energy return to the input circuit. It imposes the automatic opening of a switching device in case of a malfunction of the static switch.

  • Page 35: Configuration And Start-Up

    KEOR COMPACT 5. Configuration and start-up DANGER All the configurations and start-up operations must be carried out exclusively by a SKILLED TECHNICIAN (paragraph 2.2.1). Pre-start-up checks Before powering the equipment, carry out the following checks: 1. Close all the distribution panels on the UPS cabinet.
  • Page 36 KEOR COMPACT 5.2.1 Start-up in normal mode In Normal mode, grid power is passed through rectifier then used to charge the battery and provide power through the Inverter simultaneously. Different output voltages settings can be set. The three options are 380/220V, 400/230V and 415/240V.
  • Page 37 KEOR COMPACT 7- The inverter will be started and supply output voltage. 8- Close the UPS Output Switch to supply the power to the load. 5.2.2 Cold start 1- Close the battery breakers. 2- Turn ON the Batt. Power switch in the rear of UPS.
  • Page 38 KEOR COMPACT Other procedures 5.3.1 Shutdown 1- Select Home → Command → Operation → Shutdown on the LCD panel. 2- After the UPS turned off and the power to the loads has been cut off, turn OFF the output breaker at the back of the UPS.
  • Page 39 KEOR COMPACT Front Panel The UPS is equipped with an LCD touch screen which provides a simple and intuitive user interface. The touch screen is organized with a home page, through which it is possible to access all the main sections, and with a mimic diagram which shows the energy flow and the main input/output operating parameters.
  • Page 40 KEOR COMPACT 5.4.2 Menu pages The Menu page can be opened by tapping the icon . The pages can be changed by sliding on the screen until the required section is shown. The sections available are: - Mimic Display; - Command;...
  • Page 41 KEOR COMPACT Some function pages will also show command buttons. Button Assigned functions ➢ Save the new settings ➢ Reload the data ➢ Go to mimic display The structure of the menu and sub-menu is shown in the following table.
  • Page 42 KEOR COMPACT Bypass Output Schedule Display the schedule Schedule Management Define the schedule for the ECO mode operation setting Battery test Define the schedule for the battery test schedule Language Select the display language Update Prog. Upgrade the software of LCD touch display...
  • Page 43 KEOR COMPACT 5.4.3 Parameters section The Parameters page is a sub-section of the Setting menu. Locate the Setting icon on the home page and tap on it to open the relevant section; the following page will appear. Tap the arrow to scroll the sub-sections and select Parameters.
  • Page 44 KEOR COMPACT Output transformer ratio 0.00 ÷ 10.00 Unit number 1 ÷ 6 Other Number of units in parallel system 1 ÷ 6 Set EPO logic NO/NC The Range setting for 10kVA is 156 ~ 240 and 15-20kVA is 192 ~ 240.
  • Page 45 KEOR COMPACT 5.4.4 Mimic display The mimic display shows the energy flow and gives immediate information about the UPS status. Rectifier Static switch Inverter → The part is not activated → The part is activated and correctly operating → Abnormal condition or failure...

  • Page 46: Maintenance

    SKILLED TECHNICIANS (paragraph 2.2.1). EXTRAORDINARY MAINTENANCE operations must be carried out only by LEGRAND TECHNICAL SUPPORT SERVICE. LEGRAND declines all liability for any injury or damage caused by activities carried out differently from the instructions written in this manual. Preventive maintenance The UPS does not contain parts for preventative maintenance by the operator.
  • Page 47 6. The event log and machine information will be saved on SD card named xxxx_KN_xx_IDx_xxxxxx_Log.txt xxxx_KN_xx_IDx_xxxxxx_Inf.mch. Send these files LEGRAND Technical Support Service. Extraordinary maintenance Contact the LEGRAND Technical Support Service if there are failures that require the access to internal parts of the UPS.

  • Page 48: Warehousing

    - up to 2 months if the temperature is over +40°C (+104°F). CAUTION Batteries must never be stored if partially or totally discharged. LEGRAND is not liable for any damage or bad functioning caused to the UPS by wrong warehousing of the batteries.

  • Page 49: Dismantling

    KEOR COMPACT 8. Dismantling DANGER Dismantling and disposal operations must be carried out only by a SKILLED TECHNICIAN (paragraph 2.2.1). The instructions in this chapter are to be considered indicative: in every country there are different regulations regarding the disposal of electronic or hazardous waste such as batteries.

  • Page 50: Mechanical Characteristics

    KEOR COMPACT 9. Mechanical characteristics...
  • Page 51 KEOR COMPACT...

  • Page 52: Technical Data

    10. Technical data MAIN FEATURES 3 111 00 3 111 02 3 111 04 3 111 01 3 111 03 3 111 05 Keor Compact 10 Keor Compact 15 Keor Compact 20 Nominal Power (kVA) Active Power 13,5 (kW) online, double conversion...
  • Page 53 KEOR COMPACT OUTPUT ELECTRICAL CHARACTERISTICS 3 111 00 3 111 02 3 111 04 3 111 01 3 111 03 3 111 05 Keor Compact 10 Keor Compact 15 Keor Compact 20 Maximum output current 15.2 22.8 30.4 Output voltage 380/400/415 ±...
  • Page 54 3 111 00 3 111 02 3 111 04 3 111 01 3 111 03 3 111 05 Keor Compact 10 Keor Compact 15 Keor Compact 20 Battery type VRLA 12V Number of internal 30 – 9Ah (3 111 01) 36 –...
  • Page 55 3 111 00 3 111 02 3 111 04 3 111 01 3 111 03 3 111 05 Keor Compact 10 Keor Compact 15 Keor Compact 20 Operating 0 ÷ +40 temperature (+20 ÷ +25 recommended for longer battery life) (°C)

  • Page 56: Tables

    The following tables give an indication of the wire cross sections to use if the wires are unipolar with simple PVC installation and installation in tube in the air. TABLE 1 Minimum wire cross sections recommended for Keor Compact UPS POWER INPUT CABLE...
  • Page 57 KEOR COMPACT TABLE 3 Residual current breaker recommended for input and bypass line RESIDUAL CURRENT BREAKER POWER (IΔn) 10 kVA ≥ 300 mA type B 15 kVA 20 kVA TABLE 4 Maximum battery current during discharge at full load and minimum wire cross sections...
  • Page 58 KEOR COMPACT...
