Tool Kit for Slip-On Wire-to-Wire Terminal
Tool Kit
Order No. 63825-6470
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
SCOPE
Products: Slip-On Wire-to-Wire Terminal, 6.35mm Tab, 12-14 AWG.
Terminal Series No.
35725
DEFINITION OF TERMS
ROLLING
Doc No: ATS-6382564HM Release Date: 07-02-12
Revision: A
Application Tooling
Specification Sheet
Terminal Order No.
Reel Form Only
Wire Style mm² / AWG
35725-1900
35725-1901
35725-1910
Customer to cut off terminal from reel: 0.18mm (.007") maximum Cut-off Tab.
STRIP LENGTH
BRUSH
BEND UP
TWISTING
BEND
DOWN
Revision Date: 07-02-12
Wire Size
Insulation Diameter
mm
NA
2.00 / 12
3.80-5.00 .150-.197 4.80-5.20 .189-.205
NA
3.00 / 14
BELL MOUTH
CUT-OFF TAB
UNCONTROLLED COPY
Hand Crimp Tool
Order No. 63825-6400
Strip Length
In.
mm
In.
CONDUCTOR
CRIMP HEIGHT
INSULATION CRIMP
▲SEE NOTE
SEAM
CONDUCTOR CRIMP
TYPE 4C
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 207129 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for molex 207129 Series

Summary of Contents for molex 207129 Series

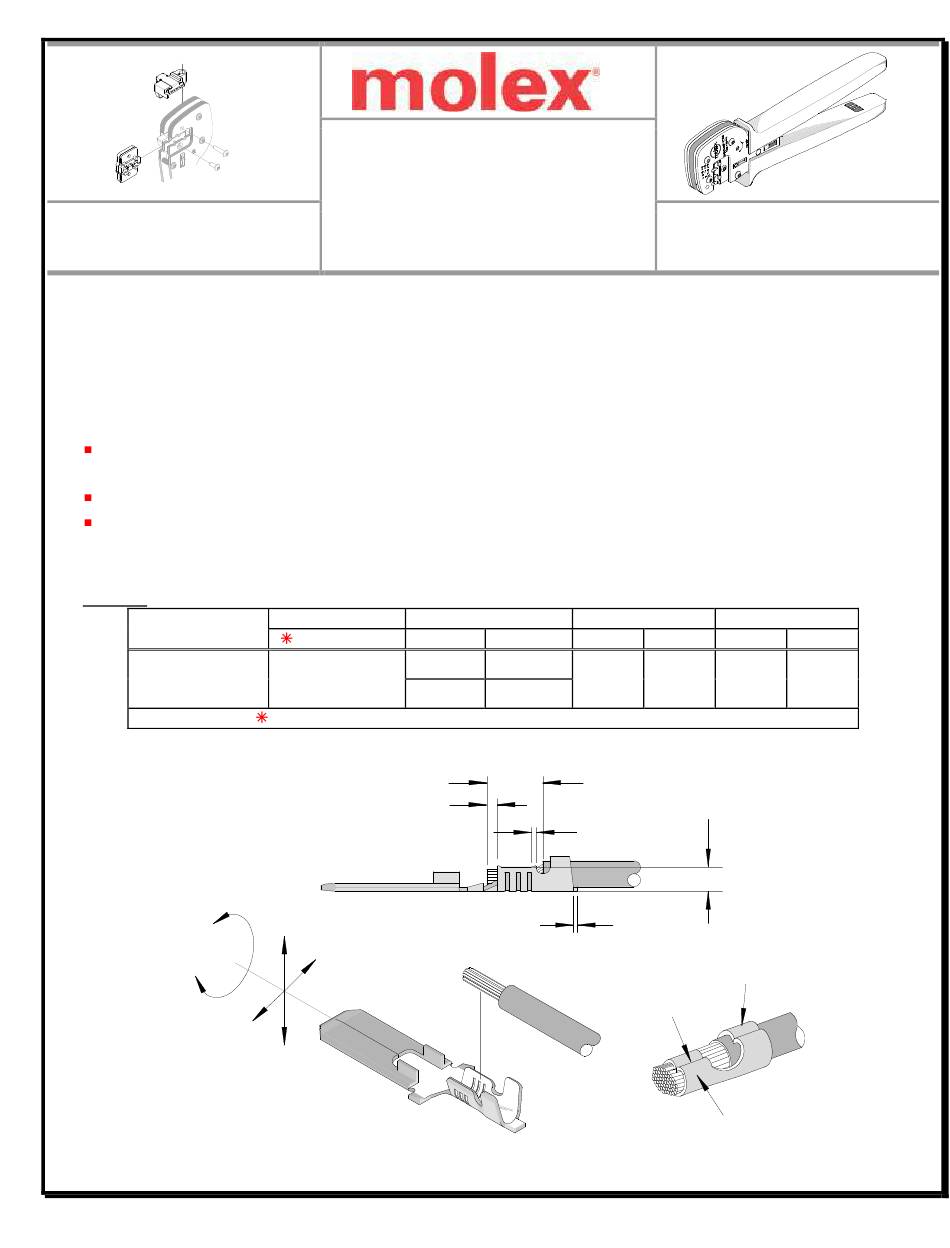

  • Page 1 Tool Kit for Slip-On Wire-to-Wire Terminal TYPE 4C Application Tooling Specification Sheet Tool Kit Hand Crimp Tool Order No. 63825-6470 Order No. 63825-6400 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
