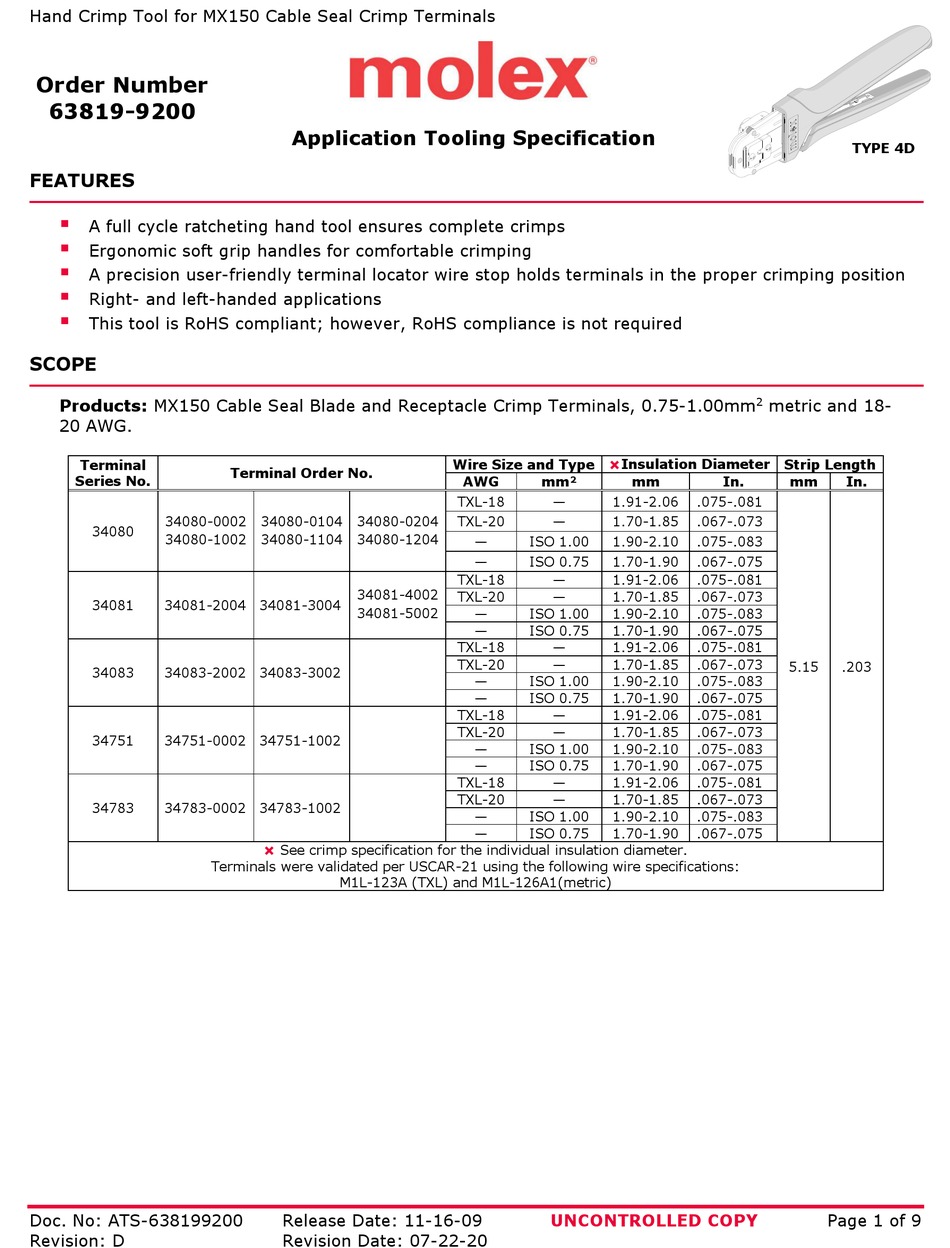

Hand Crimp Tool for MX150 Cable Seal Crimp Terminals
Order Number
63819-9200
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Right- and left-handed applications
This tool is RoHS compliant; however, RoHS compliance is not required
SCOPE
Products: MX150 Cable Seal Blade and Receptacle Crimp Terminals, 0.75-1.00mm
20 AWG.
Terminal
Series No.
34080-0002
34080
34080-1002
34081
34081-2004 34081-3004
34083
34083-2002 34083-3002
34751
34751-0002 34751-1002
34783
34783-0002 34783-1002
Doc. No: ATS-638199200
Revision: D
Application Tooling Specification
Terminal Order No.
34080-0104
34080-0204
34080-1104
34080-1204
34081-4002
34081-5002
See crimp specification for the individual insulation diameter.
Terminals were validated per USCAR-21 using the following wire specifications:
M1L-123A (TXL) and M1L-126A1(metric)
Release Date: 11-16-09
Revision Date: 07-22-20
Wire Size and Type
Insulation Diameter
AWG
mm²
mm
TXL-18
—
1.91-2.06
TXL-20
—
1.70-1.85
—
ISO 1.00
1.90-2.10
—
ISO 0.75
1.70-1.90
TXL-18
—
1.91-2.06
TXL-20
—
1.70-1.85
—
ISO 1.00
1.90-2.10
—
ISO 0.75
1.70-1.90
TXL-18
—
1.91-2.06
TXL-20
—
1.70-1.85
—
ISO 1.00
1.90-2.10
—
ISO 0.75
1.70-1.90
TXL-18
—
1.91-2.06
TXL-20
—
1.70-1.85
—
ISO 1.00
1.90-2.10
—
ISO 0.75
1.70-1.90
TXL-18
—
1.91-2.06
TXL-20
—
1.70-1.85
—
ISO 1.00
1.90-2.10
—
ISO 0.75
1.70-1.90
UNCONTROLLED COPY
TYPE 4D
2
metric and 18-
Strip Length
In.
mm
In.
.075-.081
.067-.073
.075-.083
.067-.075
.075-.081
.067-.073
.075-.083
.067-.075
.075-.081
.067-.073
5.15
.203
.075-.083
.067-.075
.075-.081
.067-.073
.075-.083
.067-.075
.075-.081
.067-.073
.075-.083
.067-.075
Page 1 of 9
