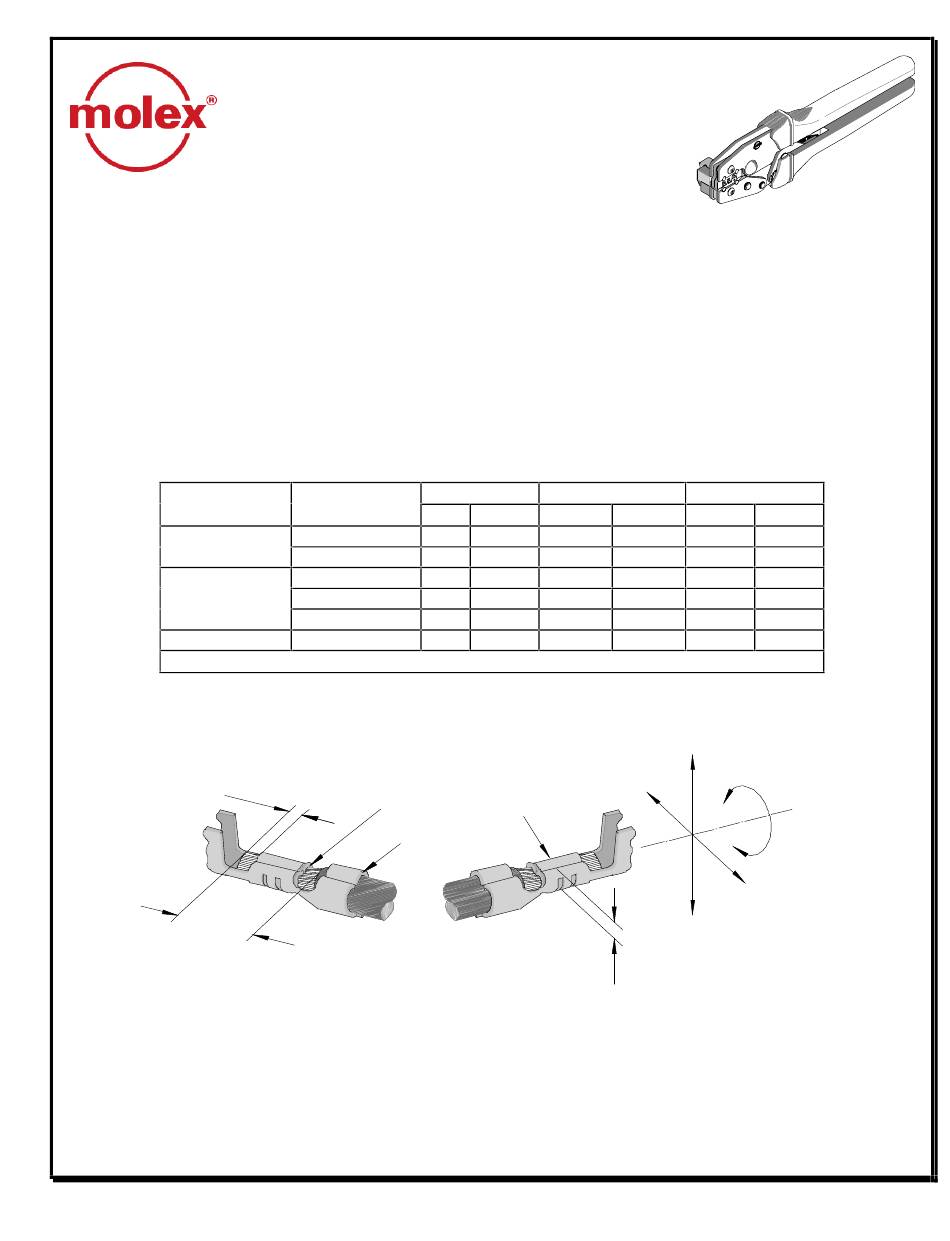

Hand Crimp Tool for SPOX™ Terminals
FEATURES
Œ
Œ
A full cycle ratcheting hand tool ensures complete crimps
Œ
Ergonomic soft grip handles for comfortable crimping
Œ
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
This tool is WHMA-IPCA620 Class 2 and RoHS compliant
SCOPE
SPOX™, 2.50mm (.098") Pitch Crimp Terminal, 22 - 28 AWG.
Terminal Series No.
5103
5263
45627
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the scope.
Doc No. 63811-5200
Release Date: 04-03-06
Revision: A
Revision Date: 04-03-06
HAND CRIMP TOOL
SPECIFICATION SHEET
Order No. 63811-5200
Wire Size
Terminal Order No.
AWG
08-70-0057
22-28
0.35-0.08
08-70-0059
22-28
0.35-0.08
08-70-1040
22-28
0.35-0.08
08-70-1046
22-28
0.35-0.08
39-00-0152
22-28
0.35-0.08
45627-0002
22-24
0.35-0.20
✴
See Conditions on page 2.
BELL MOUTH
INSULATION
CRIMP
UNCONTROLLED COPY
✴
Insulation Diameter
mm²
mm
In.
1.15-1.90
.045-.075
1.15-1.90
.045-.075
1.15-1.90
.045-.075
1.15-1.90
.045-.075
1.15-1.90
.045-.075
1.15-1.90
.045-.075
CONDUCTOR
CRIMP
CRIMP HEIGHT
TYPE 2C
Strip Length
mm
In.
3.30-3.80
.130-.150
3.30-3.80
.130-.150
3.30-3.80
.130-.150
3.30-3.80
.130-.150
3.30-3.80
.130-.150
3.30-3.80
.130-.150
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 6
