PANELS AND DASH DISASSEMBLY

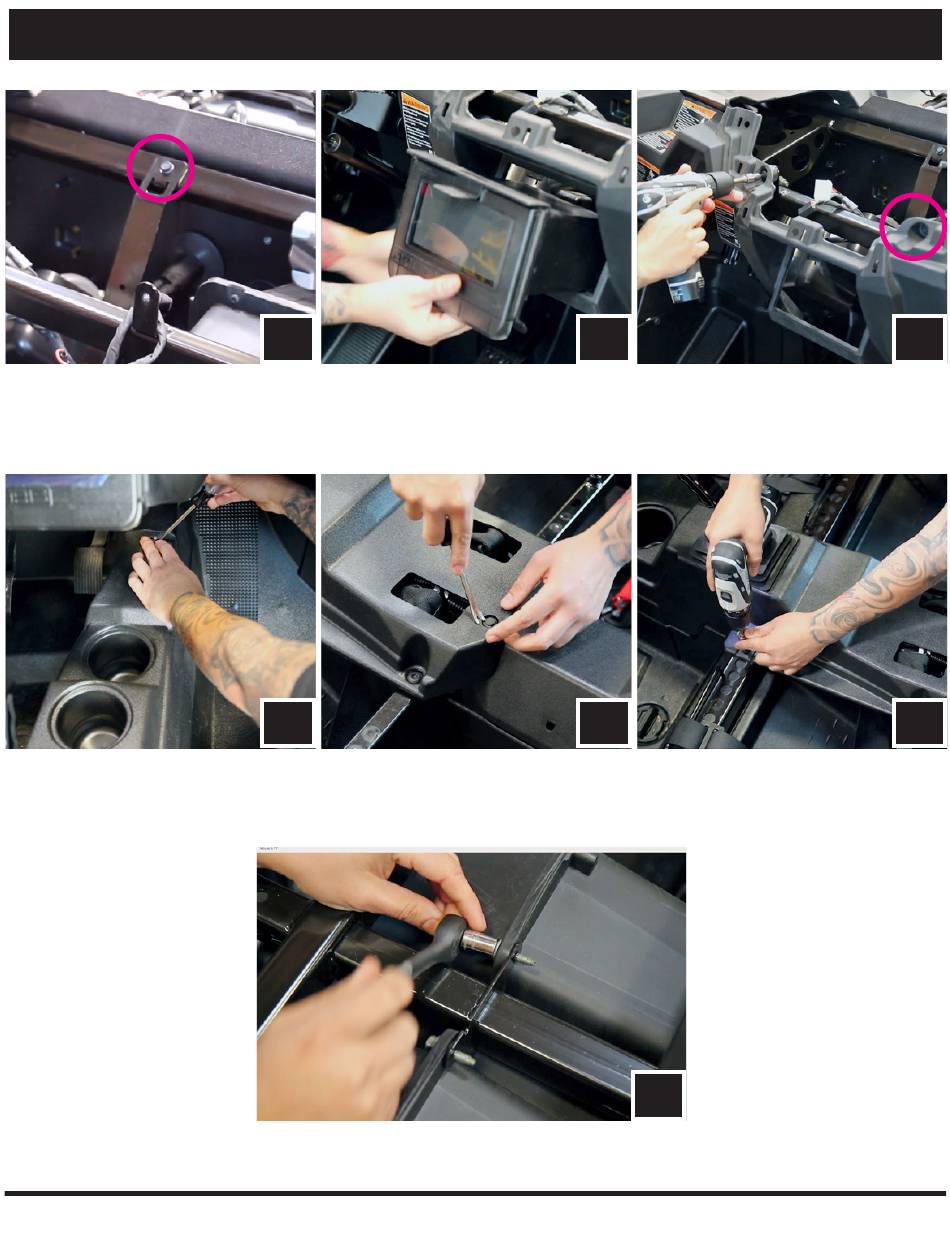

G. Remove the factory dash pocket by first extracting the 10mm bolt on the dash frame (G1). Then pull out the dash pocket with bracket attached (G2) - NOTE
this bracket will no longer be used for any part of this installation. Save this screw as it will be use later during the amp plate installation.
Extract (2) screws securing the sub dash (G3). Unsnap and remove.
H. Remove all of the center console push pins and T-30 Torx screws. For 4-seat models, disconnect the harness attached to the 12v accessory socket.
G1
H
I. Remove glovebox by removing (2) 10mm screws.
G2
H
I
G3
H
5
