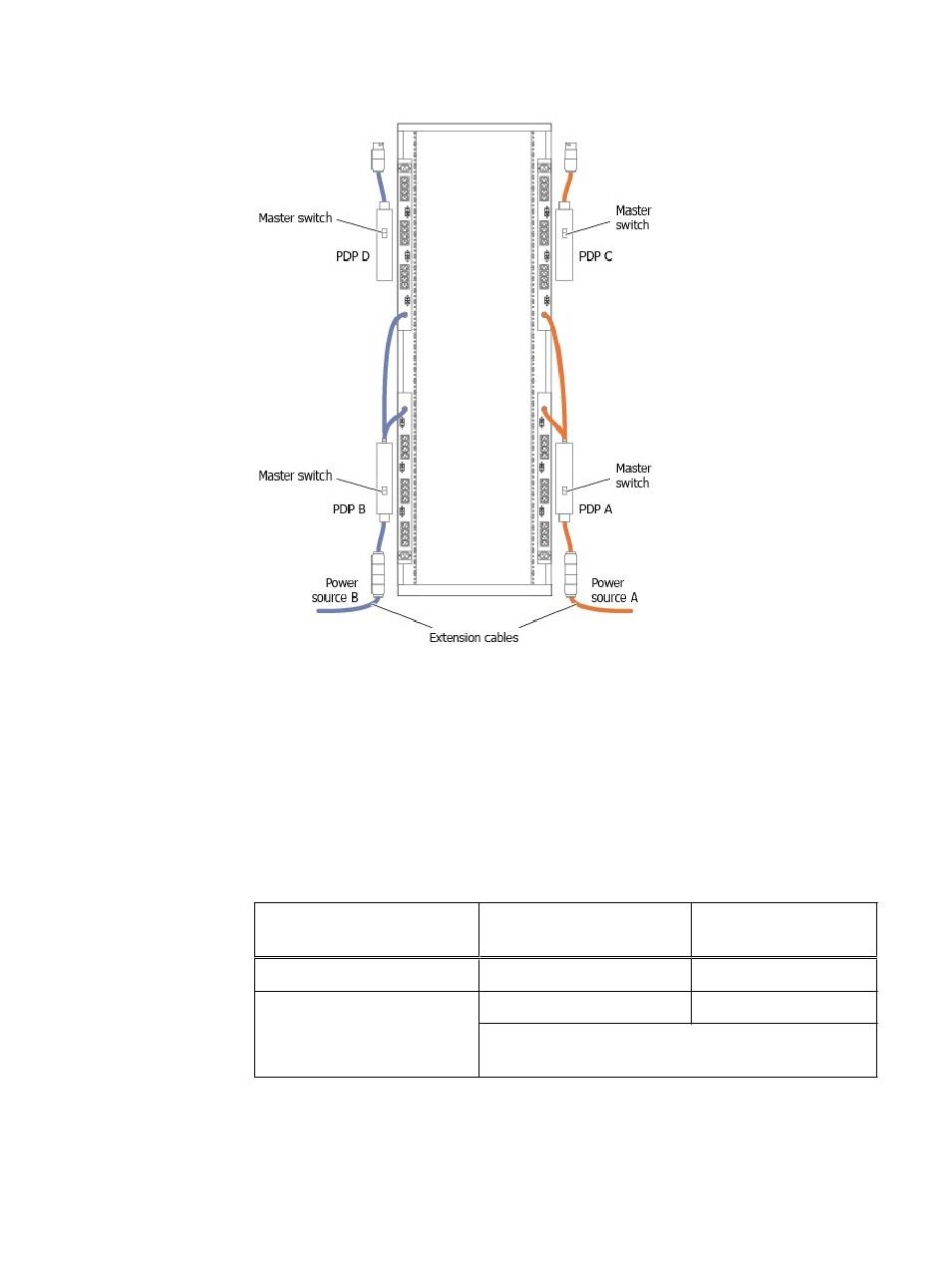

Figure 8 Power distribution cabling — DLm8500
This section provides an overview of power and cooling data.
The following table provides total power consumption and heat dissipation values for
DLm8500 Multiple Rack Solution for PowerMax systems (which contain a maximum of
eight VTEs, two 16 Gb Fibre Channel data switches, two 10 GbE data switches, and
two 1 GbE management switches):
Table 17 DLm8500 Multiple Rack Solution for PowerMax power consumption and heat
dissipation
System configuration
a
description
VTEC cabinet
PowerMax cabinets
a.
All VTEC cabinet values are calculated for a fully loaded configuration. Contact your Dell
EMC Sales Representative for specific supported configurations.
Disk Library for mainframe Physical Planning Guide for DLm8500
DLm8500 with PowerMax Physical Planning
Total power
consumption
4.08 kVA
3.47 KVA
Refer to the Dell EMC PowerMax Family Site Planning
Guide for information about the PowerMax cabinets.
Heat dissipation
(Btu/Hr)
13,050
10,800
