DLm8500 with Data Domain Physical Planning
Disk Library for mainframe Physical Planning Guide for DLm8500
22

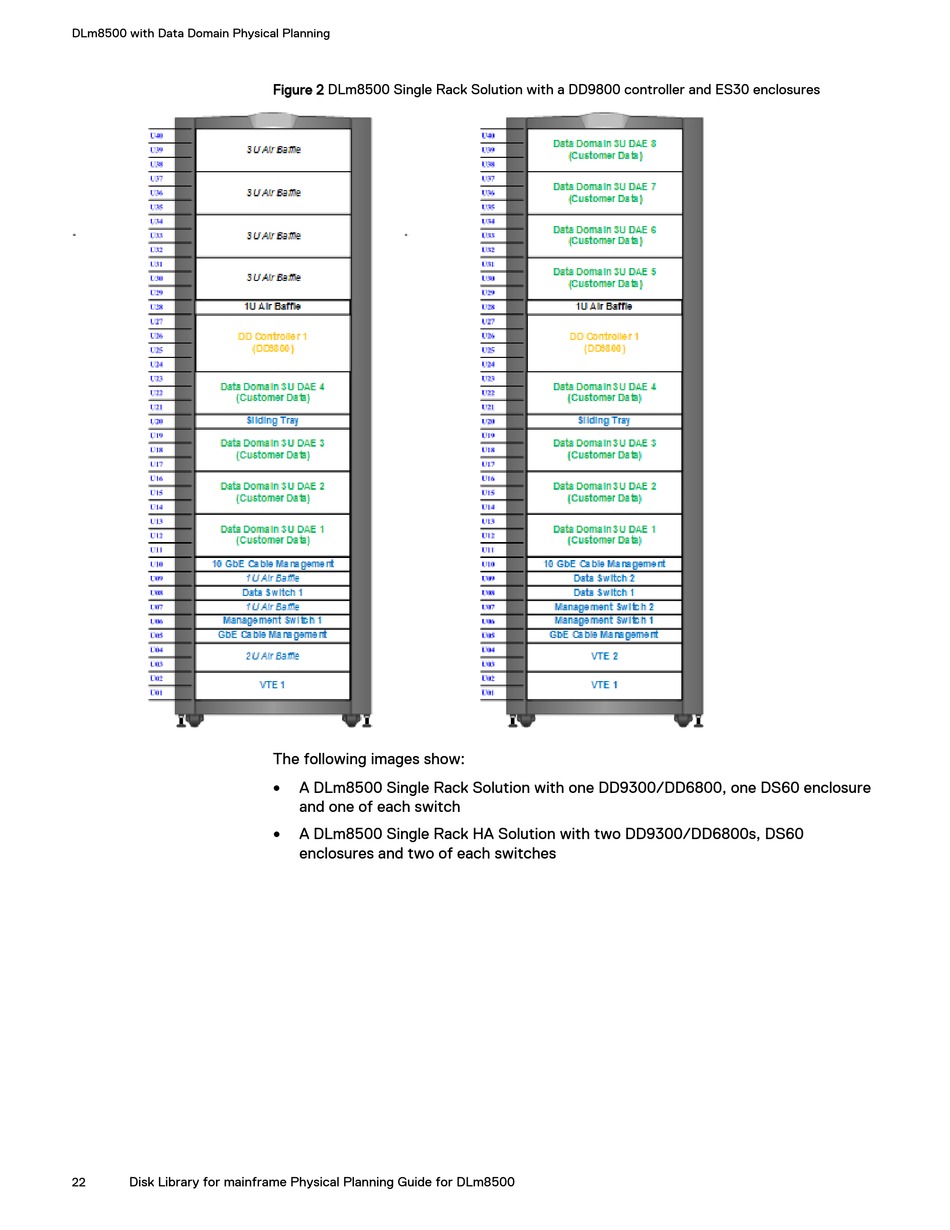

Figure 2 DLm8500 Single Rack Solution with a DD9800 controller and ES30 enclosures
The following images show:
A DLm8500 Single Rack Solution with one DD9300/DD6800, one DS60 enclosure
l
and one of each switch
A DLm8500 Single Rack HA Solution with two DD9300/DD6800s, DS60
l
enclosures and two of each switches
