DLm physical specification for single cabinet
External network requirements in DLm8500
PowerMax storage cabinet—The Dell EMC PowerMax Family Site Planning Guide -
l
PowerMax 2000 and PowerMax 8000 provides the accurate weight.
PowerMax system cabinet—The Dell EMC PowerMax Family Site Planning Guide -
l
PowerMax 2000 and PowerMax 8000 provides the accurate weight.

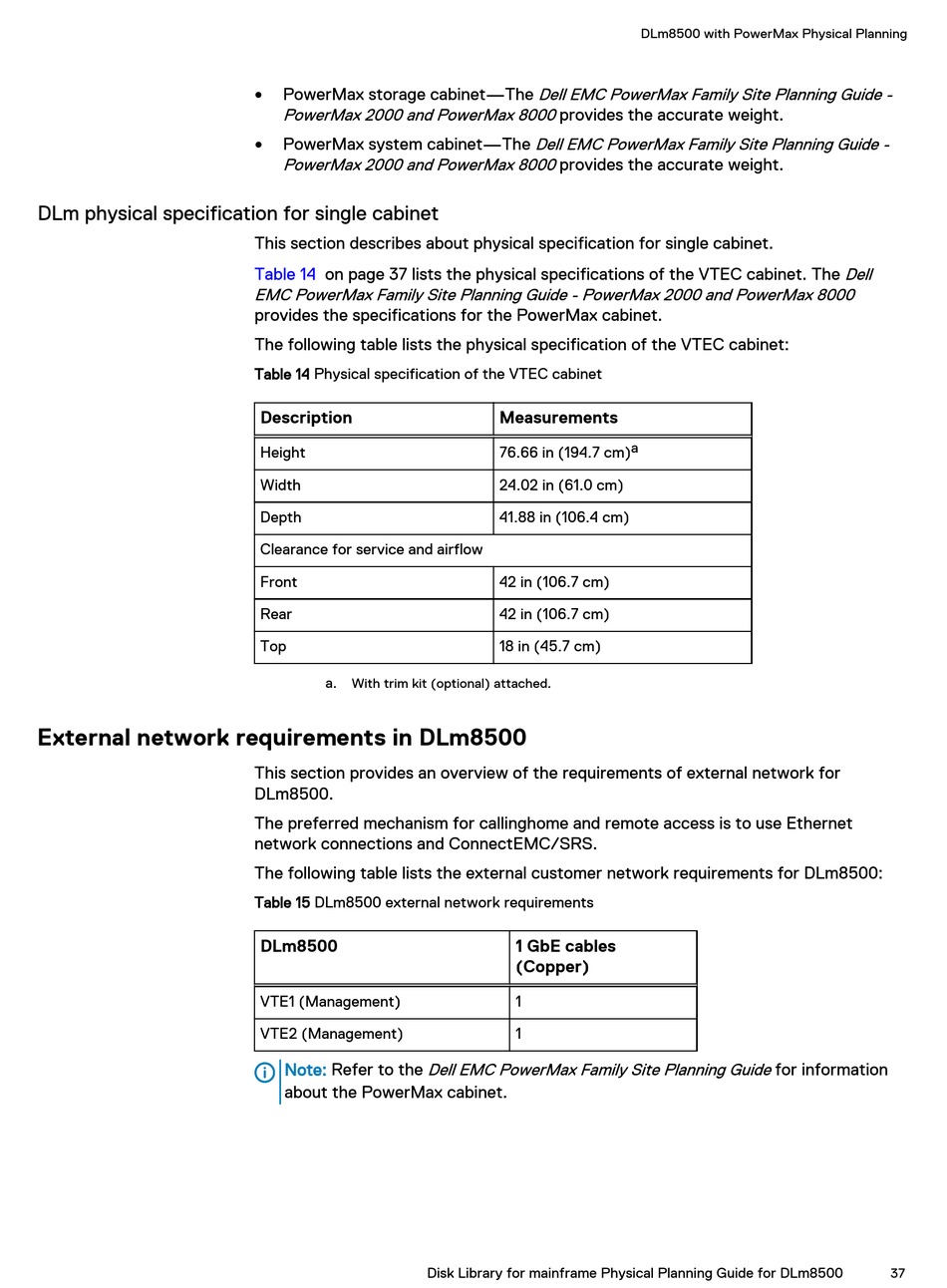

This section describes about physical specification for single cabinet.
Table 14
on page 37 lists the physical specifications of the VTEC cabinet. The Dell
EMC PowerMax Family Site Planning Guide - PowerMax 2000 and PowerMax 8000
provides the specifications for the PowerMax cabinet.
The following table lists the physical specification of the VTEC cabinet:
Table 14 Physical specification of the VTEC cabinet
Description
Height
Width
Depth
Clearance for service and airflow
Front
Rear
Top
a.
With trim kit (optional) attached.
This section provides an overview of the requirements of external network for
DLm8500.
The preferred mechanism for callinghome and remote access is to use Ethernet
network connections and ConnectEMC/SRS.
The following table lists the external customer network requirements for DLm8500:
Table 15 DLm8500 external network requirements
DLm8500
VTE1 (Management)
VTE2 (Management)
Note:
Refer to the Dell EMC PowerMax Family Site Planning Guide for information
about the PowerMax cabinet.
Disk Library for mainframe Physical Planning Guide for DLm8500
DLm8500 with PowerMax Physical Planning
Measurements
a
76.66 in (194.7 cm)
24.02 in (61.0 cm)
41.88 in (106.4 cm)
42 in (106.7 cm)
42 in (106.7 cm)
18 in (45.7 cm)
1 GbE cables
(Copper)
1
1
37
