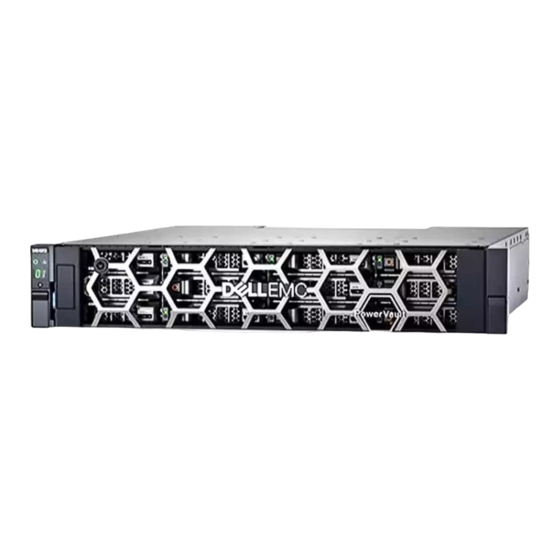

Dell EMC ME4 Series
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ME4 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dell EMC ME4 Series

Summary of Contents for Dell EMC ME4 Series

  • Page 1 Dell EMC ME4 Series Owner’s Manual...
  • Page 2 Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

  • Page 3: Table Of Contents

    Contents 1 Storage system hardware..........................6 Locate the service tag...............................6 Enclosure configurations..............................6 Enclosure management..............................7 Management interfaces...............................7 Operation.....................................7 Enclosure variants................................10 2U12..................................... 10 2U24....................................11 5U84..................................... 11 2U enclosure core product............................... 11 2U enclosure front panel............................11 2U enclosure rear panel............................. 12 5U84 enclosure core product............................16 5U84 enclosure front panel............................
  • Page 4 Troubleshooting 5U enclosures............................43 Thermal considerations............................. 43 CLI port connections............................... 44 Fault isolation methodology............................44 Fault isolation methodology basic steps........................44 Options available for performing basic steps......................44 Performing basic steps..............................45 Host I/O.................................... 47 Dealing with hardware faults............................47 Continuous operation during replacement......................47 Firmware updates...............................47 Customer-replaceable units............................
  • Page 5 Power cooling module..............................91 Power supply unit................................92 C Standards and regulations........................... 93 International standards..............................93 Potential for radio frequency interference........................93 European regulations............................... 93 Safety compliance................................93 Dell EMC compliance...............................94 AC power cabless................................94 Recycling of Waste Electrical and Electronic Equipment (WEEE)................95 Contents...

  • Page 6: Storage System Hardware

    Locate the service tag Your ME4 Series storage system is identified by a unique Service Tag and Express Service Code. The Service Tag and Express Service Code are found on the front of the system by pulling out the information tag. Alternatively, the information might be on a sticker on the back of the storage system chassis.

  • Page 7: Enclosure Management

    Upon completing the hardware installation, you can access the controller module’s web-based management interface—ME Storage Manager—to configure, monitor, and manage the storage system. The controller module also provides a CLI in support of command entry and scripting. For details, see the Dell EMC ME4 Series Storage System CLI Guide for your system. Operation...
  • Page 8 NOTE: Enclosure variants for details about various 2U12 enclosure options. Figure 1. 2U12 enclosure system—front orientation Figure 2. 2U12 enclosure system—rear orientation The 2U12 controller enclosure in Figure 2. 2U12 enclosure system—rear orientation is equipped with 2 controllers (4–port FC/ISCSI model shown).
  • Page 9 Figure 4. 2U24 enclosure system—front orientation Figure 5. 2U24 enclosure system—rear orientation The 2U24 controller enclosure is equipped with dual-controllers (4-port SAS model shown). Figure 6. 5U84 enclosure system—front orientation Storage system hardware...

  • Page 10: Enclosure Variants

    Figure 7. 5U84 enclosure system—rear orientation The 5U84 controller enclosure is equipped with dual-controllers (4-port FC/iSCSI model shown). Enclosure variants The 2U chassis can be configured as a controller enclosure ME4012, ME4024, or an expansion enclosure ME412ME424 as shown in Table 1.

  • Page 11: 2U24

    2U24 2U24 enclosures consist of 24 x SFF (Small Form Factor) disk drives. Table 2. 2U24 enclosure variants Product Configuration PCMs IOMs ME4024 12Gb/s direct dock SFF SAS 12Gb/s direct dock SFF SAS ME424 12Gb/s direct dock SFF SAS -Redundant PCMs must be compatible modules of the same type (both AC). -Supported controller module IOMs include 4-port FC/iSCSI, 4-port HD mini-SAS, and 4-port iSCSI 10Gbase-T.

  • Page 12: 2U Enclosure Rear Panel

    Numeric designators on PCMs and alphabetic designators on IOMs indicate slot sequencing for modules used in 2U enclosures. PCM and IOM modules are available as CRUs. The ME4 Series RBODs use 4-port controller modules. These RBODs support the ME412/ME424/ ME484 EBODs for optionally adding storage.
  • Page 13 Figure 12. 2U controller enclosure—rear panel components (4-port SAS) Power cooling module slot 0 Power cooling module slot 1 Controller module slot A Controller module slot B Figure 13. 2U expansion enclosure—rear panel components Power cooling module slot 0 Power cooling module slot 1 Controller module slot A Controller module slot B NOTE:...
  • Page 14 USB serial port Serial ports (service only) Reset CNC ports (typical 2 places) Figure 16. 4-port HD mini-SAS controller module detail shows SAS host interface ports that ship configured with 12Gb/s HD mini-SAS (SFF-8644) external connectors. Figure 14. 4-port iSCSI 10Gbase-T controller module detail shows iSCSI 10Gbase-T host interface ports that ship configured with pre- installed external connectors.
  • Page 15 • When the expansion module shown in Figure 17. Expansion module detail ME412/ME424/ME484 is used with ME4 Series controller modules for adding storage, its middle HD mini-SAS expansion port (“B”) is disabled by the firmware. • The Ethernet port on the expansion module is not used in controller/expansion enclosure configurations, and is disabled.

  • Page 16: 5U84 Enclosure Core Product

    5U84 enclosure core product Figure 19. 5U84 enclosure—front panel components Figure 20. 5U84 enclosure system - plan view of drawer accessed from front panel show component locations—together with CRU slot indexing—relative to the 5U84 enclosure front panel with drawers, and the rear panel.

  • Page 17: 5U84 Enclosure Rear Panel

    Figure 20. 5U84 enclosure system - plan view of drawer accessed from front panel Drawer front panel (shown as an edge in plan view) Direction into the enclosure drawer slot (slot 0 or 1) 5U84 enclosure rear panel Numeric designators on PSUs (Power Supply Units) and FCMs (Fan Control Modules), and alphabetic designators on IOMs indicate slot sequencing for modules used in 5U84 enclosures.
  • Page 18 Figure 22. 5U84 controller enclosure—rear panel components (4-port SAS) Controller module slot A Controller module slot B FCM slot 0 FCM slot 1 FCM slot 2 FCM slot 3 FCM slot 4 PSU slot 0 PSU slot 1 Figure 23. 5U84 controller enclosure—rear panel components (4-port iSCSI 10Gbase-T) Controller module slot A Controller module slot B FCM slot 0...
  • Page 19 Figure 24. 5U84 expansion enclosure—rear panel components Controller module slot A Controller module slot B FCM slot 0 FCM slot 1 FCM slot 2 FCM slot 3 FCM slot 4 PSU slot 0 PSU slot 1 NOTE: 5U84 controller enclosures support dual-controller only. If a partner controller fails, the array will fail over and run on a single controller until the redundancy is restored.
  • Page 20 Figure 25. Power supply unit (PSU) Module release latch Handle PSU Fault LED (Amber/blinking amber) AC Fail LED (Amber/blinking amber) Power OK LED (Green) Power connect Power switch LED behavior: • If any of the PSU LEDs are illuminated amber, a module fault condition or failure has occurred. •...

  • Page 21: 5U84 Enclosure Chassis

    5U84 enclosure chassis The 5U84 enclosure includes the following features. NOTE: Supported 5U chassis form factors used for configuring controllers and expansion enclosures: • 5U84 chassis configured with up to 84 LFF disks in DDICs: see Figure 20. 5U84 enclosure system - plan view of drawer accessed from front panel.

  • Page 22: Operator's (Ops) Panel Leds

    Drawer LEDs. Operator's (Ops) panel LEDs Each ME4 Series enclosure features an Operator’s (Ops) panel located on the chassis left ear flange. This section describes the Ops panel for 2U and 5U enclosures. 2U enclosure Ops panel A flexible cable connects the Ops panel to the midplane. The Ops panel is a passive component: the midplane controls the panel, and the IOMs control all the panel’s functions.

  • Page 23: 5U Enclosure Ops Panel

    Table 4. Ops panel functions (see left ear on 2U front panel) Indicator Status System power Constant green: at least one PCM is supplying power Off: system not operating regardless of AC present Constant blue: system is powered on and controller is ready Status/Health Blinking blue (2 Hz): Enclosure management is busy Constant amber: module fault present...
  • Page 24 Figure 29. LEDs: Ops panel—5U enclosure front panel Table 5. Ops panel functions (see left ear on 5U front panel) Indicator Status Unit Identification Display (UID) Green (seven-segment display: enclosure sequence) System Power On/Standby Constant green: positive indication Constant amber: system in standby (not operational) Module Fault Constant or blinking amber: fault present Logical Status...

  • Page 25: Controller And Expansion Modules

    The diagrams with tables that immediately follow provide descriptions for the different controller modules that can be installed into the rear panel of ME4 Series controller enclosures. Showing controller modules separately from the enclosure improves clarity in identifying the component items called out in the diagrams and described in the companion tables within the figure/table ensembles.
  • Page 26 Figure 31. LEDs: ME4 Series Storage System FC/iSCSI controller modules (FC and 10GbE SFPs) Table 6. LEDs: ME4 Series controller modules (FC and iSCSI SFPs) Description Definition Off — No link detected. Host 4/8/16Gb FC Green — The port is connected and the link is up.
  • Page 27 -Cache Status LED supports power on behavior and operational (cache status) behavior. -When port is down, both LEDs are off. Figure 32. LEDs: ME4 Series iSCSI 10Gbase-T controller module Table 7. LEDs: ME4 Series iSCSI 10Gbase-T controller module LED Description...
  • Page 28 - Cache Status LED supports power on behavior and operational (cache status) behavior. See Table 9. Cache Status LED-power on behavior. - When port is down, both LEDs are off. See Table 9. Cache Status LED-power on behavior. Figure 33. LEDs: ME4 Series SAS controller module Storage system hardware...
  • Page 29 Table 8. LEDs: ME4 Series SAS controller module LED Description Definition Host 12Gb SAS Green — The port is connected and the link is up. Link Status/ Amber — Partial link exists (one or more lanes down). Link Activity Blinking green or amber — Host link activity is detected.

  • Page 30: Compactflash

    -Once a Link Status LED is lit, it remains so, even if the controller is shut down via the ME Storage Manager or the CLI. When a controller is shut down or otherwise rendered inactive—its Link Status LED remains illuminated— falsely indicating that the controller can communicate with the host.

  • Page 31: Supercapacitor Pack

    CompactFlash is verified before committing to disk. The CompactFlash memory card is located at the midplane-facing end of the controller module. Do not remove the card; it is used for cache recovery only. Figure 34. CompactFlash memory card CompactFlash memory card (installed/removed) IOM viewed from back (midplane-facing orientation) In single-controller configurations (supported with 2U24/2U12 chassis), if the controller has failed or does not start, and the Cache Status LED is on or blinking, the CompactFlash should be transported to a replacement controller to recover data not flushed to the disk.

  • Page 32: 12 Gb/S Expansion Module Leds

    NOTE: Remove the CompactFlash memory card only if recommended by Dell EMC technical support. Transportable cache only applies to single-controller configurations. In dual-controller configurations featuring one healthy partner controller, there is no need to transport failed controller cache to a replacement controller because the cache is duplicated between the controllers, provided that the volume cache is set to standard on all volumes in the pool owned by the failed controller.
  • Page 33 • When the expansion module shown in Figure 35. LEDs: ME412ME424ME484 expansion module is used with ME4 Series controller modules for adding storage, its middle HD mini-SAS expansion port (“B”) is disabled by the firmware. • The Ethernet port on the expansion module is not used in controller/expansion enclosure configurations, and is disabled.

  • Page 34: Troubleshooting And Problem Solving

    Troubleshooting and problem solving These procedures are intended to be used only during initial configuration, for the purpose of verifying that hardware setup is successful. They are not intended to be used as troubleshooting procedures for configured systems using production data and I/O. NOTE: For further troubleshooting help after setup, and when data is present, see www.dell.com/support.
  • Page 35 Table 13. PCM LED states PCM OK Fan Fail AC Fail DC Fail Status (Green) (Amber) (Amber) (Amber) No AC power on any PCM No AC power on this PCM only AC present; PCM working correctly PCM fan speed is outside acceptable limits PCM fan has failed PCM fault (above temperature, above voltage, above current) Blinking...

  • Page 36: Disk Drive Carrier Module Leds

    – Check the event log for errors. • If the CRU Fault LED is on, a fault condition is detected. – Restart this controller from the partner controller using the ME Storage Manager or CLI. – If the restart does not resolve the fault, remove the IOM and reinsert it. Disk drive carrier module LEDs Disk drive status is monitored by a green LED and an amber LED mounted on the front of each drive carrier module, as shown in Drive...

  • Page 37: Iom Leds

    Activity LED (Green) Fault LED (Amber) Status/condition* Blink off with activity Storage system: Fault-tolerant Blink off with activity Storage system: Degraded (not critical) Blink off with activity Blinking: 3s on/ 1s off Storage system: Degraded (critical) Storage system: Quarantined Blink off with activity Blinking: 3s on/ 1s off Storage system: Offline (dequarantined) Blink off with activity...

  • Page 38: 5U Enclosure Leds

    Expansion module LEDs Expansion IOM status is monitored by the LEDs located on the face plate. See Figure 17. Expansion module detail ME412/ME424/ME484. LED behaviors for expansion enclosures are described in Table 10. LEDs: Rear panel Cache Status. For actions pertaining to Table 9.
  • Page 39 Fan cooling module LEDs Fan cooling module (FCM) for a visual description of the Fan Cooling Module (FCM) faceplate. Table 19. FCM LED descriptions Status/description Module OK Constant green indicates that the FCM is working correctly. Off indicates the fan module has failed. Follow the procedure Replacing a Fan Controller Module.
  • Page 40 Status/description Cable Fault Amber indicates the cabling between the drawer and the back of the enclosure has failed. Contact your service provider to resolve the problem. Activity Bar Displays the amount of data I/O from zero segments lit (no I/O) to all six segments lit (maximum I/O). Graph DDIC LED The DDIC supports LFF 3.5"...

  • Page 41: Iom Leds

    IOM LEDs NOTE: IOM CRUs are common to the 2U and 5U84 enclosures. • For information about controller module LEDs see Controller module LEDs • For information about expansion module LEDs see Expansion module LED Temperature sensors Temperature sensors throughout the enclosure and its components monitor the thermal health of the storage system. Exceeding the limits of critical values causes a notification to occur.

  • Page 42: Pcm Faults

    NOTE: Using the ME Storage Manager, monitor the storage system event logs for information about enclosure-related events, and to determine any necessary recommended actions. PCM faults Table 24. PCM recommended actions Symptom Cause Recommended action Ops panel Module Fault LED is amber Any power fault Verify AC mains connections to PCM are live...

  • Page 43: Troubleshooting 5U Enclosures

    Symptom Cause Recommended action of the enclosure. A minimum gap of 25 mm (1") at the front and 50 mm (2") at the rear is recommended. Check for restrictions due to dust build-up. Clean as appropriate. Check for excessive re-circulation of heated air from rear to front.

  • Page 44: Cli Port Connections

    For information about 5U84 enclosure alarm notification, see 5U alarm conditions CLI port connections ME4 Series Storage System controllers feature a CLI port employing a 3.5mm stereo plug and a mini-USB Type B form factor. For more information about connecting a serial cable, see Appendix A of this manual.

  • Page 45: Performing Basic Steps

    Use the CLI As an alternative to using the ME Storage Manager, you can run the show system CLI command to view the health of the system and its components. If any component has a problem, the system health will be Degraded, Fault, or Unknown, and those components will be listed as Unhealthy Components.
  • Page 46 with a visual representation of the system and where the fault is occurring. The ME Storage Manager also provides more detailed information about CRUs, data, and faults. Review the event logs The event logs record all system events. Each event has a numeric code that identifies the type of event that occurred, and has one of the following severities: •...

  • Page 47: Host I/O

    PCMs or PSU, sufficient power is provided to the system while the faulty module is replaced. NOTE: ME4 Series Storage System enclosures support hot-plug replacement of redundant controller modules, power supplies, and expansion modules. Hot-add replacement of expansion enclosures is also supported.

  • Page 48: Crus - 2U12-Drive Chassis

    5-This model supports 10Gb/s or 1Gb/s speeds (used for iSCSI host connection). CRUs – 2U12–drive chassis This section describes 2U12–drive chassis product components. Table 30. ME4 Series Storage System product components for 2U 12-drive chassis Item Enclosure component description Disk drive (LFF) a) 3.5"...

  • Page 49: Crus - 2U24-Drive Chassis

    2U 12-drive ME4 Series enclosures. Modules are shown oriented for insertion into IOM slot A located on the 2U enclosure rear panel. This orientation also applies to both IOM slots in 5U84 enclosures.

  • Page 50: Crus - High-Density 5U 84-Drive Chassis

    2U 24-drive ME4 Series enclosures. Modules are shown oriented for insertion into IOM slot A located on the 2U enclosure rear panel. This orientation also applies to both IOM slots in 5U84 enclosures.
  • Page 51 5U 84-drive ME4 Series enclosures. Modules are shown oriented for insertion into IOM slots located on the 2U enclosure rear panel. This orientation also applies to both IOM slots in 5U84 enclosures.
  • Page 52 Figure 38. SBB IOMs used in ME4 Series storage enclosures 4-port FC/iSCSI 4-port HD mini-SAS 4-port 10GbaseT 3-port expansion Troubleshooting and problem solving...

  • Page 53: Performing Updates In Mesmafter Replacing An Fc Or Sas Hba

    Performing updates in MESMafter replacing an FC or SAS HBA After replacing an FC or SAS HBA in an attached host, perform the following tasks: For an FC HBA, update the zoning if a switch is used, then update the host/initiator grouping in MESM. For a SAS HBA, update the host/initiator grouping in MESM.

  • Page 54: Module Removal And Replacement

    Module removal and replacement Topics: • Overview • ESD precautions • Completing the component installation process • Verifying component operation • Replacing a power cooling module • Replacing a drive carrier module • Replacing a blank drive carrier • Replacing an IOM •...

  • Page 55: Grounding Methods To Prevent Electrostatic Discharge

    CAUTION: Parts can be damaged by electrostatic discharge. Follow these precautions: • Avoid hand contact by transporting and storing products in static-safe containers. • Keep electrostatic-sensitive parts in their containers until they arrive at static-protected workstations. • Place parts in a static-protected area before removing them from their containers. •...

  • Page 56: Using Leds

    To perform a rescan using the ME Storage Manager: Verify that both controllers are operating normally. b In the System topic, select Action > Rescan Disk Channels. Select Rescan. Using LEDs This section describes LEDs located on the enclosure front and rear panels. Verify front panel LEDs Front panel LEDs reside on the Ops panel located on the left ear flange.

  • Page 57: Removing A Pcm

    A single PCM is sufficient to maintain operation of the enclosure. You need not halt operations and completely power-off the enclosure when replacing only one PCM; however, a complete orderly shutdown is required if replacing both units simultaneously. CAUTION: Do not remove the cover from the PCM due to danger from electric shock inside. Return the PCM to your supplier for repair.

  • Page 58: Installing A Pcm

    Figure 40. Removing a PCM (2 of 2) NOTE: The remove PCM illustrations show a chassis configured as a 4-port FC/iSCSI controller enclosure. The procedure applies to all 2U controller enclosures and expansion enclosures. If replacing two PCMs, repeat steps 5 through 8, being mindful of the illustrations Note. Installing a PCM Refer to Figure 39.

  • Page 59: Removing A Drive From A Drive Carrier

    When moving FDE-capable disk drive modules for a disk group, stop I/O to the disk group before removing the disk drive modules. Import the keys for the disks so that the disk content becomes available. See the Dell EMC ME4 Series Storage System Administrator’s Guide or Dell EMC ME4 Series Storage System CLI Guide for more information.

  • Page 60: Installing A Drive Into A Drive Carrier

    Figure 42. Removing and installing a 3.5 inch drive into a drive carrier 1. physical drive carrier 2. physical drive 3. screws (4) Installing a drive into a drive carrier Many repairs can only be done by a certified service technician. Only perform troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or telephone service and support team.

  • Page 61: Installing A Lff Drive Carrier Module

    Figure 43. Removing a LFF disk drive module (1 of 2) Gently move the drive carrier module approximately 25 mm (1-inch), then wait 30 seconds. Figure 44. Removing a LFF disk drive module (2 of 2) Remove the module fully from the drive slot. CAUTION: To ensure optimal cooling throughout the enclosure, blank drive carrier modules must be installed in all unused drive slots.
  • Page 62 Figure 45. LFF drive carrier module in open position Insert the drive carrier module into the enclosure. Make sure that the drive carrier is positioned such that the top of the disk is facing up, and the handle opens from the left as you face the enclosure front panel. Figure 46.

  • Page 63: Removing A Sff Drive Carrier Module

    Using the management interfaces (the ME Storage Manager or CLI), verify whether the health of the new disk is OK. Verify that the green Disk Activity LED is on/blinking per Disk drive carrier module LEDs. Verify that Ops panel states show no amber module faults. Removing a SFF drive carrier module The removal/replacement procedure for SFF drive carrier modules is basically the same as for LFF models, except that the SFF carriers are mounted vertically.

  • Page 64: Installing A Sff Drive Carrier Module

    Installing a SFF drive carrier module Release the carrier handle by pressing the latch in the handle downwards, and opening the hinged handle as shown in Figure 50. SFF drive carrier module in open position. Insert the carrier into the enclosure in a vertical position. NOTE: Make sure the carrier is positioned such that the disk is on its left side and the handle opens from the top.

  • Page 65: Replacing A Blank Drive Carrier

    Figure 52. Installing a SFF drive carrier module (2 of 2) Using the management interfaces (the ME Storage Manager or CLI), verify the following: • the health of the new disk is OK • the green Disk Activity LED is on/blinking •...

  • Page 66: Before You Begin

    NOTE: In dual-controller configurations featuring one healthy partner controller, there is no need to transport failed controller cache to a replacement controller because the cache is duplicated between the controllers, provided that volume cache is set to standard on all volumes in the pool owned by the failed controller. Before you begin Removing a controller or expansion module from an operational enclosure significantly changes air flow within the enclosure.
  • Page 67 Figure 53. IOM latch operation detail Swing the latch handle open as shown in detail No.2 within Figure 54. Removing an IOM. Figure 54. Removing an IOM Grip the latch handle and ease the IOM forward from the slot as shown in detail No.2 within Figure 54.

  • Page 68: Installing An Iom

    Figure 55. CompactFlash memory card location CompactFlash memory card (installed/removed) IOM viewed from back (midplane-facing orientation) Confirm that transporting CompactFlash is the appropriate action to take as discussed in the ME4 Series Storage System Deployment Guide. Refer to Figure 55. CompactFlash memory card location when performing the step-procedure below.

  • Page 69: Replacing An Iom

    NOTE: Use the ME Storage Manageror CLI to perform a restart Dell EMC ME4 Series Storage System Administrator’s Guide for more information. Expansion module If the storage system is configured with expansion enclosures, the replacement expansion module may take up to one minute to initialize after the cables are connected.

  • Page 70: Installing An Iom

    Figure 56. IOM latch operation detail Grip the latch handle and ease the IOM outward from its installed position as shown in detail No.3 in Figure 54. Removing an IOM. Figure 57. Removing an IOM (1 of 2) NOTE: The preceeding and following illustration show a 4-port controller module of type FC/iSCSI. However, the procedure applies to all IOMs used in 5U84 enclosures.

  • Page 71: Configuring Partner Firmware Update

    The ME Storage Manager and CLI provide an option for enabling or disabling PFU for the partner controller as described in the Dell EMC ME4 Series Storage System Administrator’s Guide. To enable or disable the setting via the CLI, use the set advanced- settings command, and set the partner-firmware-upgrade parameter.

  • Page 72: Using The Me Storage Manager

    If an iSCSI port is connected to a Microsoft Windows host, the following event is recorded in the Windows event log: Initiator failed to connect to the target. • See the Dell EMC ME4 Series Storage System Administrator’s Guide for additional information. Using the CLI Log-in to the CLI.
  • Page 73 Grasp the module latch between the thumb and forefinger, and squeeze the flange and handle together to release the latch handle from its docking member (detail No.1), and swing the latch out to release the IOM from its seated position (detail No.2) as shown in Figure 53.

  • Page 74: Transporting Compactflash

    Figure 61. CompactFlash memory card location CompactFlash memory card (installed/removed) IOM viewed from back (midplane-facing orientation) Confirm that transporting CompactFlash is the appropriate action to take as discussed in the ME4 Series Storage System Deployment Guide. Refer to Figure 55. CompactFlash memory card location when performing the step-procedure below.
  • Page 75 • If the disk has failed, a fault LED is lit on the front panel of the affected drawer. The illuminated LED will either be the Drawer LED or the Logical LED. • If the disk has failed, the Drive Fault LED on the DDIC cover is lit amber. Open the relevant drawer.

  • Page 76: Installing The Hard Drive Into The Carrier

    Installing the hard drive into the carrier Replacement drives are not shipped with new disk drive carrier. The replacement drive must be placed into the carrier that held the failed drive. Module removal and replacement...
  • Page 77 Module removal and replacement...

  • Page 78: Installing A Ddic

    Contact your account manager for part numbers. • If the two groups of disks have different firmware, all disks must be updated with current/compatible firmware. See the Dell EMC ME4 Series Storage System Administrator’s Guide or online help for additional information about updating firmware.

  • Page 79: Installation Guidelines

    Installation guidelines The recommended order for partially populating drives in the 5U84 enclosure optimizes the airflow through the chassis. See the following illustrations: • Figure 19. 5U84 enclosure—front panel components shows location and indexing of drawers accessed from the enclosure front panel. •...

  • Page 80: Installing A Psu

    Refer to Figure 65. Removing a PSU (1 of 2)when performing this step: Push the release latch to the right and hold it in place (detail No.1). b With your other hand, grasp the handle and pull the PSU outward (detail No.2). Supporting the PSU with both hands, remove it from the enclosure.

  • Page 81: Replacing An Fcm

    • Using the management interfaces (the ME Storage Manager or CLI), determine if the health of the new PSU is OK. Verify that the Power OK LED is green, and that the Ops panel states show no amber module faults. If replacing both PSUs, repeat steps 1 through 6.

  • Page 82: Installing An Fcm

    Figure 68. Removing an FCM (2 of 2) NOTE: The FCM slot must not be empty for more than 2 minutes while the enclosure is powered. Installing an FCM You can hotswap the replacement of a single FCM; however, if replacing multiple FCMs, the enclosure must be powered off using an orderly shutdown using the management interfaces.

  • Page 83: A Connecting Through The Cli Port Using A Serial Cable

    Connecting through the CLI port using a serial cable To connect through the CLI port using a serial cable, you must use the 3.5mm stereo plug CLI port and the supplied 3.5mm/DB9 serial cable. Alternatively, you can use a generic mini-USB cable (not included) and the USB CLI port. If you plan on using a mini-USB cable, you will need to enable the port for communication.

  • Page 84: Mini-Usb Device Connection

    Once attached to the controller module, the management computer should detect a new USB device. Using the Emulated Serial Port interface, the ME4 Series controller presents a single serial port using a customer vendor ID and product ID. Effective presentation of the emulated serial port assumes the management computer previously had terminal emulator installed.

  • Page 85: Supported Host Applications

    Supported host applications 5005/4005 Series controllers support the following applications to facilitate connection. Table 35. Supported terminal emulator applications Application Operating system HyperTerminal and Tera Term Microsoft Windows (all versions) Minicom Linux (all versions) Solaris HP-UX Command-line interface Once the management computer detects connection to the USB-capable device, the Management Controller awaits input of characters from the host computer via the command-line.

  • Page 86: Microsoft Windows

    Microsoft Windows operating systems provide a USB serial port driver. However, the USB driver requires details for connecting to ME4 Series controller enclosures. Dell EMC provides a device driver for use in the Windows environment. The USB device driver and installation instructions are available via a download.
  • Page 87 Problem On Windows operating systems, the USB CLI port may encounter issues preventing the terminal emulator from reconnecting to storage after the Management Controller (MC) restarts or the USB cable is unplugged and reconnected. Workaround Follow these steps when using the mini-USB cable and USB Type B CLI port to communicate out-of-band between the host and controller module for setting network port IP addresses.

  • Page 88: Using The Usb Cli Port And Cable-Known Issues On Windows

    Using the USB CLI port and cable—known issues on Windows When using the CLI port and cable for setting network port IP addresses, be aware of the following known issues on Microsoft Windows platforms. Problem On Windows operating systems, the USB CLI port may encounter issues preventing the terminal emulator from reconnecting to storage after the Management Controller (MC) restarts or the USB cable is unplugged and reconnected.

  • Page 89: B Technical Specifications

    Technical specifications Enclosure dimensions Table 36. 2U enclosure dimensions Specification Metric units Imperial units Overall enclosure height (2U) 87.9 mm 3.46 in Width across mounting flange (located on 483 mm 19.01 in front of chassis) Width across body of enclosure 443 mm 17.44 in Depth from face of mounting flange to back...

  • Page 90: Enclosure Weights

    Enclosure weights CRU/component 2U12 (kg/lb) 2U24 (kg/lb) 5U84 (kg/lb) Storage enclosure (empty) 4.8/10.56 4.8/10.56 64/141 Disk drive carrier 0.9/1.98 0.3/0.66 0.8/1.8 Blank disk drive carrier (air management 0.05/0.11 0.05/0.11 — sled) Power Cooling Module (PCM) 3.5/7.7 3.5/7.7 — Power Supply Unit (PSU) —...

  • Page 91: Power Cooling Module

    Specification Measurement/description Maximum operating temperature is de-rated by 5ºC above 2,133 meters (7,000 feet) 5U84 enclosures: -100 to 3,000 meters (-330 to 10,000 feet) Maximum operating temperature is de-rated by 1ºC above 900 meters (3,000 feet) Altitude, non-operating -100 to 12,192 meters (-330 to 40,000 feet) Shock, operating 5.0 g, 10 ms, ½...

  • Page 92: Power Supply Unit

    Specification Measurement/description Power factor correction > 95% @ nominal input voltage Efficiency 115 VAC/60 Hz 230 VAC/50 Hz > 80% @ 10% load > 80% @ 10% load > 87% @ 20% load > 88% @ 20% load > 90% @ 50% load >...

  • Page 93: C Standards And Regulations

    Standards and regulations International standards The enclosure system complies with the requirements of the following agencies and standards: • CE to EN 60950-1 • CB report to IEC 60950-1 • UL & cUL to UL 60950-1 second edition Potential for radio frequency interference USA Federal Communications Commission (FCC) NOTE: This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the...

  • Page 94: Dell Emc Compliance

    Dell EMC compliance Table 42. Dell EMC compliance specifications Conducted emissions limit levels CFR47 Part 15B Class A EN55022 Class A CISPR Class A Radiated emissions limit levels CFR47 Part 15B Class A EN55022 Class A CISPR Class A Harmonics and flicker...

  • Page 95: Recycling Of Waste Electrical And Electronic Equipment (Weee)

    Recycling of Waste Electrical and Electronic Equipment (WEEE) At the end of the product’s life, all scrap/waste electrical and electronic equipment should be recycled in accordance with national regulations applicable to the handling of hazardous/toxic electrical and electronic waste materials. Contact your supplier for a copy of the Recycling Procedures applicable to your country.
