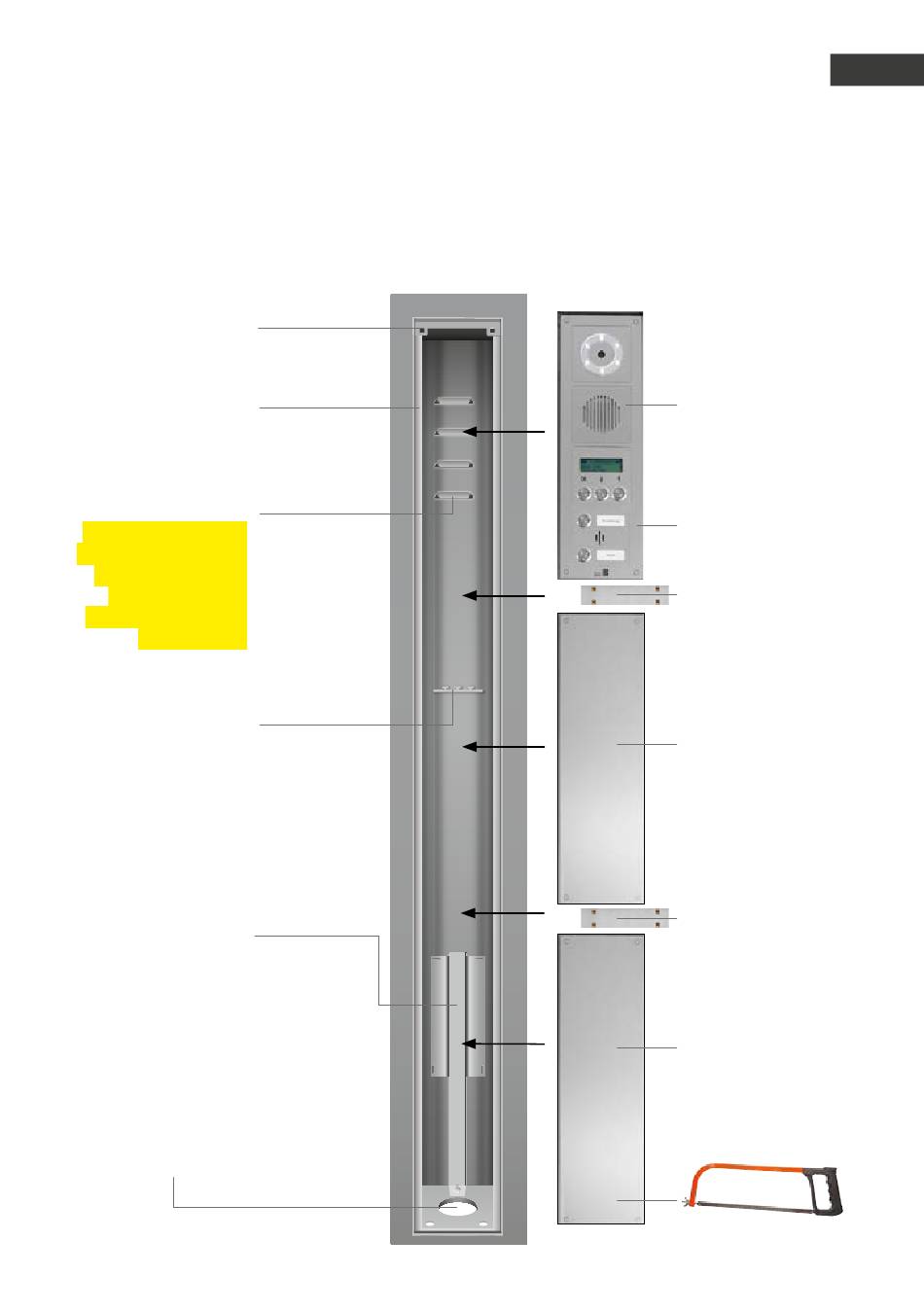

Assembling the columns

3.
(Prior to the installation, check that all the necessary mounting parts are available in sufficient quan-
tity for the correct installation of the column. Not all parts are included in the column box)
Clamping plate 1
*
(firmly integrated )
Support sheet for
door intercom sta-
tions, modules and
cover panels
Air vents
The two air vent areas
in the upper and lower
area of the stainless
steel column must
not be closed! Risk of
condensation.
Mounting rail for cable
fixing. Fasten the
cable with cable ties
(not included in the
box)
Mounting plate for
fixing the 20-0048
basic electronics or
third-party products
(screw mounting not
provided for third-
party products)
Cable inlet from below
through the column's
base
*
equipped with M 4 box nuts
www.behnke-online.de
Instructions for Stainless Steel Vertical Column Installation
Assembling the columns
Behnke door
intercom station,
120 mm wide (e.g.
Series 20)
Front frame
Clamping plate 2
Cover panel
with chamfered top
Clamping plate 3
Cover panel without
chamfer to be short-
ened if necessary, lower
edge not visible
