Instructions for Stainless Steel Vertical Column Installation
GB GB
Assembly Instructions

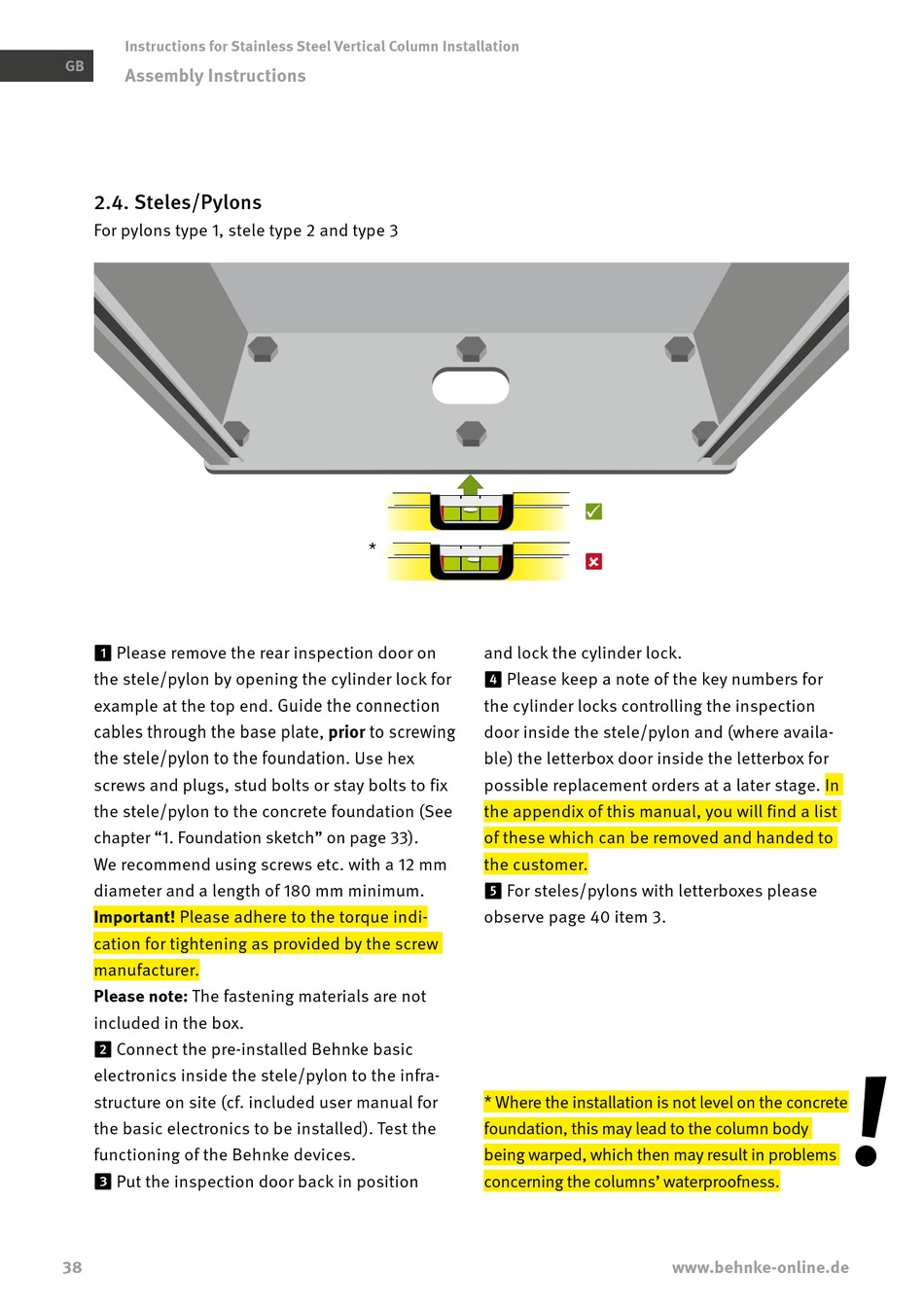

2.4. Steles/Pylons

For pylons type 1, stele type 2 and type 3
Please remove the rear inspection door on
the stele/pylon by opening the cylinder lock for
example at the top end. Guide the connection
cables through the base plate, prior to screwing
the stele/pylon to the foundation. Use hex
screws and plugs, stud bolts or stay bolts to fix
the stele/pylon to the concrete foundation (See
chapter "1. Foundation sketch" on page 33).
We recommend using screws etc. with a 12 mm
diameter and a length of 180 mm minimum.
Important! Please adhere to the torque indi-
cation for tightening as provided by the screw
manufacturer.
Please note: The fastening materials are not
included in the box.
Connect the pre-installed Behnke basic
electronics inside the stele/pylon to the infra-
structure on site (cf. included user manual for
the basic electronics to be installed). Test the
functioning of the Behnke devices.
Put the inspection door back in position
38
*
and lock the cylinder lock.
Please keep a note of the key numbers for
the cylinder locks controlling the inspection
door inside the stele/pylon and (where availa-
ble) the letterbox door inside the letterbox for
possible replacement orders at a later stage. In
the appendix of this manual, you will find a list
of these which can be removed and handed to
the customer.
For steles/pylons with letterboxes please
observe page 40 item 3.
* Where the installation is not level on the concrete
foundation, this may lead to the column body
being warped, which then may result in problems
concerning the columns' waterproofness.


