Instructions for Stainless Steel Vertical Column Installation
GB

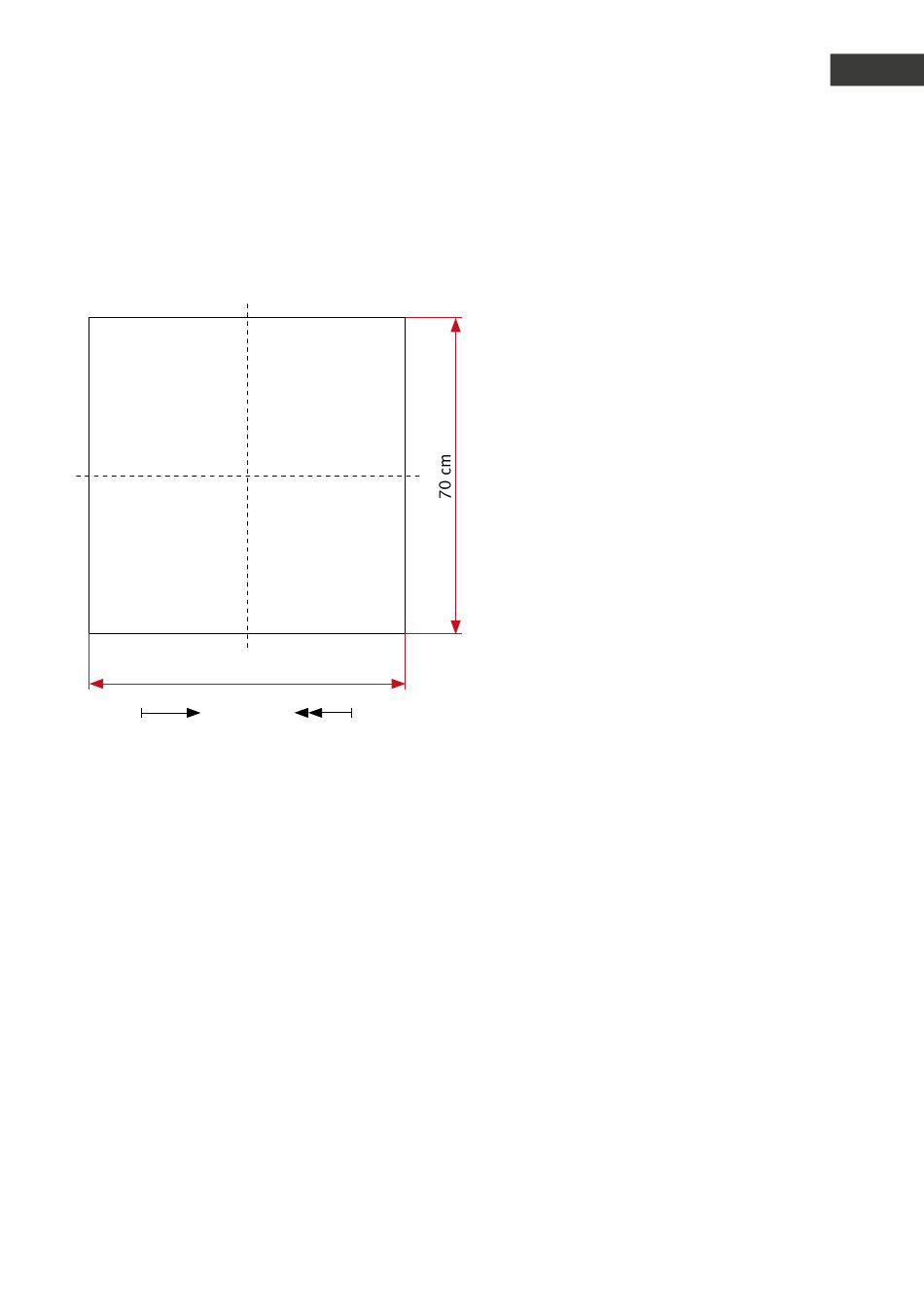

Foundation sketch

FoundAtion sKetch
1.

1.1. Foundation for Behnke Products

2 1
3 4
70 cm
Hy My
Dimensions
Length: by = 70 cm
Width: bz = 70 cm
Depth: d = 80 cm
Pillar connection: cy/cx = 22 / 30 cm
Covered square: 1-4 Ah = 0.00 m
Water level from top ground surface: Common
water level = 99.00 m
Specific soil weight = 18.00 kN/m³
Specific soil weight (water): gamma = 8.00 kN/m³
Angle of base friction: D = 25.00°
Angle of repose: phi = 25.00°
Cohesion: c = 0.00 kN/m²
