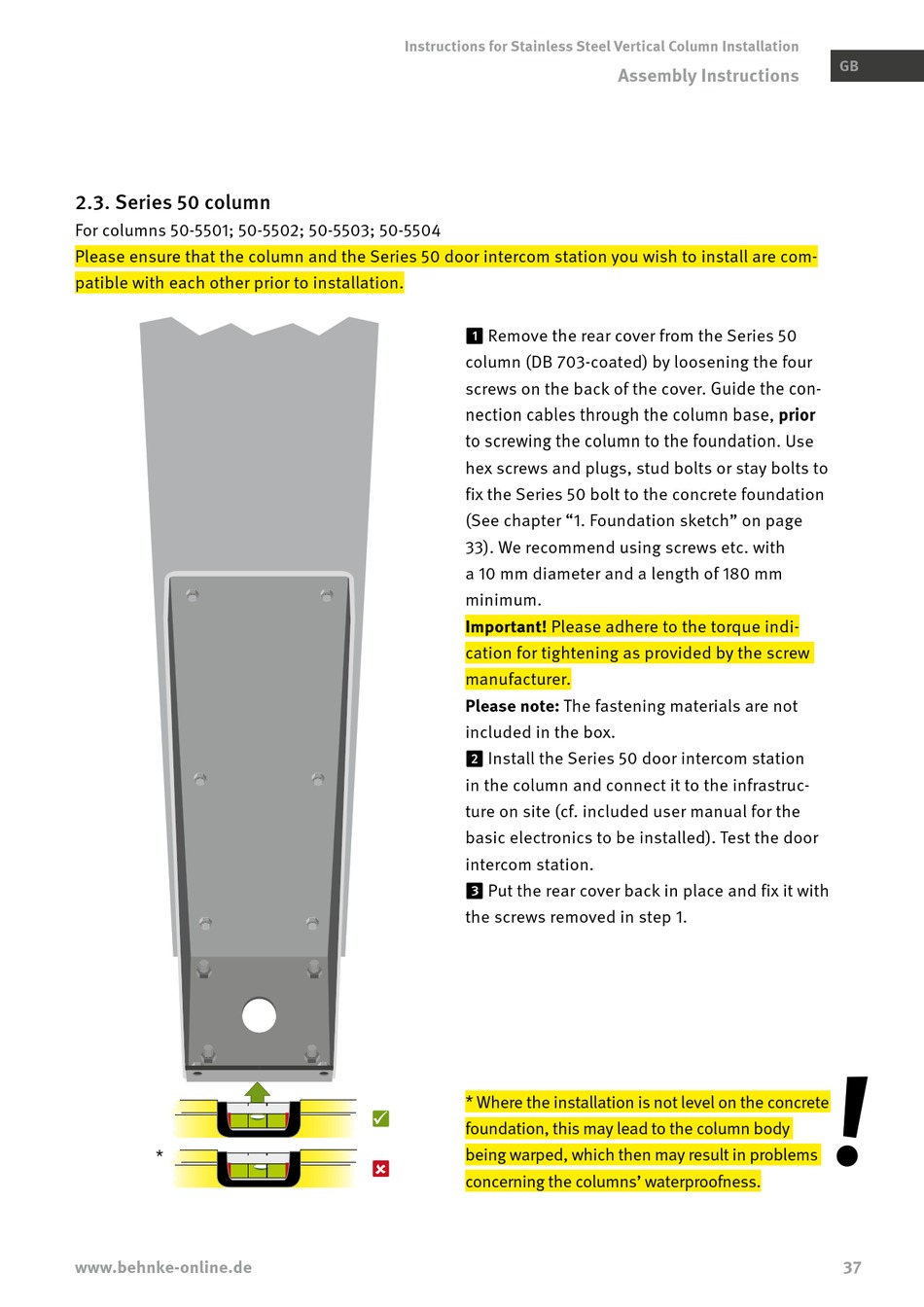

2.3. Series 50 column
For columns 50-5501; 50-5502; 50-5503; 50-5504
Please ensure that the column and the Series 50 door intercom station you wish to install are com-
patible with each other prior to installation.
*
www.behnke-online.de
Instructions for Stainless Steel Vertical Column Installation
Remove the rear cover from the Series 50
column (DB 703-coated) by loosening the four
screws on the back of the cover. Guide the con-
nection cables through the column base, prior
to screwing the column to the foundation. Use
hex screws and plugs, stud bolts or stay bolts to
fix the Series 50 bolt to the concrete foundation
(See chapter "1. Foundation sketch" on page
33). We recommend using screws etc. with
a 10 mm diameter and a length of 180 mm
minimum.
Important! Please adhere to the torque indi-
cation for tightening as provided by the screw
manufacturer.
Please note: The fastening materials are not
included in the box.
Install the Series 50 door intercom station
in the column and connect it to the infrastruc-
ture on site (cf. included user manual for the
basic electronics to be installed). Test the door
intercom station.
Put the rear cover back in place and fix it with
the screws removed in step 1.
* Where the installation is not level on the concrete

foundation, this may lead to the column body
being warped, which then may result in problems

concerning the columns' waterproofness.
