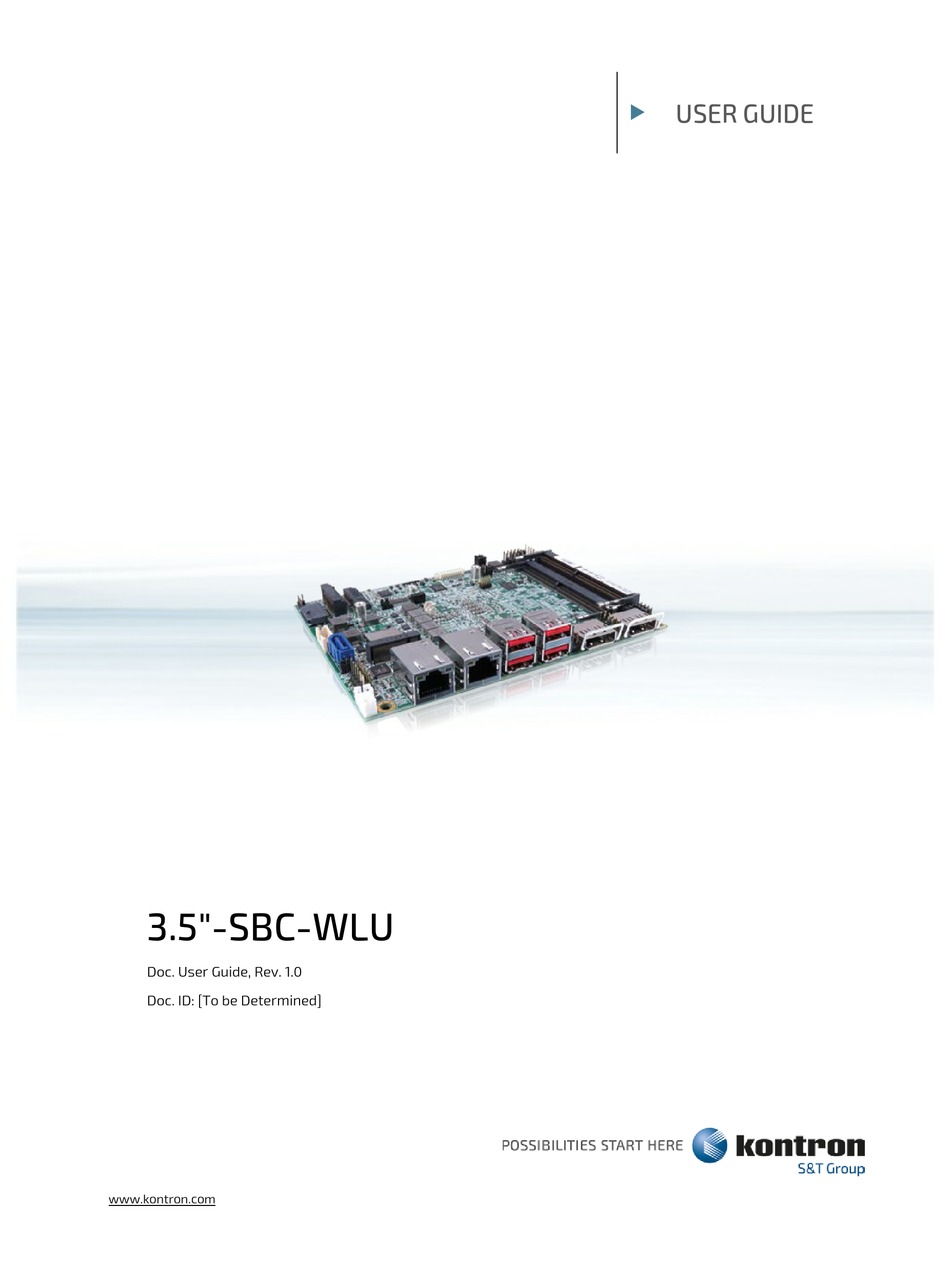

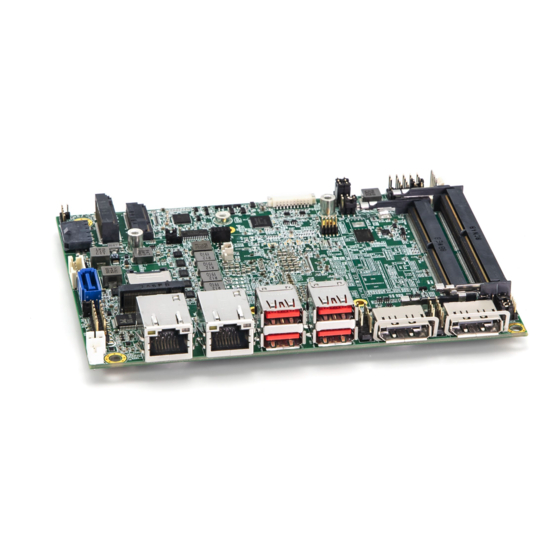

USER GUIDE
3.5"-SBC-WLU
Doc. User Guide, Rev. 1.0
Doc. ID: [To be Determined]
www.kontron.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3.5"-SBC-WLU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kontron 3.5"-SBC-WLU

Summary of Contents for Kontron 3.5"-SBC-WLU

  • Page 1  USER GUIDE 3.5"-SBC-WLU Doc. User Guide, Rev. 1.0 Doc. ID: [To be Determined] www.kontron.com...
  • Page 2 3.5"-SBC-WLU - User Guide, Rev. 1.0 This page has been intentionally left blank www.kontron.com // 2...
  • Page 3 In cases of doubt, please contact Kontron. This user guide is protected by copyright. All rights are reserved by Kontron. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the express written permission of Kontron.
  • Page 4 ENVIRONMENTAL DAMAGE (COLLECTIVELY, "HIGH RISK APPLICATIONS"). You understand and agree that your use of Kontron devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards.
  • Page 5 If you have any difficulties using this user guide, discover an error, or just want to provide some feedback, contact Kontron support. Detail any errors you find. We will correct the errors or problems as soon as possible and post the revised user guide on our website.

  • Page 6: Symbols

    Eye protection per manufacturer notice shall review before servicing. This symbol indicates general information about the product and the user guide. This symbol also indicates detail information about the specific product configuration. This symbol precedes helpful hints and tips for daily use. www.kontron.com // 6...

  • Page 7: For Your Safety

    Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines.

  • Page 8: Lithium Battery Precautions

    General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the product, that are not explicitly approved by Kontron and described in this user guide or received from Kontron Support as a special handling instruction, will void your warranty.

  • Page 9: Table Of Contents

    7.4. HDD / SSD Power Output Wafer (CN8) ............................32 7.5. USB Connectors (Internal) (CN16 & CN17)............................33 7.6. Audio AMP Output Wafer (CN11 & CN20) ............................33 7.7. Audio Input / Output Pin Header (CN10) ............................34 www.kontron.com // 9...

  • Page 10: List Of Tables

    8.2.5. Security Setup Menu ................................... 80 8.2.6. Save & Exit Setup Menu ..................................82 Appendix A: List of Acronyms ..................................83 About Kontron ........................................84 List of Tables Table 1: Component Main Data ..................................17 Table 2: Environmental Conditions ................................18 Table 3: Standards and Certifications ...............................

  • Page 11: List Of Figures

    Figure 20: Serial COM CN22, CN23 ................................36 Figure 21: LVDS Connector CN24 ................................38 Figure 22: LVDS Backlight Power Wafer CN21 ............................40 Figure 23: Digital Input / Output Wafer CN2 ............................41 Figure 24: M.2 Key B 2042 Slot M2B1................................ 42 www.kontron.com // 11...
  • Page 12 Figure 55: BIOS Power Setup Menu - WatchDog Timer Configuration ................... 77 Figure 56: BIOS Boot Setup Menu ................................79 Figure 57: BIOS Security Setup Menu ................................ 80 Figure 58: BIOS Save & Exit Setup Menu ..............................82 www.kontron.com // 12...

  • Page 13: 1/ Introduction

    3.5"-SBC-WLU - User Guide, Rev. 1.0 1/ Introduction This user guide describe the 3.5"-SBC-WLU board made by Kontron. This board will also be denoted 3.5"-SBC-WLU within this user guide. Use of this user guide implies a basic knowledge of PC-AT hardware and software. This user guide focuses on describing the 3.5"-SBC-WLU board's special features and is not intended to be a standard PC-AT textbook.

  • Page 14: 2/ Installation Procedures

     Handle the board only by the edges To get the board running follow these steps. If the board shipped from KONTRON already has components like RAM and CPU cooler mounted, then skip the relevant steps below. 1. Turn off the PSU (Power Supply Unit) Turn off PSU (Power Supply Unit) completely (no mains power connected to the PSU) or leave the Power Connectors unconnected while configuring the board.

  • Page 15: Lithium Battery Replacement

    Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren  Kassera använt batteri enligt fabrikantens instruktion VAROITUS! Paristo voi räjähtää, jos se on virheellisesti asennettu.  Vaihda paristo ainoastaan lalteval- mistajan suosittelemaan tyyppiln  Hävitä käytetty paristo valmistajan ohjeiden mukaisesti www.kontron.com // 15...

  • Page 16: 3/ System Specifications

    3.5"-SBC-WLU - User Guide, Rev. 1.0 3/ System Specifications 3.1. System Block Diagram Figure 1: System Block Diagram 3.5"-SBC-WLU www.kontron.com // 16...

  • Page 17: Component Main Data

    System Control & Monitoring Front Panel Header  1x Header Reset Button, HDD LED & External Speaker  1x Header for Power Button, Power LED & SM bus  1x Header for M.2 Key B activity LED www.kontron.com // 17...

  • Page 18: Environmental Conditions

    -20 °C ~ 80 °C / -4 °F ~ 176 °F (Standard) Humidity  0 % ~ 95 % 3.4. Standards and Certifications The 3.5"-SBC-WLU meets the following standards and certification tests. Table 3: Standards and Certifications CE Class B  FCC Class B  www.kontron.com // 18...

  • Page 19: Processor Support

    The 3.5"-SBC-WLU is designed to support 8th Generation Intel® Core™ / Celeron® U-Series Processors. The BGA CPU is remounted from factory. Kontron has defined the board versions as listed in the following table, so far all based on Embedded CPUs. Other versions are expected at a later date.

  • Page 20: On-Board Graphics Subsystem

    Memory modules have in general a much lower longevity than embedded motherboards, and therefore EOL of modules can be expected several times during lifetime of the motherboard. As a minimum it is recommend using Kontron memory modules for prototype system(s) in order to prove stability of the system and as for reference.

  • Page 21: 4/ Connector Locations

    USB Power Selection JP10 MFG Mode Selection Table 9: Top Side Internal Connector Pin Assignment Item Designation Description See Chapter BAT1 RTC Power Input Wafer 7.1.2 Activity Indicator Header for M2B1 7.17 SDXC / DIO Header 7.12 www.kontron.com // 21...
  • Page 22 DDR4 Channel 1 SO-DIMM Slot Front Panel Header 1 Front Panel Header 2 M2B1 M.2 Key B 3042 Slot 7.13 M2E1 M.2 Key E 2230 Slot 7.14 M2M1 M.2 Key M 2242 / 2280 Slot 7.15 SATA1 SATA Port 0 Connector www.kontron.com // 22...

  • Page 23: Rear Side

    Figure 3: Rear Side Table 10: Rear Side Internal Connector Pin Assignment Item Designation Description See Chapter CN21 LVDS Backlight Power Wafer 7.11 CN22 RS232/422/485 COM2 Wafer CN23 RS232/422/485 COM1 Wafer CN24 24-bit / 2-ch LVDS Connector 7.10 www.kontron.com // 23...

  • Page 24: Connector Panel Side

    GbE LAN1 RJ45 Connector CN13 GbE LAN2 RJ45 Connector CN14 USB 3.1 Port 1, 2 Type A Connector CN15 USB 3.1 Port 3, 4 Type A Connector CN18 DP++ Port 2 Connector CN19 DP++ Port 1 Connector www.kontron.com // 24...

  • Page 25: 5/ Connector Definitions

    Type and number of item described See Chapter Number of the chapter within this user guide containing a detailed description The abbreviation TBD is used for specifications that are not available yet or which are not sufficiently specified by the component vendors. www.kontron.com // 25...

  • Page 26: 6/ I/O-Area Connectors

    Connected to ground, either directly or through a pulldown device Config2 Connected to ground, either directly or through a pulldown device AUX_CHp DisplayPort Auxiliary channel differential pair (+) Ground AUX_CHn DisplayPort Auxiliary channel differential pair (-) Hot_Plug DisplayPort hot plug detect Ground DP_PWR Power for connector www.kontron.com // 26...

  • Page 27: Ethernet Connectors (Cn12 & Cn13)

    BI_DD+/- pair. TX4+ / TX4- In MDI mode, this is the fourth pair in 1000Base-T, i.e. the BI_DD+/- pair.In MDI crossover mode, this pair acts as the BI_DC+/- pair. 'MDI' – media dependent Interface www.kontron.com // 27...

  • Page 28: Usb Connectors (I/O Area)

    White: D- Green: D+ Metallized Polyester Outer Shield ≥ 65% Interwoven 28 AWG Tinned Copper Drain Wire Tinned Copper Braid For USB 3.1 cabling it is required to use only HiSpeed USB cable, specified in USB3.1 standard: www.kontron.com // 28...

  • Page 29: Figure 9: Usb 3.1 High Speed Cable

    3.5"-SBC-WLU - User Guide, Rev. 1.0 Figure 9: USB 3.1 High Speed Cable Filler, optional UTP Signal Pair SDP Signal Pair Braid Jacket Power Ground SDP Signal Pair www.kontron.com // 29...

  • Page 30: 7/ Internal Connectors

    Figure 11: RTC Battery Power Input Wafer BAT1 Table 16: Pin Assignment BAT1 Signal Description Note +VRTC Real-time clock backup battery input Ground www.kontron.com // 30...

  • Page 31: Fan Wafer (Cn3)

    Figure 13: SATA Port 0 Connector SATA1 Table 18: Pin Assignment SATA1 Signal Description Note Ground Host transmitter differential signal pair (+) Host transmitter differential signal pair (-) Ground Host receiver differential signal pair (-) Host receiver differential signal pair (+) Ground www.kontron.com // 31...

  • Page 32: Hdd / Ssd Power Output Wafer (Cn8)

    The 1x4-pin 2.0 mm pitch HDD / SSD power output wafer provides power to the SATA hard disk. Figure 14: HDD / SSD Power Output Wafer CN8 Table 19: Pin Assignment CN8 Signal Description Note +5 V power supply for HDD / SSD Ground Ground +5 V power supply for HDD / SSD www.kontron.com // 32...

  • Page 33: Usb Connectors (Internal) (Cn16 & Cn17)

    (Line-out) signals of the audio pin header CN10. Figure 16: Audio AMP Output Wafer CN11 (Right Channel), CN20 (Left Channel) Table 21: Pin Assignment CN11, CN20 Signal Description Note Speaker+ Speaker output (+) Speaker- Speaker output (-) www.kontron.com // 33...

  • Page 34: Audio Input / Output Pin Header (Cn10)

    The 10-pin 2.54 mm pitch front panel pin header FP2 supplies signals for the power button, power LED, and SM Bus. Figure 18: Front Panel 1 Pin Header FP1 RSTBTN SPKR HLED Table 23: Pin Assignment FP1 www.kontron.com // 34...

  • Page 35: Table 24: Pin Assignment Fp2

    No connection Power Button - System power button (-). Power LED - System Power LED (-). No connection No connection SMBus Data System management bus bidirectional data line Ground SMBus Clock System management bus bidirectional clock line www.kontron.com // 35...

  • Page 36: Serial Com1 & Com2 Ports (Cn23 & Cn22)

    Data Carrier Detect, indicates that the modem or data set has detected the data carrier. Ring Indicator, indicates that the modem has received a ringing signal from the telephone line. TX+/- Transmitted Data differential pair sends data to the communications link. www.kontron.com // 36...
  • Page 37 3.5"-SBC-WLU - User Guide, Rev. 1.0 Signal Description RX+/- Received Data differential pair receives data from the communications link. Power Supply GND signal www.kontron.com // 37...

  • Page 38: Lvds Panel Connector (Cn24)

    LVDS Channel B Data 1 differential pair (-) Ground LVDSB_TX2- LVDS Channel B Data 2 differential pair (-) LVDSB_TX2+ LVDS Channel B Data 2 differential pair (+) LVDSB_CLK- LVDS Channel B clock differential pair (-) LVDSB_CLK+ LVDS Channel B clock differential pair (+) www.kontron.com // 38...
  • Page 39 VPNL * +3.3 V / +5 V panel power supply VPNL * +3.3 V / +5 V panel power supply VPNL * +3.3 V / +5 V panel power supply * Panel Power can be selected by JP1. www.kontron.com // 39...

  • Page 40: Lvds Backlight Power Wafer (Cn21)

    +5 V / +12 V backlight power supply Ground BL_ADJ_VOL* Backlight Adjustment Voltage signal BL_ADJ_PWM* Backlight Adjustment PWM (Pulse Width Modulation) signal * BL_ADJ can be selected by JP2. ** Backlight Power can be selected by JP1. *** BL_EN can be selected by JP3. www.kontron.com // 40...

  • Page 41: Digital Input / Output Header (Cn2)

    Digital input / output channel 2 DIO_3 Digital input / output channel 3 DIO_4 Digital input / output channel 4 DIO_5 Digital input / output channel 5 DIO_6 Digital input / output channel 6 DIO_7 Digital input / output channel 7 Ground www.kontron.com // 41...

  • Page 42: Key B 3042 Slot (M2B1)

    3.3 V power supply Ground +3.3V 3.3 V power supply Ground PWROFF# M.2 module power enable USB-D+ USB 2.0 data differential pair (+) DISABLE# Wireless disable USB-D- USB 2.0 data differential pair (-) LED# Device active signal Ground www.kontron.com // 42...
  • Page 43 PCIe Lane 0 transmitter pair (-) PETp0 PCIe Lane 0 transmitter pair (+) PERST# PCIe reset Ground CLKREQ# Reference clock request signal REFCLKn PCIe reference clock pair (-) WAKE# PCIe wake REFCLKp PCIe reference clock pair (+) Ground www.kontron.com // 43...
  • Page 44 SIM card detect SUSCLK 32.768 kHz clock supply input +3.3V 3.3 V power supply Ground +3.3V 3.3 V power supply Ground +3.3V 3.3 V power supply * These pins are connected to CN9 Micro SIM card holder directly. www.kontron.com // 44...

  • Page 45: Key E 2230 Slot (M2E1)

    Device active signal 2 WGR_D0P CNVio bus Rx Lane 0 (+) Ground Ground Ground Ground UART_WAKE# UART wake-up WGR_CLKN CNVio bus Rx clock (-) UART_RX UART data input BRI_RSP BRI bus Rx WGR_CLKP CNVio bus Rx clock (+) www.kontron.com // 45...
  • Page 46 Wireless disable 2 W_DISABLE2# Wireless disable 2 PEWAKE0# PCIe wake W_DISABLE1# Wireless disable 1 W_DISABLE1# Wireless disable 1 Ground Ground WT_D1N CNVio bus Tx Lane 1 (-) WT_D1P CNVio bus Tx Lane 1 (+) Ground Ground REFCLK0 Reference clock www.kontron.com // 46...
  • Page 47 3.3 V power supply +3.3V 3.3 V power supply WT_CLKP CNVio bus Tx clock (+) +3.3V 3.3 V power supply +3.3V 3.3 V power supply Ground Ground * Integrated CNVi can be selected by the jumper JP4. www.kontron.com // 47...

  • Page 48: Key M 2242 / 2280 Slot (M2M1)

    3.3 V power supply PERn2 PCIe Lane 2 receiver pair (-) +3.3V 3.3 V power supply PERp2 PCIe Lane 2 receiver pair (-) Ground PETn2 PCIe Lane 2 transmitter pair (-) PETp2 PCIe Lane 2 transmitter pair (+) www.kontron.com // 48...
  • Page 49 PERST# / - PCIe reset Ground CLKREQ# / - Reference clock request signal REFCLKn PCIe reference clock pair (-) PEWAKE# / - PCIe wake REFCLKp PCIe reference clock pair (+) Ground SUSCLK 32.768 kHz clock supply input www.kontron.com // 49...
  • Page 50 3.5"-SBC-WLU - User Guide, Rev. 1.0 Signal Description Note PEDET PCIe detect +3.3V 3.3 V power supply Ground +3.3V 3.3 V power supply Ground +3.3V 3.3 V power supply Ground www.kontron.com // 50...

  • Page 51: Micro Sim Card Holder For M.2 Key B (Cn9)

    The Micro SIM card holder CN9 is intended to accommodate an Micro SIM card and connected to UIM signals on the M.2 Key B slot. Figure 27: Micro SIM Card Holder CN9 Table 33: Pin Assignment CN9 Signal Description Note Power +3.3 V Ground Reset signal Programming voltage input Clock signal Input or Output for serial data www.kontron.com // 51...

  • Page 52: Key B / M.2 Key E Activity Indicator Header (Cn1 & Cn4)

    The pin header CN4 is intended to connect M.2 Key E activity LED cable. Figure 28: M.2 Key B / M.2 Key E Activity Indicator Header CN1, CN4 Table 34: Pin Assignment CN1, CN4 Signal Description Note LED+ LED- www.kontron.com // 52...

  • Page 53: Switches And Jumpers

    Backlight Power = +12 V Backlight Power = +5 V Jumper 2 Position Description Pin 2-4 Pin 4-6 Panel Power = +3.3 V Panel Power = +5 V “X” = Jumper set (short) and “-” = jumper not set (open) www.kontron.com // 53...

  • Page 54: Lvds Backlight Control Selection (Jp2)

    Backlight Enable Level = +3.3 V Backlight Enable Level = +5 V Jumper 2 Position Description Pin 2-4 Pin 4-6 Backlight Enable High Active Backlight Enable Low Active “X” = Jumper set (short) and “-” = jumper not set (open) www.kontron.com // 54...

  • Page 55: Integrated Cnvi Selection For M2E1 (Jp4)

    “X” = Jumper set (short) and “-” = jumper not set (open) 7.18.6. AT / ATX Power Mode Selection (JP6) The 2.0 mm pitch jumper JP6 can be used to select AT power mode or ATX power mode. Figure 35: AT / ATX Power Mode Selection JP6 www.kontron.com // 55...

  • Page 56: Clear Cmos Selection (Jp7)

    7.18.8. USB Power Selection (JP9) The 2.0 mm pitch "USB Power Selection" jumper (JP9) can be used to determine whether the USB ports are powered in the S4 / S5 state. Figure 37: USB Power Selection JP9 www.kontron.com // 56...

  • Page 57: Mfg Mode Selection (Jp10)

    The 2.0 mm pitch "MFG Mode Selection" jumper (JP10) can be used to rewrite Intel ME firmware onto another version. Figure 38: MFG Mode Selection JP10 Table 43: Pin Assignment JP10 Jumper 1 Position Description Pin 1-2 Pin 2-3 Normal Operation Enable MFG Mode “X” = Jumper set (short) and “-” = jumper not set (open) www.kontron.com // 57...

  • Page 58: 8/ Bios

    8/ BIOS 8.1. Starting the uEFI BIOS The 3.5"-SBC-WLU is provided with a Kontron-customized, pre-installed and configured version of AMI Aptio® V uEFI BIOS. AMI BIOS firmware is based on the Unified Extensible Firmware Interface (UEFI) specification and the Intel®...

  • Page 59: Starting The Uefi Bios

    Read only field. Displays information about total memory ME Information Read only field. Displays information about Intel Management Engine (ME) version Firmware Information Code version and firmware information System Date Set System Date System Time Set System Time www.kontron.com // 59...

  • Page 60: Figure 39: Bios Main Menu Screen System Data And Time

    Version 2.20.1275. Copyright (C) 2020, American Megatrends, Inc. Feature Option Description System Date [dd/mm/yyyy] Set the Date. Use Tab to switch between Data elements. System Time [hh:mm:ss] Set the Time. Use Tab to switch between Time elements. www.kontron.com // 60...

  • Page 61: Advanced Setup Menu

    CPU Chipset Configuration  NVMe Configuration  SATA Configuration  USB Configuration  AMT Configuration  Trusted Computing  H/W Monitor  Network Stack Configuration Setting items on this screen to incorrect values may cause the system to malfunction. www.kontron.com // 61...

  • Page 62: Figure 40: Bios Advanced Menu

    Load I219 UNDI Driver [Disabled], [Enabled] Select whether to load LAN UNDI Driver. Load I210 UNDI Driver [Disabled], [Enabled] Select whether to load LAN UNDI Driver. Audio Controller [Disabled], [Enabled] Select whether to enable or disable Audio Controller. www.kontron.com // 62...

  • Page 63: Figure 41: Bios Advanced Menu - Display Configuration

    Active LVDS [Disabled], [Enabled] Select the Active LVDS Configuration. [Disabled]: VBIOS does not enable LVDS. [Enabled]: VBIOS will enable LVDS. LVDS Panel Type [800x600 1CH], LVDS panel by selecting the appropriate setup item. [1024x768 1CH], [1280x1024 2CH], www.kontron.com // 63...
  • Page 64 [PWM]: Pin 2 output LVDS Backlight [0.0 V], [0.5 V], [1.0 V], Min: 0.0 V Control - Voltage [1.5 V], [2.0 V], [2.5 V], Max: 5.0 V [3.0 V], [3.5 V], [4.0 V], [4.5 V], [5.0 V] www.kontron.com // 64...

  • Page 65: Figure 42: Bios Advanced Menu - Super Io Configuration

    Select an optional setting for Super IO device. IRQ=4;], [IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;], [IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;], [IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;], [IO=2E8h; www.kontron.com // 65...

  • Page 66: Figure 44: Bios Advanced Menu - Super Io Configuration - Serial Port 2 Configuration

    IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;] Serial Port 2 Type [RS232], [RS422], Select an appropriate type for Serial Port 2. [RS485] RS485 Duplex Mode [Half Duplex], [Full Select an appropriate RS485 Duplex Mode. Duplex] www.kontron.com // 66...
  • Page 67 3.5"-SBC-WLU - User Guide, Rev. 1.0 Feature Option Description RS485 Auto Flow [Disabled], [Enabled] Select whether to enable or disable RS485 Auto Flow Control. Control RS485/422 Receiver [Disabled], [Enabled] Select whether to enable or disable RS485/422 Receiver Termination Termination. www.kontron.com // 67...

  • Page 68: Figure 45: Bios Advanced Menu - Cpu Chipset Configuration

    Intel® Trusted Execution Technology. Changes require a full power cycle to take effect. C states [Disabled], [Enabled] Select whether to enable or disable CPU Power Management. Allows CPU to go to C states when it's not 100% utilized. www.kontron.com // 68...

  • Page 69: Figure 46: Bios Advanced Menu - Nvme Configuration

    No NVMe Device Found → ←: Select Screen ↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1275. Copyright (C) 2020, American Megatrends, Inc. www.kontron.com // 69...

  • Page 70: Figure 47: Bios Advanced Menu - Sata Configuration

    Select whether to enable or disable SATA Controller. SATA Mode Selection [AHCI], [Intel RST Determine how SATA controller(s) operate. Premium With Intel Optane System Acceleration] Port 1 [Disabled], [Enabled] Select whether to enable or disable SATA Port 1. www.kontron.com // 70...

  • Page 71: Figure 48: Bios Advanced Menu - Usb Configuration

    This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver. USB Mass Storage [Disabled], [Enabled] Select whether to enable or disable USB Mass Storage Driver Driver Support Support. www.kontron.com // 71...

  • Page 72: Figure 49: Bios Advanced Menu - Amt Configuration

    Select whether to enable or disable AMT BIOS Features. When disabled AMT BIOS Features are no longer supported and user is no longer able to access MEBx Setup. Note: This option does not disable Manageability Features in www.kontron.com // 72...

  • Page 73: Figure 50: Bios Advanced Menu - Trusted Computing

    Version 2.20.1275. Copyright (C) 2020, American Megatrends, Inc. Feature Option Description Security Device [Disabled], [Enabled] Select whether to enable or disable BIOS support for security Support device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. www.kontron.com // 73...

  • Page 74: Figure 51: Bios Advanced Menu - H/W Monitor

    ESC: Exit Version 2.20.1275. Copyright (C) 2020, American Megatrends, Inc. * This item appears only when selecting Manual for CPU FAN Setting. ** These items appear only when selecting Smart for CPU FAN Setting. Feature Option Description www.kontron.com // 74...
  • Page 75 3.5"-SBC-WLU - User Guide, Rev. 1.0 Feature Option Description CPU FAN Setting [Manual], [Smart] Switch the CPU FAN control mode. www.kontron.com // 75...

  • Page 76: Figure 53: Bios Advanced Menu - Network Stack

    Ipv6 HTTP Support [Disabled], [Enabled] Select whether to enable or disable Ipv6 HTTP boot support. If disabled, IPv6 HTTP boot support will not be available. IPSEC Certificate [Disabled], [Enabled] Select whether to enable or disable IPSEC certificate for Ikev. www.kontron.com // 76...

  • Page 77: Power Setup Menu

    [Disabled], [Enabled] Select whether to enable or disable Wake Up on Alarm, to turn Alarm on your system on a special day of the month. Figure 55: BIOS Power Setup Menu - WatchDog Timer Configuration BIOS SETUP UTILITY www.kontron.com // 77...
  • Page 78 * These items appear only when enbling WDT Function. Feature Option Description WDT Function [Disabled], [Enabled] Select whether to enable or disable WatchDog Timer function. WDT Count Mode [Second], [Minute] Select WatchDog Count Mode: Second or Minute. www.kontron.com // 78...

  • Page 79: Boot Setup Menu

    [Enabled], [Disabled] Select whether to enable or disable CSM support. Boot Option Filter [UEFI only] This option controls Legacy / UEFI ROMs priority. Boot Option #1 [UEFI: Built-in EFI Select an option for first boot device. Shell], [Disabled] www.kontron.com // 79...

  • Page 80: Security Setup Menu

    If only the user's password is set, then the password is a power on password and must be entered to boot or enter setup. Within the setup menu the user has administrator rights. Password length requirements are maximum 20 characters and minimum 3 characters. www.kontron.com // 80...
  • Page 81 It is highly recommended to keep a record of all passwords in a safe place. Forgotten passwords results in being locked out of the system. If the system cannot be booted because the User Password or the Supervisor Password are not know, contact Kontron Support for further assistance. HDD security passwords cannot be cleared using the above method. www.kontron.com...

  • Page 82: Save & Exit Setup Menu

    Restore Default values for all the setup values. This option allows you to load optimal default values for each of the parameters on the Setup menus, which will provide the best performance settings for your system. The F9 key can be used for this operation. www.kontron.com // 82...

  • Page 83: Appendix A: List Of Acronyms

    ME F/W Management Engine Firmware mPCIe mini Peripheral Component Interconnect express NGFF Next Generation Form Factor PC-AT Personal Computer - Advanced Technology Printed Circuit Board Power Supply Unit PolyViny Chloride Pulse Width Modulation Random Access Memory Read-Only Memory www.kontron.com // 83...

  • Page 84: About Kontron
