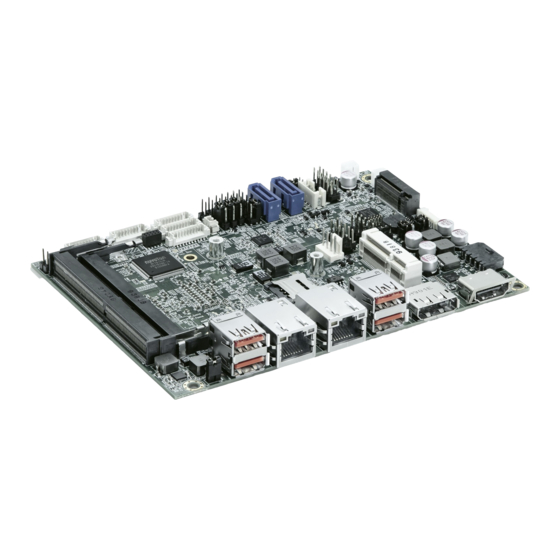

3.5"-SBC-VR1000 - QUICK INSTALLATION GUIDE
Thank you for purchasing the Kontron 3.5"-SBC-VR1000 embedded board. This document provides information to allow
you to quickly install this product.
Packing Checklist
1.
Take the 3.5"-SBC-VR1000 out of the packing box and check if the unit is properly secure in the plastic bag.
2.
Check the contents of the carton box: (*: optional)
3.5"-SBC-VR1000 main board
Quick Installation Guide
Driver CD
DC IN Cable
SATA Cable
COM Port Cable *
DIO Cable *
USB Cable (2 Port) *
SATA Power Cable *
Audio Cable *
Cooler *
Kontron 3.5"-SBC-VR1000 - Quick Installation Guide - Version 1 - P/N: 0D20ECXR1K010000
// 1
Advertisement
Table of Contents
Related Manuals for Kontron 3.5"-SBC-VR1000
Summary of Contents for Kontron 3.5"-SBC-VR1000
- Page 1 3.5"-SBC-VR1000 - QUICK INSTALLATION GUIDE Thank you for purchasing the Kontron 3.5"-SBC-VR1000 embedded board. This document provides information to allow you to quickly install this product. Packing Checklist Take the 3.5"-SBC-VR1000 out of the packing box and check if the unit is properly secure in the plastic bag.
- Page 2 Backlight Enable Selection Panel & Backlight Power Selection AT / ATX Power Mode Selection USB Power Selection Clear CMOS Selection Backlight Adjustment Selection JP10 LVDS EDID Selection Kontron 3.5"-SBC-VR1000 - Quick Installation Guide - Version 1 - P/N: 0D20ECXR1K010000 // 2...
- Page 3 EEPROM WP Selection (JP1) Jumper 1 Position Description Pin 1-2 Memory is inhibited Allows normal write “X’’ = Jumper set (short) and ‘‘-’’ = jumper not set (open) Kontron 3.5"-SBC-VR1000 - Quick Installation Guide - Version 1 - P/N: 0D20ECXR1K010000 // 3...
- Page 4 Pin 2-4 Pin 4-6 Panel Power = +3.3 V Panel Power = +5 V “X’’ = Jumper set (short) and ‘‘-’’ = jumper not set (open) Kontron 3.5"-SBC-VR1000 - Quick Installation Guide - Version 1 - P/N: 0D20ECXR1K010000 // 4...
- Page 5 Normal Operation (default position) Clear CMOS (board does not boot with the jumper in this position) “X’’ = Jumper set (short) and ‘‘-’’ = jumper not set (open) Kontron 3.5"-SBC-VR1000 - Quick Installation Guide - Version 1 - P/N: 0D20ECXR1K010000 // 5...
- Page 6 LVDS EDID Selection (JP10) Jumper 1 Position Description Pin 1-2 Pin 2-3 Normal LVDS EDID Write “X’’ = Jumper set (short) and ‘‘-’’ = jumper not set (open) Kontron 3.5"-SBC-VR1000 - Quick Installation Guide - Version 1 - P/N: 0D20ECXR1K010000 // 6...
- Page 7 Bottom Side Internal Connector Locations Item Designation Description LVDS1 18/24-bit, 2-channel LVDS Panel Connector Kontron 3.5"-SBC-VR1000 - Quick Installation Guide - Version 1 - P/N: 0D20ECXR1K010000 // 7...
- Page 8 USB 2.0 Port 1, 2 Type A Connector (R1000 Model) USB 3.1 Port 3, 4 Type A Connector GbE LAN1 RJ45 Connector GbE LAN2 RJ45 Connector Kontron 3.5"-SBC-VR1000 - Quick Installation Guide - Version 1 - P/N: 0D20ECXR1K010000 // 8...
