Kontron COMe-mAS10 E2 Series User Manual

Kontron COMe-mAS10 E2 Series User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User Guide - COMe-mAS10 (E2)
COMe-mAS10 (E2)
Rev 0.3
www.kontron.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the COMe-mAS10 E2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Kontron COMe-mAS10 E2 Series

Summary of Contents for Kontron COMe-mAS10 E2 Series

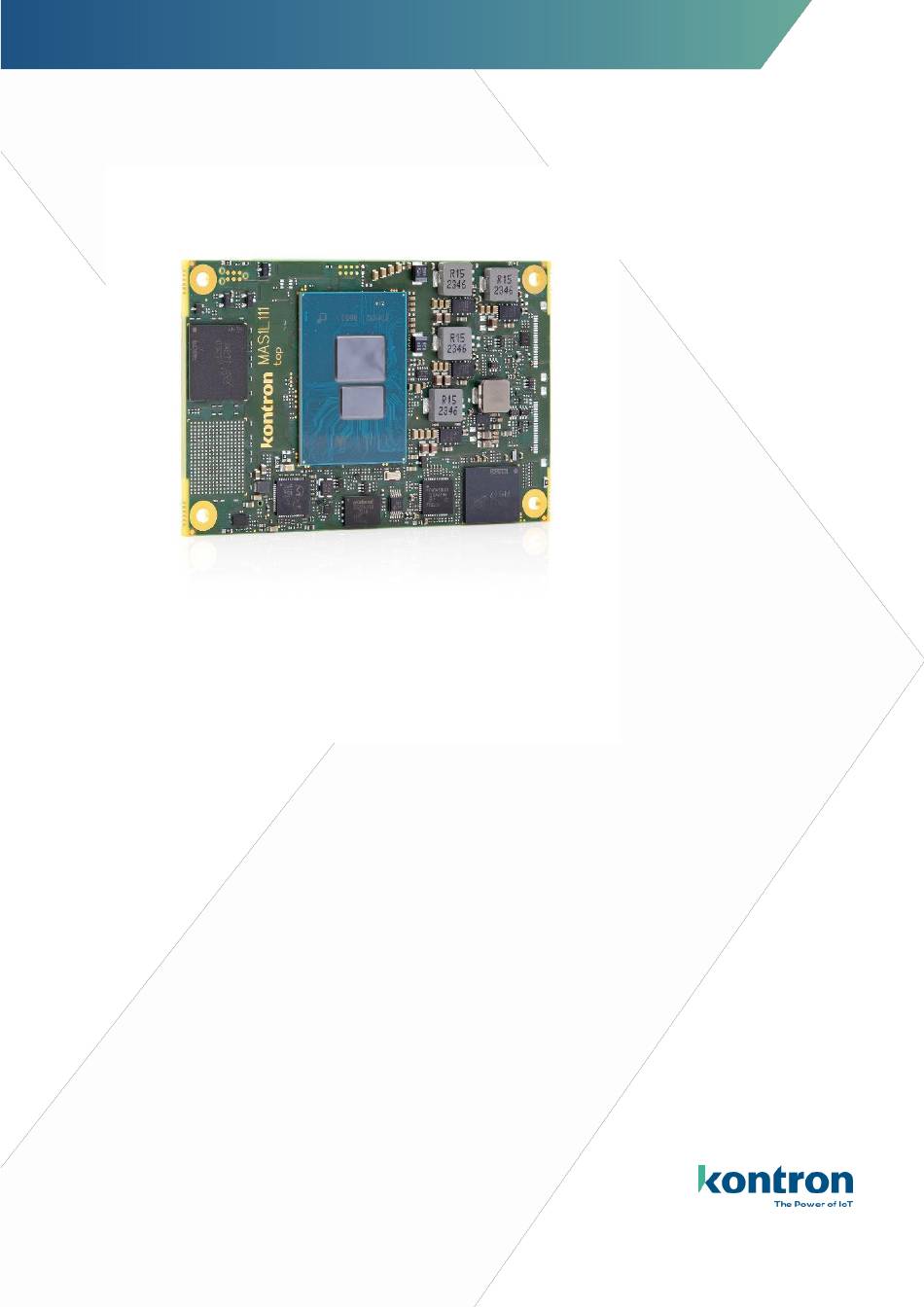

  • Page 1 User Guide - COMe-mAS10 (E2) COMe-mAS10 (E2) Rev 0.3 www.kontron.com...
  • Page 2 User Guide - COMe-mAS10 (E2) This page has been intentionally left blank // 2 www.kontron.com...
  • Page 3 Kontron with respect to technical processes described in the user guide or any product characteristics set out in the user guide. Kontron assumes no responsibility or liability for the use of the described product(s), conveys no license or title under any patent, copyright or mask work rights to these products and makes no representations or warranties that these products are free from patent, copyright or mask work right infringement unless otherwise specified.
  • Page 4 (collectively, “high risk applications”). You understand and agree that your use of Kontron devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards.
  • Page 5 Kontron sells products worldwide and declares regional General Terms & Conditions of Sale, and Purchase Order Terms & Conditions. Visit www.kontron.com/terms-and-conditions. For contact information, refer to the corporate offices contact information on the last page of this user guide or visit...
  • Page 6 Eye protection per manufacturer notice shall review before servicing. This symbol indicates general information about the product and the user guide. This symbol also indicates detail information about the specific product configuration. This symbol precedes helpful hints and tips for daily use. // 6 www.kontron.com...
  • Page 7 Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines.
  • Page 8 General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the product, that are not explicitly approved by Kontron and described in this user guide or received...
  • Page 9 3.4.8. General Purpose SPI Interface - GP_SPI....................26 3.4.9. Boot SPI Interface ..........................26 3.4.10. LPC/eSPI ............................27 3.4.11. I2C ..............................28 3.4.12. GPIO ..............................28 3.4.13. SMB ..............................28 3.4.14. MIPI-CSI ............................29 3.5. Features ................................ 29 3.5.1. ACPI Power States ..........................29 // 9 www.kontron.com...
  • Page 10 3.7. Thermal Management ..........................34 3.7.1. Heatspreader Plate Assembly ......................34 3.7.2. Active/Passive Cooling Solutions ......................34 3.7.3. Operating with Kontron Heatspreader Plate (HSP) Assembly ............35 3.7.4. Operating without Kontron Heatspreader Plate (HSP) Assembly ............35 3.7.5. Temperature Sensors ......................... 35 3.7.6.
  • Page 11 Table 37: Connector J1 Pins B1 - B110 according to COM-0 Rev 3.1 ................43 Table 38: Comparison Pinout Type 10 COM.0 Rev 3.0 vs. Rev 3.1 ................46 Table 39: Navigation Hot Keys Available in the Legend Bar ..................47 // 11 www.kontron.com...
  • Page 12 Figure 3: COMe-mAS10 (E2) Bottom Side ........................22 Figure 4: Module Temperature Sensors ........................35 Figure 5: Module Dimensions ............................. 36 Figure 6: Module and Carrier Height with 5 and 8mm connector height ..............37 Figure 7: Setup Menu Selection Bar ..........................48 // 12 www.kontron.com...
  • Page 13 Only connect the product to an external power supply providing the voltage type (AC or DC) and the input power (max. current) specified on the Kontron Product Label and meeting the requirements of the Limited Power Source (LPS) and Power Source (PS2) of UL/IEC 62368-1 .
  • Page 14 Le non-respect des consignes de sécurité générales suivantes peut entraîner des blessures pour l'utilisateur et/ou des dommages pour le produit. En cas de non-respect des consignes, Kontron Europe est exonéré de la responsabilité en cas d'accident, ceci s'applique également pendant la période de garantie.
  • Page 15 Use antistatic mats, heel straps, or air ionizers for more protection. Always handle electrostatically sensitive components by their edge or by their casing. Avoid contact with pins, leads, or circuitry. Switch off power and input signals before inserting and removing connectors or connecting test equipment. // 15 www.kontron.com...
  • Page 16 Do not dispose of lithium batteries in general trash collection. Dispose of the lithium battery according to the local regulations dealing with the disposal of these special materials, (e.g. to the collecting points for dispose of batteries). // 16 www.kontron.com...
  • Page 17 2.4. COM Express® Type 10 Functionality All Kontron COM Express® mini modules contain a single 220-pin connector with two rows called rowA & B. The COM Express® mini type 10 Computer-On-Module features the following maximum amount of interfaces according to the PICMG module pinout type.
  • Page 18 COM Express® defines a Computer-On-Module (COM), with all the components necessary for a bootable host computer, packaged as a highly integrated computer. All Kontron COM Express® modules are very compact and feature a standardized form factor and a standardized connector layout that carry a specified set of signals. Each COM module is based on the COM Express ®...
  • Page 19 3.2. Accessories Accessories are product specific, COM Express ® specific or general COM accessories. For more information, contact your local Kontron Sales Representative or Kontron Inside Sales. 3.2.1. Cooling A standard heat spreader solutions can be used, which are available in a threaded and non-threaded (through hole) version.
  • Page 20 Commercial temperature: 0 °C to +60 °C operating, -30 °C to +85 °C non-operating Industrial temperature: -40 °C to +80 °C operating, -30 °C to +85 °C non-operating Humidity 93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78) // 20 www.kontron.com...
  • Page 21 Figure 1: COMe-mAS10 (E2) Block Diagram 3.3.3. Top Side Figure 2: COMe-mAS10 (E2) Front Side 1. LPDDR5 memory down 3. Position of optional flatfoil connector for MIPI-CSI 2. SoC - Processor (CPU) & Chipset (PCH) 4. eMMC flash chip // 21 www.kontron.com...
  • Page 22 Table 8: Intel® Atom x7000RE Product Family Specifications - standard on COMe-mAS10 (E2) Processor Cores Number Condition max °C °C Base 1C Turbo Base Turbo Turbo Embedded Yes–In x7211RE Band Industrial Embedded Yes–In x7213RE Band Industrial Embedded Yes–In x7433RE Band Industrial Embedded Yes–In x7835RE 1000 Band Industrial www.kontron.com...
  • Page 23 In addition for certain interfaces such as eMMC, USB, etc.. the speed needs to be reduced. x7000E Processor Series: Embedded use condition, DTR = +- 70°C. Please contact Kontron Support for further information. Table 10: DTR Table Commercial Temp: Extended Temp:...
  • Page 24 PCIE_2 PCIE_3 To change the default PCIe configuration (4x1), a new BIOS version is required. For BIOS version information, please visit Kontron's Customer Section. 3.4.2. USB COM Express® Type 10 boards provide up to eight USB 2.0 ports. Up to two of these can be used as USB 3.2 Gen1 or Gen2 ports.
  • Page 25 USB3.0 support due to the limitation by fixed USB_ID in software). It does not support changing dynamically between host mode and device mode. A BIOS settings change in setup menu and restart is required. When designing the carrier board consider the speed of the USB 3.2 Gen2 (10 Gb/s). Kontron recommends using a retimer/redriver on the carrier.
  • Page 26 COMe SPI pins. This interface supports serial flash (for BIOS firmware) and TPM being attached to it only. A BOM assembly option allows the General Purpose SPI (GP_SPI) to be connected to COMe signal pins instead. This option is implemented on request only. // 26 www.kontron.com...
  • Page 27 The module will not boot up if module and carrier configuration do not match. Table 18: LPC/eSPI mode comparison COMe Connector Pin LPC mode (Embedded Controller) eSPI mode (PCH) LPC_AD[0:3]/ESPI_IO_[0:3] LAD[0:3] ESPI_IO_[0:3] LPC_FRAME#/ESPI_CS0# LFRAME# ESPI_CS0# LPC_CLK/ESPI_CK LPC_CLK0 ESPI_CLK LPC_DRQ[0:1]#/ESPI_ALERT[0:1]# LPC_DRQ[0:1] ESPI_ALERT[0:1]# // 27 www.kontron.com...
  • Page 28 ESPI_EN# ESPI_EN# For eSPI usage a HW modification and customized BIOS according to the customer's requirements is necessary. For further help on this please contact Kontron Support. 3.4.11. I2C The I2C buses are managed by the onboard Embedded Controller. The external I2C bus transfers data between I2C devices connected on the bus, a further internal one between components on the module itself.
  • Page 29 Not all ACPI defined power states are available. The COMe-mAS10 (E2) supports ACPI 6.0 and the power states S0, S3, S4, S5. To power on from state S3, S4, S5 use: Power Button, Wake On LAN 3.5.2. Embedded Controller - Hardware Monitor // 29 www.kontron.com...
  • Page 30 (SMM). As such, specific BIOS code handles the interrupt. The current BIOS handler for the watchdog SMI currently does nothing. For special requirements, contact Kontron Support A system control interrupt (SCI) is a OS-visible interrupt to be handled by the OS using AML code...
  • Page 31 Signals routed to SPI pins of COMe connector MIPI-CSI Connecting flatfoil 3.6. Electrical Specification The module powers on by connecting to a carrier board via the COM-Express interface connectors. The COM Express interface connector pins on the module limit the amount of power received. // 31 www.kontron.com...
  • Page 32 SFX Design Guide. 3.6.2. Power Management The Advanced Configuration and Power Interface (ACPI) 5.0 hardware specification supports features such as power button and suspend states. The power management options are available within the BIOS set up menu: Advanced>ACPI Settings> // 32 www.kontron.com...
  • Page 33 Sleep button: Low active signal used by the ACPI operating system to bring the system to sleep state or to B103 (SLEEP#) wake it up again. 3.6.3. Power Supply Modes The COMe-mAS10 (E2) is operating in either ATX power mode or single power supply mode. // 33 www.kontron.com...
  • Page 34 3.7. Thermal Management 3.7.1. Heatspreader Plate Assembly A heatspreader plate assembly is available from Kontron for the COMe-mAS10 (E2). The heatspreader plate assembly is NOT a heat sink. The heatspreader plate transfers heat as quickly as possible from the processor using a copper core positioned directly above the processor and a Thermal Interface Material (TIM).
  • Page 35 Both active and passive thermal management approaches can be used with the heatspreader plate. The optimum cooling solution depends on the aaplication and environmental conditions. Kontron's active or passive cooling solutions are designed to cover the power and thermal dissipation for a commercial temperature range used in housing with a suitable airflow.
  • Page 36 PCB board to the top of the heatspreader. The overall height of the module and carrier board depends which carrier board connectors are used (5mm and 8mm height are available) which cooling solution is used. The height of the cooling solution is not specified in the COM Express specification // 36 www.kontron.com...
  • Page 37 3.10. Compliance The COMe-mAS10 (E2) complies with the following or the latest status thereof. If modified, the prerequisites for specific approvals may no longer apply. For more information, contact Kontron Support Europe and Asia Kontron Table 32: Compliance CE Mark...
  • Page 38 Kontron is not responsible for any radio television interference caused by unauthorized modifications of the delivered product or the substitution or attachment of connecting cables and equipment other than those specified by Kontron. The correction of interference caused by unauthorized modification, substitution or attachment is the user’s responsibility.
  • Page 39 I-5T 3.3 V Input (5 V tolerance) PU/PD Pull-Up/Pull-Down Resistor Output Analog Power Connection Differential Pair Output Open Drain Differentiator The pin assignment tables list the internal pull-ups (PU) or pull-downs (PD) implemented by the chip vendors. // 39 www.kontron.com...
  • Page 40 SPKR / SATA_LED# share the same PCH IO selectable via setup option (default SATA_LED#) HDA_SYNC HD Audio Sync O-3.3 on module 27ohm series termination HDA_RST# HD Audio Reset O-3.3 PD 100K on module 27ohm series termination Power Ground PWR GND // 40 www.kontron.com...
  • Page 41 PCI Express Lane 1 Transmit + DP-O AC coupled on module (220nF) PCIE_TX1- PCI Express Lane 1 Transmit - DP-O AC coupled on module (220nF) Power Ground PWR GND GPI2 General Purpose Input 2 I-3.3 PU 100K (S0) // 41 www.kontron.com...
  • Page 42 I-5T PU 10K 3.3V (S0) 20V protection circuit implemented on module A100 Power Ground PWR GND A101 SER1_TX Serial Port 1 TXD O-3.3 20V protection circuit implemented on module; PD on carrier board needed for proper operation // 42 www.kontron.com...
  • Page 43 PD 10K / ESPI_RESET# eSPI Reset O-1.8 PD 75K SATA1_RX+ SATA 1 Receive Pair + DP-I AC coupled on module (10nF) SATA1_RX- SATA 1 Receive Pair - DP-I AC coupled on module (10nF) Power Ground PWR GND // 43 www.kontron.com...
  • Page 44 Reserved for future use GPO1 General Purpose Output 1 O-3.3 PD 100K GP_SPI_MISO General Purpose SPI I-3.3 on module 33ohm series termination Master In Slave Out GP_SPI_MOSI General Purpose SPI O-3.3 on module 33ohm series termination Master Out Slave In // 44 www.kontron.com...
  • Page 45 DDI0 CTRLDATA/AUX- I/O-3.3 PU 100K (S0) PU 2K2 if DDC is selected B100 Power Ground PWR GND B101 FAN_PWMOUT Fan PWM Output O-3.3 20V protection circuit implemented on module, PD on carrier board needed for proper operation // 45 www.kontron.com...
  • Page 46 Carrier should not have 5V VBUS power enabled RSVD RSMRST_OUT# before RSMRST_OUT# transitions to HIGH state. RSVD GP_SPI_CS# General Purpose SPI Interface RSVD GP_SPI_CK HDA_SDIN2 HDA_SDIN2/SNDW0_CLK SoundWire overlay on HAD_SDIN[1:2] pins. (V_HDA=3.3V <-> V_SNDW=1.8V) HDA_SDIN1 HDA_SDIN1/SNDW0_DAT RSVD GP_SPI_MOSI General Purpose SPI Interface // 46 www.kontron.com...
  • Page 47 5/ UEFI BIOS 5.1. Starting the UEFI BIOS The COMe-mAS10 (E2) uses a Kontron-customized, pre-installed and configured version of AMI Aptio® V BIOS based on the Unified Extensible Firmware Interface (UEFI) specification and the Intel® Platform Innovation Framework for EFI.
  • Page 48 5.5. UEFI Shell The Kontron UEFI BIOS features a built-in and enhanced version of the UEFI Shell. For a detailed description of the available standard shell scripting, refer to the EFI Shell User Guide. For a detailed description of the available standard shell commands, refer to the EFI Shell Command Manual.
  • Page 49 1. Initially searches for Kontron flash-stored startup script. 2. If there is no Kontron flash-stored startup script present, then the UEFI-specified startup.nsh script is used. This script must be located on the root of any of the attached FAT formatted disk drive.
  • Page 50 RMA number. The buyer accepts responsibility for all freight charges for the return of goods to Kontron's designated facility. Kontron will pay the return freight charges back to the buyer's location in the event that the equipment is repaired or replaced within the stipulated warranty period. Follow these steps before returning any product to Kontron.
  • Page 51 User Guide - COMe-mAS10 (E2) Include the RMA-Number with the shipping paperwork and send the product to the delivery address provided in the RMA form or received from Kontron RMA Support. // 51 www.kontron.com...
  • Page 52 The storage facility must meet the products environmental storage requirements as stated within this user guide. Kontron recommends keeping the original packaging material for future storage or warranty shipments.
  • Page 53 User Guide - COMe-mAS10 (E2) About Kontron Kontron is a global leader in IoT/Embedded Computing Technology (ECT) and offers individual solutions in the areas of Internet of Things (IoT) and Industry 4.0 through a combined portfolio of hardware, software and services.
