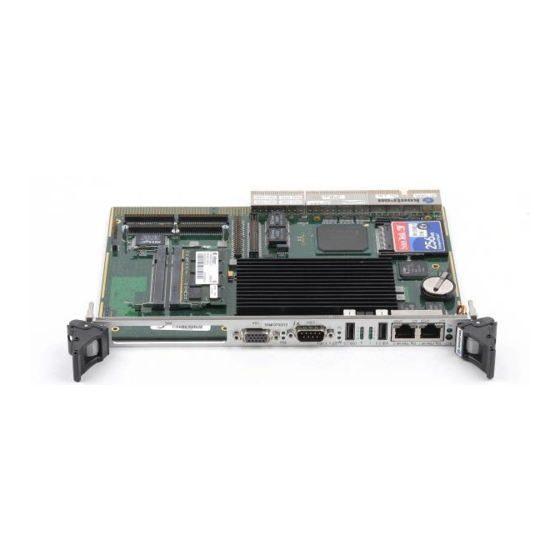

6u pentium m picmg 2.16 cpu blade
Table of Contents

Advertisement

Quick Links

Kontron CompactPCI CP6000 User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CompactPCI CP6000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kontron CompactPCI CP6000

  • Page 1 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...
  • Page 2: User Guide

    CP6000 6U Pentium® M PICMG 2.16 CPU Blade Manual ID: 27942, Rev. Index 05 October 20, 2005 User Guide Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 3 Copyright © 2005 Kontron Modular Computers GmbH. All rights reserved. This manual may not be copied, photocopied, reproduced, translated or converted to any electronic or machine- readable form in whole or in part without prior written approval of Kontron Modular Computers. GmbH.
  • Page 4: Table Of Contents

    Front Panels ................... 1 - 8 1.5.3 Board Layout .................. 1 - 9 1.6 Technical Specification ................1 - 11 1.7 Kontron Software Support ..............1 - 17 ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page iii...
  • Page 5 2.3.10 Serial ATA Interface ...............2 - 22 2.3.11 Serial ATA Connector J18 (Optional) ..........2 - 22 Page iv © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 6 CompactFlash Configuration ............4 - 3 4.1.2 Clearing BIOS CMOS Setup ............4 - 3 ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page v Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 7 BIOS ......................5 - 3 Chapter Power Consumption ..................6 - 3 6.1 System Power ..................6 - 3 Page vi © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 8 B.2 Technical Specifications ................B - 3 B.3 CP6000-EXT-SATA Module Functional Block Diagram ......B - 3 ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page vii Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 9 Board-to-Board Connectors J1 and J3 ........... B - 5 B.5.2 SATA Connector J2 ................ B - 6 Annex AMIBIOS8 ....................C - 3 Page viii © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 10 2-27 64-bit CompactPCI Bus Connector J2 System Slot Pinout ..... 2 - 33 2-28 64-bit CompactPCI Bus Connector J2 Peripheral Slot Pinout ....2 - 34 ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page ix Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 11 4-21 CPCI Master Reset Register ..............4 - 18 4-22 I/O Status Register ................... 4 - 19 Page x © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 12 B-3 Board-to-Board Connector J1 Pinout ............B - 5 B-4 SATA Connector J2 Pinout ................ B - 6 ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page xi Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 13: Id 27942,

    Preface CP6000 This page has been intentionally left blank. Page xii © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 14 CP6000-EXT-SATA Module Functional Block Diagram ......B - 3 CP6000-EXT-SATA Module Layout ............B - 4 SATA Connector J2 .................. B - 6 ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page xiii Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 15 Preface CP6000 This page has been intentionally left blank. Page xiv © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 16 This document contains information proprietary to Kontron Modular Computers GmbH. It may not be copied or transmitted by any means, disclosed to others, or stored in any retrieval system or media without the prior written consent of Kontron Modular Computers GmbH or one of its authorized agents.
  • Page 17 This symbol and title emphasize aspects the reader should read through carefully for his or her own advantage. Page xvi © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 18 However, the life expectancy of your product can be drastically reduced by improper treatment during unpacking and installation. Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines.
  • Page 19 CP6000 General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the device, which are not explicitly approved by Kontron Modular Computers GmbH and described in this manual or received from Kontron’s Technical Support as a special handling instruction, will void your warranty.
  • Page 20 However, no other warran- YEAR LIMITED HARDWARE WARRANTY ties that may be granted or implied by anyone on behalf of Kontron are valid unless the con- sumer has the express written consent of Kontron Modular Computers GmbH.
  • Page 21 Preface CP6000 This page has been intentionally left blank. Page xx © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 22 CP6000 Introduction Chapter Introduction ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 1 - 1 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 23 Introduction CP6000 This page has been intentionally left blank. Page 1 - 2 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 24: Introduction

    • Information on the distinctive features of Kontron CompactPCI boards, such as functionality, hot swap capability. In addition, an overview is given for all existing Kontron CompactPCI boards with links to the relating data sheets. • Generic information on the Kontron CompactPCI backplanes, such as the slot...
  • Page 25: Board Overview

    The board is offered with the Microsoft® Windows® 2000, Windows® XP and Windows® XP Embedded operating systems. Kontron further supports, as a standard, Linux and VxWorks®. Please contact Kontron Modular Computers for further information concerning other operating systems.
  • Page 26: Board-Specific Information

    • Rear I/O on J3 and J5; optionally on J4 • IPMI compliant Baseboard Management controller ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 1 - 5 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 27: System Relevant Information

    The CP6000 has one PCI-X, 64-bit/66 MHz, 3.3V, rear I/O capable, PMC mezzanine interface. This interface supports a wide range of available PMC modules with PCI and PCI-X interface including all of Kontron’s PMC modules and provides an easy and flexible way to configure the CP6000 for various application requirements.
  • Page 28: Cp6000 Functional Block Diagram

    Keyboard Floppy 9-pin ATA150 2x4-pin 9-pin ATA150 2x4-pin Onboard on J30/J31 or J5CPCI ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 1 - 7 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 29: Cp6000 4 Hp Front Panels

    SPEED ON (orange): 1000 Mbit SPEED ON (green): 100 Mbit SPEED OFF: 10 Mbit Page 1 - 8 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 30: Cp6000 Board Layout (Front View)

    6300 ESB POST CODE LEDs CompactFlash Socket Magnetics Battery Magnetics HS LED J15 J16 ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 1 - 9 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 31: Cp6000 Board Layout (Reverse View)

    Figure 1-4: CP6000 Board Layout (Reverse View) R464 COM1 R509 COM2 R501 R513 R347 Page 1 - 10 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 32: Cp6000 4Hp Version Main Specifications

    CompactFlash socket type II (true IDE mode) Serial EEPROM: • 24LC64 (64 kbit) ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 1 - 11 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 33 • Low Pin Count (LPC) interface • Firmware Hub (FWH) interface support Page 1 - 12 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 34 Two USB 2.0 connectors on the front panel • Two USB 2.0 on the rear I/O interface ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 1 - 13 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 35 1.44 or 2.88 MB, 3.5" floppy disks I/O Extension Interface I/O extension interface: • LPC devices Page 1 - 14 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 36 CompactPCI Connector J1 and J2 (J3 - J5 optional) • 5-pin PS/ 2 connector (keyboard) • Two 200-pin SODIMM sockets ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 1 - 15 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 37 The hot swap controller The IPMI supports two I²C busses via the J1 and J2 connectors. Page 1 - 16 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 38: Kontron Software Support

    VxWorks® Kontron Software Support Kontron is one of the few CompactPCI and VME manufacturers providing inhouse support for most of the industry-proven real-time operating systems that are currently available. Due to its close relationship with the software manufacturers, Kontron is able to produce and support BSPs and drivers for the latest operating system revisions thereby taking advantage of the changes in technology.
  • Page 39: Standards

    Introduction CP6000 Standards This Kontron Modular Computers’ product complies with the requirements of the following standards: Table 1-3: Standards TYPE ASPECT STANDARD REMARKS Emission EN55022 EN61000-6-3 Immission EN55024 EN61000-6-2 Electrical Safety EN60950-1 Mechanical Mechanical Dimensions IEEE 1101.10 Environmental Vibration IEC60068-2-6...
  • Page 40: Related Publications

    CompactPCI System Management Specification PICMG 2.9 Rev. 1.0 CompactPCI Hot Swap Specification PICMG 2.1 Rev. 2.0 Hot Swap Specification PICMG 2.1 Kontron Modular Computers’ CompactPCI System Manual, ID 19954 CompactFlash Cards CF+ and CompactFlash Specification Revision 1.4 ID 27942, Rev. 05 ©...
  • Page 41 Introduction CP6000 This page has been intentionally left blank. Page 1 - 20 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 42 CP6000 Functional Description Chapter Functional Description ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 2 - 1 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 43 Functional Description CP6000 This page has been intentionally left blank. Page 2 - 2 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 44: Functional Description

    • 400 MHz, Source-Synchronous processor system bus • Advanced Power Management features including Enhanced Intel® SpeedStep® tech- nology ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 2 - 3 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 45: Supported Intel® Pentium® M Processors On The Cp6000

    1.036 V 1.036 V 600 MHz 0.956 V 0.988 V 0.956 V 0.988 V Page 2 - 4 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 46: Supported Intel® Celeron® M Processor On The Cp6000

    SODIMMs used with this board must comply with the following PC DDR SDRAM memory spec- ifications: • PC DDR SDRAM Memory Specification DDR200, DDR266 and DDR333 • PC Serial Presence Detect Specification Only qualified DDR SDRAMs from Kontron Modular Computers can be used with the CP6000. Table 2-6: Memory Options Utilizing SODIMM Sockets SODIMM-0...
  • Page 47: 855Gme Chipset Functional Block Diagram

    2 SATA Ports SMBus 4 Ports 6300ESB PCI-X ATA 100 IDE Interface Channels (2) Page 2 - 6 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 48: Graphics And Memory Controller Hub (855Gme)

    • Hub interface for a 855GME chipset • FWH interface • LPC interface • RTC controller ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 2 - 7 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 49: Peripherals

    The lithium battery must be replaced with an identical battery or a battery type recommended by the manufacturer. Suitable batteries include the VARTA CR2025 and PANASONIC BR2020. Page 2 - 8 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 50: Sm Bus Device Addresses

    SM Bus Device Addresses DEVICE SMB ADDRESS Hardware Monitor LM87 0101110xb EEPROM 24LC64 1010111xb Clock 1101001xb ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 2 - 9 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 51: Eeprom Address Map

    Microdrive hard disk from IBM with up to 6 GB capacity. For further information on the CompactFlash, refer to section 2.3.8.3, CompactFlash Socket. Page 2 - 10 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 52: Board Interfaces

    TH LED remains on during bootup, it indicates a PCI reset is active, and if the WD LED remains on during bootup, it indicates a power failure. In this case, check the power supply. If the power supply appears to be functional and this LED remains on, contact Kontron Modular Computers’ Technical Support.
  • Page 53: Keyboard Connector J24 Pinout

    The USB power supply to each USB connector is protected with a fuse (500 mA) and all the signal lines are EMI-filtered. Page 2 - 12 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 54: Graphics Controller

    7680 1280 x 1024 1600 x 1200 1920 x 1440 2048 x 1536 ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 2 - 13 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 55: D-Sub Crt Con. J10

    C clock Power +5V 200 mA, no fuse protection 5,6,7,8,10 Ground signal 4,11 Free Page 2 - 14 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 56: Serial Port Con. J9 (Com1) Pinout

    The floppy disk port is only available on the CompactPCI rear I/O interface. ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 2 - 15 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 57: Dual Gigabit Ethernet Connector J6A/B

    BI_DB- BI_DB+ BI_DA+ BI_DC+ BI_DD+ BI_DC- BI_DD- BI_DB- BI_DA- BI_DD+ BI_DC+ BI_DD- BI_DC- Page 2 - 16 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 58: Eide Interface Connectors J19 And J20

    This interface is also available at rear I/O. The onboard 2.5" HDD can be installed on the 44-pin connector. ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 2 - 17 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 59: Connecting An Onboard 2.5" Hdd To Cp6000 Via Parallel Ata

    Connecting an Onboard 2.5" HDD to CP6000 via Parallel ATA 44-Pin Cable 2.5” Parallel ATA HDD Page 2 - 18 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 60: Pinout Of Ata 44-Pin Connector J19

    HD select 1 LED driving Ground signal 5V power 5V power Ground signal ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 2 - 19 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 61: Pinout Of Ata 40-Pin Connector J20

    CF type I and CF type II cards. The IBM Microdrive is a CF type II card. Page 2 - 20 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 62: Compactflash Connector J17 Pinout

    Drive active slave DASP NC (PDIAG) present Data 08 Data 09 Data 10 ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 2 - 21 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 63: Sata Connector J18 Pinout

    CP6000 through the CP6000-EXT-SATA module. For further information on the CP6000-EXT- SATA module, refer to Appendix B. Page 2 - 22 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 64: Sata Extension Connector J30 Pinout

    5V power Ground signal 5V power Ground signal 5V power Ground signal 5V power ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 2 - 23 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 65: Connecting An Onboard 2.5" Sata Hdd To Cp6000-Ext-Sata

    Figure 2-12: Connecting an Onboard 2.5" SATA HDD to CP6000-EXT-SATA CP6000-EXT-SATA Module 2.5” Serial ATA HDD Page 2 - 24 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 66: Pmc Connectors J25, J26, J27 And J28

    66 MHz PCI-X Note ... The 64-bit/66 MHz PCI mode is not supported. ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 2 - 25 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 67: Pmc Connectors J26 And J28 Pinouts

    The host controller detects the bus speed via the PICXCAP signal. Low: PCI 33 MHz; High: PCI-X 66 MHz Page 2 - 26 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 68: Pmc Connectors J25 And J27 Pinouts

    The PMC rear I/O signals from Jn4 (J27) are routed to CompactPCI connector J4, whose pinout is described later in this chapter. ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 2 - 27 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 69: Compactpci Interface

    +1V reference voltage. If the board is configured in the system master configuration, the ref- erence voltage is disabled. Page 2 - 28 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 70 ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 2 - 29 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 71: Coding Key Colors On J1

    To prevent plugging the CP6000 into an H.110 backplane slot, a brown key is installed in J4. Note: Pinrows GND pins Page 2 - 30 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 72: Compactpci Bus Connector J1 System Slot Pinout

    GNT0 IPMB PWR V(I/O) INTP INTS INTA# INTB# INTC# INTD# -12V TRST# +12V ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 2 - 31 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 73: Compactpci Bus Connector J1 Peripheral Slot Pinout

    A * indicates that the signal normally present at this pin is disconnected from the CompactPCI bus when the CP6000 is inserted in a peripheral slot. Page 2 - 32 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 74: Bit Compactpci Bus Connector J2 System Slot Pinout

    The 64-bit CompactPCI signals are not supported, but all 64 control signals are ter- minated to V(I/O). ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 2 - 33 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 75: Bit Compactpci Bus Connector J2 Peripheral Slot Pinout

    All standard PC interfaces are implemented and assigned to the front panel and to the rear I/O connectors J3, and J5. Page 2 - 34 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 76: Compactpci Rear I/O Connector J3 Pinout

    Failure to comply with the above will result in damage to your board. ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 2 - 35 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 77: Compactpci Rear I/O Connector J3 Signals

    Standard PC Speaker Fan Sensoring Rear I/O LAN Port B Rear I/O LAN Port A Page 2 - 36 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 78: Compactpci Rear I/O Connector J4 Pinout

    Failure to comply with the above will result in damage to your board. ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 2 - 37 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 79: Compactpci Rear I/O Connector J5 Signals

    System Management Bus Signaling Floppy Disk Signaling Secondary Hard Disk Drive Channel Signaling Page 2 - 38 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 80 SATA with the rear I/O SATA is not permitted. PMC Rear I/O The PMC Rear I/O pinout is optimized to connect the Kontron SCSI PMC board (PMC 261). This module provides SCSI rear I/O support. Other PMC modules with rear I/O functionality can also be used on the CP6000.
  • Page 81: Ipmi Functional Block Diagram

    Display Module Fan Modules Power Supply IPMB CompactPCI Backplane IPMB IPMB CPU Boards Page 2 - 40 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 82: Ipmi Glossary

    PCI system and handles the measurements and the protocol stack. System Management Software ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 2 - 41 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 83: Ipmi Implementation On The Cp6000

    Status of processor NMI line Critical interrupt: SMI Status of processor SMI line Page 2 - 42 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 84: Reset Control

    Chipset core 1.5V supply Voltage 1.8V Processor 1.8V supply Voltage battery Board RTC battery ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 2 - 43 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 85: Data Repositories

    All the data gathered by the BMC is stored in a non-volatile memory, providing the possibility to obtain information about working conditions and failure situations. Page 2 - 44 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 86 CP6000 Installation Chapter Installation ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 3 - 1 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 87 Installation CP6000 This page has been intentionally left blank. Page 3 - 2 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 88: Installation

    Safety Requirements The following safety precautions must be observed when installing or operating the CP6000. Kontron assumes no responsibility for any damage resulting from failure to comply with these requirements. Warning! Due care should be exercised when handling the board due to the fact that the heat sink can get very hot.
  • Page 89: Cp6000 Initial Installation Procedures

    Failure to comply with the above warning may result in damage to or improper operation of the CP6000. Page 3 - 4 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 90: Standard Removal Procedures

    In any event, the safety requirements above must be ob- served. ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 3 - 5 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 91: Peripheral Hot Swap Procedure

    7. Dispose of the “old” board as required observing the safety requirements indicated in Chapter 3.1. Page 3 - 6 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 92: Installation Of Cp6000 Peripheral Devices

    All USB devices may be connected or removed while the host or other peripherals are powered up. ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 3 - 7 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 93: Rear I/O Device Installation

    The incorrect connection of power or data cables may damage your hard disk unit and/or CP6000 board. Page 3 - 8 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 94: Software Installation

    The corresponding operating system will detect new de- vices according to the Plug and Play configuration rules. ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 3 - 9 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 95 Installation CP6000 This page has been intentionally left blank. Page 3 - 10 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 96 CP6000 Configuration Chapter Configuration ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 4 - 1 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 97: Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-Source | Www.artisantg.com

    Configuration CP6000 This page has been intentionally left blank. Page 4 - 2 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 98: Compactflash Configuration

    Closed zero ohm resistors The default setting is indicated by using italic bold. ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 4 - 3 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 99: Vga-Crt Jumper Setting

    J22 open General purpose functionality The default setting is indicated by using italic bold. Page 4 - 4 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 100: Resistor Setting To Configure Com1

    R509 (soldered or 0 ohm, 0603 package) Open Open Closed The default setting is indicated by using italic bold. ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 4 - 5 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 101: Jumper Setting For Rs-422 Rxd Termination (Com1)

    COM1 is available on the front and rear I/O without any switch. It is strongly recommended to use only one option at the same time. Page 4 - 6 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 102: Resistor Setting To Configure Com2

    R501 (soldered or 0 ohm, 0603 package) Open Open Closed The default setting is indicated by using italic bold. ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 4 - 7 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 103: Jumper Setting For Rs-422 Rxd Termination (Com2)

    Closed (0 ohm resistor) Open The default setting is indicated by using italic bold. Page 4 - 8 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 104: Interrupts

    IRQ5 should normally have only one source enabled, otherwise improper system operation may result. If more than one source is required to be enabled, contact Kontron Modu- lar Computers’ Technical Support before implementing the IRQs. For events that are not time critical, such as ENUM, DERATE, etc., polling should be considered instead of using an IRQ.
  • Page 105: Onboard Pci Interrupt Routing

    Gigabit front / PMC INTD Free For more information, refer to the INTEL 6300ESB data sheet. Page 4 - 10 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 106: Memory Map For The 1St Megabyte

    The following table sets out the memory map for the I/O memory. The shaded table cells indicate CP6000 specific registers. ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 4 - 11 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 107: I/O Address Map

    Floppy Disk + Super-I/O #1 Com. 3F8,3FF Serial port COM1 CA2-CA3 IPMI communication interface CA4-CA5 IPMI communication interface Page 4 - 12 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 108: Ipmi Configuration Register

    BMC_EXT BMC COM port is connected to COM2 connector Reserved Reserved Reserved Reserved ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 4 - 13 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 109: Ipmi Interrupt Configuration Register

    A write access triggers the watchdog. The I/O location for the watchdog trigger is 0x280. Page 4 - 14 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 110: Watchdog Timer

    System reset generated by power-on reset System reset generated by Watchdog Reserved Reserved ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 4 - 15 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 111: Geographic Addressing Register

    Geographic address Geographic address Geographic address Geographic address Geographic address Reserved Reserved Reserved Page 4 - 16 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 112: Watchdog, Compactpci Interrupt Configuration Register

    NMI and at the second stage the system will be reset. ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 4 - 17 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 113: Cpci Master Reset Register

    Enable the reset routing from the CompactPCI interface Reserved Reserved Reserved Reserved Reserved Reserved Page 4 - 18 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 114: I/O Status Register

    Indicates that no Watchdog timeout has occurred 4.5.9 Board Version The board version register describes the hardware and the board version. The content of this register is unique for each Kontron CompactPCI board. Table 4-23: Board ID Register REGISTER NAME Board Version...
  • Page 115: Hot Swap Control Register

    Hot swap handle in closed position Hot swap handle in open position Reserved Page 4 - 20 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 116: Led Control Register

    LED switch off LED switch on LED7 LED switch off LED switch on ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 4 - 21 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 117: Hot Swap Led Control Register

    Hot swap LED switch off Hot swap LED switch on Reserved Reserved Reserved Reserved Reserved Page 4 - 22 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 118 CP6000 BIOS Chapter BIOS ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 5 - 1 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 119 BIOS CP6000 This page has been intentionally left blank. Page 5 - 2 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 120 Detailed information concerning the BIOS for the CP6000 is contained in Appendix C. ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 5 - 3 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 121 BIOS CP6000 This page has been intentionally left blank. Page 5 - 4 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 122: Power Consumption

    CP6000 Power Consumption Chapter Power Consumption ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 6 - 1 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 123 Power Consumption CP6000 This page has been intentionally left blank. Page 6 - 2 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 124: Maximum Input Power Voltage Limits

    12 V min. to 12.6 V max. -12 V -11.4 V min. to -12.6 V max. Only for PMC ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 6 - 3 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 125: Backplane

    Failure to comply with the above warning may result in damage to or improper operation of the CP6000. Page 6 - 4 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 126: Input Voltage Characteristics

    If problems still occur, turn off the main power for 30 seconds before turning it on again. ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 6 - 5 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 127: Start-Up Ramp Of The Cp3-Sve180 Ac Power Supply

    6.1.3.5 Rise Time Diagram The following figure illustrates an example of the recommended start-up ramp of a CPCI power supply for all Kontron boards delivered up to now. Figure 6-1: Start-Up Ramp of the CP3-SVE180 AC Power Supply Power Consumption The goal of this description is to provide a method to calculate the power consumption for the CP6000 baseboard and for additional configurations.
  • Page 128: Power Consumption: Dos

    Total 12.5 W 15.6 W 15.1 W 29.1 W 27.1 W 21.0 W ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 6 - 7 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 129: Power Consumption: Windows® 2000 3D Mark Benchmark

    6 W - 8 W CompactFlash — 100 mW - 300 mW Ethernet — Page 6 - 8 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 130 CP6000 System Considerations Chapter System Considerations ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 7 - 1 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 131 System Considerations CP6000 This page has been intentionally left blank. Page 7 - 2 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 132: System Considerations

    Intel and cannot be modified. For all Mobile Pentium® M processor the inter- nal thermal supervision point is 100 °C. ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 7 - 3 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 133: Cpu External Thermal Supervision

    Upon assertion of Thermtrip, the front panel overtemperature LED flashes at regular intervals. Page 7 - 4 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 134: Thermal Management Recommendations

    Gigabit controllers. ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 7 - 5 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 135: Intel® 82546 Dual Gigabit Ethernet Controller Power Supply

    ONE ETHERNET PORT PLUGGED 1000 Mbs 1.9 W (1 X FRONT AND 1 X REAR) Page 7 - 6 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 136: Pentium® M Temp. Vs. Airspeed Graph With Standard Heat Sink

    This will require an empirical thermal design analysis and verification by the system designer. ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page 7 - 7 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 137: Peripherals

    An airflow of 1.0 m/s is a typical value for a standard Kontron ASM rack (6U CompactPCI rack with a 1U cooling fan tray). Newer ASMs from Kontron will have an airspeed of 2.0 m/s or more. For other racks or housings the available airflow will differ. The maximum ambient operating temperature must be recalculated and/or measured for such environments.
  • Page 138 CP6000 CTM80-2 RIO Module Appendix CTM80-2 RIO Module ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page A - 1 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 139 CTM80-2 RIO Module CP6000 This page has been intentionally left blank. Page A - 2 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 140: A. Ctm80-2 Rio Module

    The CTM80-2 rear I/O module is available for use with the CP6000 6U CompactPCI board from Kontron Modular Computers. This rear I/O module provides comprehensive rear I/O function- ality. There are two different CTM80-2 versions available, which have been designed for use both in a PICMG 2.16 and a non-PICMG 2-16 environment.
  • Page 141: Ctm80-2 Rio Module, 4Hp Variant

    Mezzanine Mounting holes Bracket Mounting holes Note ... The CTM80-2 RIO Module supports USB1.1 protocol. Page A - 4 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 142 CP6000 CP6000-EXT-SATA Appendix CP6000-EXT-SATA ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page B - 1 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 143 CP6000-EXT-SATA CP6000 This page has been intentionally left blank. Page B - 2 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 144: Cp6000-Ext-Sata Module Main Specifications

    Overview The CP6000-EXT-SATA module (order no. CP6000-MK2.5SATA) has been designed for use with the CP6000 6U CompactPCI board from Kontron Modular Computers and enables the user to connect an onboard 2.5" Serial ATA hard disk to the CP6000. Technical Specifications...
  • Page 145: Cp6000-Ext-Sata Module Layout

    The CP6000-EXT-SATA Module includes two board-to-board connectors, J1 and J3, and one SATA connector, J2. B.4.1 CP6000-EXT-SATA Module Layout Figure B-2: CP6000-EXT-SATA Module Layout Page B - 4 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 146: Board-To-Board Connector J3 Pinout

    5V power Ground signal 5V power Ground signal 5V power Ground signal 5V power ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page B - 5 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 147: Sata Connector J2 Pinout

    Not connected NC (12V) Not connected NC (12V) Not connected Power Segment Key Page B - 6 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 148 CP6000 AMIBIOS8 Appendix AMIBIOS8 ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page C - 1 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 149 AMIBIOS8 CP6000 This page has been intentionally left blank. Page C - 2 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 150 CP6000 AMIBIOS8 AMIBIOS8 Attached to this appendix is the original AMIBIOS8 description as modified by Kontron Modular Computers for the CP6000. ID 27942, Rev. 05 © 2005 Kontron Modular Computers GmbH Page C - 3 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 151 AMIBIOS8 CP6000 This page has been intentionally left blank. Page C - 4 © 2005 Kontron Modular Computers GmbH ID 27942, Rev. 05 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 152 CP6000 Setup for AMIBIOS8 MAN-EZP-80 07/12/02 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 153 CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH © Copyright 2002 American Megatrends, Inc. All rights reserved. American Megatrends, Inc. 6145F Northbelt Parkway Norcross, GA 30071 This publication contains proprietary information, which is protected by copyright. No part of this...
  • Page 154 CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Table of Contents Limitations of Liability ........................ii Trademarks ..........................ii Table of Contents......................... iii Chapter 1 Starting CP6000 ....................1 Starting CP6000........................... 1 CP6000 Setup Menu........................2 Navigation ............................ 2 Navigation, Continued........................3 Navigation, Continued........................
  • Page 155 CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued..................... 20 Serial Port1 Address ......................20 Serial Port2 Address ......................20 Advanced BIOS Setup, Continued..................... 21 ACPI CONFIGURATION SCREEN..................21 ACPI Aware O/S........................21 Advanced BIOS Setup, Continued..................... 22 General ACPI Configuration....................
  • Page 156 CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH USB 2.0 Controller ......................... 31 USB 2.0 Controller Mode ....................... 31 USB Mass Storage Device Configuration ................31 Chapter 4 PCI/PnP Setup....................33 Plug and Play O/S ........................33 PCI/PnP Setup, Continued ......................34 PCI Latency Timer........................
  • Page 157 CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Change Supervisor Password....................47 Change User Password ......................47 Clear User Password ......................47 Boot Sector Virus Protection ....................47 CHANGE SUPERVISOR PASSWORD ................. 47 Change Supervisor Password....................47 Security Setup, Continued ......................48 Change User Password ......................
  • Page 158 CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Chapter 9 Power Setup....................... 63 Power Management/APM ...................... 63 Power Savings Under AC....................... 63 Power Savings Level......................63 Suspend Time Out (Minute) ....................63 Power Button Mode........................ 63 Power Setup, Continued........................ 64 USB Controller Resume ......................
  • Page 159 CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH This page has been intentionally left blank. viii Preface Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 160: Chapter 1 Starting Cp6000

    The Setup program uses a number of menus for making changes and turning the special features on or off. Kontron refers to this setup as CP6000. This chapter describes the basic navigation of the CP6000 setup screens.
  • Page 161: Cp6000 Setup Menu

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH CP6000 Setup Menu The CP6000 main BIOS setup menu is the first screen that you can navigate. Each main BIOS setup menu option is described in this user’s guide. The Main BIOS setup menu screen has two main frames. The left frame displays all the options that can be configured.
  • Page 162: Navigation, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Navigation, Continued Note: There is a hot key legend located in the right frame on most CP6000 setup screens. Hot Key Description Left/Right The Left and Right <Arrow> keys allow you to select a CP6000 setup screen.
  • Page 163: Navigation, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Navigation, Continued Hot Key Description The <F1> key allows you to display the General Help screen. Press the <F1> key to open the General Help screen. The <F10> key allows you to save any changes you have made and exit CP6000 Setup. Press the <F10>...
  • Page 164: Chapter 2 Main Setup

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Chapter 2 Main Setup When you first enter the CP6000 Setup Utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. There are two Main Setup options.
  • Page 165 CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH This page has been intentionally left blank. Chapter 2: Main Setup Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 166: Chapter 3 Advanced Bios Setup

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Chapter 3 Advanced BIOS Setup Select the Advanced tab from the CP6000 setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as SuperIO Configuration, to go to the sub menu for that item.
  • Page 167: Advanced Bios Setup

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup CPU CONFIGURATION SCREEN CPU Configuration Settings You can use this screen for Board information or to select the Intel Speed Step options. Use the <Plus> and <Minus> keys to change the value of the selected option. A description of the item appears on the right side of the screen.
  • Page 168: Advanced Bios Setup

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup IDE CONFIGURATION SCREEN IDE Configuration Settings You can use this screen to select options for the IDE Configuration Settings. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option.
  • Page 169: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued Primary, Secondary, Third and Fourth IDE Master and Slave Select one of the hard disk drives to configure it. Press <Enter> to access its sub menu.
  • Page 170: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued ATA (PI) 80-Pin Cable Detection Set this option to select the method used to detect the ATA (PI) 80 pin cable. The Optimal and Fail-Safe setting is Host & Device.
  • Page 171: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued PRIMARY, SECONDARY, THIRD AND FOURTH IDE MASTER AND SLAVE SUB MENU Primary, Secondary, Third and Fourth IDE Master and Slave Settings From the IDE Configuration screen, press <Enter> to access the sub menu for the primary and secondary IDE master and slave drives.
  • Page 172: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued Drive Parameters The “grayed-out” items in the left frame are the IDE disk drive parameters taken from the firmware of the IDE disk drive selected. The drive parameters listed are as follows:...
  • Page 173: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued Block (Multi-Sector Transfer) This option sets the block mode multi sector transfers option. The Optimal and Fail-Safe default setting is Auto. Option Description Disabled Set this value to prevent the BIOS from using Multi-Sector Transfer on the specified channel.
  • Page 174: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued DMA Mode This setting allows you to adjust the DMA mode options. The Optimal and Fail-Safe default setting is Auto. Option Description Auto Set this value to allow the BIOS to auto detect the DMA mode. Use this value if the IDE disk drive support cannot be determined.
  • Page 175: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued 32Bit Data Transfer This option sets the 32-bit data transfer option. The Optimal and Fail-Safe default setting is Disabled. Option Description Disabled Set this value to prevent the BIOS from using 32-bit data transfers. This is the default setting.
  • Page 176: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued FLOPPY CONFIGURATION SCREEN Floppy Configuration Settings You can use this screen to specify options for the Floppy Configuration Settings. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option.
  • Page 177: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued Onboard Floppy Controller This option controls the legacy disk controller. The Optimal and Fail-Safe default setting is Disabled. Option Description Disabled Disabled turns off all legacy diskette drives. This is the default setting.
  • Page 178: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued SUPER IO CONFIGURATION SCREEN SuperIO Configuration Screen You can use this screen to select options for the Super I/O settings. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option.
  • Page 179: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued Serial Port1 Address This option specifies the base I/O port address and Interrupt Request address of serial port 1. The Optimal setting is 3F8/IRQ4. The Fail-Safe default setting is Disabled.
  • Page 180: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued ACPI CONFIGURATION SCREEN Select the ACPI Configuration Menu to enter the ACPI BIOS Setup screen. You can select General ACPI Configuration or Advanced ACPI Configuration in the left frame of the screen to go to the sub menus for that item.
  • Page 181: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued General ACPI Configuration Suspend Mode Select the ACPI state used for System Suspend. Repost Video on S3 Resume Set this value to allow video repost support.
  • Page 182: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued RSDT RSDT is the main ACPI table. It has no fixed place in memory. During the boot up process, the BIOS locates a pointer to the table during the memory scan. A Root System Descriptor Pointer (RSDP) is located in low memory space of the system.
  • Page 183: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued EVENT LOG CONFIGURATION SCREEN View Event Log A pop up window displays all unread events. e.g. 01/01/02 13:12:56 CMOS time not set Mark all events as read Mark all unread events as read and clear the Event Log buffer.
  • Page 184: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued IPMI 1.5 CONFIGURATION SCREEN IPMI 1.5 Configuration You can use this screen to select options for the IPMI 1.5 Configuration. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option.
  • Page 185: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued KCS-SMS IRQ This option is used to select the IRQ for the system management software. The Optimal and Fail-Safe default setting is Disabled. Option Description Disabled No IRQ is reserved.
  • Page 186: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued SMBIOS CONFIGURATION SCREEN SMBIOS Configuration You can use this screen to select options for the SMBIOS Configuration. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option.
  • Page 187: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued REMOTE ACCESS CONFIGURATION SCREEN Remote Access Configuration You can use this screen to select options for the Remote Access Configuration. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option.
  • Page 188: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued Serial Port Mode Select the baud rate you want the serial port to use for console redirection. The Optimal and Fail-Safe default setting is 115200 8,n,1.
  • Page 189: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued USB CONFIGURATION SCREEN USB Configuration You can use this screen to select options for the USB Configuration. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option.
  • Page 190: Advanced Bios Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Advanced BIOS Setup, Continued USB 2.0 Controller Set this value to allow the system to enable or disable the USB 2.0 controller. The Optimal and Fail-Safe default setting is Enabled.
  • Page 191 CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH This page has been intentionally left blank. Chapter 3: Advanced BIOS Setup Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 192: Chapter 4 Pci/Pnp Setup

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Chapter 4 PCI/PnP Setup Select the PCI/PnP tab from the CP6000 setup screen to enter the Plug and Play BIOS Setup screen. You can display a Plug and Play BIOS Setup option by highlighting it using the <Arrow>...
  • Page 193: Pci/Pnp Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH PCI/PnP Setup, Continued PCI Latency Timer Set this value to allow the PCI Latency Timer to be adjusted. This option sets the latency of all PCI devices on the PCI bus. The Optimal and Fail-Safe default setting is 64.
  • Page 194: Pci/Pnp Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH PCI/PnP Setup, Continued PCI IDE BusMaster Set this value to allow or prevent the use of PCI IDE busmastering. The Optimal and Fail-Safe default setting is Disabled. Option Description Disabled Set this value to prevent PCI busmastering.
  • Page 195: Pci/Pnp Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH PCI/PnP Setup, Continued Set this value to allow the DMA setting to be modified. The optimal and Fail-Safe default setting is Available. DMA Channel Option Description DMA Channel 0 DMA Channel 1 Available This setting allows the specified DMA to be used by PCI/PnP device.
  • Page 196: Chapter 5 Boot Setup

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Chapter 5 Boot Setup Select the Boot tab from the CP6000 setup screen to enter the Boot BIOS Setup screen. You can select any of the items in the left frame of the screen, such as Boot Device Priority, to go to the sub menu for that item.
  • Page 197: Boot Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Boot Setup, Continued BOOT SETTINGS CONFIGURATION Boot Settings Configuration Use this screen to select options for the Boot Settings Configuration. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option.
  • Page 198: Boot Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Boot Setup, Continued Add-On ROM Display Mode Set this option to display add-on ROM (read-only memory) messages. The Optimal and Fail-Safe default setting is Force BIOS. An example of this is a SCSI BIOS or VGA BIOS.
  • Page 199: Boot Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Boot Setup, Continued Hit ‘DEL’ Message Display Set this value to allow the Hit “DEL” to enter Setup Message Display to be modified. The Optimal and Fail-Safe default setting is Enabled.
  • Page 200: Boot Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Boot Setup, Continued BOOT DEVICE PRIORITY Boot Device Priority Use this screen to specify the order in which the system checks for the device to boot from. To access this screen, select Boot Device Priority on the Boot Setup screen and press <Enter>.
  • Page 201: Boot Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Boot Setup, Continued HARD DISK DRIVES Hard Disk Drives Use this screen to view the hard disk drives in the system. To access this screen, select Hard disk drives on the Boot Setup screen and press <Enter>. The following screen...
  • Page 202: Boot Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Boot Setup, Continued REMOVABLE DEVICES Removable Devices Use this screen to view the removable drives attached to the system. To access this screen, select Removable Devices on the Boot Setup screen and press <Enter>. The...
  • Page 203: Boot Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Boot Setup, Continued CD/DVD DRIVES CD/DVD Drives Use this screen to view the CD/DVD-ROM drives in the system. To access this screen, select CD/DVD ROM Drives on the Boot Setup screen and press <Enter>. The following...
  • Page 204: Chapter 6 Security Setup

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Chapter 6 Security Setup CP6000 Password Support Two Levels of Password Protection CP6000 provides both a Supervisor and a User password. If you use both passwords, the Supervisor password must be set first.
  • Page 205: Security Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Security Setup, Continued Select Security Setup from the CP6000 Setup main BIOS setup menu. All Security Setup options, such as password protection and virus protection, are described in this section.
  • Page 206: Security Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Security Setup, Continued Change Supervisor Password Select this option and press <Enter> to access the sub menu. You can use the sub menu to change the supervisor password. Change User Password Select this option and press <Enter>...
  • Page 207: Security Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Security Setup, Continued Change User Password Select Change User Password from the Security Setup menu and press <Enter>. Ente New Password: appears. Type the password and press <Enter>. The screen does not display the characters entered.
  • Page 208: Chapter 7 Chipset Setup

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Chapter 7 Chipset Setup Select the Chipset tab from the CP6000 setup screen to enter the Chipset BIOS Setup screen. You can display a Chipset BIOS Setup option by highlighting it using the <Arrow>...
  • Page 209: Chipset Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Chipset Setup, Continued Intel Montara-GML NORTHBRIDGE CONFIGURATION Intel Montara-GML NorthBridge Configuration You can use this screen to select options for the NorthBridge Configuration. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option.
  • Page 210: Chipset Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Chipset Setup, Continued SOUTHBRIDGE CONFIGURATION SouthBridge Configuration You can use this screen to select options for the SouthBridge Configuration. SouthBridge is a chipset on the motherboard that controls the basic I/O functions, USB ports, audio functions, modem functions, IDE channels, and PCI slots.
  • Page 211 CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH This page has been intentionally left blank. Chapter 7: Chipset Setup Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 212: Chapter 8 Oem Feature

    Chapter 8 OEM Feature Select the OEM Feature tab from the CP6000 setup screen to enter the Kontron specific BIOS Setup screen. You can display a Kontron BIOS Setup option by highlighting it using the <Arrow>keys. All OEM Feature BIOS Setup options are described in this section.
  • Page 213: Oem Feature, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH OEM Feature, Continued Clock Spreading The Optimal and Fail-Safe default setting is Disabled. Option Description Disabled No Clock Spectrum Modulation. This is the default setting. Enabled 0.5% Clock Spreading. Spread spectrum typically reduces system EMI.
  • Page 214: Oem Feature, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH OEM Feature, Continued PC Health Chapter 8: OEM Feature Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 215: Oem Feature, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH OEM Feature, Continued Temperature Monitor P4 Term Trip 125°C/257F Shows the P4 max. temperature. Automatic Thermal Monitor Thermal Monitor is enabled and when the die temperature is very near to the temperature limits of the processor, the clocks will be modulated by alternately turning the clocks off and on at a duty cycle of 50%.
  • Page 216: Oem Feature, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH OEM Feature, Continued LAN BOOT Etherboot ROM Enable LAN Boot. When enabled, the BIOS loads the Etherboot Expansion ROM. The Optimal and Fail-Safe default setting is Disabled. Chapter 8: OEM Feature...
  • Page 217: Oem Feature, Continued

    This is a display only field which shows Kontron internal information about the board. EKS-Index refers to the production number and version respectively. The serial number is unique to each board produced by Kontron Modular Computers. It could be used also by the customer to identify specific boards.
  • Page 218: Oem Feature, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH OEM Feature, Continued Delay for PCI Config Cycle Add the delay if you have initialization problems on slow PCI devices. The Optimal and Fail-Safe default setting is None. Accept Class Code FF Add the delay if you have initialization problems on slow PCI devices.
  • Page 219: Oem Feature, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH OEM Feature, Continued Watchdog IRQ5 Routing The Optimal and Fail-Safe default setting is Disabled. Option Description Disabled No Resource is reserved. Watchdog Reserve resource 280h and IRQ5 for Watchdog, derate, Enum or Fail signal. Fail signal from the Derate Signal power supply.
  • Page 220: Oem Feature, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH OEM Feature, Continued Active for boot The Optimal and Fail-Safe default setting is Disabled. Option Description Disabled Watchdog must be started form the OS. Enabled Select Enabled if the watchdog timer requires to be started before the operating system is booted from the BIOS.
  • Page 221 CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH This page has been intentionally left blank. Chapter 8: OEM Feature Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 222: Chapter 9 Power Setup

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Chapter 9 Power Setup Select the Power tab from the CP6000 setup screen to enter the Power Management BIOS Setup screen. You can display a Power Management BIOS Setup option by highlighting it using the <Arrow>...
  • Page 223: Power Setup, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Power Setup, Continued USB Controller Resume USB wake from sleep state. PME Resume PME (Power Management Event) wake form sleep states. RI Resume Ring Indicator wake form sleep states. Chapter 9: Power Setup...
  • Page 224: Chapter 10 Exit Menu

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Chapter 10 Exit Menu Select the Exit tab from the CP6000 setup screen to enter the Exit BIOS Setup screen. You can display an Exit BIOS Setup option by highlighting it using the <Arrow> keys.
  • Page 225: Exit Menu, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Exit Menu, Continued Discard Changes and Exit Select this option to quit CP6000 Setup without making any permanent changes to the system configuration. Select Exit Discarding Changes from the Exit menu and press <Enter>.
  • Page 226: Exit Menu, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Exit Menu, Continued Load Optimal Defaults CP6000 automatically sets all CP6000 Setup options to a complete set of default settings when you select this option. The Optimal settings are designed for maximum system performance, but may not work best for all computer applications.
  • Page 227: Exit Menu, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Exit Menu, Continued Load Fail-Safe Defaults CP6000 automatically sets all CP6000 Setup options to a complete set of default settings when you select this option. The Fail-Safe settings are designed for maximum system stability, but not maximum performance.
  • Page 228: Chapter 11 Deleting A Password

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Chapter 11 Deleting a Password If you forget the passwords you set up through CP6000 Setup, the only way you can reset the password is to erase the system configuration information where the passwords are stored.
  • Page 229 CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH This page has been intentionally left blank. Chapter 11: Deleting a Password Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 230: Chapter 12 Post Codes

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Chapter 12 POST Codes Bootblock Initialization Code Checkpoints The Bootblock initialization code sets up the chipset, memory and other components before system memory is available. The following table describes the type of checkpoints...
  • Page 231: Bootblock Recovery Code Checkpoints

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Bootblock Recovery Code Checkpoints The Bootblock recovery code gets control when the BIOS determines that a BIOS recovery needs to occur because the user has forced the update or the BIOS checksum is corrupt.
  • Page 232: Post Code Checkpoints

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH POST Code Checkpoints The POST code checkpoints are the largest set of checkpoints during the BIOS pre-boot process. The following table describes the type of checkpoints that may occur during the POST portion of the BIOS:...
  • Page 233: Post Code Checkpoints, Continued

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH POST Code Checkpoints, Continued Checkpoint Description Initializes the silent boot module. Set the window for displaying text information. Displaying sign-on message, CPU information, setup key message, and any OEM specific information.
  • Page 234: Dim Code Checkpoints

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH DIM Code Checkpoints The Device Initialization Manager module gets control at various times during BIOS POST to initialize different BUSes. The following table describes the main checkpoints where the DIM module is accessed:...
  • Page 235 CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH This page has been intentionally left blank Chapter 12: POST Codes Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 236: Index

    CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Index 1st Boot Device 41 Erase Old Password 69, 71 Exit Discarding Changes 66 Exit Saving Changes 65 ezPORT Password Support 45 ezPORT Setup Menu 2 2nd Boot Device 41...
  • Page 237 CP6000 UG, ID 27942, Rev. 05 Kontron Modular Computers GmbH Power Button Mode 63 Power Management/APM 63 Primary IDE Master, Primary IDE Slave, S.M.A.R.T. for Hard disk drives 15 Secondary IDE Master, Secondary IDE Slave, Serial Port Mode 29 Third IDE Master, Third IDE Slave, Fourth IDE...
  • Page 238 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...

Table of Contents
