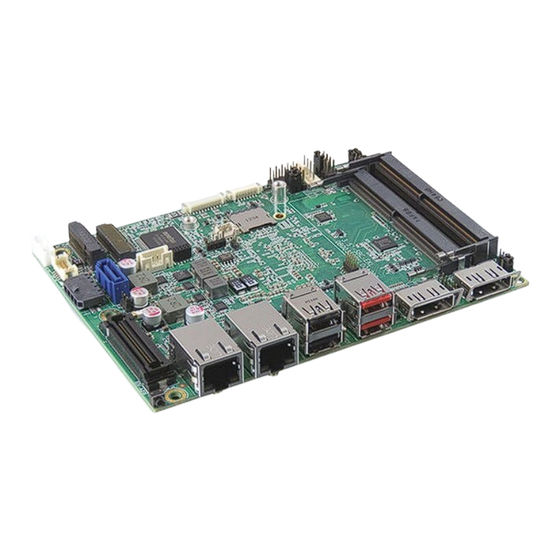

Kontron 3.5-SBC-EKL User Manual
  1. Manuals
  2. Brands
  3. Kontron Manuals
  4. Single board computers
  5. 3.5-SBC-EKL
  6. User manual

Kontron 3.5-SBC-EKL User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER GUIDE
3.5"-SBC-EKL
Doc. User Guide, Rev. 2.1
Doc. ID: [To be Determined]
www.kontron.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3.5-SBC-EKL and is the answer not in the manual?

Questions and answers

Related Manuals for Kontron 3.5-SBC-EKL

Summary of Contents for Kontron 3.5-SBC-EKL

  • Page 1  USER GUIDE 3.5"-SBC-EKL Doc. User Guide, Rev. 2.1 Doc. ID: [To be Determined] www.kontron.com...
  • Page 2 3.5"-SBC-EKL - User Guide, Rev. 2.1 This page has been intentionally left blank www.kontron.com // 2...
  • Page 3 In cases of doubt, please contact Kontron. This user guide is protected by copyright. All rights are reserved by Kontron. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the express written permission of Kontron.
  • Page 4 ENVIRONMENTAL DAMAGE (COLLECTIVELY, "HIGH RISK APPLICATIONS"). You understand and agree that your use of Kontron devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards.
  • Page 5 If you have any difficulties using this user guide, discover an error, or just want to provide some feedback, contact Kontron support. Detail any errors you find. We will correct the errors or problems as soon as possible and post the revised user guide on our website.

  • Page 6: Symbols

    Eye protection per manufacturer notice shall review before servicing. This symbol indicates general information about the product and the user guide. This symbol also indicates detail information about the specific product configuration. This symbol precedes helpful hints and tips for daily use. www.kontron.com // 6...

  • Page 7: For Your Safety

    Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines.

  • Page 8: Lithium Battery Precautions

    General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the product, that are not explicitly approved by Kontron and described in this user guide or received from Kontron Support as a special handling instruction, will void your warranty.

  • Page 9: Table Of Contents

    7.1.1. Power Input Wafer (CN12) .................................. 34 7.1.2. RTC Power Input Wafer (CN16) ................................. 35 7.2. Fan Wafer (CN3) ....................................... 36 7.3. SATA (Serial ATA) Connector (CN13) ..............................37 7.4. SATA Power Output Wafer (CN10) ..............................38 www.kontron.com // 9...

  • Page 10: List Of Tables

    8.2.5. Security Setup Menu ................................... 98 8.2.6. Save & Exit Setup Menu ................................... 103 Appendix A: List of Acronyms ................................... 104 About Kontron ........................................ 105 List of Tables Table 1: Component Main Data ..................................18 Table 2: Environmental Conditions ................................19 Table 3: Standards and Certifications ..............................

  • Page 11: List Of Figures

    Table 57: List of Acronyms ..................................104 List of Figures Figure 1: System Block Diagram 3.5"-SBC-EKL ............................17 Figure 2: Top Side ......................................24 Figure 3: Rear Side ......................................26 Figure 4: Connector Panel Side ................................... 27 www.kontron.com // 11...
  • Page 12 Figure 57: BIOS Advanced Menu - Trusted Computing ........................89 Figure 58: BIOS Advanced Menu - - PSE Configuration ......................... 90 Figure 59: BIOS Advanced Menu - Network Stack ..........................91 Figure 60: BIOS Advanced Menu - H/W Monitor........................... 92 www.kontron.com // 12...
  • Page 13 Figure 67: BIOS Security Setup Menu - - Secure Boot ........................... 99 Figure 68: BIOS Security Setup Menu - - Secure Boot - - Key Management .................. 100 Figure 69: BIOS Save & Exit Setup Menu ..............................103 www.kontron.com // 13...

  • Page 14: 1/ Introduction

    3.5"-SBC-EKL - User Guide, Rev. 2.1 1/ Introduction This user guide describes the 3.5"-SBC-EKL board made by Kontron. This board will also be denoted 3.5"-SBC-EKL within this user guide. Use of this user guide implies a basic knowledge of PC-AT hardware and software. This user guide focuses on describing the 3.5"-SBC-EKL board's special features and is not intended to be a standard PC-AT textbook.

  • Page 15: 2/ Installation Procedures

     Handle the board only by the edges To get the board running follow these steps. If the board shipped from KONTRON already has components like RAM and CPU cooler mounted, then skip the relevant steps below. 1. Turn off the PSU (Power Supply Unit) Turn off PSU (Power Supply Unit) completely (no mains power connected to the PSU) or leave the Power Connectors unconnected while configuring the board.

  • Page 16: Chassis Safety Standards

    Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren  Kassera använt batteri enligt fabrikantens instruktion VAROITUS! Paristo voi räjähtää, jos se on virheellisesti asennettu.  Vaihda paristo ainoastaan lalteval- mistajan suosittelemaan tyyppiln  Hävitä käytetty paristo valmistajan ohjeiden mukaisesti www.kontron.com // 16...

  • Page 17: 3/ System Specifications

    3.5"-SBC-EKL - User Guide, Rev. 2.1 3/ System Specifications 3.1. System Block Diagram Figure 1: System Block Diagram 3.5"-SBC-EKL www.kontron.com // 17...

  • Page 18: Component Main Data

    1x M.2 Key M (Type 2280, mixed w/ SATA 3.0) SIM Card Holder  1x SIM Card Holder (Micro type) Extended B2B  2x PCIe x2 Connector  1x SM Bus  1x I  1x UART  1x GSPI www.kontron.com // 18...

  • Page 19: Environmental Conditions

    -20 °C ~ 80 °C / -4 °F ~ 176 °F (Standard)  -55 °C ~ 85 °C / -67 °F ~ 185 °F (Extreme) Humidity  0 % ~ 95 % 3.4. Standards and Certifications The 3.5"-SBC-EKL meets the following standards and certification tests. www.kontron.com // 19...

  • Page 20: Table 3: Standards And Certifications

    EN IEC 61000-6-4: 2019 FCC Class B  47 CFR FCC Part 15, Subpart B, Class B ICES Class B  ICES-003: 2020 Issue 7, Class B  ANSI C63.4: 2014  ANSI C63.4a: 2017 UR (UL Recognized)  www.kontron.com // 20...

  • Page 21: Processor Support

    The 3.5"-SBC-EKL is designed to support Intel® Atom® x6000E Series, Intel® Celeron® J6000 / N6000 Series and Intel® Pantium® J6000 / N6000 Series Processors. The BGA CPU is remounted from factory. Kontron has defined the board versions as listed in the following table, so far all based on Embedded CPUs. Other versions are expected at a later date.

  • Page 22: On-Board Graphics Subsystem

    Memory modules have in general a much lower longevity than embedded motherboards, and therefore EOL of modules can be expected several times during lifetime of the motherboard. As a minimum it is recommend using Kontron memory modules for prototype system(s) in order to prove stability of the system and as for reference.

  • Page 23: Table 8: Power Consumption

    Full Run (S0) +12 V 20.52 W 12.564 W Sleep (S3) +12 V 2.928 W 1.848 W Shutdown (S4/ S5) +12 V 2.652 W 1.596 W Power Saving (ErP / EuP) +12 V 812.4 mW 86.04 mW www.kontron.com // 23...

  • Page 24: 4/ Connector Locations

    AT / ATX Power Mode Selection 7.23.2 LVDS Backlight Enable Selection 7.23.3 LVDS Panel Power Selection 7.23.4 LVDS Backlight Control Selection 7.23.5 Flash Descriptor Security Override Selection 7.23.6 Clear CMOS Selection 7.23.7 USB Power Selection 7.23.8 MFG Mode Selection 7.23.9 www.kontron.com // 24...

  • Page 25: Table 10: Top Side Internal Connector Pin Assignment

    DDR4 Channel 0 SO-DIMM Slot DIMM2 DDR4 Channel 1 SO-DIMM Slot Front Panel Header 1 Front Panel Header 2 M2B1 M.2 Key B 2242 / 2280 Slot (No SATA) 7.17 M2E1 M.2 Key E 2230 Slot 7.18 www.kontron.com // 25...

  • Page 26: Rear Side

    CAN BUS 0 7.13 CN28 CAN BUS 1 7.13 CN29 RS232/422/485 COM2 Wafer CN30 RS232/422/485 COM1 Wafer CN31 LVDS Backlight Power Wafer 7.11 CN32 24-bit / 2-ch LVDS Connector 7.10 M2M1 M.2 Key M 2280 Slot (SATA only) 7.19 www.kontron.com // 26...

  • Page 27: Connector Panel Side

    USB 3.2 Gen 2 Port 0, 1 Type A Connector CN23 USB 2.0 Port 2, 3 Type A Connector CN24 DP Port 1 Connector CN25 DP Port 2 Connector Power Button LED1 Standby LED LED2 Power LED www.kontron.com // 27...

  • Page 28: 5/ Connector Definitions

    Type and number of item described See Chapter Number of the chapter within this user guide containing a detailed description The abbreviation TBD is used for specifications that are not available yet or which are not sufficiently specified by the component vendors. www.kontron.com // 28...

  • Page 29: 6/ I/O-Area Connectors

    Connected to ground, either directly or through a pulldown device Config2 Connected to ground, either directly or through a pulldown device AUX_CHp DisplayPort Auxiliary channel differential pair (+) Ground AUX_CHn DisplayPort Auxiliary channel differential pair (-) Hot_Plug DisplayPort hot plug detect Ground DP_PWR Power for connector www.kontron.com // 29...

  • Page 30: Ethernet Connectors (Cn18 & Cn19)

    MDI crossover mode, this pair acts as the BI_DD+/- pair. TX4+ / TX4- In MDI mode, this is the fourth pair in 2.5GBase-T and 1000Base-T, i.e. the BI_DD+/- pair.In MDI crossover mode, this pair acts as the BI_DC+/- pair. 'MDI' - - media dependent Interface www.kontron.com // 30...

  • Page 31: Usb Connectors (I/O Area)

    Figure 8: USB 2.0 Connectors CN23 - Top & Bottom Table 16: Pin Assignment USB 2.0 Connectors CN23 - Top & Bottom Signal Description Note +USB_VCC* +5 V power supply for USB device USB_D- USB 2.0 differential pair (-) USB_D+ USB 2.0 differential pair (+) Ground www.kontron.com // 31...

  • Page 32: Figure 9: Usb 2.0 High Speed Cable

    For USB 3.2 Gen 2 cabling it is required to use only HiSpeed USB cable, specified in USB 3.2 standard: Figure 10: USB 3.2 High Speed Cable Filler, optional UTP Signal Pair SDP Signal Pair Braid Jacket Power Ground SDP Signal Pair www.kontron.com // 32...

  • Page 33: Power Button (Sw1)

    Green LED On Yellow LED On S0 (Full On) Green LED Blink Yellow LED On S3 (Suspend-To-RAM) LED Off Yellow LED On S4 (Suspend-To-Disk) or S5 (Soft Off) LED Off LED Off EUP Mode or G3 (Mechanical Off) www.kontron.com // 33...

  • Page 34: 7/ Internal Connectors

    Table 18: Pin Assignment CN12 Signal Description Note +12Vin Power +12 V Ground Ground +12Vin Power +12 V Connector Type B2W, 1x4-pin, 3.0 mm pitch Mating Connector Vendor Pinrex Housing Model No. 733-75-M104B6 Terminal Model No. 733-70-FT0006 www.kontron.com // 34...

  • Page 35: Rtc Power Input Wafer (Cn16)

    Figure 12: RTC Power Input Wafer CN16 Table 19: Pin Assignment CN16 Signal Description Note +VRTC Real-time clock backup battery input Ground Connector Type B2W, 1x2-pin, 1.25 mm pitch Mating Connector Vendor Pinrex Housing Model No. 712-75-02W001 Terminal Model No. 712-70-T00001 www.kontron.com // 35...

  • Page 36: Fan Wafer (Cn3)

    +12 V power supply for fan 1 A max. SENSE Sense input signal from the fan, for rotation speed supervision RPM (Rotations Per Minute). PWM output signal for FAN speed control Connector Type B2W, 1x4-pin, 2.54 mm pitch www.kontron.com // 36...

  • Page 37: Sata (Serial Ata) Connector (Cn13)

    Host transmitter differential signal pair (+) Host transmitter differential signal pair (-) Ground Host receiver differential signal pair (-) Host receiver differential signal pair (+) Ground Connector Type B2W, 1x7-pin, 1.27 mm pitch Mating Connector Vendor WINWIN Model No. WATC-07DLPO2U www.kontron.com // 37...

  • Page 38: Sata Power Output Wafer (Cn10)

    +12 V power supply for HDD / SSD 1 A max. Ground Ground +5 V power supply for HDD / SSD 1 A max. Connector Type B2W, 1x4-pin, 2.0 mm pitch Mating Connector Vendor Pinrex Housing Model No. 721-75-04W009 Terminal Model No. 721-70-T00009 www.kontron.com // 38...

  • Page 39: Usb Connectors (Internal) (Cn20 & Cn21)

    Ground Ground Ground Connector Type B2W, 2x5-pin, 2.0 mm pitch Mating Connector Vendor Pinrex Housing Model No. WL2004H-2*5P(DP2.0) Terminal Model No. KB931-21T1A * The power source of +USBVCC for CN20 and CN21 can be selected through JP8. www.kontron.com // 39...

  • Page 40: Audio Amp Output Wafer (Cn1 & Cn4)

    Figure 17: Audio AMP Output Wafer CN1 (Left Channel), CN4 (Right Channel) Table 24: Pin Assignment CN1, CN4 Signal Description Note Speaker+ Speaker output (+) Speaker- Speaker output (-) Connector Type B2W, 1x2-pin, 2.0 mm pitch Mating Connector Vendor Pinrex Housing Model No. 721-75-02W009 Terminal Model No. 721-70-T00009 www.kontron.com // 40...

  • Page 41: Audio Input / Output Header (Cn5)

    Audio input right channel signal Line-Out_L Audio output left channel signal Line-Out_R Audio output right channel signal Line-Out_JD# Audio output jack detection Ground Connector Type B2W, 2x5-pin, 1.25 mm pitch Mating Connector Vendor Housing Model No. DF13-10DS-1.25C Terminal Model No. WL1255-T-T-S www.kontron.com // 41...

  • Page 42: Front Panel Header (Fp1 & Fp2)

    Figure 20: Front Panel Header 2 FP2 PWRBTN PLED SM_ALERT# BAT_LOW# SM_DATA SM_CLK Table 27: Pin Assignment FP2 Signal Description Note Power LED + System Power LED (+). The LED lights up when users turn on the www.kontron.com // 42...
  • Page 43 No connection SMBus Data System management bus bidirectional data line Ground SMBus Clock System management bus bidirectional clock line Connector Type B2W, 2x5-pin, 2.54 mm pitch Mating Connector Vendor Pinrex Housing Model No. 741-75-205B01 Terminal Model No. 741-70-FT0001 www.kontron.com // 43...

  • Page 44: Serial Com1 & Com2 Ports (Cn30 & Cn29)

    Data Terminal Ready, indicates to the modem etc. that the on-board UART is ready to establish communication link. Data Set Ready, indicates that the modem etc. is ready to establish a communications link. Request To Send, indicates to the modem etc. that the on-board UART is ready to www.kontron.com // 44...
  • Page 45 Ring Indicator, indicates that the modem has received a ringing signal from the telephone line. TX+/- Transmitted Data differential pair sends data to the communications link. RX+/- Received Data differential pair receives data from the communications link. Power Supply GND signal www.kontron.com // 45...

  • Page 46: Lvds Connector (Cn32)

    LVDS Channel B Data 1 differential pair (-) Ground LVDSB_TX2- LVDS Channel B Data 2 differential pair (-) LVDSB_TX2+ LVDS Channel B Data 2 differential pair (+) LVDSB_BCLK- LVDS Channel B clock differential pair (-) LVDSB_BCLK+ LVDS Channel B clock differential pair (+) www.kontron.com // 46...
  • Page 47 500 mA max. +VPNL * +3.3 V / +5 V panel power supply 500 mA max. Connector Type B2W, 1x30-pin, 1.0 mm pitch Mating Connector Vendor Model No. FI-X30HL * Panel Power can be selected through JP4. www.kontron.com // 47...

  • Page 48: Lvds Backlight Power Wafer (Cn31)

    B2W, 1x7-pin, 1.25 mm pitch Mating Connector Vendor Pinrex Housing Model No. 712-75-07W001 Terminal Model No. 712-70-T00001 * BL_ADJ can be selected through JP5. ** Backlight Power can be selected through JP1. *** BL_EN can be selected through JP3. www.kontron.com // 48...

  • Page 49: Digital Input / Output Header (Cn27)

    Digital input / output channel 5 DIO_6 Digital input / output channel 6 DIO_7 Digital input / output channel 7 Ground Connector Type B2W, 1x10-pin, 1.25 mm pitch Mating Connector Vendor Pinrex Housing Model No. 712-75-10W001 Terminal Model No. 712-70-T00001 www.kontron.com // 49...

  • Page 50: Can Bus Header (Cn26 & Cn28)

    Ground CAN_L CAN low bus line CAN_H CAN high bus line +5 V power supply 500 mA max. Connector Type B2W, 1x4-pin, 1.25 mm pitch Mating Connector Vendor Pinrex Housing Model No. 712-75-4W001 Terminal Model No. 712-70-T00001 www.kontron.com // 50...

  • Page 51: I 2 C Wafer (Cn7)

    Description Note I2C2_SCL C serial clock line I2C2_SDA C serial data line +3.3V +3.3 V power supply 500 mA max. Ground Connector Type B2W, 1x4-pin, 1.25 mm pitch Mating Connector Vendor Housing Model No. Terminal Model No. www.kontron.com // 51...

  • Page 52: Gspi Wafer (Cn2)

    General SPI chip select bit 0 GSPI1_CS1# General SPI chip select bit 1 +3.3V +3.3 V power supply 500 mA max. Ground Connector Type B2W, 1x7-pin, 1.25 mm pitch Mating Connector Vendor Housing Model No. Terminal Model No. www.kontron.com // 52...

  • Page 53: Spi 10-Pins Header (Cn14)

    SPI slave chip select bit 0 HOLD# SPI HOLD SPI slave serial data output SPI clock input Write-protect pin SPI slave serial data input Enable pin Connector Type B2B, 2x5-pin, 1.27 mm pitch Mating Connector Vendor Housing Model No. Terminal Model No. www.kontron.com // 53...

  • Page 54: Key B 2242 / 2280 Slot (M2B1)

    3.3 V power supply Ground +3.3V 3.3 V power supply Ground PWROFF# M.2 module power enable USB_D+ USB 2.0 data differential pair (+) DISABLE# Wireless disable USB_D- USB 2.0 data differential pair (-) LED# Device active signal Ground www.kontron.com // 54...
  • Page 55 PCIe Lane 0 transmitter pair (-) PETp0 PCIe Lane 0 transmitter pair (+) PERST# PCIe reset Ground CLKREQ# Reference clock request signal REFCLKn PCIe reference clock pair (-) WAKE# PCIe wake REFCLKp PCIe reference clock pair (+) Ground www.kontron.com // 55...
  • Page 56 SIM card detect SUSCLK 32.768 kHz clock supply input +3.3V 3.3 V power supply Ground +3.3V 3.3 V power supply Ground +3.3V 3.3 V power supply * These pins are connected to CN6 Micro SIM card holder directly. www.kontron.com // 56...

  • Page 57: Key E 2230 Slot (M2E1)

    SDIO data bit 1 LED2# Device active signal 2 SDIO_DATA2 SDIO data bit 2 Ground SDIO_DATA3 SDIO data bit 3 UART_WAKE# UART wake-up SDIO_CDN SDIO card detect signal UART_RX UART data input SDIO_WP SDIO write protect signal www.kontron.com // 57...
  • Page 58 32.768 kHz clock supply input Ground PERST0# PCIe reset CLKREQ0# Reference clock request signal W_DISABLE2# Wireless disable 2 PEWAKE0# PCIe wake W_DISABLE1# Wireless disable 1 Ground I2C_DATA C data line I2C_CLK C clock line ALERT# Alert notification Ground PERST1# PCIe reset www.kontron.com // 58...

  • Page 59: Table 39: Fixing Bolt Extensions And Fastening Screw

    3.3 V power supply Ground Kontron offers 3 kinds of fixing bolt extensions and fastening screw to secure a M.2 Key B SSD / expansion card and / or a M.2 Key E expansion card. For configuration among card types, socket types, fixing bolts and fixing bolt extensions, view Table 38, Figure 31 and Table 39.

  • Page 60: Table 40: Installation Configuration Of M.2 Key B Ssd / Expansion Card And / Or M.2 Key E Expansion Card

    Table 40: Installation Configuration of M.2 Key B SSD / Expansion Card and / or M.2 Key E Expansion Card Key E Type 22x30 Key B Type 22x42 Key B Type 22x80 Key B Type 22x42 + Key E Type 22x30 Key B Type 22x80 + Key E Type 22x30 www.kontron.com // 60...

  • Page 61: Key M 2280 Slot (M2M1)

    Ground DAS / DSS# / LED1# Device active signal / disable staggered spin-up / LED +3.3V 3.3 V power supply +3.3V 3.3 V power supply Ground +3.3V 3.3 V power supply +3.3V 3.3 V power supply Ground www.kontron.com // 61...
  • Page 62 Description Note Ground Ground DEVSLP Device sleep Ground SATA_B+ SATA receiver pair (+) SATA_B- SATA receiver pair (-) Ground SATA_A- SATA transmitter pair (-) SATA_A+ SATA transmitter pair (+) Ground Ground SUSCLK 32.768 kHz clock supply input www.kontron.com // 62...
  • Page 63 3.5"-SBC-EKL - User Guide, Rev. 2.1 Signal Description Note PEDET PCIe detect +3.3V 3.3 V power supply Ground +3.3V 3.3 V power supply Ground +3.3V 3.3 V power supply Ground www.kontron.com // 63...

  • Page 64: Micro Sim Card Holder For M.2 Key B (Cn6)

    Key B slot M2B1. Figure 33: Micro SIM Card Holder CN6 Table 42: Pin Assignment CN6 Signal Description Note Power +3.3 V Reset signal Clock signal Not connected Ground Programming voltage input Input or Output for serial data Not connected www.kontron.com // 64...

  • Page 65: Key B / M.2 Key E / M.2 Key M Activity Indicator Header (Cn11, Cn9 & Cn17)

    Figure 35: M.2 Key E Activity Indicator Header CN9 Table 44: Pin Assignment CN9 Signal Description Note WLAN_LED1+ WLAN LED (+) WLAN_LED1- WLAN LED (-) BR_LED2+ Breath LED (+) BR_LED2- Breath LED (-) Connector Type B2W, 1x4-pin, 2.0 mm pitch www.kontron.com // 65...

  • Page 66: B2B Connector (Cn15)

    / DP 2 Lane 3 transmitter pair (+) DDI2_TXN3 eDP / DP 2 Lane 3 transmitter pair (-) Ground DP2_AUX+ eDP / DP 2 Auxiliary channel pair (+) DP2_AUX- eDP / DP 2 Auxiliary channel pair (-) www.kontron.com // 66...
  • Page 67 General SPI master output / slave input GSPI_MISO General SPI master input / slave output GSPI_CS0# General SPI chip select bit 0 GSPI_CS1# General SPI chip select bit 1 Ground Not connected Not connected Ground Not connected Not connected Ground www.kontron.com // 67...
  • Page 68 12 V power input / 12 V power output 3 A max. +12V_IN / +12V_OUT 12 V power input / 12 V power output 3 A max. +12V_IN / +12V_OUT 12 V power input / 12 V power output 3 A max. www.kontron.com // 68...
  • Page 69 3.5"-SBC-EKL - User Guide, Rev. 2.1 Signal Description Note Connector Type B2B, 2x50-pin, 0.5 mm pitch Mating Connector Vendor Model No. FX23-100P-0.5SV20 www.kontron.com // 69...

  • Page 70: Switches And Jumpers

    Figure 38: LVDS Backlight Enable Voltage Selection JP1 Table 46: Pin Assignment JP1 Jumper 1 Position Description Pin 1-2 Pin 2-3 +3.3 V +5 V “X’’ = Jumper set (short) and ‘‘-’’ = jumper not set (open) www.kontron.com // 70...

  • Page 71: At / Atx Power Mode Selection (Jp2)

    Figure 40: LVDS Backlight Enable Selection JP3 Table 48: Pin Assignment JP3 Jumper 1 Position Description Pin 1-2 Pin 2-3 High Active Low Active “X’’ = Jumper set (short) and ‘‘-’’ = jumper not set (open) www.kontron.com // 71...

  • Page 72: Lvds Panel Power Selection (Jp4)

    Figure 42: LVDS Backlight Control Selection JP5 Table 50: Pin Assignment JP5 Jumper 1 Position Description Pin 1-2 Pin 2-3 PWM Control Mode Voltage Control Mode “X’’ = Jumper set (short) and ‘‘-’’ = jumper not set (open) www.kontron.com // 72...

  • Page 73: Flash Descriptor Security Override Selection (Jp6)

    Clear CMOS (board does not boot with the jumper in this position) “X’’ = Jumper set (short) and ‘‘-’’ = jumper not set (open) Do not leave the jumper in position 2-3, otherwise if the power is disconnected, the battery will fully deplete within a few weeks. www.kontron.com // 73...

  • Page 74: Usb Power Selection (Jp8)

    The 2.0 mm pitch "MFG Mode Selection" jumper JP9 can be used to rewrite Intel ME firmware onto another version. Figure 46: MFG Mode Selection JP9 Table 54: Pin Assignment JP9 Jumper 1 Position Description Pin 1-2 Pin 2-3 Normal Operation Enable MFG Mode “X’’ = Jumper set (short) and ‘‘-’’ = jumper not set (open) www.kontron.com // 74...

  • Page 75: 8/ Bios

    8/ BIOS 8.1. Starting the uEFI BIOS The 3.5"-SBC-EKL is provided with a Kontron-customized, pre-installed and configured version of AMI Aptio® V uEFI BIOS. AMI BIOS firmware is based on the Unified Extensible Firmware Interface (UEFI) specification and the Intel®...

  • Page 76: Starting The Uefi Bios

    Displays information about the product, system BIOS and Intel Management Engine (ME) firmware CPU Information Read only field Display information about the processor Memory Information Read only field. Displays information about total memory System Date Set System Date System Time Set System Time www.kontron.com // 76...

  • Page 77: Figure 47: Bios Main Menu Screen System Data And Time

    Figure 47: BIOS Main Menu Screen System Data and Time Aptio Setup - - AMI Main Advanced Power Boot Security Save & Exit Product Information Product Name 3.5-SBC-EKL BIOS Version 0.0H (x64) BIOS Build Date 03/08/2023 ME Firmware SKU Consumer SKU ME Firmware Version 15.40.27.2735 CPU Information Intel®...

  • Page 78: Advanced Setup Menu

    NVMe Configuration  SATA Configuration  USB Configuration  Trusted Computing  PSE Configuration  Network Stack  H/W Monitor  DIO Configuration Setting items on this screen to incorrect values may cause the system to malfunction. www.kontron.com // 78...

  • Page 79: Figure 48: Bios Advanced Menu

    Select whether to enable or disable Onboard LAN2 Controller. Controller [Enabled] Load Intel I226 UNDI [Disabled], Select whether to load onboard UNDI Driver. Driver [Enabled] Audio Controller [Disabled], Select whether to enable or disable Audio Controller. [Enabled] www.kontron.com // 79...

  • Page 80: Figure 49: Bios Advanced Menu - Display Configuration

    Read only item. Display Active LVDS [Disabled], Select the Active LVDS Configuration. [Enabled] [Disabled]: don’t enable LVDS. [Enabled]: enable LVDS. LVDS Panel Type [800x600 1CH], LVDS panel by selecting the appropriate setup item. [1024x768 1CH], [1280x1024 2CH], www.kontron.com // 80...
  • Page 81 0 - - 255 PWM Duty Control - PWM LVDS Backlight [0.0 V], Min: 0.0 V Control - Voltage [0.5 V], Max: 5.0 V [1.0 V], [1.5 V], [2.0 V], [2.5 V], [3.0 V], [3.5 V], [4.0 V], [4.5 V], [5.0 V] www.kontron.com // 81...

  • Page 82: Figure 50: Bios Advanced Menu - Super Io Configuration

    This item appear only when selecting Half Duplex for RS485 Duplex Mode. Feature Option Description Serial Port [Disabled], Enable or Disable Serial Port (COM). [Enabled] Change Settings [Auto], Select an optimal setting for Super IO device. [IO=3F8h; IRQ=4;], [IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;], www.kontron.com // 82...

  • Page 83: Figure 52: Bios Advanced Menu - Super Io Configuration - Serial Port 2 Configuration

    [IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;], [IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;], [IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;] Serial Port 2 Type [RS232], Select an appropriate type for Serial Port 2. www.kontron.com // 83...
  • Page 84 Select an appropriate RS485 Duplex Mode. [Full Duplex] RS485 Auto Flow [Disabled], Select whether to enable or disable RS485 Auto Control Flow Control. [Enabled] RS485/422 Receiver [Disabled], Select whether to enable or disable RS485/422 Termination Receiver Termination. [Enabled] www.kontron.com // 84...

  • Page 85: Figure 53: Bios Advanced Menu - Cpu Chipset Configuration

    Select whether to enable or disable VT-d capability. [Enabled] Active Processor [All], Number of cores to enable in each processor package. Cores Intel (VMX) [Disabled], When enabled, a VMM can utilize the additional hardware Virtualization capabilities provided by Vanderpool Technology. [Enabled] Technology www.kontron.com // 85...

  • Page 86: Figure 54: Bios Advanced Menu - Nvme Configuration

    No NVMe Device Found → ←: Select Screen ↑ ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.22.1282 Copyright (C) 2023 AMI www.kontron.com // 86...

  • Page 87: Figure 55: Bios Advanced Menu - Sata Configuration

    Feature Option Description SATA Controller(s) [Enabled], Select whether to enable or disable SATA controller. [Disabled] SATA Mode Selection [AHCI] Determines how SATA controller(s) operate. Port 1 [Disabled], Select whether to enable or disable SATA port 1. [Enabled] www.kontron.com // 87...

  • Page 88: Figure 56: Bios Advanced Menu - Usb Configuration

    [Enabled], This is a workaround for OSes without XHCI hand-off support. [Disabled] The XHCI ownership change should be claimed by XHCI driver. USB Mass Storage [Disabled], Enable / Disable USB Mass Storage Driver Support. Driver Support [Enabled] www.kontron.com // 88...

  • Page 89: Figure 57: Bios Advanced Menu - Trusted Computing

    Version 2.22.1282 Copyright (C) 2023 AMI Feature Option Description Security Device [Disabled], Enable or Disable BIOS support for security device. Support [Enabled] O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. www.kontron.com // 89...

  • Page 90: Figure 58: Bios Advanced Menu - - Pse Configuration

    Enables / Disables Programmable Service Engine (PSE) Device [Enabled] CAN0 [Disabled], To assign this device to Enable or Disable. [Enabled] CAN1 [Disabled], To assign this device to Enable or Disable. [Enabled] SPI1 [Disabled], To assign this device to Enable or Disable. [Enabled] www.kontron.com // 90...

  • Page 91: Figure 59: Bios Advanced Menu - Network Stack

    Enable / Disable IPv4 PXE boot support. [Enabled] If disabled, IPv4 PXE boot support will not be available. IPv6 PXE Support [Disabled], Enable / Disable IPv6 PXE boot support. [Enabled] If disabled, IPv6 PXE boot support will not be available. www.kontron.com // 91...

  • Page 92: Figure 60: Bios Advanced Menu - H/W Monitor

    * This item appears only when selecting Manual for CPU FAN Setting. ** These items appear only when selecting Smart for CPU FAN Setting. Feature Option Description CPU FAN Setting [Manual], Switch the CPU FAN control mode. [Smart] www.kontron.com // 92...
  • Page 93 0 - - 255 PWM Duty 1st / 2nd / 3rd / 4th Value Input 1 - - 100 C Boundary Temperature 1st / 2nd / 3rd / 4th Value Input 0 - - 255 PWM Duty FAN Speed www.kontron.com // 93...

  • Page 94: Figure 62: Bios Advanced Menu - Dio Configuration

    Version 2.22.1282 Copyright (C) 2023 AMI * These items appear only when enabling User Configuration. Feature Option Description User Configuration [Enabled], User can set the DO pin output value. [Disabled] DIO_0..7 [Output Low], Setting the DO pin output value. [Output High], [Input] www.kontron.com // 94...

  • Page 95: Power Setup Menu

    [Enabled] Date(Days)Alarm Value Input 0 - - 31, 0 stands for every day. Time(hh)Alarm Value Input 0 - - 23 Time(mm)Alarm Value Input 0 - - 59 Time(ss)Alarm Value Input 0 - - 59 www.kontron.com // 95...

  • Page 96: Figure 64: Bios Power Setup Menu - Watchdog Timer Configuration

    Feature Option Description WDT Function [Disabled], Select whether to enable or disable WatchDog Timer function. [Enabled] WDT Count Mode [Second], Select WatchDog Count Mode: Second or Minute. [Minute] WDT Timer Value Input Count 0 - - 255 www.kontron.com // 96...

  • Page 97: Boot Setup Menu

    This field indicates the state of the NumLock feature of the State keyboard after Startup. [Off] [On]: The keys on the keypad will act as numeric keys. [Off]: The keys on the keypad will act as cursor keys. www.kontron.com // 97...

  • Page 98: Security Setup Menu

    If only the user's password is set, then the password is a power on password and must be entered to boot or enter setup. Within the setup menu the user has administrator rights. Password length requirements are maximum 20 characters and minimum 3 characters. www.kontron.com // 98...

  • Page 99: Figure 67: Bios Security Setup Menu - - Secure Boot

    Restore Factory Keys [Yes], Force System to User Mode. [No] Install factory default Secure Boot key databases. Reset to Setup Mode [Yes], Delete all Secure Boot key databases from NVRAM. [No] www.kontron.com // 99...

  • Page 100: Figure 68: Bios Security Setup Menu - - Secure Boot - - Key Management

    [No] Restore DB defaults [Yes], Restore DB variable to factory defaults. [No] Platform Key (PK) [Details], Enroll Factory Defaults or load certificates from a file: [Export], 1. Public Key Certificate: [Update], (a) EFI_SIGNATURE_LIST [Delete] (b) EFI_CERT_X509 (DER) www.kontron.com // 100...
  • Page 101 [Update], 3. EFI PE / COFF Image (SHA256) [Append], Key Source: Factory, External, Mixed [Delete] Authorized [Details], Signatures [Export], [Update], [Append], [Delete] Forbidden Signatures [Details], [Export], [Update], [Append], [Delete] Authorized [Update], TimeStamps [Append] OsRecovery [Update], Signatures [Append] www.kontron.com // 101...
  • Page 102 It is highly recommended to keep a record of all passwords in a safe place. Forgotten passwords results in being locked out of the system. If the system cannot be booted because the User Password or the Supervisor Password are not known, contact Kontron Support for further assistance. HDD security passwords cannot be cleared using the above method. www.kontron.com...

  • Page 103: Save & Exit Setup Menu

    Save Changes Save Changes done so far to any of the setup options. Discard Changes Discard Changes done so far to any of the setup options. Restore Defaults Restore / Load Default values for all the setup options. www.kontron.com // 103...

  • Page 104: Appendix A: List Of Acronyms

    ME F/W Management Engine Firmware mPCIe mini Peripheral Component Interconnect express NGFF Next Generation Form Factor PC-AT Personal Computer - Advanced Technology Printed Circuit Board Power Supply Unit PolyViny Chloride Pulse Width Modulation Random Access Memory Read-Only Memory www.kontron.com // 104...

  • Page 105: About Kontron

    3.5"-SBC-EKL - - User Guide, Rev. 2.1 About Kontron Kontron is a global leader in IoT / Embedded Computing Technology (ECT) and offers individual solutions in the areas of Internet of Things (IoT) and Industry 4.0 through a combined portfolio of hardware, software and services.
