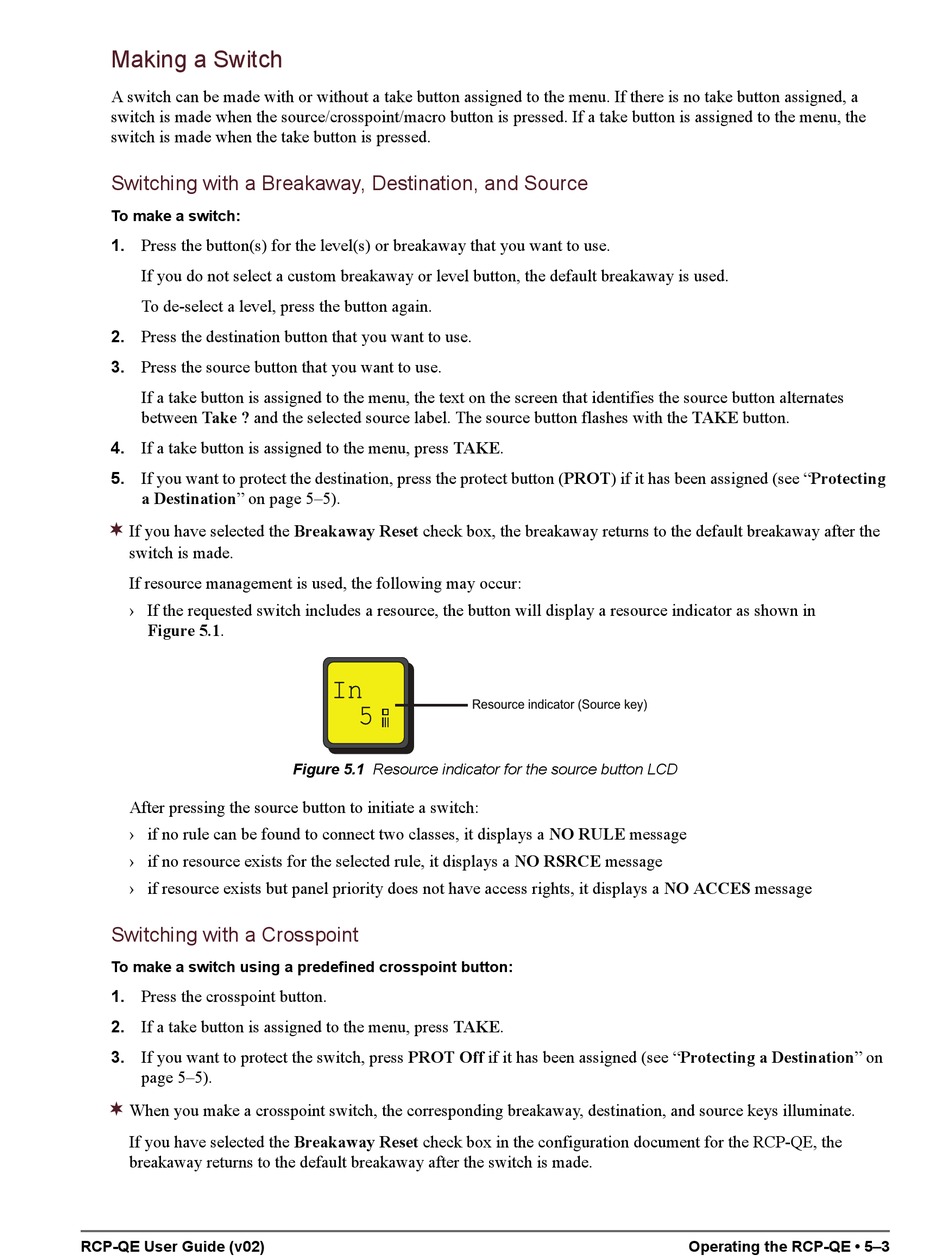

Making a Switch

A switch can be made with or without a take button assigned to the menu. If there is no take button assigned, a
switch is made when the source/crosspoint/macro button is pressed. If a take button is assigned to the menu, the
switch is made when the take button is pressed.
Switching with a Breakaway, Destination, and Source
To make a switch:
1. Press the button(s) for the level(s) or breakaway that you want to use.
If you do not select a custom breakaway or level button, the default breakaway is used.
To de-select a level, press the button again.
2. Press the destination button that you want to use.
3. Press the source button that you want to use.
If a take button is assigned to the menu, the text on the screen that identifies the source button alternates
between Take ? and the selected source label. The source button flashes with the TAKE button.
4. If a take button is assigned to the menu, press TAKE.
5. If you want to protect the destination, press the protect button (PROT) if it has been assigned (see "Protecting
a Destination" on page 5–5).

If you have selected the Breakaway Reset check box, the breakaway returns to the default breakaway after the
switch is made.
If resource management is used, the following may occur:
› If the requested switch includes a resource, the button will display a resource indicator as shown in
Figure 5.1.
After pressing the source button to initiate a switch:
› if no rule can be found to connect two classes, it displays a NO RULE message
› if no resource exists for the selected rule, it displays a NO RSRCE message
› if resource exists but panel priority does not have access rights, it displays a NO ACCES message
Switching with a Crosspoint
To make a switch using a predefined crosspoint button:
1. Press the crosspoint button.
2. If a take button is assigned to the menu, press TAKE.
3. If you want to protect the switch, press PROT Off if it has been assigned (see "Protecting a Destination" on
page 5–5).

When you make a crosspoint switch, the corresponding breakaway, destination, and source keys illuminate.
If you have selected the Breakaway Reset check box in the configuration document for the RCP-QE, the
breakaway returns to the default breakaway after the switch is made.
RCP-QE User Guide (v02)
Resource indicator (Source key)
Figure 5.1 Resource indicator for the source button LCD
