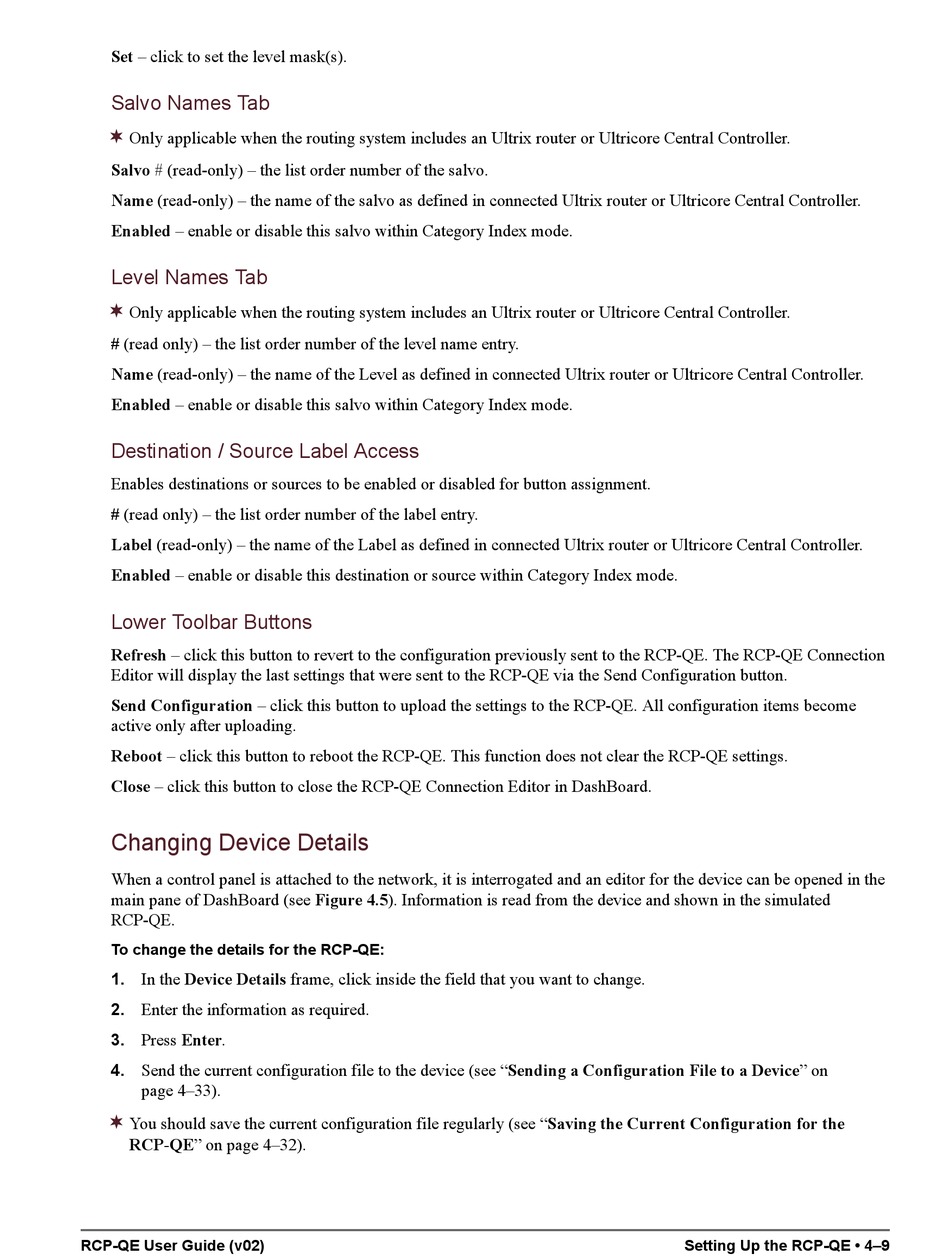

Set – click to set the level mask(s).
Salvo Names Tab

Only applicable when the routing system includes an Ultrix router or Ultricore Central Controller.
Salvo # (read-only) – the list order number of the salvo.
Name (read-only) – the name of the salvo as defined in connected Ultrix router or Ultricore Central Controller.
Enabled – enable or disable this salvo within Category Index mode.
Level Names Tab

Only applicable when the routing system includes an Ultrix router or Ultricore Central Controller.
# (read only) – the list order number of the level name entry.
Name (read-only) – the name of the Level as defined in connected Ultrix router or Ultricore Central Controller.
Enabled – enable or disable this salvo within Category Index mode.
Destination / Source Label Access
Enables destinations or sources to be enabled or disabled for button assignment.
# (read only) – the list order number of the label entry.
Label (read-only) – the name of the Label as defined in connected Ultrix router or Ultricore Central Controller.
Enabled – enable or disable this destination or source within Category Index mode.
Lower Toolbar Buttons
Refresh – click this button to revert to the configuration previously sent to the RCP-QE. The RCP-QE Connection
Editor will display the last settings that were sent to the RCP-QE via the Send Configuration button.
Send Configuration – click this button to upload the settings to the RCP-QE. All configuration items become
active only after uploading.
Reboot – click this button to reboot the RCP-QE. This function does not clear the RCP-QE settings.
Close – click this button to close the RCP-QE Connection Editor in DashBoard.

Changing Device Details

When a control panel is attached to the network, it is interrogated and an editor for the device can be opened in the
main pane of DashBoard (see Figure 4.5). Information is read from the device and shown in the simulated
RCP-QE.
To change the details for the RCP-QE:
1. In the Device Details frame, click inside the field that you want to change.
2. Enter the information as required.
3. Press Enter.
4. Send the current configuration file to the device (see "Sending a Configuration File to a Device" on
page 4–33).

You should save the current configuration file regularly (see "Saving the Current Configuration for the
RCP-QE" on page 4–32).
RCP-QE User Guide (v02) Setting Up the RCP-QE • 4–9
