Operating the RCP-QE

LCD Buttons

The LCD buttons reflect any one of the following, depending on their current use:
• current status
• label
• current display mode
• special indicators
The text on the button changes as required. The color and inverse settings change depending upon the status of the
button and how these display options have been set up. The default status shows when the button is not selected.
The selected status shows when the button is selected.

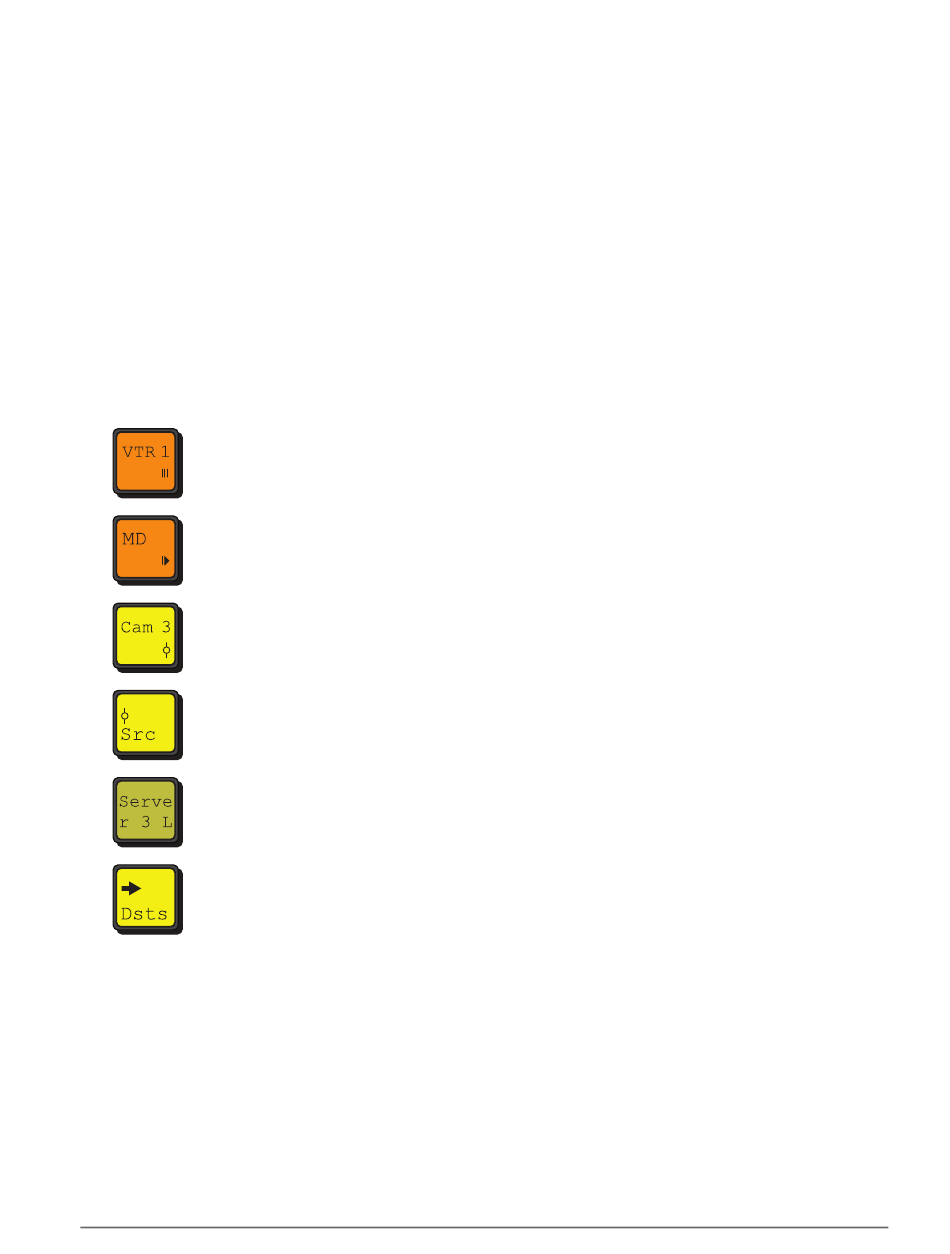

The special indicators for the LCD buttons are as follows:
– Breakaway warning indicator (breakaway and source buttons)
– Breakaway step indicator (breakaway step button)
– Crosspoint indicator (crosspoint button)
– Crosspoint layer indicator (crosspoint layer button)
– Protection indicator (destination and protect button)
– Navigation indicator (menu navigation button)
For More Information on...
• the display options for the RCP-QE buttons, refer to "Setting Up Button Display Options on the RCP-QE" on
page 4–14.

Breakaways and Levels

Breakaways are made up of one or more levels that are defined as a level mask and then assigned to a button (see
"Setting Up Breakaways" on page 4–12). You can assign multiple breakaway buttons to an RCP-QE. You can
select only one breakaway for a switch.
