Setting Up the RCP-QE

The RCP-QE panel can be set up using DashBoard. You must have an NK-NET, NK-IPS, or Ultricore Central
Controller connected to the T-BUS system to connect to NK Series devices.
The parameters for a device can be saved to a configuration file.
For More Information on...
• checking and upgrading firmware, see "Checking the Firmware Version" on page 3–5 and "Upgrading the
Firmware Version" on page 3–5.
• saving parameters to a configuration file, see "Saving the Current Configuration for the RCP-QE" on
page 4–32.

Implementing Your System Plan

An effective routing system takes careful planning. If you intend to use multiple router levels across several input
and output devices, it is recommended that you use common input connectors for each source device across the
routing switchers and common output connectors for each destination device across the routing switchers. This
methodology is shown in Figure 4.1. The following process for setting up the RCP-QE is recommended.
Enter the connection
details for the NK-NET
or the NK-IPS.
Is there an
NK-VRC
in the system?
NO
Assign input and output
labels according to the
physical connections.
Set up the level names,
and breakaway patterns.
RCP-QE User Guide (v02)
Is there an
Ultrix router or
Ultricore Central
NO
Controller
in the system?
Enable
Virtual Routing on
YES
the RCP-QE.
Assign input and output
labels in the global
label file.
Assign menus and functions to
buttons on the remote control panel.

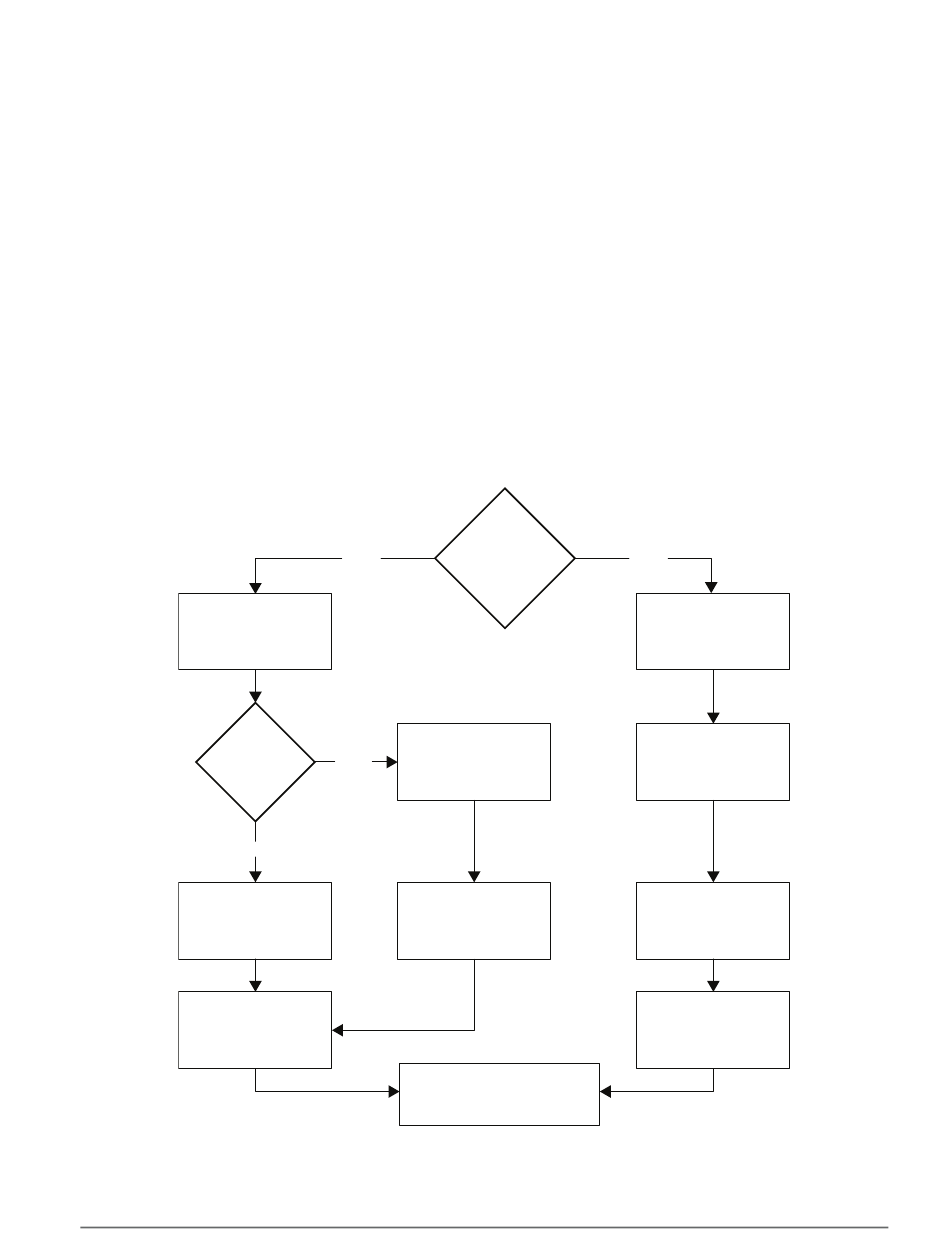

Figure 4.1 Flow chart for setting up the RCP-QE
YES
Enter the connection
details for the Ultrix
router or the Ultricore
Central Controller.
Enable
Virtual Routing on
the RCP-QE.
Label assignments are
served from the Ultrix
router or the Ultricore
Central Controller.
Set up breakaway patterns.
Level names are served
from the Ultrix router or the
Ultricore Central Controller.
Setting Up the RCP-QE • 4–1
