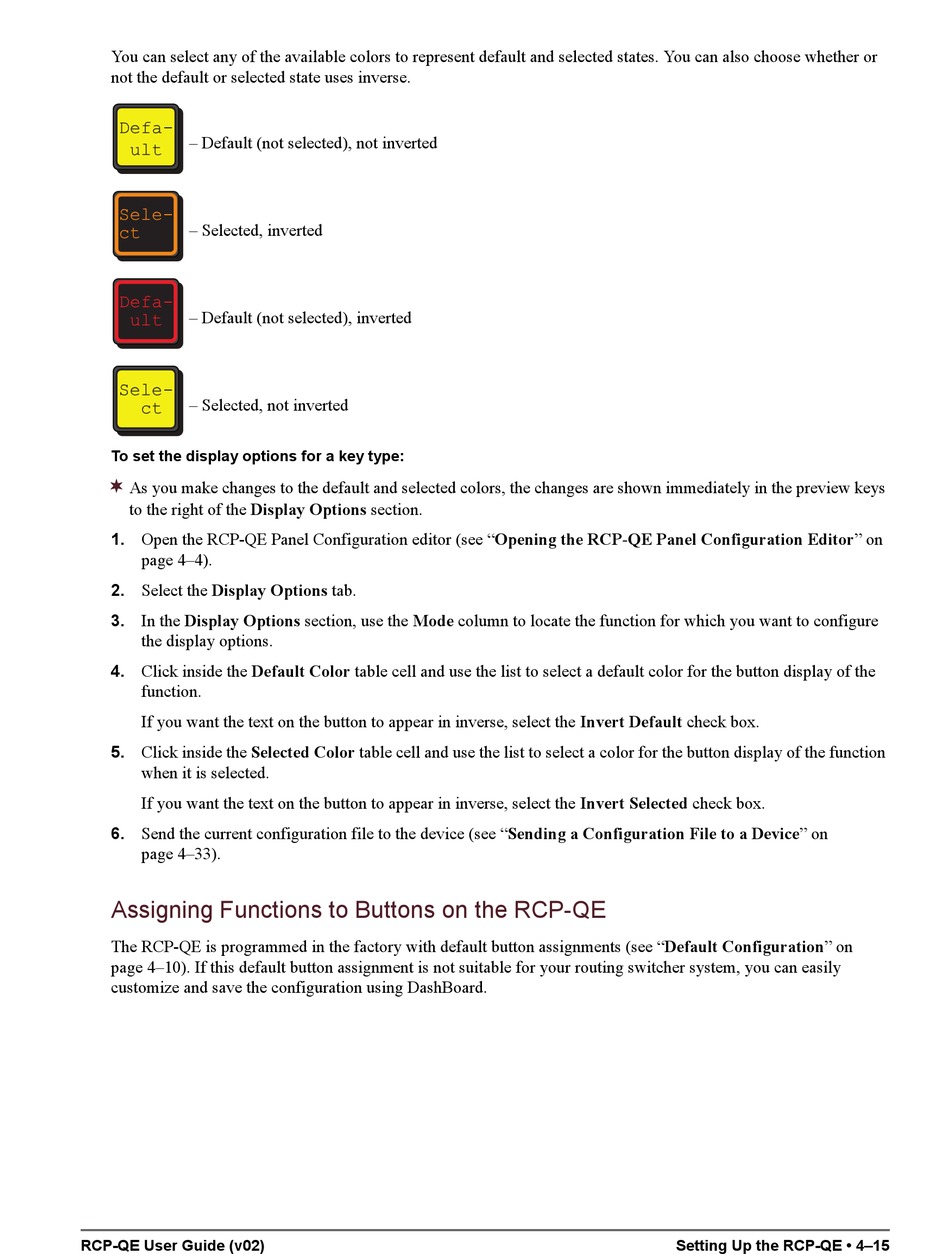

You can select any of the available colors to represent default and selected states. You can also choose whether or
not the default or selected state uses inverse.
– Default (not selected), not inverted
– Selected, inverted
– Default (not selected), inverted
– Selected, not inverted
To set the display options for a key type:

As you make changes to the default and selected colors, the changes are shown immediately in the preview keys
to the right of the Display Options section.
1. Open the RCP-QE Panel Configuration editor (see "Opening the RCP-QE Panel Configuration Editor" on
page 4–4).
2. Select the Display Options tab.
3. In the Display Options section, use the Mode column to locate the function for which you want to configure
the display options.
4. Click inside the Default Color table cell and use the list to select a default color for the button display of the
function.
If you want the text on the button to appear in inverse, select the Invert Default check box.
5. Click inside the Selected Color table cell and use the list to select a color for the button display of the function
when it is selected.
If you want the text on the button to appear in inverse, select the Invert Selected check box.
6. Send the current configuration file to the device (see "Sending a Configuration File to a Device" on
page 4–33).

Assigning Functions to Buttons on the RCP-QE

The RCP-QE is programmed in the factory with default button assignments (see "Default Configuration" on
page 4–10). If this default button assignment is not suitable for your routing switcher system, you can easily
customize and save the configuration using DashBoard.
RCP-QE User Guide (v02) Setting Up the RCP-QE • 4–15
