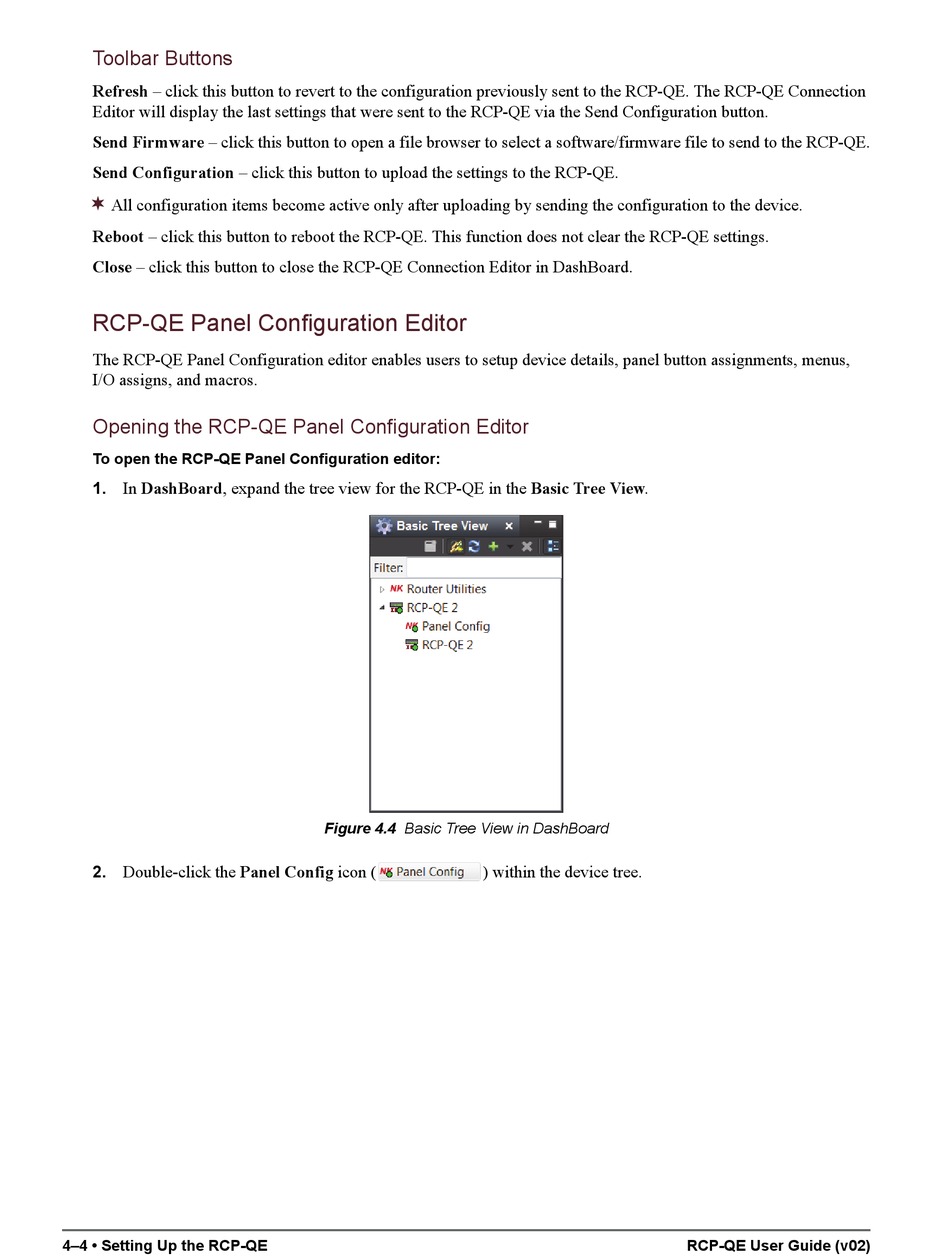

Toolbar Buttons
Refresh – click this button to revert to the configuration previously sent to the RCP-QE. The RCP-QE Connection
Editor will display the last settings that were sent to the RCP-QE via the Send Configuration button.
Send Firmware – click this button to open a file browser to select a software/firmware file to send to the RCP-QE.
Send Configuration – click this button to upload the settings to the RCP-QE.
All configuration items become active only after uploading by sending the configuration to the device.
Reboot – click this button to reboot the RCP-QE. This function does not clear the RCP-QE settings.
Close – click this button to close the RCP-QE Connection Editor in DashBoard.

RCP-QE Panel Configuration Editor

The RCP-QE Panel Configuration editor enables users to setup device details, panel button assignments, menus,
I/O assigns, and macros.
Opening the RCP-QE Panel Configuration Editor
To open the RCP-QE Panel Configuration editor:
1. In DashBoard, expand the tree view for the RCP-QE in the Basic Tree View.
Figure 4.4 Basic Tree View in DashBoard
2. Double-click the Panel Config icon (
) within the device tree.
4–4 • Setting Up the RCP-QE
RCP-QE User Guide (v02)
