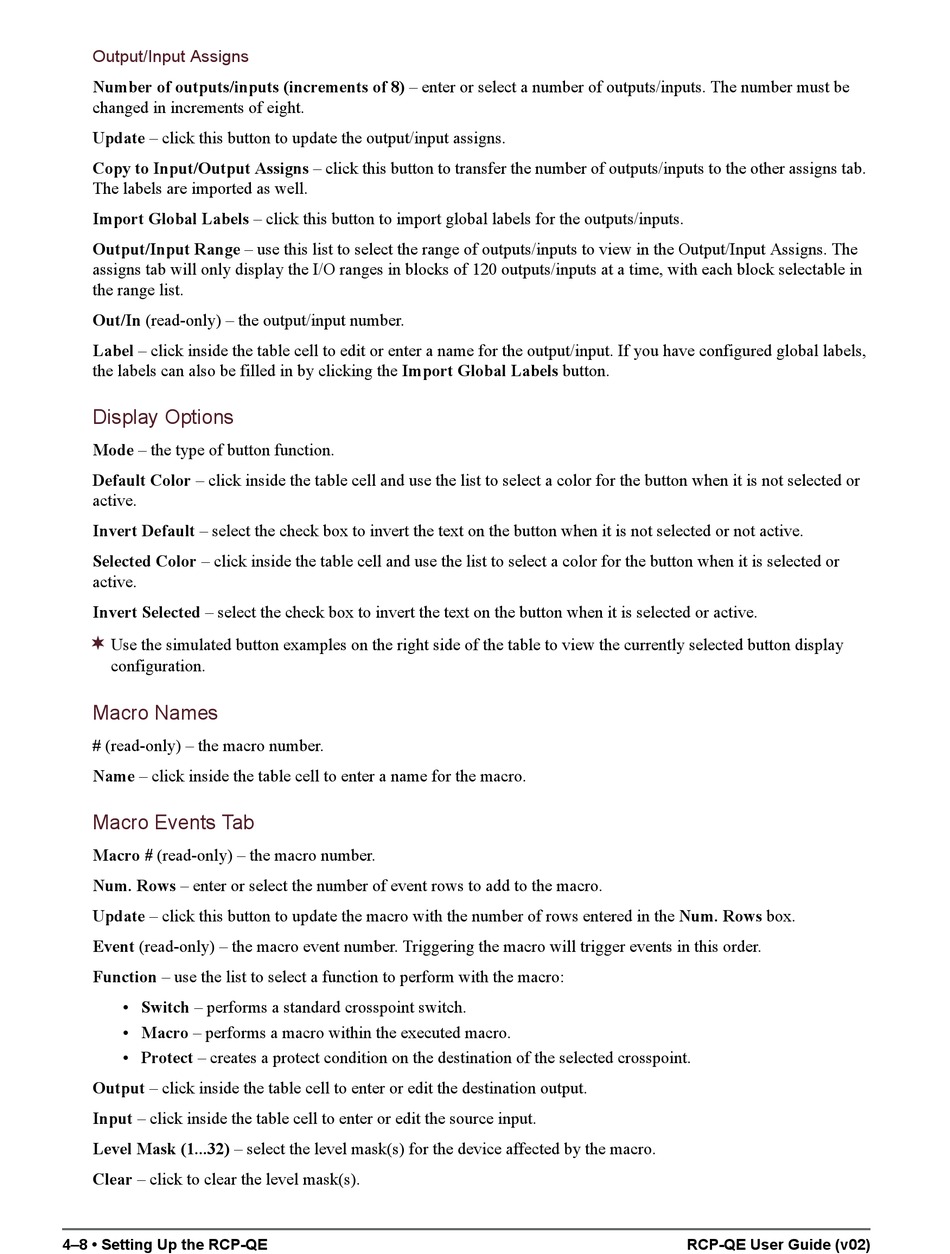

Output/Input Assigns
Number of outputs/inputs (increments of 8) – enter or select a number of outputs/inputs. The number must be
changed in increments of eight.
Update – click this button to update the output/input assigns.
Copy to Input/Output Assigns – click this button to transfer the number of outputs/inputs to the other assigns tab.
The labels are imported as well.
Import Global Labels – click this button to import global labels for the outputs/inputs.
Output/Input Range – use this list to select the range of outputs/inputs to view in the Output/Input Assigns. The
assigns tab will only display the I/O ranges in blocks of 120 outputs/inputs at a time, with each block selectable in
the range list.
Out/In (read-only) – the output/input number.
Label – click inside the table cell to edit or enter a name for the output/input. If you have configured global labels,
the labels can also be filled in by clicking the Import Global Labels button.
Display Options
Mode – the type of button function.
Default Color – click inside the table cell and use the list to select a color for the button when it is not selected or
active.
Invert Default – select the check box to invert the text on the button when it is not selected or not active.
Selected Color – click inside the table cell and use the list to select a color for the button when it is selected or
active.
Invert Selected – select the check box to invert the text on the button when it is selected or active.

Use the simulated button examples on the right side of the table to view the currently selected button display
configuration.
Macro Names
# (read-only) – the macro number.
Name – click inside the table cell to enter a name for the macro.
Macro Events Tab
Macro # (read-only) – the macro number.
Num. Rows – enter or select the number of event rows to add to the macro.
Update – click this button to update the macro with the number of rows entered in the Num. Rows box.
Event (read-only) – the macro event number. Triggering the macro will trigger events in this order.
Function – use the list to select a function to perform with the macro:
• Switch – performs a standard crosspoint switch.
• Macro – performs a macro within the executed macro.
• Protect – creates a protect condition on the destination of the selected crosspoint.
Output – click inside the table cell to enter or edit the destination output.
Input – click inside the table cell to enter or edit the source input.
Level Mask (1...32) – select the level mask(s) for the device affected by the macro.
Clear – click to clear the level mask(s).
4–8 • Setting Up the RCP-QE RCP-QE User Guide (v02)
