Digilent Eclypse Z7 Hardware Reference Manual page 3

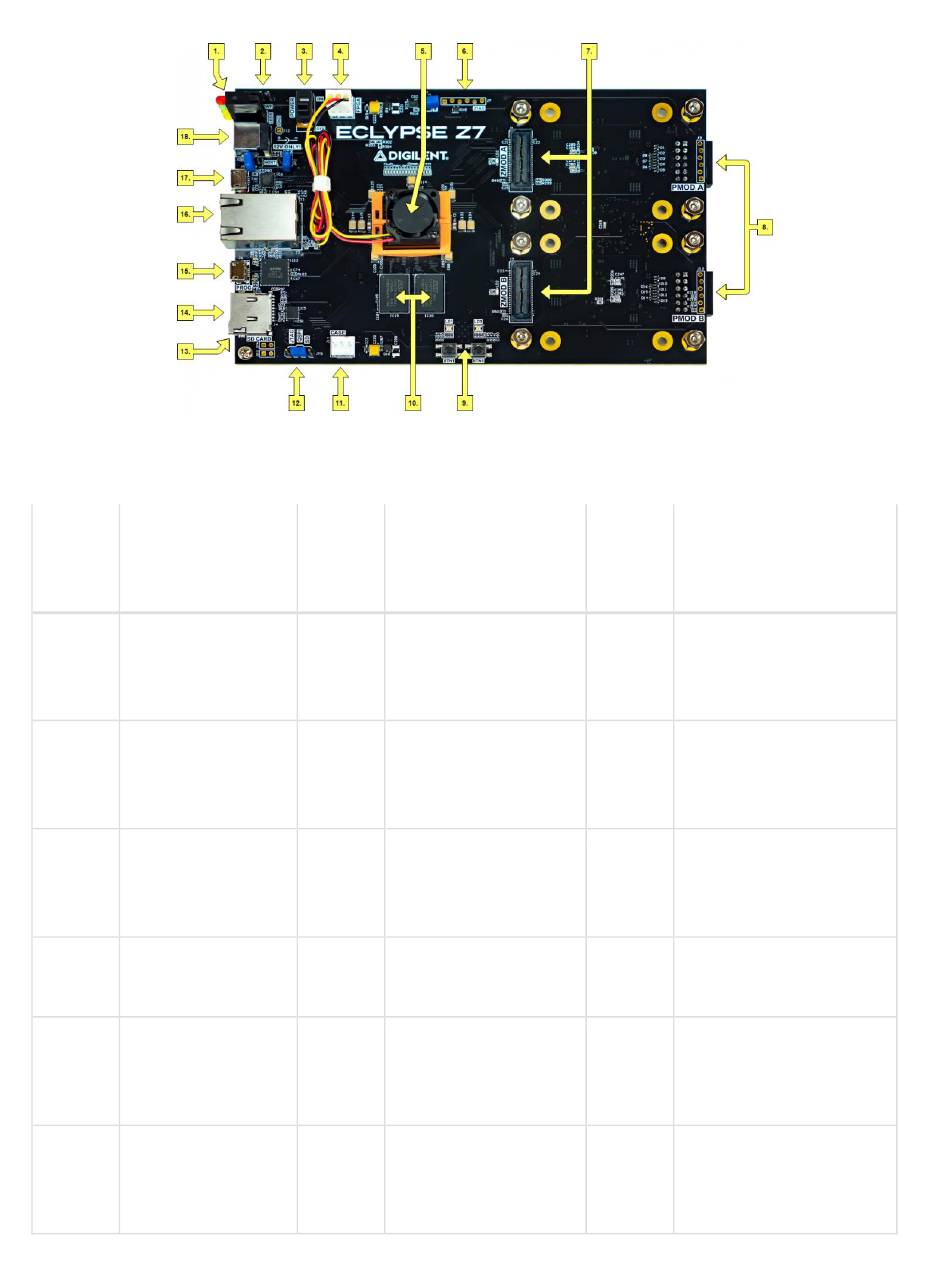

Eclypse Z7 Callout Diagram
Callout
# Description
1 Board Indicator
LEDs (LD4)
2 Header for Case
Power Switch
3 Power Switch
4 FPGA Fan Header
5 Zynq-7000 SoC
and FPGA Fan
6 External JTAG Port
Callout
# Description
7 SYZYGY Ports
8 Pmod Ports
9 User Buttons and
LEDs
10 DDR3L Memory
11 Case Fan Header
12 Programming Mode
Select Jumper
Callout
# Description
13 Reset Buttons
(underside of board)
14 microSD Card Slot
15 USB JTAG/UART Port
16 Ethernet Port
17 USB AB
Host/Device/OTG Port
18 Power Supply
Connector
