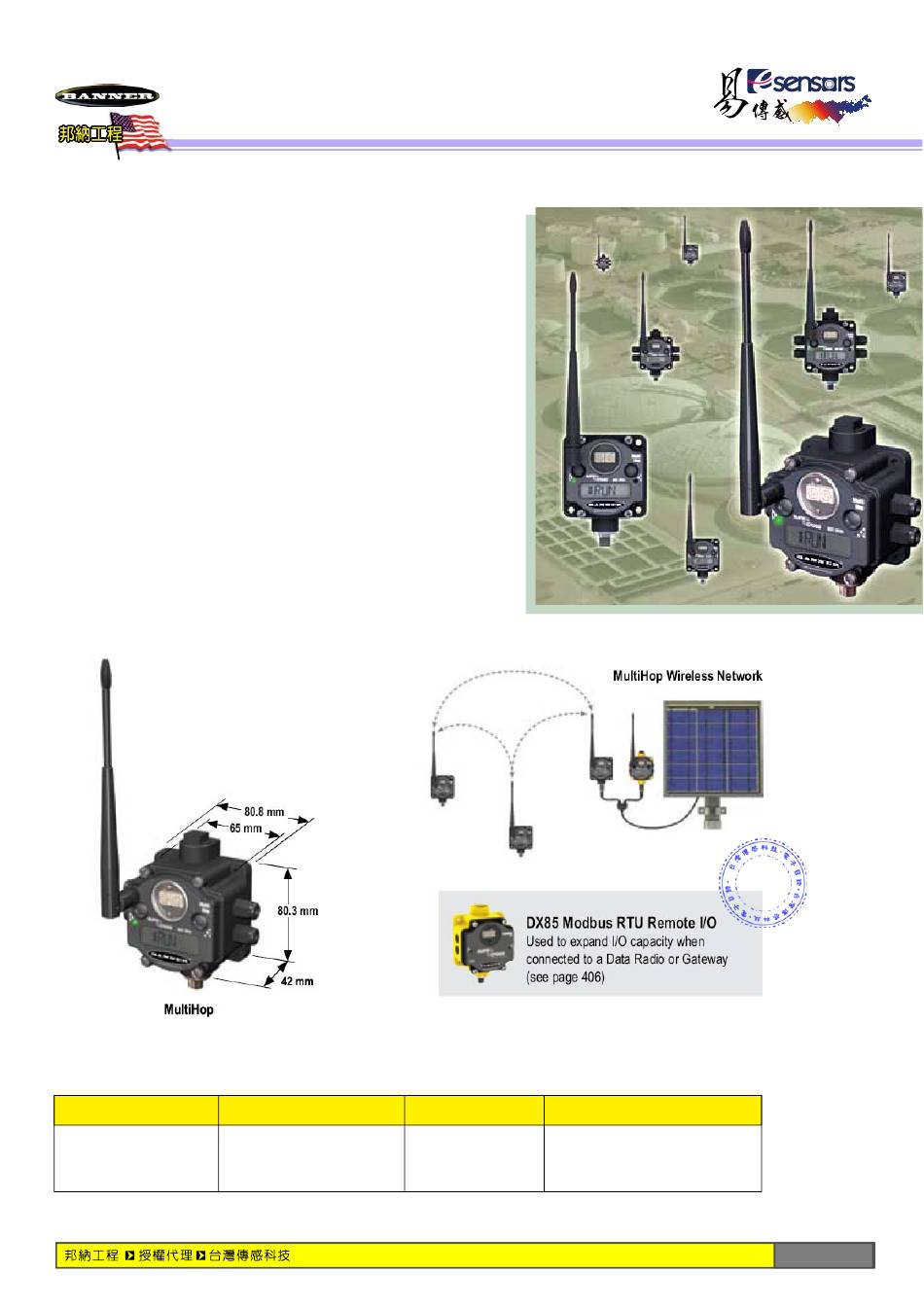

SureCross™ DX80
MultiHop Data Radio
多點資料傳輸模組
§ MultiHop輸入電源包含+10 to 30Vdc,solar and
baltery power。
§ 序列埠通訊，使用者可選RS-232c或S-485。
§ MultiHop可做為中繼站，增加通訊距離。
§ SureCross MultiHop可規劃為網路式結構。
§ DIP開關可選擇運作模式:主站、分站、中繼站。
§ 內含現場信號品質測試(SITE SURVEY)可評估現場通
訊狀況、測試結果可快速顯示面板上，進而更換高
增益天線優化通訊品質。
§ FHSS(跳頻技術)可有效降低頻道的干擾。
資料傳輸模組
DX80 資料傳輸模組
型號
DX80DR2M-H
敘述
MultiHop Radio
www.e-sensors.com.tw
www.e-sensors.com.tw
頻率
傳輸功率
2.4 GHz
150 mW EIRP
B
3
X

Advertisement

loading
Need help?

Need help?

Do you have a question about the SureCross DX80 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Banner SureCross DX80 Series

Summary of Contents for Banner SureCross DX80 Series

  • Page 1 SureCross™ DX80 MultiHop Data Radio 多點資料傳輸模組 § MultiHop輸入電源包含+10 to 30Vdc,solar and baltery power。 § 序列埠通訊，使用者可選RS-232c或S-485。 § MultiHop可做為中繼站，增加通訊距離。 § SureCross MultiHop可規劃為網路式結構。 § DIP開關可選擇運作模式:主站、分站、中繼站。 § 內含現場信號品質測試(SITE SURVEY)可評估現場通 訊狀況、測試結果可快速顯示面板上，進而更換高 增益天線優化通訊品質。 § FHSS(跳頻技術)可有效降低頻道的干擾。 資料傳輸模組 DX80 資料傳輸模組 型號 敘述 頻率 傳輸功率 DX80DR2M-H MultiHop Radio 2.4 GHz 150 mW EIRP www.e-sensors.com.tw www.e-sensors.com.tw...
  • Page 2 These products do NOT include the self-checking redundant circuitry necessary to allow their use in personnel safety applications. A failure or malfunction can cause either an energized or de-energized output condition. Consult your current Banner Safety Products catalog for safety products that meet OSHA, ANSI, and IEC standards for personnel protection.
  • Page 3 This display allows the user to conduct a site survey and modify other data radio configuration parameters without the use of a PC or other external software interfaces. 5-Pin M12 Euro-style The Euro-style power is used for serial connections and power. quick-disconnect port Banner Engineering Corp. • Minneapolis, MN U.S.A www.bannerengineering.com • Tel: 763.544.3164 P/N 132031 rev. E...
  • Page 4 1 to advance through the GRN, YEL, RED, and MIS displays. (RADIO (LCD EEP /N) FMVER) XXXXXX V X.XX (RADIO (LCD EEVER) EEP /N) XXXXXX V X.XX (LCD (LCD FMP /N) EEVER) XXXXXX V X.XX Banner Engineering Corp. • Minneapolis, MN U.S.A www.bannerengineering.com • Tel: 763.544.3164 P/N 132031 rev. E...
  • Page 5 Additional slaves can be bound to the same network as long as the same master device is used to bind each new device. Banner recommends binding only one slave device at a time. Triple-click the right button on the master device. Both LEDs should flash red and the LCD screen displays “BINDNG”...
  • Page 6 RS-232 and RS-485 Communication Three jumpers control the communication mode. To change the communication mode, change all three jumper positions. The jumpers are shown configured for RS-485 communication. Banner Engineering Corp. • Minneapolis, MN U.S.A www.bannerengineering.com • Tel: 763.544.3164 P/N 132031 rev. E...

  • Page 7: Status Led

    However, not all baud rate mismatches are detected as communications errors, especially for short messages. If data is consistently received in error, even when the data radios are not far apart, verify the serial rates between the wired components are not mismatched. Banner Engineering Corp. • Minneapolis, MN U.S.A www.bannerengineering.com • Tel: 763.544.3164 P/N 132031 rev. E...
  • Page 8 Because the statistics represent the lesser of the round-trip results, one person can ascertain the link quality from either device. Triple-click button 2 to pause or resume autoscrolling the site survey results. While paused, button 1 single-step advances through the four signal strength categories: green, yellow, red, and missed. Banner Engineering Corp. • Minneapolis, MN U.S.A www.bannerengineering.com • Tel: 763.544.3164 P/N 132031 rev. E...
  • Page 9 Do not subject the units to external loads. For additional information, including installation and setup, weatherproofing, device menu maps, troubleshooting, and a list of accessories, refer to the SureCross™ DX80 Wireless I/O Network product manual, Banner p/n 132607. Banner Engineering Corp. • Minneapolis, MN U.S.A www.bannerengineering.com • Tel: 763.544.3164...
  • Page 10 Mount the cover back onto the housing. The device ships in rotary switch address mode by default, with the DIP switch in the OFF position. To use extended address mode, change the DIP switch to the ON position. Banner Engineering Corp. • Minneapolis, MN U.S.A www.bannerengineering.com • Tel: 763.544.3164 P/N 132031 rev. E...
  • Page 11 3.4V dc. Even when the gray wire supplies the power, there will be a quiescent draw on the brown wire of about 5 mA. The 3.4V dc threshold is not a controlled parameter and some current sharing may occur when the gray wire is near this threshold. Banner Engineering Corp. • Minneapolis, MN U.S.A www.bannerengineering.com • Tel: 763.544.3164 P/N 132031 rev. E...
  • Page 12 Note: The data radio master device need not be connected to the Modbus master device. The two network functions are independent. It is Banner Engineering’s intent to fully comply with all national and regional regulations regarding radio frequency emissions. Customers who want to re-export this product to a country other than that to which it was sold must ensure that the device is approved in the destination country. A list of approved countries appears in the SureCross DX80 Wireless Product Manual, in the Agency Certifications section.
  • Page 13 Each data radio slave is hard-wired serially to a DX80 Gateway, communicating using the Modbus protocol. Each DX80 Gateway, in turn, is using a wireless I/O link to communicate with two DX80 Nodes. All three wireless networks shown can coexist because they are on unique network IDs. Banner Engineering Corp. • Minneapolis, MN U.S.A www.bannerengineering.com • Tel: 763.544.3164 P/N 132031 rev. E...
  • Page 14 Network ID on the second pair of data radios. NID 3 Use this configuration when the distance between the source and ultimate destination exceeds the distance the range of a single hop for the data radios. Node NID 3 Banner Engineering Corp. • Minneapolis, MN U.S.A www.bannerengineering.com • Tel: 763.544.3164 P/N 132031 rev. E...
  • Page 15 Omni, 1/2 wave dipole, Swivel ≤2 dBi +30 dBm BWA-9O6-A Omni Wideband, Fiberglass Radome ≤8.2 dBi +27.8 dBm BWA-9O5-B Omni Base Whip ≤7.2 dBi +28.8 dBm BWA-9Y10-A Yagi ≤10 dBi +26 dBm Table 1. Type certified Antenna Banner Engineering Corp. • Minneapolis, MN U.S.A www.bannerengineering.com • Tel: 763.544.3164 P/N 132031 rev. E...

  • Page 16: Fcc Certification, 2.4 Ghz

    Connect the equipment into an outlet on a circuit different from that to which the receiving module is connected, and/or • Consult the dealer or an experienced radio/TV technician for help. Antenna Warning WARNING: This device has been tested with Banner Engineering Corp. • Minneapolis, MN U.S.A www.bannerengineering.com • Tel: 763.544.3164 P/N 132031 rev. E...
  • Page 17 New Zealand 2.4 GHz Norway 2.4 GHz Poland 2.4 GHz Portugal 2.4 GHz Romania 2.4 GHz Saudi Arabia (Kingdom of) 2.4 GHz Slovakia 2.4 GHz Slovenia 2.4 GHz South Africa 2.4 GHz Banner Engineering Corp. • Minneapolis, MN U.S.A www.bannerengineering.com • Tel: 763.544.3164 P/N 132031 rev. E...

  • Page 18: Additional Messages

    Reglement sur le brouillage radioélectrique édits par le ministere des Communications du Canada. It is Banner Engineering’s intent to fully comply with all national and regional regulations regarding radio frequency emissions. Customers who want to re-export this product to a country other than that to which it was sold must ensure that the device is approved in the destination country.

  • Page 19: Specifications

    95% max. relative (non-condensing) Radiated Immunity 10 V/m, 80-2700 MHz (EN61000-6-2) Shock and Vibration IEC 68-2-6 and IEC 68-2-7 Shock: 30g, 11 millisecond half sine wave, 18 shocks Vibration: 0.5 mm p-p, 10 to 60 Hz ** Please refer to the SureCross™ DX80 Wireless I/O Network product manual, Banner p/n 132607, for installation and waterproofing instructions. *** Operating the devices at the maximum operating conditions for extended periods can shorten the life of the device. Banner Engineering Corp. • Minneapolis, MN U.S.A www.bannerengineering.com • Tel: 763.544.3164 P/N 132031 rev. E...
  • Page 20 Antenna BWA-9O2-C, or Antenna, 902-928 MHz, 2 dBd Omni, Rubber Swivel RSMA Male, or Antenna, 2.4 GHz, 2 dBd Omni, Rubber Swivel RSMA Male BWA-2O2-C SureCross Literature CD 79685 SureCross Literature CD Banner Engineering Corp. • Minneapolis, MN U.S.A www.bannerengineering.com • Tel: 763.544.3164 P/N 132031 rev. E...
  • Page 21 All specifications published in this document are subject to change. Banner reserves the right to modify the specifications of products, prior to their order, without notice. Banner Engineering reserves the right to update or change documentation at any time. For the most recent version of any documentation, please refer to our website: www.bannerengineering.com. © 2007 Banner Engineering Corp. All rights reserved.
