Banner SureCross DX80 Manual

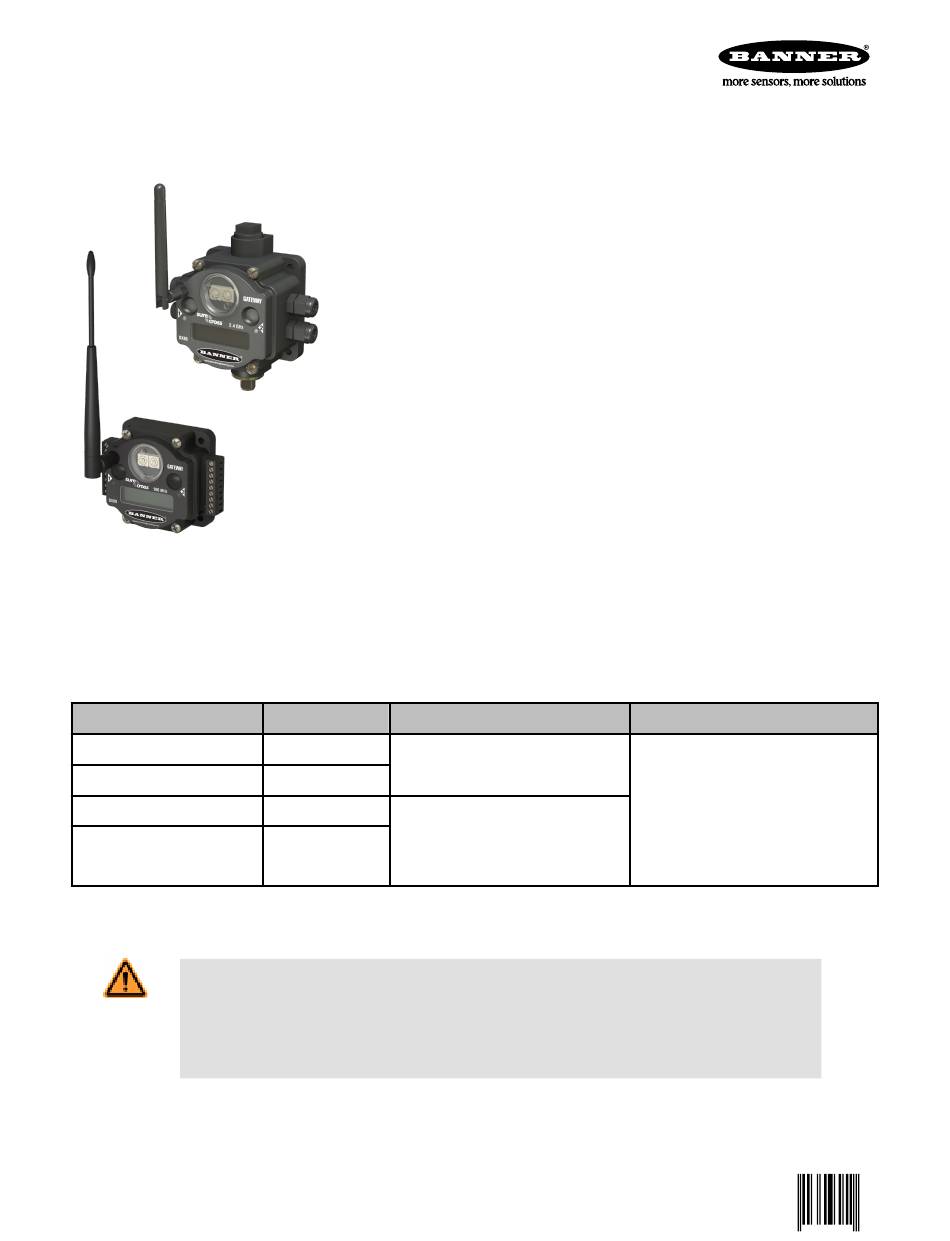

SureCross DX80 Gateway with Analog I/O
Configurable Gateway with four 0-20mA analog inputs and four 0-20mA analog outputs
Features
IP20 Base
900 MHz
For additional information, the most recent version of all documentation, and a complete list of accessories, refer to Banner Engineering's
website, www.bannerengineering.com/surecross.
Models
Model
DX80G9M6S0P0M4M4
DX80G2M6S0P0M4M4
DX80G9M6S0P0M4M4C
DX80G2M6S0P0M4M4C
Internal antenna models are also available, but are not UL Listed. For more information, contact your local Banner Engineering Corp.
representative.
WARNING: Not To Be Used for Personnel Protection
Never use this product as a sensing device for personnel protection. Doing so could lead to seri-
ous injury or death. This product does NOT include the self-checking redundant circuitry necessary to
allow its use in personnel safety applications. A sensor failure or malfunction can cause either an ener-
gized or de-energized sensor output condition.
P/N 134302 rev. G
The SureCross™ wireless system is a radio frequency network with integrated I/O that
can operate in most environments while eliminating the need for wiring runs. Systems are
built around a Gateway, which acts as the wireless network master device, and one or
more Nodes.
• Wireless industrial I/O device with four 0 to 20 mA analog inputs and four 0 to 20 mA
analog outputs
• 10 to 30V dc power input
• DIP switches for user configuration
• Modbus serial interface
IP67 Base
• Site Survey analyzes the network's signal strength and reliability
2.4 GHz
• Frequency Hopping Spread Spectrum (FHSS) technology and Time Division Multiple
Access (TDMA) control architecture combine to ensure reliable data delivery within
the unlicensed Industrial, Scientific, and Medical (ISM) band
• Transceivers provide bidirectional communication between the Gateway and Node, in-
cluding fully acknowledged data transmission
• Lost RF links are detected and relevant outputs set to user-defined conditions
• The DX80...C models are certified for use in Class I, Division 2, Group A, B, C, D;
Zone 2 (Group IIC) Hazardous Locations when properly installed in accordance with
the National Electrical Code, the Canadian Electrical Code, LCIE/ATEX, or applicable
local codes/regulations (see Specifications)
Frequency Environmental Rating
900 MHz ISM Band
IP67, NEMA 6
2.4 GHz ISM Band
900 MHz ISM Band IP20, NEMA 1
Class I, Division 2, Group A, B, C, D
Hazardous Locations (see Specifica-
2.4 GHz ISM Band
tions)
1/24/2012
I/O
Inputs: Four 0 to 20mA analog
Outputs: Four 0 to 20mA analog
0 134302 3
