Banner SureCross DX80 Series Manual

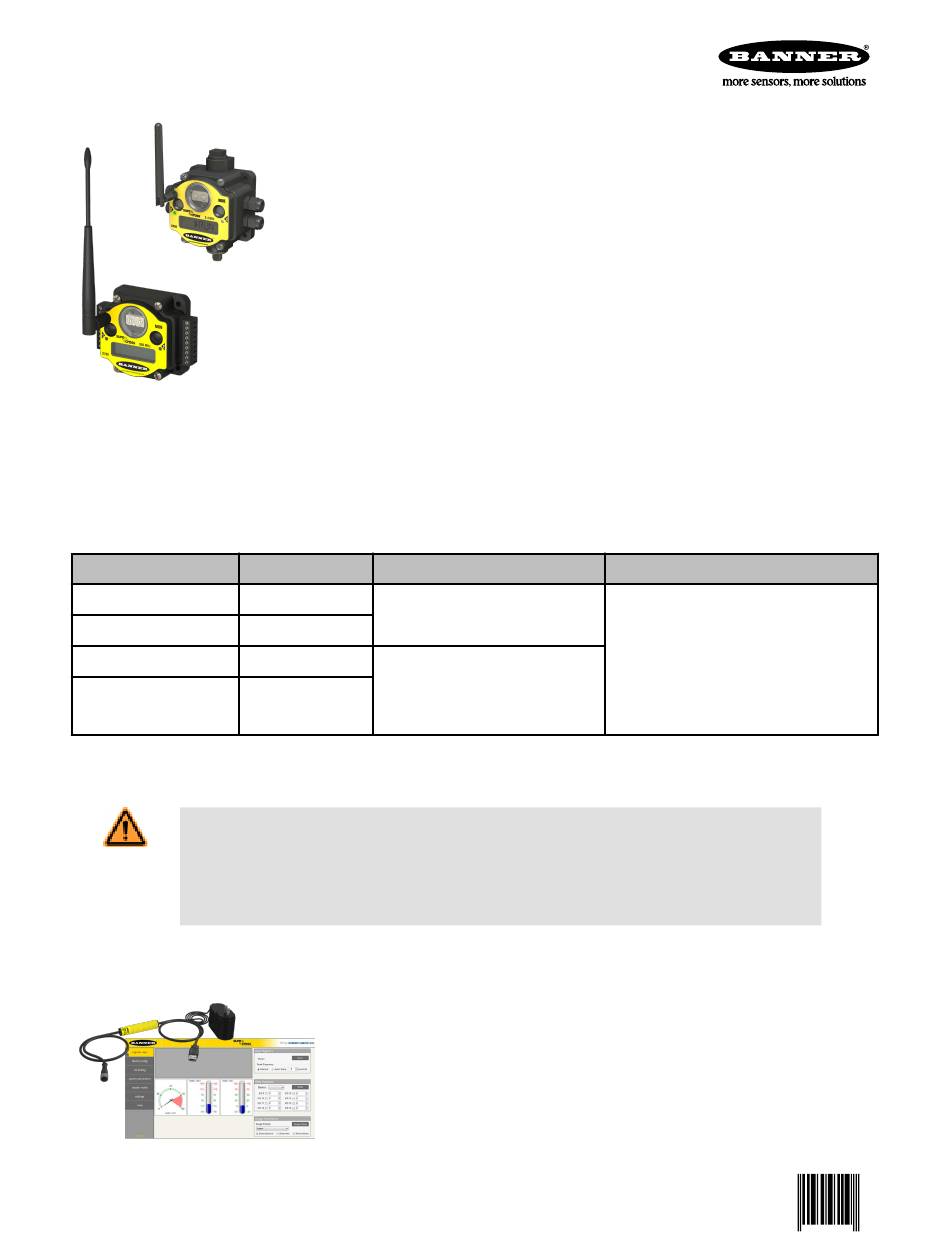

SureCross DX80 Node
Configurable Node with discrete inputs, discrete outputs, analog inputs, and analog outputs
IP67 Base
2.4 GHz
IP20 Base
900 MHz
For additional information, updated documentation, and accessories, refer to Banner Engineering's website,
ing.com/surecross.
Models Frequency
DX80N9X6S4P4V2V2 900 MHz ISM Band
DX80N2X6S4P4V2V2 2.4 GHz ISM Band
DX80N9X6S4P4V2V2C 900 MHz ISM Band
DX80N2X6S4P4V2V2C 2.4 GHz ISM Band
Internal antenna models are also available, but are not UL Listed. For more information, contact your local Banner Engineering Corp.
representative.
WARNING: Not To Be Used for Personnel Protection
Never use this device as a sensing device for personnel protection. Doing so could lead to serious
injury or death. This device does not include the self-checking redundant circuitry necessary to allow its
use in personnel safety applications. A sensor failure or malfunction can cause either an energized or de-
energized sensor output condition.
SureCross User Configuration Tool
P/N 134323 Rev. G
The SureCross® wireless system is a radio frequency network with integrated I/O that can op-
erate in most environments and eliminate the need for wiring runs. Wireless networks are
formed around a Gateway, which acts as the wireless network master device, and one or more
Nodes.
• Wireless industrial I/O device with four selectable discrete inputs, four sourcing discrete out-
puts, two 0 to 10V analog inputs, and two 0 to 10V analog outputs
• 10 to 30V dc power input
• DIP switches for user configuration
• Frequency Hopping Spread Spectrum (FHSS) technology and Time Division Multiple Ac-
cess (TDMA) control architecture ensure reliable data delivery within the unlicensed Indus-
trial, Scientific, and Medical (ISM) band
• Transceivers provide bidirectional communication between the Gateway and Node, includ-
ing fully acknowledged data transmission
• Lost RF links are detected and relevant outputs set to user-defined conditions
• The DX80...C models are certified for use in Class I, Division 2, Group A, B, C, D; Zone 2
(Category 3G) Hazardous Locations when properly installed in accordance with the Nation-
al Electrical Code, the Canadian Electrical Code, or applicable local codes/regulations (see
Specifications)
Environmental Rating
IP67, NEMA 6
IP20, NEMA 1
Class I, Division 2, Group A, B, C, D
Hazardous Locations (see Specifica-
tions)
The User Configuration Tool (UCT) offers an easy way to link I/O points in your wire-
less network, view I/O register values graphically, and set system communication pa-
rameters when a host system is not part of the wireless network.
The UCT requires a special USB to RS-485 (model number BWA-UCT-900 for 1 Watt
radios, BWA-HW-006 can be used for all other radios) converter cable to pass infor-
mation between your computer and the Gateway. Download the most recent revi-
sions of the UCT software from Banner Engineering's website:
gineering.com/wireless.
5/22/2013
www.bannerengineer-
I/O
Inputs: Four selectable discrete, two 0 to
10V analog
Outputs: Four sourcing discrete, two 0 to
10V analog
http://www.banneren-
0 134323 7
