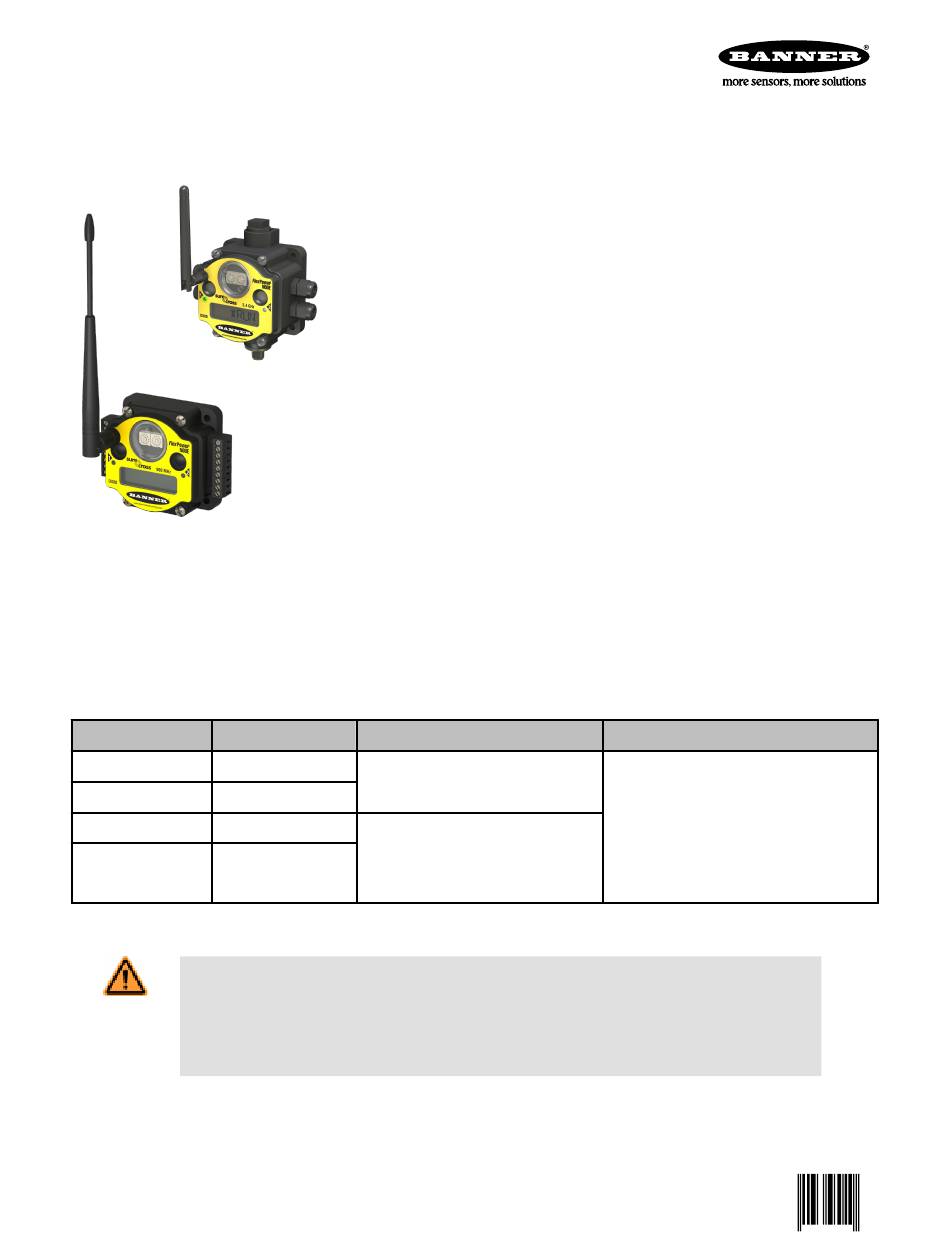

SureCross DX80 FlexPower Node with Counter Inputs
Configurable Node with two selectable counter inputs, two selectable discrete inputs, and two discrete NMOS outputs
Features
IP20 Base
900 MHz
For additional information, the most recent version of all documentation, and a complete list of accessories, refer to Banner Engineering's
website, www.bannerengineering.com/surecross.
Models
Model Frequency
DX80N9X2S4A2 900 MHz ISM Band
DX80N2X2S4A2 2.4 GHz ISM Band
DX80N9X2S4A2C 900 MHz ISM Band
DX80N2X2S4A2C 2.4 GHz ISM Band
Internal antenna models are also available. For more information, contact your local Banner Engineering Corp. representative.
WARNING: Not To Be Used for Personnel Protection
Never use this product as a sensing device for personnel protection. Doing so could lead to seri-
ous injury or death. This product does NOT include the self-checking redundant circuitry necessary to
allow its use in personnel safety applications. A sensor failure or malfunction can cause either an ener-
gized or de-energized sensor output condition.
P/N 136348 rev. G
The SureCross™ wireless system is a radio frequency network with integrated I/O that
can operate in most environments while eliminating the need for wiring runs. Systems
are built around a Gateway, which acts as the wireless network master device, and one
or more Nodes.
• Wireless industrial I/O device with two selectable discrete inputs, two selectable dis-
crete pulse counter inputs (rate or event; sinking, sourcing, or self-energized), and
two NMOS discrete outputs
• User selectable 10 kHz event counter(s) and/or 25 kHz rate counter
• FlexPower™ power options allows for +10 to 30V dc, solar, and battery power sour-
IP67 Base
2.4 GHz
ces for low power applications.
• DIP switches for user configuration
• Frequency Hopping Spread Spectrum (FHSS) technology and Time Division Multi-
ple Access (TDMA) control architecture combine to ensure reliable data delivery
within the unlicensed Industrial, Scientific, and Medical (ISM) band
• Transceivers provide bidirectional communication between the Gateway and Node,
including fully acknowledged data transmission
• Lost RF links are detected and relevant outputs set to user-defined conditions
• The DX80...C models are certified for use in Class I, Division 2, Group A, B, C, D;
Zone 2 (Group IIC) Hazardous Locations when properly installed in accordance with
the National Electrical Code, the Canadian Electrical Code, LCIE/ATEX, or applica-
ble local codes/regulations (see Specifications)
Environmental Rating
IP67, NEMA 6
IP20, NEMA 1
Class I, Division 2, Group A, B, C, D
Hazardous Locations (see Specifica-
tions)
1/13/2012
I/O
Inputs: Two selectable discrete, two select-
able counter
Outputs: Two NMOS sinking discrete
