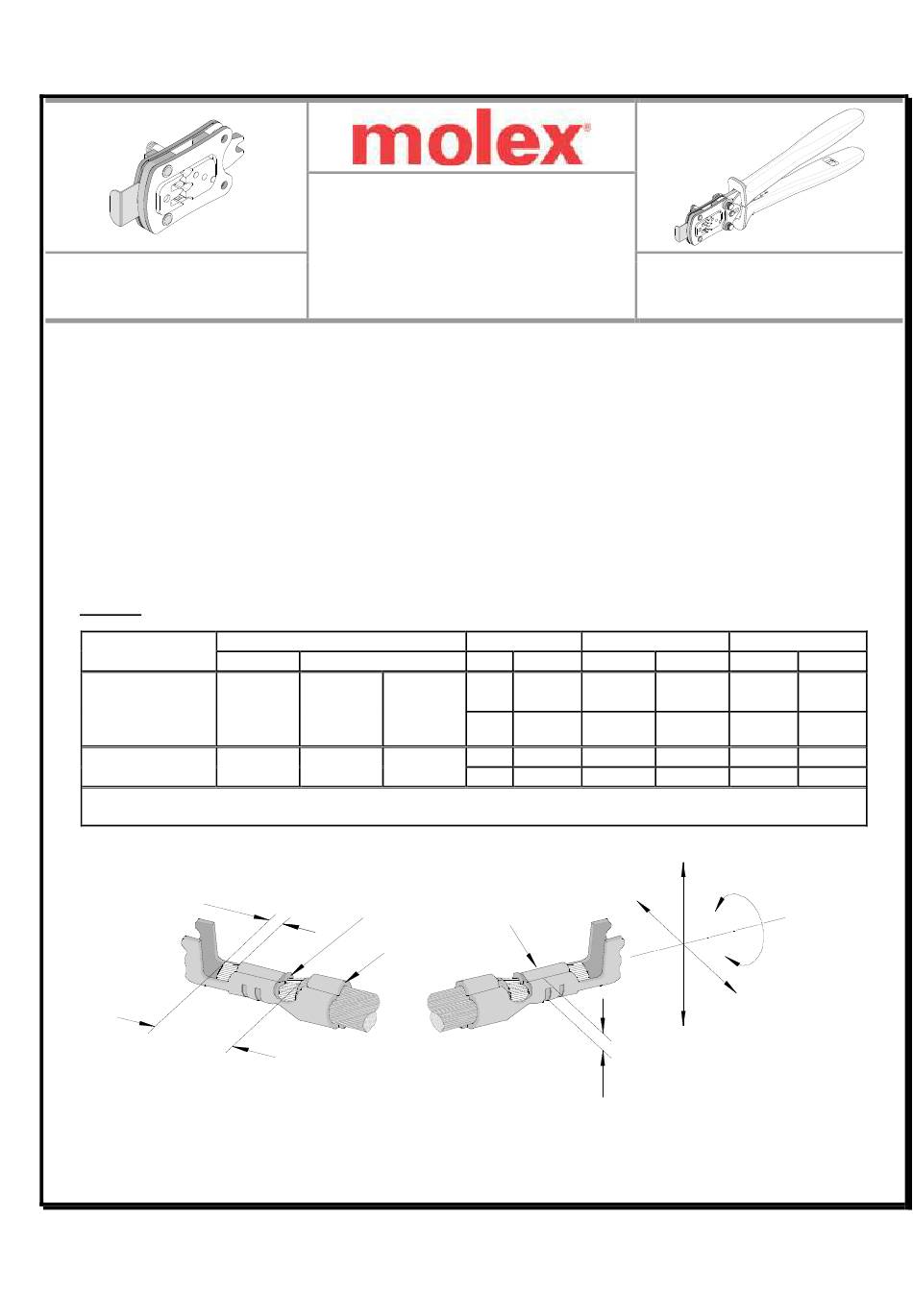

molex 207129 Series Specification Sheet

Modular crimp head, hand crimp tool
Hide thumbs Also See for 207129 Series:
1
2
3
4
5
6

Advertisement

Table of Contents

Hand Crimp Tool for MX150L™ Crimp Terminals
Modular Crimp Head
Order No. 63811-7670
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products: MX150L™ Crimp Terminals for 18-24 AWG Wire, Metal Strip Carrier.
Terminal Series No.
19417-0048
19417-0050
19417
19417-0052
19417-0054
19420-0010
19420
19420-0012
Note: Terminals will accommodate the following wire specification: (18-22 AWG) UL1015 wires. (24 AWG) UL20251 wire.
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS-6381176HM
Revision: C
Application Tooling
Specification Sheet
Terminal Order No.
Loose
Reel
19417-0024
19417-0026
19417-0032
19417-0028
19417-0034
19417-0030
19420-0002
19420-0008
19420-0004
For 24 AWG wire, see Tool Qualification Notes, Item 2 on page 2.
BELL MOUTH
INSULATION
CRIMP
▲SEE NOTE
Release Date: 07-11-06
Revision Date: 08-02-10
Wire Size
Insulation Diameter
AWG
mm²
mm
18-22 0.83-0.36 2.36-2.74
24
0.20
1.00 Nom. .039 Nom. 4.20-5.00 .165-.197
18-22 0.83-0.36 2.36-2.74
24
0.20
1.00 Nom. .039 Nom. 4.20-5.00 .165-.197
CONDUCTOR
CRIMP
CRIMP HEIGHT
UNCONTROLLED COPY
TYPE 4A
Hand Crimp Tool
Order No. 63811-7600
Strip Length
In.
mm
.093-.108 4.20-5.00 .165-.197
.093-.108 4.20-5.00 .165-.197
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 6
