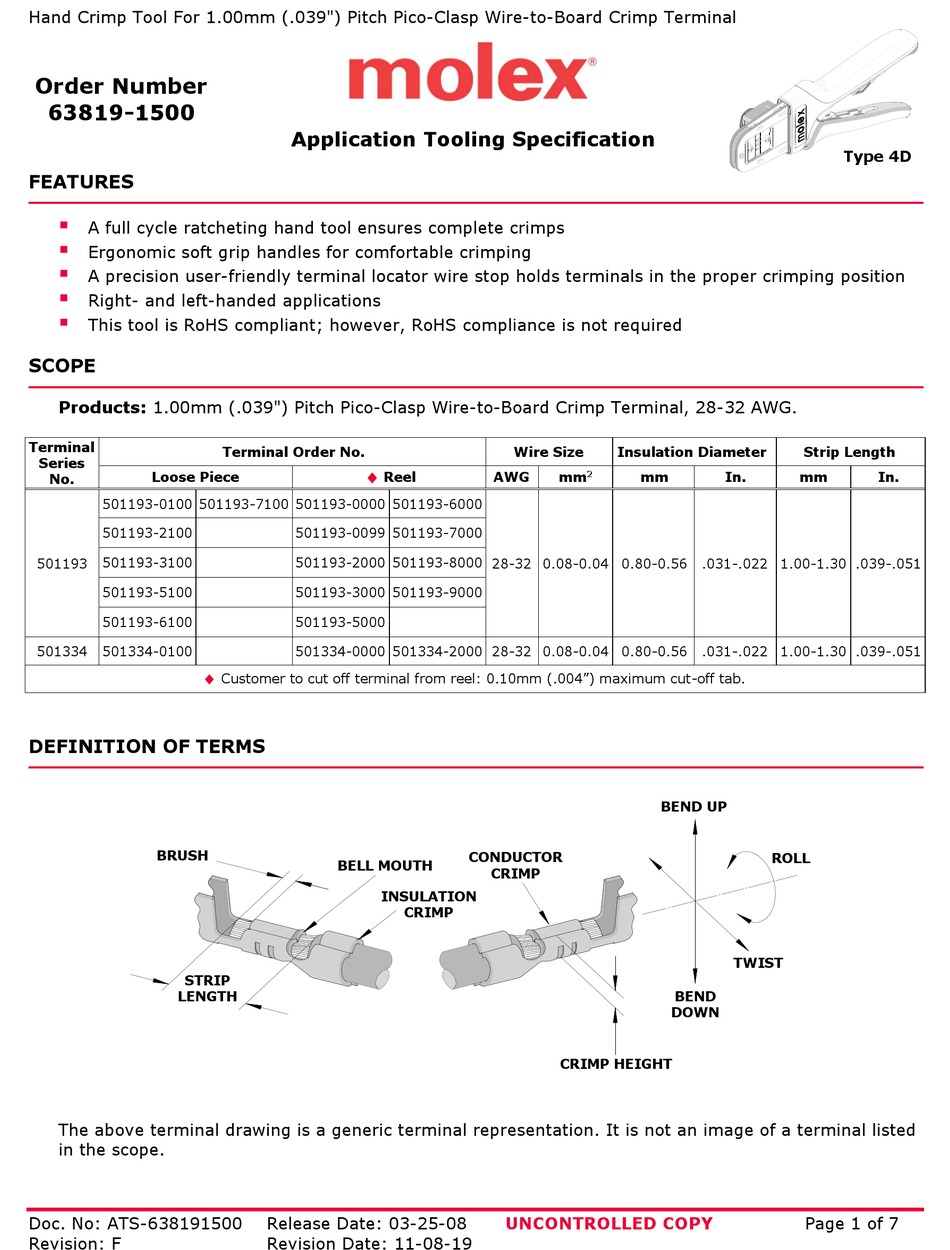

Hand Crimp Tool For 1.00mm (.039") Pitch Pico-Clasp Wire-to-Board Crimp Terminal
Order Number
63819-1500
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Right- and left-handed applications
This tool is RoHS compliant; however, RoHS compliance is not required
SCOPE
Products: 1.00mm (.039") Pitch Pico-Clasp Wire-to-Board Crimp Terminal, 28-32 AWG.
Terminal
Series
Loose Piece
No.
501193-0100 501193-7100 501193-0000 501193-6000
501193-2100
501193-3100
501193
501193-5100
501193-6100
501334
501334-0100
♦
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed
in the scope.
Doc. No: ATS-638191500
Revision: F
Application Tooling Specification
Terminal Order No.
Reel
♦
501193-0099 501193-7000
501193-2000 501193-8000
501193-3000 501193-9000
501193-5000
501334-0000 501334-2000 28-32 0.08-0.04 0.80-0.56
Customer to cut off terminal from reel: 0.10mm (.004") maximum cut-off tab.
BELL MOUTH
INSULATION
Release Date: 03-25-08
Revision Date: 11-08-19
Wire Size
AWG
mm
28-32 0.08-0.04 0.80-0.56
CONDUCTOR
CRIMP
CRIMP
CRIMP HEIGHT
UNCONTROLLED COPY
Insulation Diameter
2
mm
In.
.031-.022 1.00-1.30 .039-.051
.031-.022 1.00-1.30 .039-.051
BEND UP
TWIST
BEND
DOWN
Type 4D
Strip Length
mm
In.
ROLL
Page 1 of 7
Advertisement
Table of Contents
Related Manuals for molex 207129 Series
Summary of Contents for molex 207129 Series
- Page 1 Hand Crimp Tool For 1.00mm (.039") Pitch Pico-Clasp Wire-to-Board Crimp Terminal Order Number 63819-1500 Application Tooling Specification Type 4D FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomic soft grip handles for comfortable crimping A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position ...
- Page 2 4. Molex does not repair hand tools. See warranty on page 6. The replacement parts listed are the only parts available for repair. If the handles or crimp tooling become damaged or worn, a new tool must be purchased.
- Page 3 Hand Crimp Tool For 1.00mm (.039") Pitch Pico-Clasp Wire-to-Board Crimp Terminal OPERATION CAUTION: Crimp only the Molex terminals listed in the scope for this tool. Do not crimp hardened objects because damage can occur to the tool frame or crimp dies.
- Page 4 Hand Crimp Tool For 1.00mm (.039") Pitch Pico-Clasp Wire-to-Board Crimp Terminal Note: The tamper-proof ratchet action will not release the tool until it has been fully closed. WIRE 8. Remove the crimped terminal from the terminal locator by pulling on the wire. 9.
- Page 5 Hand Crimp Tool For 1.00mm (.039") Pitch Pico-Clasp Wire-to-Board Crimp Terminal 3. Flip the upper tooling to the opposite side and replace the M3 BHCS. Make sure the MATCH small markings on the front and back of UP MARKS the hand tool frame match up and are on the outside of the hand tool frame.
- Page 6 All vital components are long-life tested. All tools are warranted to be free of manufacturing defects for a period of 30 days. Should such a defect occur, Molex will repair or exchange the tool free of charge. This repair or exchange will not be applicable to altered, misused or damaged tools. This tool is designed for hand use only.
- Page 7 Phone: (402) 458-TOOL (8665) E-Mail: applicationtooling@molex.com Website: www.molex.com/applicationtooling Molex is a registered trademark of Molex, LLC in the United States of America and may be registered in other countries; all other trademarks listed herein belong to their respective owners. Doc. No: ATS-638191500...
