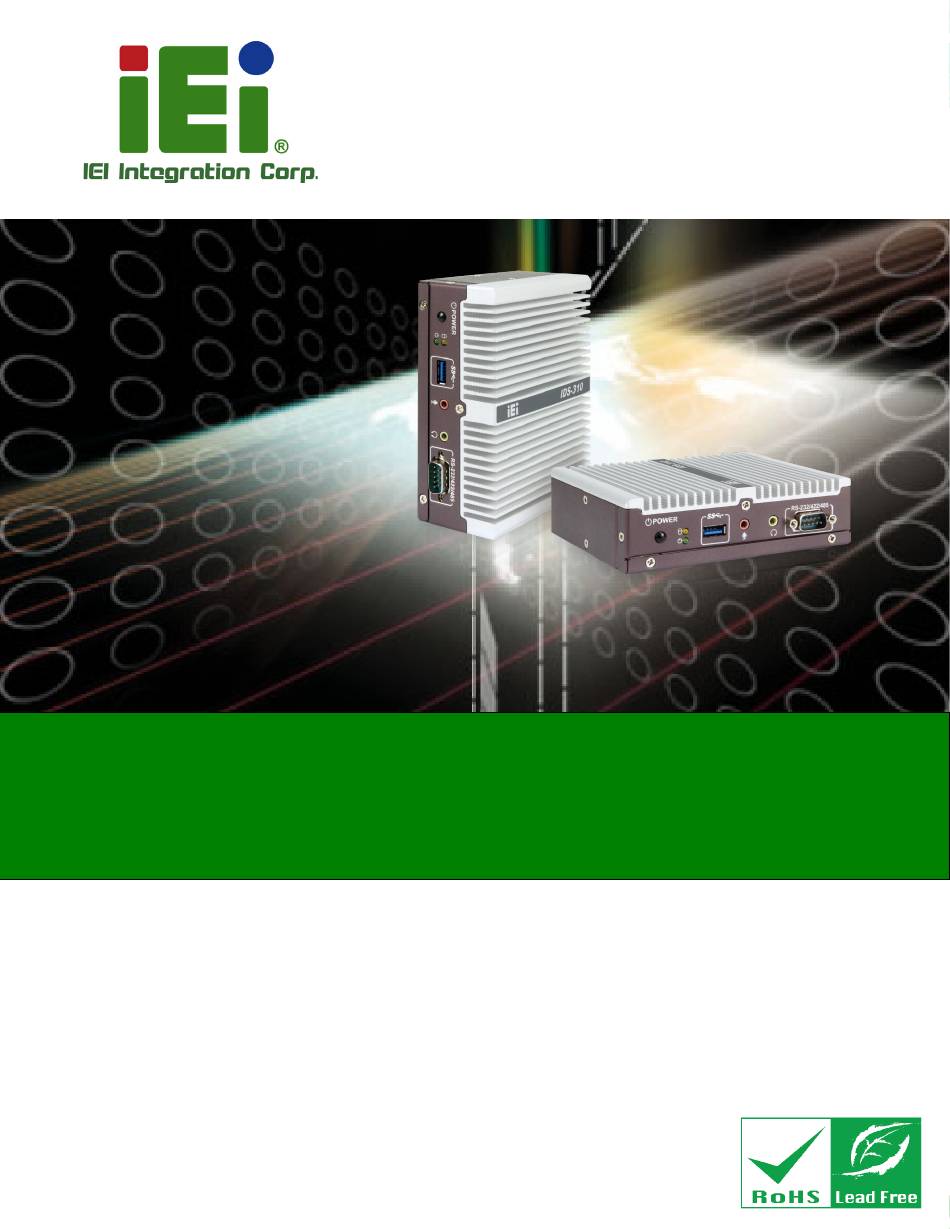

IDS-310-AL Embedded System
System
MODEL:
IDS-310-AL
Embedded System with Intel® Celeron® N3350E/J3455E,
Three HDMI, Dual GbE LAN, RS-232/422/485, SATA 6Gb/s,
Audio Jacks, USB 3.2 Gen 1, RoHS Compliant
User Manual
Page I
Rev. 1.00 – March 13, 2020

Advertisement

Table of Contents
loading

Related Manuals for IEI Technology IDS-310-AL

Summary of Contents for IEI Technology IDS-310-AL

  • Page 1 IDS-310-AL Embedded System System MODEL: IDS-310-AL Embedded System with Intel® Celeron® N3350E/J3455E, Three HDMI, Dual GbE LAN, RS-232/422/485, SATA 6Gb/s, Audio Jacks, USB 3.2 Gen 1, RoHS Compliant User Manual Page I Rev. 1.00 – March 13, 2020...
  • Page 2 IDS-310-AL Embedded System Revision Date Version Changes March 13, 2020 1.00 Initial release Page II...
  • Page 3 IDS-310-AL Embedded System Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 IDS-310-AL Embedded System Safety Instructions Warning! Read the user manual before connecting the system to the power source. Vorsicht! Bitte lesen Sie die Bedienungsanleitung, bevor Sie das System an eine Stromquelle anschließen. Attention! Avant de brancher le système à la source d'alimentation, consultez le mode d'emploi.
  • Page 5 IDS-310-AL Embedded System Warning! Use only the adapter and power cord approved for this system. Use of another type of adapter may risk fire or explosion. Please refer to the user manual for the power adapter specifications. Vorsicht! Nur zugelassene Netzteile und Netzkabel dürfen verwendet werden. Die Benutzung von anderen Netzteilen kann einen Brand oder eine Explosion zur Folge haben.
  • Page 6 IDS-310-AL Embedded System Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product.

  • Page 7: Table Of Contents

    ......................5 OTTOM ANEL 1.6 T ..................5 ECHNICAL PECIFICATIONS 1.7 D ....................... 7 IMENSIONS 1.7.1 IDS-310-AL-N1 Dimensions ................7 1.7.1 IDS-310-AL-J1 Dimensions ................8 2 UNPACKING ......................... 9 2.1 U ......................10 NPACKING 2.2 P ......................10 ACKING 2.3 O .......................
  • Page 8 IDS-310-AL Embedded System 3.8.5 USB 3.2 Gen 1 (5Gb/s) Connectors ..............29 3.9 P ................... 29 OWER ROCEDURE 3.9.1 Installation Checklist ..................29 3.9.2 Power-on Procedure ..................30 3.10 R ....................30 ESET THE YSTEM 3.11 F .............. 31 LASH...
  • Page 9 IDS-310-AL Embedded System 4.4.2.3 SATA Configuration .................. 61 4.5 S ......................... 62 ECURITY 4.6 B ........................63 4.7 S & E ......................65 5 MAINTENANCE ......................67 5.1 S ................. 68 YSTEM AINTENANCE VERVIEW 5.2 C ..............68 OMPONENT EPLACEMENT ROCEDURE 5.2.1 SO-DIMM Replacement ...................
  • Page 10 IDS-310-AL Embedded System C.1 BIOS C ................91 ONFIGURATION PTIONS D WATCHDOG TIMER ....................93 E ERROR BEEP CODE ....................96 E.1 PEI B ...................... 97 ODES E.2 DXE B ....................97 ODES F HAZARDOUS MATERIALS DISCLOSURE ............98 F.1 R HS II D (2015/863/EU) ................
  • Page 11 IDS-310-AL Embedded System List of Figures Figure 1-1: IDS-310-AL Series Embedded System ..............2 Figure 1-2: I/O Panel - Front ......................4 Figure 1-3: I/O Panel - Rear ......................4 Figure 1-4: Bottom Panel ....................... 5 Figure 1-5: IDS-310-AL-N1 Dimensions (mm) ................7 Figure 1-6: IDS-310-AL-J1 Dimensions (mm) ................
  • Page 12 IDS-310-AL Embedded System Figure 5-2: SO-DIMM Installation ....................70 Figure 6-1: Main Board Layout Diagram ..................72 Page XII...
  • Page 13 IDS-310-AL Embedded System List of Tables Table 1-1: IDS-310-AL Model Variations ..................3 Table 1-2: Technical Specifications ....................6 Table 2-1: Package List ........................ 11 Table 2-2: Optional Items ......................11 Table 3-1: LAN Connector Pinouts ..................... 25 Table 3-2:: Ethernet Connector LEDs ..................25 Table 3-3: HDMI Connector Pinouts ...................
  • Page 14 IDS-310-AL Embedded System List of BIOS Menus BIOS Menu 1: Main ........................36 BIOS Menu 2: Advanced ......................37 BIOS Menu 3: ACPI Settings ....................... 38 BIOS Menu 4: F81803 Super IO Configuration ................39 BIOS Menu 5: Serial Port 1 Configuration Menu ............... 39 BIOS Menu 6: iWDD H/W Monitor ....................

  • Page 15: Introduction

    IDS-310-AL Embedded System Chapter Introduction Page 1...

  • Page 16: Overview

    Celeron N3350E or J3455E SoC. The IDS-310-AL is preinstalled with 4 GB of DDR3L SO-DIMM, and can accommodate up to 8 GB of DDR3L memory. Storage in the system is supported by the full-size PCIe Mini card slot for mSATA module or the SATA 6Gb/s connector for SATA DOM.

  • Page 17: Features

    One RS-232/422/485 serial port  Support audio line-out and mic-in  RoHS compliant design  1.3 Model Variations The model variations of the IDS-310-AL are listed below. Model No. Dimensions Intel® Celeron® N3350E 137 x 102.8 x 38.1 (mm) IDS-310-AL-N1/4GB Intel® Celeron® J3455E 137 x 102.8 x 52.1 (mm)

  • Page 18: I/O Panels

    IDS-310-AL Embedded System 1.4 I/O Panels The I/O panels of the IDS-310-AL are shown in Figure 1-2 and Figure 1-3. Figure 1-2: I/O Panel - Front Figure 1-3: I/O Panel - Rear Page 4...

  • Page 19: Bottom Panel

    IDS-310-AL Embedded System 1.5 Bottom Panel The bottom panel of the IDS-310-AL contains four screw holes for mounting. The bottom panel also provides access to the internal components, including SO-DIMM slot, PCIe Mini card slot and M.2 module slot. Figure 1-4: Bottom Panel 1.6 Technical Specifications...

  • Page 20: Table 1-2: Technical Specifications

    IDS-310-AL Embedded System 7.1+2 channel Realtek ALC888 HD Audio codec Audio 1 x Line-out jack 1 x Mic-in jack SATA 1 x SATA 6Gb/s connector for SATA DOM 1 x Full-size PCIe Mini slot (PCIe x1, USB 2.0, SATA) with on-board...

  • Page 21: Dimensions

    IDS-310-AL Embedded System 1.7 Dimensions The physical dimensions of the IDS-310-AL series with its mounting kit are shown below. 1.7.1 IDS-310-AL-N1 Dimensions Figure 1-5: IDS-310-AL-N1 Dimensions (mm) Page 7...

  • Page 22: Ids-310-Al-J1 Dimensions

    IDS-310-AL Embedded System 1.7.1 IDS-310-AL-J1 Dimensions Figure 1-6: IDS-310-AL-J1 Dimensions (mm) Page 8...

  • Page 23: Unpacking

    IDS-310-AL Embedded System Chapter Unpacking Page 9...

  • Page 24: Unpacking

    If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the IDS-310-AL was purchased from or contact an IEI sales representative directly by sending an email to sales@ieiworld.com.

  • Page 25: Optional Items

    IDS-310-AL Embedded System Power adapter (36 W) Power cord VESA mount bracket Screws (M4*6) for VESA mounting Table 2-1: Package List 2.3 Optional Items The following are optional component(s) which may be separately purchased: Wi-Fi module* (P/N: 27319-000007-RS) External antenna...

  • Page 26: Installation

    IDS-310-AL Embedded System Chapter Installation Page 12...

  • Page 27: Anti-Static Precautions

    IDS-310-AL and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the IDS-310-AL. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the IDS-310-AL or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

  • Page 28: High Surface Temperature

    Air Circulation: Make sure there is sufficient air circulation when installing  the IDS-310-AL. The IDS-310-AL must not be obstructed by any objects. Leave at least 5 cm of clearance around the IDS-310-AL to prevent overheating. Grounding: The IDS-310-AL should be properly grounded. The voltage feeds ...

  • Page 29: Bottom Surface Removal

    (4) retention screws (Figure 3-1). All four (4) screws must be removed. Figure 3-1: Bottom Surface Retention Screws Step 2: Gently lift and remove the bottom surface from the IDS-310-AL. Step 0: Figure 3-2: Bottom Surface Removal Page 15...

  • Page 30: Bottom Surface Re-Installation

    Remove the bottom surface. See Section 3.3. Step 2: Remove the two knockouts for antenna installation. The two knockouts are located on the rear panel of the IDS-310-AL as shown in Figure 3-4. Figure 3-4: Knockouts for Wireless Antenna Page 16...

  • Page 31: Figure 3-5: M.2 A-Key Slot Location

    IDS-310-AL Embedded System Step 3: Locate the M.2 A-key slot on the motherboard (Figure 3-5). Figure 3-5: M.2 A-key Slot Location Step 1: Detach the RTC battery and remove the M.2 module retention screw from the motherboard. Step 2: Line up the notch on the WLAN module with the notch on the slot. Slide the WLAN module into the slot at an angle of about 20º...

  • Page 32: Figure 3-7: Securing The Wlan Module

    IDS-310-AL Embedded System Figure 3-7: Securing the WLAN Module Step 4: Connect the two RF cables to the antenna connectors on the WLAN module (Figure 3-8). Figure 3-8: Connecting RF Cables Step 5: Remove the nut and washer from the SMA connector at the other end of the RF cable.

  • Page 33: Pcie Mini Module Installation

    IDS-310-AL Embedded System Step 8: Install the external antenna. Figure 3-9: Securing SMA Connector and External Antenna Installation 3.5 PCIe Mini Module Installation To install a PCIe Mini module, please follow the steps below. Step 1: Remove the bottom surface. See Section 3.3.

  • Page 34: Figure 3-11: Removing The Retention Screws

    IDS-310-AL Embedded System Step 3: Detach the RTC battery from the motherboard, and remove the retention screw as shown in Figure 3-11. Figure 3-11: Removing the Retention Screws Step 4: Insert into the socket at an angle. Line up the notch on the card with the notch on the slot.

  • Page 35: At/Atx Power Mode Selection

    Attach the RTC battery onto the PCIe Mini module. 3.6 AT/ATX Power Mode Selection AT and ATX power modes can both be used on the IDS-310-AL series. The selection is made through an AT/ATX switch on the rear panel (Figure 1-3).

  • Page 36: Mounting The System

    IDS-310-AL Embedded System 3.7 Mounting the System To mount the IDS-310-AL onto a VESA 75/100 surface using the mounting bracket, please follow the steps below. Step 1: Attach the mounting bracket to a VESA 75/100 mounting surface with four screws. Make sure it is attached securely. See Figure 3–15.

  • Page 37: Figure 3-16: Hook Onto Mounting Bracket

    IDS-310-AL Embedded System Figure 3–16: Hook Onto Mounting Bracket Page 23...

  • Page 38: External Peripheral Interface Connection

    IDS-310-AL Embedded System 3.8 External Peripheral Interface Connection The following external peripheral devices can be connected to the external peripheral interface connectors. Audio devices  RJ-45 Ethernet cable connectors  HDMI monitors  Serial port devices  USB devices ...

  • Page 39: Lan Connectors

    IDS-310-AL Embedded System 3.8.1 LAN Connectors CN Label: LAN1, LAN2 CN Type: RJ-45 CN Pinouts: See Table 3-1 CN Location: See Figure 3-17 The LAN connector allows connection to an external network. Description Description MDIA0+ MDIA2- MDIA0- MDIA1- MDIA1+ MDIA3+...

  • Page 40: Hdmi Connectors

    1. Due to chipset limitation, audio is not supported over the HDMI3 connector. 2. Fully support of triple 4K display output may vary in different system environment setting. In some conditions, the IDS-310-AL may only support two 4K outputs plus one Full HD output via the three HDMI connectors. To setup a triple 4K display connection in Windows, make sure the following graphics driver version is installed in the system: Intel®...

  • Page 41: Power Connector

    IDS-310-AL Embedded System Figure 3-19: HDMI Connector 3.8.3 Power Connector CN Label: PWR1 CN Type: DC jack CN Pinouts: See Table 3-4 See Figure 3-17 CN Location: The connector supports 12 V power adapters. Description Table 3-4: Power Connector Pinouts...

  • Page 42: Rs-232/422/485 Serial Port Connector

    IDS-310-AL Embedded System 3.8.4 RS-232/422/485 Serial Port Connector CN Label: COM1 CN Type: DB-9 male CN Pinouts: See Table 3-5 CN Location: See Figure 3-17 The RS-232/422/485 serial port connector allows connection to a serial device. The serial communication mode selection can be made through the BIOS options. Please refer to Section 4.3.2.1 for detail information.

  • Page 43: Usb 3.2 Gen 1 (5Gb/S) Connectors

    Make sure a power supply with the correct input voltage is being fed into the system. Incorrect voltages applied to the system may cause damage to the internal electronic components and may also cause injury to the user. To power on the IDS-310-AL please make sure of the following: Page 29...

  • Page 44: Power-On Procedure

    The power cables are plugged in  The system is securely mounted  3.9.2 Power-on Procedure To power-on the IDS-310-AL, please follow the steps below. Step 1: Connect the power source to the power input jack. Step 2: Push the power button (Figure 3-21).

  • Page 45: Flash Descriptor Security Override

    IDS-310-AL Embedded System 3.11 Flash Descriptor Security Override The Flash Descriptor Security Override jumper (J_TXE1) allows to enable or disable the ME firmware update. Refer to Figure 3-23 and Table 3-7 for the jumper location and settings. Setting Description Open...

  • Page 46: Clear Cmos

    IDS-310-AL Embedded System 3.12 Clear CMOS To reset the BIOS, move the jumper to the "Clear BIOS" position for 3 seconds or more, then move back to the default position. Setting Description Short 1-2 Keep CMOS setup Short 2-3 Clear CMOS...

  • Page 47: Bios

    IDS-310-AL Embedded System Chapter BIOS Page 33...

  • Page 48: Introduction

    IDS-310-AL Embedded System 4.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. 4.1.1 Starting Setup The UEFI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways.

  • Page 49: Getting Help

    IDS-310-AL Embedded System Function Previous values Load optimized defaults Save changes and Exit BIOS Table 4-1: BIOS Navigation Keys 4.1.3 Getting Help When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears. To exit the Help Window press E the F1 key again.

  • Page 50: Main

    IDS-310-AL Embedded System 4.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc.

  • Page 51: Advanced

    IDS-310-AL Embedded System 4.3 Advanced Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices through the following sub-menus: WARNING! Setting the wrong values in the sections below may cause the system to malfunction. Make sure that the settings made are compatible with the hardware.

  • Page 52: Acpi Settings

    IDS-310-AL Embedded System 4.3.1 ACPI Settings The ACPI Settings menu (BIOS Menu 3) configures the Advanced Configuration and Power Interface (ACPI) options. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced ACPI Settings Select the highest ACPI sleep state the system...

  • Page 53: F81803 Super Io Configuration

    IDS-310-AL Embedded System 4.3.2 F81803 Super IO Configuration Use the F81803 Super IO Configuration menu (BIOS Menu 4) to set or change the configurations for the serial ports. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced F81866 Super IO Configuration...
  • Page 54 IDS-310-AL Embedded System Serial Port [Enabled]  Use the Serial Port option to enable or disable the serial port.  Disabled Disable the serial port  Enabled Enable the serial port EFAULT Change Settings [Auto]  Use the Change Settings option to change the serial port IO port address and interrupt address.

  • Page 55: Iwdd H/W Monitor

    IDS-310-AL Embedded System 4.3.3 iWDD H/W Monitor The iWDD H/W Monitor menu (BIOS Menu 6) displays operating temperature and system voltages. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced PC Health Status Smart Fan Mode Select System temperature :+35 °C...

  • Page 56: Usb Configuration

    IDS-310-AL Embedded System 4.3.4 USB Configuration Use the USB Configuration menu (BIOS Menu 7) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support.

  • Page 57: Cpu Configuration

    IDS-310-AL Embedded System  Disabled Legacy USB support disabled  Auto Legacy USB support disabled if no USB devices are connected 4.3.5 CPU Configuration Use the CPU Configuration menu (BIOS Menu 8) to view detailed CPU specifications and configure the CPU.

  • Page 58: C-States [Enabled]

    IDS-310-AL Embedded System C-States [Enabled]  Use the C-States option to enable or disable the C-states.  Disabled Disables the C-state  Enabled Enables the C-state EFAULT ® Intel Virtualization Technology [Disabled]  ® Use the Intel Virtualization Technology option to enable or disable virtualization on the ®...

  • Page 59: Rtc Wake Settings

    IDS-310-AL Embedded System 4.3.6 RTC Wake Settings The RTC Wake Settings menu (BIOS Menu 9) configures RTC wake event. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced Wake system with Fixed Time [Disabled] Enable or disable System wake on alarm event.

  • Page 60: Power Saving Configuration

    IDS-310-AL Embedded System Wake up second After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off. 4.3.7 Power Saving Configuration Use the Power Saving Configuration menu (BIOS Menu 10) to configure system to reduce power consumption in system off state.

  • Page 61: Serial Port Console Redirection

    IDS-310-AL Embedded System 4.3.8 Serial Port Console Redirection The Serial Port Console Redirection menu (BIOS Menu 11) allows the console redirection options to be configured. Console redirection allows users to maintain a system remotely by re-directing keyboard input and text output through the serial port.

  • Page 62: Console Redirection Settings

    IDS-310-AL Embedded System 4.3.8.1 Console Redirection Settings The Console Redirection Settings menu (BIOS Menu 12) allows the console redirection options to be configured. The option is active when Console Redirection option is enabled. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc.
  • Page 63 IDS-310-AL Embedded System Bits per second [115200]  Use the Bits per second option to specify the serial port transmission speed. The speed must match the other side. Long or noisy lines may require lower speeds.  9600 Sets the serial port transmission speed at 9600.

  • Page 64: Legacy Console Redirection Settings

    IDS-310-AL Embedded System Stop Bits [1]  Use the Stop Bits option to specify the number of stop bits used to indicate the end of a serial data packet. Communication with slow devices may require more than 1 stop bit.

  • Page 65: Iei Feature

    IDS-310-AL Embedded System 4.3.9 IEI Feature Use the IEI Feature menu (BIOS Menu 14) to configure One Key Recovery function. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced iEi Feature Auto Recovery Function Reboot and recover Auto Recovery Function...

  • Page 66: Chipset

    IDS-310-AL Embedded System 4.4 Chipset Use the Chipset menu (BIOS Menu 15) to access the north bridge and south bridge configuration menus WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

  • Page 67: North Bridge Configuration

    IDS-310-AL Embedded System 4.4.1 North Bridge Configuration Use the North Bridge Configuration menu (BIOS Menu 16) to configure the Intel IGD settings. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Chipset > Intel IGD Configuration Intel IGD Configuration >...
  • Page 68 IDS-310-AL Embedded System Primary Display [IGD]  Use the Primary Display option to select the display device used by the system when it boots.  EFAULT PCIe  DVMT Pre-Allocated [256MB]  Use the DVMT Pre-Allocated option to set the amount of system memory allocated to the integrated graphics processor when the system boots.

  • Page 69: Lcd Control

    IDS-310-AL Embedded System 4.4.1.2 LCD Control Use the LCD Control submenu (BIOS Menu 18) to select a display device which will be activated during POST. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Chipset LCD Control Select the Video Device...

  • Page 70: South Bridge Configuration

    IDS-310-AL Embedded System 4.4.2 South Bridge Configuration Use the South Bridge Configuration menu (BIOS Menu 19) to configure the south bridge chipset. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Chipset Auto Power Button Status [Enabled (AT)] Select AC power state >...

  • Page 71: Pci Express Configuration

    IDS-310-AL Embedded System HD-Audio Support [Enable]  Use the HD-Audio Support option to enable or disable the High Definition Audio controller.  Disable The onboard High Definition Audio controller is disabled  Enable The onboard High Definition Audio controller is detected...

  • Page 72: Onboard Lan1/Lan2 [Enable]

    IDS-310-AL Embedded System 4.4.2.2.1 Onboard LAN1/LAN2 Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Chipset Onboard LAN [Enable] Select PCI Express port speed. --------------------- : Select Screen ↑ ↓: Select Item Enter: Select +/-: Change Opt. General Help...

  • Page 73: M2_Keya1 [Enable]

    IDS-310-AL Embedded System 4.4.2.2.2 M2_KEYA1 Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Chipset M2_KEYA1 [Enable] Select PCI Express port PCIe Speed [Auto] speed. --------------------- : Select Screen ↑ ↓: Select Item Enter: Select +/-: Change Opt. General Help...

  • Page 74: Mpcie1 [Enable]

    IDS-310-AL Embedded System 4.4.2.2.3 MPCIE1 Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Chipset MPCIE1 [Enable] Select PCI Express port PCIe Speed [Auto] speed. --------------------- : Select Screen ↑ ↓: Select Item Enter: Select +/-: Change Opt. General Help...

  • Page 75: Sata Configuration

    IDS-310-AL Embedded System 4.4.2.3 SATA Configuration Use the SATA Configuration menu (BIOS Menu 25) to change and/or set the configuration of the SATA devices installed in the system. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced SATA Configuration Enables or Disables the Chipset SATA Controller.

  • Page 76: Security

    IDS-310-AL Embedded System Hot Plug [Disabled]  Use the Hot Plug option to enable or disable the SATA device hot plug.  Disabled Disables the SATA device hot plug. EFAULT  Enabled Enables the SATA device hot plug 4.5 Security Use the Security menu (BIOS Menu 26) to set system and user passwords.

  • Page 77: Boot

    IDS-310-AL Embedded System 4.6 Boot Use the Boot menu (BIOS Menu 27) to configure system boot options. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Boot Configuration Select the keyboard...

  • Page 78: Quiet Boot [Enabled]

    IDS-310-AL Embedded System Quiet Boot [Enabled]  Use the Quiet Boot BIOS option to select the screen display when the system boots.  Disabled Normal POST messages displayed  Enabled OEM Logo displayed instead of POST messages EFAULT Launch PXE OpROM [Disabled] ...

  • Page 79: Save & Exit

    IDS-310-AL Embedded System 4.7 Save & Exit Use the Exit menu (BIOS Menu 28) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Main Advanced Chipset...
  • Page 80 IDS-310-AL Embedded System Save as User Defaults  Use the Save as User Defaults option to save the changes done so far as user defaults. Restore User Defaults  Use the Restore User Defaults option to restore the user defaults to all the setup options.

  • Page 81: Maintenance

    IDS-310-AL Embedded System Chapter Maintenance Page 67...

  • Page 82: System Maintenance Overview

    Failure to follow these instructions may lead to personal injury and system damage. To preserve the working integrity of the IDS-310-AL, the system must be properly maintained. If internal components need replacement, the proper maintenance procedures must be followed to ensure the system can continue to operate normally.

  • Page 83: So-Dimm Replacement

    5.2.1 SO-DIMM Replacement WARNING: Using incorrectly specified SO-DIMM may cause permanently damage the IDS-310-AL. Please make sure the purchased SO-DIMM complies with the memory specifications of the IDS-310-AL. To replace a SO-DIMM memory module into a SO-DIMM socket, please follow the steps below.
  • Page 84 IDS-310-AL Embedded System Figure 5-2: SO-DIMM Installation Step 5: Secure the SO-DIMM. Press the SO-DIMM down until the arms of the SO-DIMM socket clip into place and secure the SO-DIMM in the socket.Step 0: Page 70...

  • Page 85: Interface Connectors

    IDS-310-AL Embedded System Chapter Interface Connectors Page 71...

  • Page 86: Peripheral Interface Connectors

    IDS-310-AL Embedded System 6.1 Peripheral Interface Connectors The IDS-310-AL series’ motherboard comes with a number of peripheral interface connectors and configuration jumpers. The connector locations are shown in Figure 6-1. The Pin 1 locations of the on-board connectors are also indicated in the diagrams below.

  • Page 87: Internal Peripheral Connectors

    IDS-310-AL Embedded System 6.2 Internal Peripheral Connectors Internal peripheral connectors are found on the motherboard and are only accessible when the motherboard is outside of the chassis. Pinouts of the internal connectors listed in Table 6-1 can be found in the following sections.

  • Page 88: Digital I/O Connector (Dio1)

    IDS-310-AL Embedded System 6.2.2 Digital I/O Connector (DIO1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION DOUT3 DOUT2 DOUT1 DOUT0 DIN3 DIN2 DIN1 DIN0 Table 6-3: Digital I/O Connector (DIO1) Pinouts 6.2.3 Firmware Programming Connector for CH7525 (CN1) PIN NO. DESCRIPTION SMB_CLK_FW...

  • Page 89: Table 6-5: M.2 A-Key Slot (M2_Keya1) Pinouts

    IDS-310-AL Embedded System PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCIE_TX+ PCIE_TX- PCIE_RX+ PCIE_RX- CLK_PCIE+ CLK_PCIE- BUF_PLT_RST# PCIE_CLKREQ# Pull Up +V3.3A PCIE_WAKE# Pull Up +V3.3A +V3.3A +V3.3A Table 6-5: M.2 A-key Slot (M2_KEYA1) Pinouts Page 75...

  • Page 90: Pcie Mini Slot (Mpcie1)

    IDS-310-AL Embedded System 6.2.5 PCIe Mini Slot (MPCIE1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCIE_WAKE# +3.3V +1.5V CLK- CLK+ PCIRST# +3.3V PCIRST# PERN (SATA_RX+) +3VDual PERP (SATA_RX-) +1.5V SMBCLK PETN (SATA_TX-) SMBDATA PETP (SATA_TX+) USBD- USBD+ +1.5V MSATA_SEL# +3.3V Table 6-6: PCIe Mini Slot (MPCIE1) Pinouts...

  • Page 91: Sata Connector (Sata1)

    IDS-310-AL Embedded System 6.2.6 SATA Connector (SATA1) PIN NO. DESCRIPTION Table 6-7: SATA Connector (SATA1) Pinouts 6.2.7 SATA Power Connector (SATA_PWR1) PIN NO. DESCRIPTION Table 6-8: SATA Power Connector (SATA_PWR1) Pinouts 6.2.8 SMBus Connector (J_SMB2) PIN NO. DESCRIPTION SMB_DATA_EC SMB_CLK_EC...

  • Page 92: Spi Flash Connector, Bios (J_Spi1)

    DESCRIPTION SMB_CLK_FW SMB_DATA_FW Table 6-11: SPI Flash Connector (EC_JP1) Pinouts 6.3 External Interface Panel Connectors The table below lists the I/O panel connectors on the IDS-310-AL motherboard. Pinouts for these connectors can be found in Section 3.8. Connector Type Label...

  • Page 93: A Regulatory Compliance

    IDS-310-AL Embedded System Appendix Regulatory Compliance Page 79...
  • Page 94 IDS-310-AL Embedded System DECLARATION OF CONFORMITY This equipment is in conformity with the following EU directives: EMC Directive (2004/108/EC, 2014/30/EU)  Low-Voltage Directive (2006/95/EC, 2014/35/EU)  RoHS II Directive (2011/65/EU, 2015/863/EU)  Ecodesign Directive 2009/125/EC  If the user modifies and/or install other devices in the equipment, the CE conformity declaration may no longer apply.
  • Page 95 IDS-310-AL Embedded System Español [Spanish] IEI Integration Corp declara que el equipo cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 2014/53/EU. Ελληνική [Greek] IEI Integration Corp ΔΗΛΩΝΕΙ ΟΤΙ ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ...
  • Page 96 IDS-310-AL Embedded System Româna [Romanian] IEI Integration Corp declară că acest echipament este in conformitate cu cerinţele esenţiale şi cu celelalte prevederi relevante ale Directivei 2014/53/EU. Slovensko [Slovenian] IEI Integration Corp izjavlja, da je ta opreme v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 2014/53/EU.
  • Page 97 IDS-310-AL Embedded System FCC WARNING This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and  This device must accept any interference received, including interference that ...

  • Page 98: B Safety Precautions

    IDS-310-AL Embedded System Appendix Safety Precautions Page 84...

  • Page 99: Safety Precautions

    Electric shocks can occur if the IDS-310-AL chassis is opened when it is  running. To avoid risk of electric shock, this device must only be connected to a supply mains with protective earth.

  • Page 100: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the IDS-310-AL. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the IDS-310-AL is opened and any of the electrical components are handled, the following anti-static precautions are strictly adhered to.

  • Page 101: Product Disposal

    IDS-310-AL Embedded System B.1.3 Product Disposal CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations. Outside the European Union–If you wish to dispose of used electrical and ...

  • Page 102: Maintenance And Cleaning Precautions

    B.2.1 Maintenance and Cleaning Prior to cleaning any part or component of the IDS-310-AL, please read the details below. Never spray or squirt liquids directly onto any other components. ...
  • Page 103 IDS-310-AL Embedded System device as they may damage the plastic parts. Vacuum cleaner–Using a vacuum specifically designed for computers is  one of the best methods of cleaning the device. Dust and dirt can restrict the airflow in the device and cause its circuitry to corrode.

  • Page 104: Cbios Menu Options

    IDS-310-AL Embedded System Appendix BIOS Menu Options Page 90...

  • Page 105: Bios Configuration Options

    IDS-310-AL Embedded System C.1 BIOS Configuration Options Below is a list of BIOS configuration options described in Chapter 4. System Date [xx/xx/xx] ......................36 System Time [xx:xx:xx] ....................... 36 ACPI Sleep State [S3 (Suspend to RAM)] ................38 Serial Port [Enabled] ......................40 Change Settings [Auto] .......................
  • Page 106 IDS-310-AL Embedded System MPCIE1 [Enable] ........................60 PCIe Speed [Auto] ........................ 60 SATA Controller [Enable] ....................61 SATA Mode Selection [AHCI] ....................61 Hot Plug [Disabled] ......................62 Administrator Password ..................... 62 User Password ........................62 Bootup NumLock State [On] ....................63 Quiet Boot [Enabled] ......................

  • Page 107: D Watchdog Timer

    IDS-310-AL Embedded System Appendix Watchdog Timer Page 93...
  • Page 108 IDS-310-AL Embedded System NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.
  • Page 109 IDS-310-AL Embedded System NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30 ;time-out value is 48 seconds ;...

  • Page 110: E Error Beep Code

    IDS-310-AL Embedded System Appendix Error Beep Code Page 96...

  • Page 111: Pei Beep Codes

    IDS-310-AL Embedded System E.1 PEI Beep Codes Number of Beeps Description Memory not Installed Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Recovery failed...

  • Page 112: F Hazardous Materials Disclosure

    IDS-310-AL Embedded System Appendix Hazardous Materials Disclosure Page 98...

  • Page 113: Rohs Ii Directive (2015/863/Eu)

    IDS-310-AL Embedded System F.1 RoHS II Directive (2015/863/EU) The details provided in this appendix are to ensure that the product is compliant with the RoHS II Directive (2015/863/EU). The table below acknowledges the presences of small quantities of certain substances in the product, and is applicable to RoHS II Directive (2015/863/EU).

  • Page 114: China Rohs

    IDS-310-AL Embedded System F.2 China RoHS 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 壳体 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求。 Page 100...

Table of Contents
