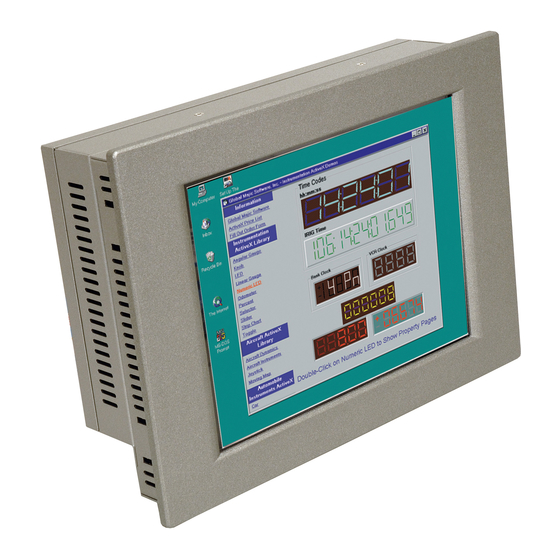

IEI Technology PPC-5150GS User Manual

Flat panel pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

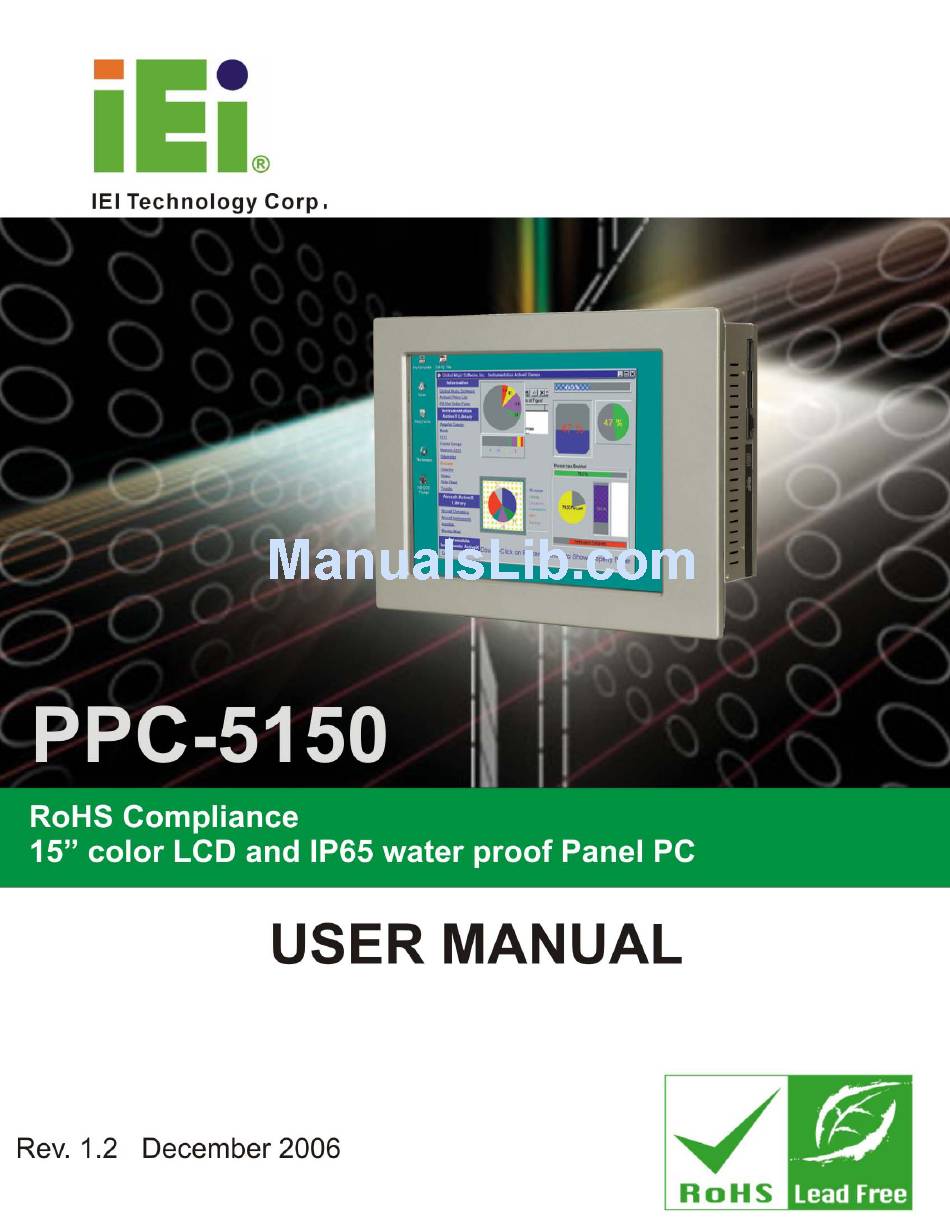

PPC-5150GS Flat Panel PC
PPC-5150 Flat Panel PC
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPC-5150GS and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology PPC-5150GS

Summary of Contents for IEI Technology PPC-5150GS

  • Page 1 PPC-5150GS Flat Panel PC PPC-5150 Flat Panel PC...
  • Page 2 This document covers the description and installation instructions for the PPC-5150GS flat panel PC. COPYRIGHT NOTICE This document is copyrighted 2006, by IEI Technology Corp. All rights are reserved. IEI Technology Corp. reserves the rights to alter the products described in this manual at any time without prior notice.
  • Page 3 PPC-5150GS Flat Panel PC SAFETY PRECAUTIONS Prior to installing, moving, and modifying the panel PC, make sure the power is turned off and the power cord is disconnected. Do not apply voltage levels that exceed the specified voltage range. Doing so will cause fire or an electrical shock.
  • Page 4 PPC-5150GS Flat Panel PC The panel PC is actively cooled. In no circumstances should the panel PC operate with the openings obstructed by foreign objects. However, the ambient temperature of the installation site should be observed and controlled to avoid overheating the panel PC.
  • Page 5 PPC-5150GS Flat Panel PC Except for the properly installed front LCD panel, never spray or squirt liquids directly onto any computer component. If the device needs to be cleaned, please rub it with a piece of dry and soft cloth or a slightly moistened cloth with the exterior casing.
  • Page 6 PPC-5150GS Flat Panel PC Cotton swabs - Cotton swaps moistened with rubbing alcohol or water are excellent tools for wiping hard to reach areas in the keyboard, mouse, and other locations. Foam swabs - Whenever possible it is better to use lint free swabs such as foam swabs.
  • Page 7 PPC-5150GS Flat Panel PC CONVENTIONS USED IN THIS MANUAL WARNING! Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. Warnings are easy to recognize. The word “warning” is written as “WARNING,” both capitalized and bold and is followed by text in italics.

  • Page 8: Table Of Contents

    INTRODUCTION....................17 1.1 PPC-5150GS F PC O ............... 18 ANEL VERVIEW 1.1.1 PPC-5150GS Model Variation................. 18 1.1.2 PPC-5150GS Flat Panel PC Applications............18 1.1.3 PPC-5150GS Flat Panel PC Features............. 18 1.2 PPC-5150GS E ............... 19 XTERNAL VERVIEW 1.2.1 General Description..................19 1.2.2 Front Panel ......................
  • Page 9 PPC-5150GS Flat Panel PC 2.5.1 OEM Options ....................36 2.5.2 Internal Slots....................36 2.5.3 Internal Peripheral Device Connectors............36 2.5.4 External Peripheral Device Connectors............37 INSTALLATION AND CONFIGURATION ............39 3.1 I ................... 40 NSTALLATION RECAUTIONS 3.2 P .................. 40...
  • Page 10 PPC-5150GS Flat Panel PC 4.1 S ..............64 YSTEM AINTENANCE NTRODUCTION 4.2 M ................64 OTHERBOARD EPLACEMENT 4.3 B ......64 OVER EMOVAL AND LEVATED LATFORM ETACHMENT 4.3.1 Back Cover Removal..................64 4.3.2 Detaching the Elevated Platform..............65 4.4 DIMM R .....................
  • Page 11 PPC-5150GS Flat Panel PC 5.7.1 NorthBridge Configuration................114 5.7.2 SouthBridge Configuration................118 5.8 P ........................119 OWER 5.9 E ........................123 INTERFACE CONNECTORS ................125 A.1 F ................. 126 LOPPY RIVE ONNECTOR A.2 PCI E-IDE D ..............127 RIVE ONNECTOR A.3 P ....................128 ARALLEL A.4 S...
  • Page 12 PPC-5150GS Flat Panel PC D.1.1 Overview ....................... 160 D.1.2 IEI Panel PC Product Series................. 160 D.2 P PC P ................160 ANEL RODUCT OLUTIONS D.2.1 PPC-27 Series Panel PC Solutions............... 160 D.2.2 PPC-37 Series Panel PC Solutions............... 161 D.2.3 PPC-51 Series Panel PC Solutions............... 163 D.2.4 PPC-52 Series Panel PC Solutions...............
  • Page 13 PPC-5150GS Flat Panel PC List of Figures Figure 1-1: PPC-5150GS Front View................20 Figure 1-2: PPC-5150GS Rear View................20 Figure 1-3: PPC-5150GS Top View ................21 Figure 1-4: Bottom View .....................21 Figure 1-5: Right View....................22 Figure 1-6: Left View ....................22 Figure 1-7: Frame Rear View (12 panel mount retention screw holes)....23 Figure 1-8: Dimensions (units in mm)...............29...
  • Page 14 PPC-5150GS Flat Panel PC Figure 4-3: Elevated Platform Retention Screws (Top Panel) ........66 Figure 4-4: Elevated Platform Retention Screws (Right Panel)......66 Figure 4-5: Elevated Platform Retention Screws (Bottom Panel) ......67 Figure 4-6: PCI Riser Card Retention Screws ............67 Figure 4-7: DIMM Socket Clip Locations..............68 Figure 4-8: PSU Motherboard Connector ..............69...
  • Page 15 PPC-5150GS Flat Panel PC List of Tables Table 1-1: PPC-5150GS Model Variation..............18 Table 1-2: PPC-5150GS Specifications ..............25 Table 1-3: Motherboard Specifications ..............26 Table 1-4: 15” TFT LCD Monitor Specifications............27 Table 1-5: Power Supply Specifications ..............28 Table 3-1: Onboard Jumpers ..................43 Table 3-2: CF Card Setup Jumper Settings ..............44...
  • Page 16 PPC-5150GS Flat Panel PC List of BIOS Menus Menu 1: Main ....................74 Menu 2: Advanced ....................76 Menu 3: CPU Configuration ..................77 Menu 4: IDE Configuration ..................79 Menu 5: IDE Master and IDE Slave Configuration ...........83 Menu 6: Floppy Configuration ...................87 Menu 7: Super IO Configuration ................88...

  • Page 17: Introduction

    PPC-5150GS Flat Panel PC Chapter Introduction...

  • Page 18: Ppc-5150Gs Flat Panel Pc Overview

    PPC-5150GS Flat Panel PC 1.1 PPC-5150GS Flat Panel PC Overview The PPC-5150GS flat panel PC is a flexible, multi-functional flat panel PC that can be applied in diverse operational environments and implemented in multi-faceted applications. The PPC-5150GS comes fully kitted with a high-performance motherboard, CPU, power supply unit and a host of other peripheral interface connectors.

  • Page 19: Ppc-5150Gs External Overview

    The bottom panel provides access to external interface connectors that include GbE, USB 2.0, audio, parallel port, serial port connectors and CF card slot. 1.2.2 Front Panel The front side of the PPC-5150GS is a flat panel 15” TFT LCD screen surrounded by an aluminum frame.

  • Page 20: Rear Panel

    PPC-5150GS Flat Panel PC Figure 1-1: PPC-5150GS Front View 1.2.3 Rear Panel The rear panel provides access to fan ventilation vents and four retention screw holes that support a wall-mounting bracket. The retention screw holes are circled in Figure 1-2.

  • Page 21: Ppc-5150Gs Bottom Panel

    PPC-5150GS Flat Panel PC Figure 1-3: PPC-5150GS Top View 1.2.5 PPC-5150GS Bottom Panel The bottom panel shown in Figure 1-4 has the following interfaces: 1 x Power input connector 1 x Power switch 4 x USB connectors 1 x Reset button...

  • Page 22: Left Panel

    PPC-5150GS Flat Panel PC 1.2.6 Left Panel The left side panel provides access to two fan ventilation vents. (See Figure 1-5) Figure 1-5: Right View 1.2.7 Right Panel The right side panel provides access to a slim type CD drive bay and a FDD drive bay.

  • Page 23: Ppc-5150Gs Internal Overview

    Figure 1-7: Frame Rear View (12 panel mount retention screw holes) 1.3 PPC-5150GS Internal Overview The PPC-5150GS internal components are configured in a three level format. An elevated platform on the right side of the chassis supports a HDD, a CD drive and a FDD. On the second level, below the elevated platform, are a motherboard and a PSU module.
  • Page 24 PPC-5150GS Flat Panel PC SPECIFICATION DETAIL Front Panel Aluminum Front Panel meets IP65 standard Chassis Heavy-duty Steel LCD Panel 15” High luminance TFT LCD 1024 x 768 (XGA) Resolution Brightness 350 cd/m2 400:1 Contrast Ratio LCD MTBF 50,000 hrs 30,000 hrs...

  • Page 25: Ppc-5150Gs Motherboard Specifications

    Environment RoHS Compliant Table 1-2: PPC-5150GS Specifications 1.4.3 PPC-5150GS Motherboard Specifications The PPC-5150GS comes with a POS-8520 motherboard. The technical specifications of the motherboard are listed in Table 1-3. SPECIFICATION DETAIL Socket-478 base Intel Pentium 4 / Pentium 4-M / Celeron D...

  • Page 26: Flat Panel Screen

    Table 1-3: Motherboard Specifications 1.4.4 Flat Panel Screen The PPC-5150GS comes with a 15” TFT LCD monitor at the front of the flat panel PC (see Figure 1-1). The specifications for the LCD monitor are shown in Table 1-4 below.

  • Page 27: Power Supply

    Table 1-4: 15” TFT LCD Monitor Specifications 1.4.5 Power Supply The PPC-5150GS flat panel PC comes with an 180W AC-DC 1U, RoHS compliant ATX power supply. The PSU has an MTBF greater than 100,000 hours. The maximum power output for the PSU is shown below.

  • Page 28: Dimensions

    MTBF 100,000hrs 0~50℃ (Operating) Temperature -20~80℃ (Storage) Dimension 150mm (W) x 81.5mm(H) x 40.5mm (D) Table 1-5: Power Supply Specifications 1.5 Dimensions The dimensions of the PPC-5150GS flat panel PC are shown in Figure 1-8 below. IEI ® Technology, Corp.

  • Page 29: Figure 1-8: Dimensions (Units In Mm)

    PPC-5150GS Flat Panel PC Figure 1-8: Dimensions (units in mm)
  • Page 30 PPC-5150GS Flat Panel PC THIS PAGE IS INTENTIONALLY LEFT BLANK IEI ® Technology, Corp.

  • Page 31: Pos-8520 Motherboard

    PPC-5150GS Flat Panel PC Chapter POS-8520 Motherboard...

  • Page 32: Introduction

    POS-8520, please refer to the POS-8520 user guide. 2.2 CPU Support The POS-8520 installed in the PPC-5150GS supports socket 478, Intel Pentium 4 / Celeron D FSB 533 MHz CPU. 2.3 On-board Chipsets 2.3.1 Northbridge and Southbridge Chipsets...

  • Page 33: Ich5 Southbridge Chipset

    PPC-5150GS Flat Panel PC The latest AC '97 implementation delivers 20-bit audio for enhanced sound quality and full surround sound capability. LAN Connect Interface (LCI) provides network solutions for 10/100 Mbps Ethernet and 10/100 Mbps Ethernet with LAN manageability Dual Ultra ATA/100 controllers...

  • Page 34: Graphics Support

    PPC-5150GS Flat Panel PC Data transfer rates up to 1.5 Gb/s (150 MB/s). RAID Level 0 Support (ICH5R Only) Integrated IDE Controller Supports “Native Mode” Register and Interrupts Independent timing of up to 4 drives Ultra ATA/100/66/33, BMIDE and PIO modes...
  • Page 35 PPC-5150GS Flat Panel PC optimized visual quality and performance. Zone Rendering 2 Technology: Enhances the performance of zone rendering by using larger zones and new commands that improve graphics pipeline efficiency. Dynamic Video Memory Technology v2.0: Increases total system performance by optimizing the efficiency of AGP dynamic video memory by increasing its size of Video RAM allocation to 96 MB.

  • Page 36: Peripheral Device Interfaces, Connectors, And Slots

    PPC-5150GS Flat Panel PC DirectShow*/DirectVA* Hardware motion compensation support for DVD playback 4x2 overlay filter 350 MHz DAC frequency Maximum DVO pixel rate of up to 330MP/s Flat panel monitors and TV-out support via AGP Digital Display (ADD) cards 350 MHz DAC for 1800x1440 @ 85Hz max CRT resolution or...

  • Page 37: External Peripheral Device Connectors

    PPC-5150GS Flat Panel PC 1 x ATX 12V power connector 1 x ATX power connector 2 x Audio connectors 1 x DIO connector 3 x Fan connectors 1 x FDD connector 2 x IDE device connectors 1 x IrDA connector...
  • Page 38 PPC-5150GS Flat Panel PC THIS PAGE IS INTENTIONALLY LEFT BLANK IEI ® Technology, Corp.

  • Page 39: Installation And Configuration

    PPC-5150GS Flat Panel PC Chapter Installation and Configuration...

  • Page 40: Installation Precautions

    Anti-static Discharge: If a user open the rear panel of the PPC-5150GS, to configure the jumpers or plug in added peripheral devices, ground themselves first and wear and anti-static wristband.

  • Page 41: Installation And Configuration Steps

    WARNING! The front side LCD screen has a protective plastic cover stuck to the screen. Only remove the plastic cover after the PPC-5150GS flat panel PC has been properly installed. This ensures the screen is protected during the installation process.

  • Page 42: Packing List

    PPC-5150GS Flat Panel PC 3.4.1 Packing List The PPC-5150GS flat panel PC is shipped with the following components: 1 x Carton 1 x Power cord 1 x Screw kit 1 x HDD IDE cable (44 pin + 2 x 40 pin)

  • Page 43: Remove The

    3.5.1 Remove the Back Cover The back cover is secured to the chassis with nine retention screws, eight on the rear panel and one on the bottom panel. (See Figure 3-1) Remove the nine retention screws and lift the cover off the PPC-5150GS.

  • Page 44: Cf Card Setup (Jp12)

    PPC-5150GS Flat Panel PC Figure 3-1: Back Cover Retention Screws 3.5.2 CF Card Setup (JP12) The CF Card Setup jumper configures a CF card as either the slave or the master. JP12 DESCRIPTION Open Slave (Default) Close Master Table 3-2: CF Card Setup Jumper Settings 3.5.3 Clear CMOS Setup (JP1)

  • Page 45: Com2 Port Rs232/422/485 Selection (Jp10, Jp20)

    PPC-5150GS Flat Panel PC Load Optimal Defaults After one of the above has been done, save the changes and exit the CMOS Setup menu. DESCRIPTION 1-2 closed Normal (Default) 2-3 closed Clear CMOS Table 3-3: Clear CMOS Jumper Settings 3.5.4 COM2 Port RS232/422/485 Selection (JP10, JP20) The COM Port jumper configures the COM2 serial port.

  • Page 46: Table 3-7: Com2 Ri And Voltage Selection Jumper

    PPC-5150GS Flat Panel PC NOTE: The use of pin 2-3 or pin 1-2 of JP7 does not make any difference when pin 2-3 of JP9 is in use. Use JP6 and JP8 to set pin 9 of COM2 as signal RI or voltage source.

  • Page 47: Cpu Voltage Setting (S3)

    PPC-5150GS Flat Panel PC 1-2 closed COM4 RI PIN Use Voltage Table 3-11: COM4 RI and Voltage Selection Jumper JP14 DESCRIPTION 2-3 closed COM4 RI PIN Use Voltage +12V 1-2 closed COM4 RI PIN Use Voltage +5V Table 3-12: COM4 RI Voltage Selection Jumper 3.5.6 CPU Voltage Setting (S3)

  • Page 48: Hdd, Fdd And Cd Drive Installation

    PPC-5150GS Flat Panel PC with the currently installed 15” TFT LCD screen. Change this jumper setting may cause damage to the system. The LCD Voltage Setup jumper sets the voltage for the LCD screen. This setting MUST NOT be changed.

  • Page 49: Fdd Installation

    HDD. Insert four retention screws into the bracket on both sides of the HDD. Step 4: Install the HDD into the PPC-5150GS by aligning the retention screw holes in the base of the HDD bracket with the retention screw holes on the elevated platform.

  • Page 50: Cd Drive Installation

    Insert four retention screws into the bracket of the FDD. Step 4: Slide the FDD into the PPC-5150GS and align the retention screw holes in the base and top of the FDD bracket with the retention screw hole on the chassis panel and the metal sheet.

  • Page 51: Figure 3-5: Cd Drive Adapter Installation

    PPC-5150GS Flat Panel PC Figure 3-5: CD Drive Adapter Installation Step 4: The CD drive blank plate assembly is attached to the rear panel by two retention screws (Figure 3-6). Figure 3-6: CD Drive Retention Screws Step 5: Remove the two retention screws from the bottom panel and slide the CD drive blank plate assembly toward the PCI riser card until it can be lifted out of the chassis (Figure 3-7).

  • Page 52: Figure 3-8: Cd Drive Blank Plate Assembly

    PPC-5150GS Flat Panel PC Step 6: The CD drive blank plate assembly consists of a blank plate and two brackets that attach the assembly to the chassis. The two brackets each have two screws that attach them to the blank plate. Remove the four screws that attach the brackets to the blank plate.

  • Page 53: Mounting The System

    3.7 Mounting the System WARNING! When mounting the PPC-5150GS flat panel PC onto an arm, onto the wall or onto a panel, it is better to have more than one person to help with the installation to make sure the PPC-5150GS does not fall down and get damaged.

  • Page 54: Wall Mounting

    Rack mounting The four mounting methods are fully described below. 3.7.1 Wall Mounting To mount the PPC-5150GS flat panel PC onto a wall, please follow the steps below. Step 1: Select the location on the wall for the wall-mounting bracket.

  • Page 55: Figure 3-12: Mount The Chassis

    PPC-5150GS Flat Panel PC Step 6: Insert the four monitor mounting screws provided in the wall mounting kit into the four screw holes on the real panel of the monitor and tighten until the screw shank is secured against the rear panel (see Figure 3-12).

  • Page 56: Panel Mounting

    Step 0: Figure 3-13: Secure the Chassis 3.7.2 Panel Mounting To mount the PPC-5150GS flat panel PC into a panel, please follow the steps below. NOTE: The maximum panel thickness should be no more than 6mm. Step 1: Select the position on the panel to mount the PPC-5150GS.

  • Page 57: Figure 3-14: Cut The Panel

    Cut out a section from the panel that corresponds to the rear panel dimensions of the PPC-5150GS. Take care that the panel section that is cut out is smaller than the overall size of the metal frame that surrounds the PPC-5150GS but just large enough for the rear panel of the PPC-5150GS to fit through (see Figure 3-14).

  • Page 58: Arm Mounting

    3.7.3 Arm Mounting The PPC-5150GS is VESA (Video Electronics Standards Association) compliant and can be mounted on an arm with a 100mm interface pad. To mount the PPC-5150GS on an arm, please follow the steps below. IEI ® Technology, Corp.

  • Page 59: Cabinet And Rack Installation

    Secure the PPC-5150GS to the interface pad by inserting four retention screws through the mounting arm interface pad and into the PPC-5150GS flat panel PC. 3.7.4 Cabinet and Rack Installation The PPC-5150GS flat panel PC can be installed into a cabinet or rack. To do this, please...

  • Page 60: Figure 3-18: Secure The Rack/Cabinet Bracket

    Slide the PPC-5150GS through the rack/cabinet bracket until the rear side of the PPC-5150GS frame is flush against the front of the bracket. Step 3: Make sure the retention screw holes at the rear of the PPC-5150GS frame are aligned with the retention screw holes in the rack/cabinet bracket. Step 4: Secure the rack/cabinet bracket to the PPC-5150GS flat panel PC by inserting and tightening 12 retention screws.

  • Page 61: Rear Panel Connectors

    PPC-5150GS Flat Panel PC Step 5: Slide the PPC-5150GS flat panel PC with the attached rack/cabinet bracket into a rack or cabinet. (See Figure 3-19) Figure 3-19: Install into a Rack/Cabinet Step 6: Once the PPC-5150GS flat panel PC with the attached rack/cabinet bracket has been properly inserted into the rack or cabinet, secure the front of the rack/cabinet bracket to the front of the rack or cabinet.

  • Page 62: Ethernet Connection

    PPC-5150GS Flat Panel PC ® loaded, open the Control Panel, locate the Intel Extreme Graphics icon, click on it. Once open, an option for Multiple Display is available. Select this option and select notebook as the primary device. 3.8.2 Ethernet Connection The two external peripheral interface RJ-45 connectors can be connected to an external LAN to provide Internet connectivity to the flat panel PC.

  • Page 63: System Maintenance

    PPC-5150GS Flat Panel PC Chapter System Maintenance...

  • Page 64: System Maintenance Introduction

    4.3.1 Back Cover Removal WARNING! BEFORE REMOVING THE BACK COVER, MAKE SURE THE POWER IS OFF. Failing to do so may lead to severe damage of PPC-5150GS and injury to the body. WARNING! PLEASE TAKE ANTISTATIC PRECAUTIONS WHEN WORKING WITH THE INTERNAL COMPONENTS.

  • Page 65: Detaching The Elevated Platform

    Figure 4-1: Rear Cover Retention Screws (Real Panel) 4.3.2 Detaching the Elevated Platform To replace PSU module, the back cover of the PPC-5150GS must be removed and the elevated platform must be detached. Back cover removal is discussed above (see Section 4.3.1).

  • Page 66: Figure 4-2: Internal Elevated Platform Retention Screws

    PPC-5150GS Flat Panel PC supports the FDD, the CD drive and the HDD. Step 2: The elevated platform is secured to the chassis with eight retention screws, two on the platform (see Figure 4-2), two on the top panel (see Figure 4-3), two on the right panel (see Figure 4-4) and two on the bottom panel (see Figure 4-5).

  • Page 67: Dimm Replacement

    Remove the back cover. See Section 4.3.1 above. Step 2: Locate the DIMM. It is on the motherboard near the top of the PPC-5150GS flat screen PC. Push the white clips on the side of the DIMM down. The DIMM is...

  • Page 68: Psu Module Replacement

    Remove the back cover. See Section 4.3.1 above. Step 2: Detach the elevated platform. See Section 4.3.2 above. Step 3: Remove and remove the elevated platform from the PPC-5150GS. Step 4: Disconnect the PSU power cable connectors from the motherboard (Figure 4-8) IEI ® Technology, Corp.

  • Page 69: Figure 4-8: Psu Motherboard Connector

    Figure 4-8: PSU Motherboard Connector Step 5: The PSU module is secured to the PPC-5150GS flat panel PC with four retention screws, two connect to the metal sheet at the back of the 15”TFT LCD screen (Figure 4-9) and the other two are inserted through the bottom panel and into the PSU module (Figure 4-10).
  • Page 70 Place the new PSU module into the PPC-5150GS flat panel PC. Step 10: Secure the new PSU module to the PPC-5150GS flat panel PC by reinserting the two retention screws into the metal plate behind the 15” TFT LCD screen and the two retention screws through the bottom panel of the PPC-5150GS flat panel PC.

  • Page 71: Ami Bios

    PPC-5150GS Flat Panel PC Chapter AMI BIOS...

  • Page 72: Introduction

    PPC-5150GS Flat Panel PC 5.1 Introduction A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed.

  • Page 73: Getting Help

    PPC-5150GS Flat Panel PC F2 /F3 key Change color from total 16 colors. F2 to select color forward. F10 key Save all the CMOS changes, only for Main Menu Table 5-1: BIOS Navigation Keys 5.1.3 Getting Help When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears.

  • Page 74: Main

    PPC-5150GS Flat Panel PC 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. BIOS Menu 1: Main System Overview The System Overview lists a brief summary of different system components. The fields in System Overview cannot be changed.

  • Page 75: Advanced

    PPC-5150GS Flat Panel PC System Memory: Displays the auto-detected system memory. Size: Lists memory size The System Overview field also has two user configurable fields: System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

  • Page 76: Cpu Configuration

    PPC-5150GS Flat Panel PC USB Configuration (see Section 5.3.9) BIOS Menu 2: Advanced 5.3.1 CPU Configuration Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications and configure the CPU. IEI ® Technology, Corp.
  • Page 77 PPC-5150GS Flat Panel PC BIOS Menu 3: CPU Configuration The CPU Configuration menu (BIOS Menu 3) lists the following CPU details: Manufacturer: Lists the name of the CPU manufacturer Brand String: Lists the brand name of the CPU being used...

  • Page 78: Ide Configuration

    PPC-5150GS Flat Panel PC Max CUPID Value Limit [Disabled] NOTE: If the OS is NT, this value must be set to enabled. Disabled Disables legacy OSes that cannot support CPUs with EFAULT extended CUPID functions from booting up Enabled Enables legacy OSes that cannot support CPUs with...

  • Page 79: Ide Configuration [P-Ata Only]

    PPC-5150GS Flat Panel PC BIOS Menu 4: IDE Configuration IDE Configuration [P-ATA Only] Use IDE Configuration option to setup the configuration of the hard drive interfaces. The hard drive interfaces are disabled. Disabled P-ATA Only The hard drive interfaces are configured as P-ATA only.

  • Page 80: P-Ata Channel Selection [Both]

    PPC-5150GS Flat Panel PC The S-ATA interface is running in enhanced mode. EFAULT The S-ATA interface is running in legacy mode. P-ATA Channel Selection [Both] Use P-ATA Channel Selection option to select the active IDE channels. Primary The primary P-ATA channel is set to be the active IDE channel.

  • Page 81: Hard Disk Write Protect [Disabled]

    PPC-5150GS Flat Panel PC Hard Disk Write Protect [Disabled] The Hard Disk Write Protect BIOS option protects the hard disks from being overwritten. This menu item is only effective if the device is accessed through the BIOS. Disabled Allows hard disks to be overwritten...

  • Page 82: Ide Master, Ide Slave

    PPC-5150GS Flat Panel PC Host & Device Both the motherboard onboard IDE controller and EFAULT IDE disk drive are used to detect the type of IDE cable used. Host The motherboard onboard IDE controller detects the type of IDE cable used.

  • Page 83: Auto-Detected Drive Parameters

    PPC-5150GS Flat Panel PC BIOS Menu 5: IDE Master and IDE Slave Configuration Auto-Detected Drive Parameters The “grayed-out” items in the left frame are IDE disk drive parameters automatically detected from the firmware of the selected IDE disk drive. The drive parameters are listed as follows: Device: Lists the device type (e.g.

  • Page 84: Type [Auto]

    PPC-5150GS Flat Panel PC Type [Auto] Use the Type BIOS option select the type of device the AMIBIOS attempts to boot from after the Power-On Self-Test (POST) is complete. Not Installed BIOS is prevented from searching for an IDE disk drive on the specified channel.

  • Page 85: Block (Multi Sector Transfer) [Auto]

    PPC-5150GS Flat Panel PC Block (Multi Sector Transfer) [Auto] Use the Block (Multi Sector Transfer) to disable or enable BIOS to auto detect if the device supports multi-sector transfers. Disabled BIOS is prevented from using Multi-Sector Transfer on the specified channel. The data to and from the device occurs one sector at a time.

  • Page 86: Floppy Configuration

    PPC-5150GS Flat Panel PC S.M.A.R.T [Auto] Use the S.M.A.R.T option to auto-detect, disable or enable Self-Monitoring Analysis and Reporting Technology (SMART) on the drive on the specified channel. S.M.A.R.T predicts impending drive failures. The S.M.A.R.T BIOS option enables or disables this function.

  • Page 87: Super Io Configuration

    PPC-5150GS Flat Panel PC BIOS Menu 6: Floppy Configuration Floppy A [1.44 MB 3½”] The Floppy A configuration option determines the types of the floppy drive installed in the system. The following configuration options are available. Disabled (default) 360 KB 5¼”...

  • Page 88: On Board Floppy Controller [Enabled]

    PPC-5150GS Flat Panel PC BIOS Menu 7: Super IO Configuration On Board Floppy Controller [Enabled] Disabled Allows BIOS to disable the floppy controller Enabled Allows BIOS to enable the floppy controller EFAULT Serial Port1 Address [3F8/IRQ4] Use the Serial Port1 Address option to select the Serial Port 1 base address.

  • Page 89: Serial Port2 Address [2F8/Irq3]

    PPC-5150GS Flat Panel PC address is IRQ3 Serial Port2 Address [2F8/IRQ3] Use the Serial Port2 Address option to select the Serial Port 2 base address. Disabled No base address is assigned to Serial Port 2 2F8/IRQ3 Serial Port 2 I/O port address is 3F8 and the interrupt...

  • Page 90: Parallel Port Mode [Normal]

    PPC-5150GS Flat Panel PC Parallel Port Mode [Normal] Use the Parallel Port Mode option to select the mode the parallel port operates in. Normal The normal parallel port mode is the standard mode EFAULT for parallel port operation. The parallel port operates in the enhanced parallel port mode (EPP).

  • Page 91: Serial Port3 Address [3E8]

    PPC-5150GS Flat Panel PC 200h Digital I/O address is 200h 220h Digital I/O address is 220h 240h Digital I/O address is 240h 260h Digital I/O address is 260h Digital I/O address is 280h 280h EFAULT Serial Port3 Address [3E8] Use the Serial Port3 Address option to select the base addresses for serial port 3...

  • Page 92: Serial Port4 Irq [10]

    PPC-5150GS Flat Panel PC Serial port 4 I/O port address is 3E8 Serial port 4 I/O port address is 2E8 EFAULT Serial port 4 I/O port address is 2F0 Serial port 4 I/O port address is 2E0 Serial Port4 IRQ [10] Use the Serial Port4 IRQ option to select the interrupt address for serial port 4.

  • Page 93: Hardware Health Configuration

    PPC-5150GS Flat Panel PC Serial port 5 IRQ address is 10 Serial port 5 IRQ address is 11 EFAULT Serial Port6 Address [2E0] Use the Serial Port6 IRQ option to select the interrupt address for serial port 6. Disabled No base address is assigned to serial port 6...

  • Page 94: H/W Health Function [Enabled]

    PPC-5150GS Flat Panel PC BIOS Menu 8: Hardware Health Configuration H/W Health Function [Enabled] Disabled Disables the health monitoring function Enabled Enables the health monitoring function EFAULT If the H/W Health Function is enabled different system parameters and values are shown.

  • Page 95: Acpi Configuration

    PPC-5150GS Flat Panel PC +1.50V +3.30V +5.00V +12.0V 5VSB 5.3.6 ACPI Configuration The ACPI Configuration menu (BIOS Menu 9) configures the Advanced Configuration and Power Interface (ACPI) and Power Management (APM) options. BIOS Menu 9: ACPI Configuration 5.3.6.1 General ACPI Configuration Use the General ACPI Configuration menu (BIOS Menu 10) to select the ACPI state when the system is suspended.

  • Page 96: Advanced Acpi Configuration

    PPC-5150GS Flat Panel PC BIOS Menu 10: General ACPI Configuration [Advanced\ ACPI Configuration] Suspend Mode [S1 (POS)] Use the Suspend Mode option to specify the sleep state the system enters when it is not being used. S1 (POS) The system enters S1(POS) sleep state. The system appears off.

  • Page 97: Acpi 2.0 Features [No]

    PPC-5150GS Flat Panel PC BIOS Menu 11: Advanced ACPI Configuration [Advanced\ ACPI Configuration] ACPI 2.0 Features [No] Use the ACPI 2.0 Features option to enable the ACPI (Advanced Configuration and Power Interface) features. By enabling this feature the system RSDP (Root System Description Pointer) is able to obtain physical addresses for other 64-bit fixed system description tables.

  • Page 98: Apic Acpi Sci Irq [Disabled]

    PPC-5150GS Flat Panel PC The RSDP is located in low memory space of the system and provides the physical address of the RSDT. The RSDT itself is identified in memory because it starts with the signature "RSDT." Disabled Pointers to the APIC APIC table are not be provided in the...

  • Page 99: Mps Configuration

    PPC-5150GS Flat Panel PC Disabled The FACP is not updated to indicate headless mode EFAULT Enabled The FACP is updated to indicate headless mode 5.3.7 MPS Configuration Use the MPS Configuration menu (BIOS Menu 12) to select `he multi-processor table.

  • Page 100: Remote Access Configuration

    PPC-5150GS Flat Panel PC 5.3.8 Remote Access Configuration Use the Remote Access Configuration menu to configure remote access parameters. The Remote Access Configuration is an AMIBIOS feature and allows a remote host running a terminal program to display and configure the BIOS settings.

  • Page 101: Usb Configuration

    PPC-5150GS Flat Panel PC BIOS Menu 13: USB Configuration USB Configuration The USB Configuration field shows the system USB configuration. The items listed are: Module Version: x.xxxxx.xxxxx USB Devices Enabled The USB Devices Enabled field lists the USB devices that are enabled on the system USB Function [8 USB Ports] Use the USB Function BIOS option to select USB function support.

  • Page 102: Pci/Pnp

    PPC-5150GS Flat Panel PC 6 USB Ports USB function support six USB ports 8 USB Ports USB function support eight USB ports EFAULT Legacy USB Support [Disabled] Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support.

  • Page 103: Plug & Play O/S [No]

    PPC-5150GS Flat Panel PC may cause the system to malfunction. BIOS Menu 14: PCI/PnP Configuration Plug & Play O/S [No] Use the Plug & Play O/S BIOS option to specify whether system plug and play devices are configured by the operating system or the BIOS.

  • Page 104: Pci Latency Timer [64]

    PPC-5150GS Flat Panel PC PCI Latency Timer [64] Use the PCI Latency Timer option to specify the PCI latency time. The latency time is measured in units of PCI clock cycles for the PCI device latency timer register. Configuration options are:...

  • Page 105: Pci Ide Busmaster [Disabled]

    PPC-5150GS Flat Panel PC check with the adapter card manual first, before modifying the default settings in the BIOS. PCI IDE BusMaster [Disabled] Use the PCI IDE BusMaster BIOS option to enable or prevent PCI IDE busmastering. Disabled Busmastering is prevented...

  • Page 106: Irq# [Available]

    PPC-5150GS Flat Panel PC PCI Slot 5 PCI Slot 5 is selected as the location of the OffBoard PCI IDE adapter card. Only select this slot if the adapter card is installed in PCI Slot 5. PCI Slot 6 PCI Slot 6 is selected as the location of the OffBoard PCI IDE adapter card.

  • Page 107: Boot

    PPC-5150GS Flat Panel PC Available The specified DMA is available to be used by EFAULT PCI/PnP devices The specified DMA is reserved for use by Legacy Reserved ISA devices Available DMA Channels are: DM Channel 0 DM Channel 1 DM Channel 3...

  • Page 108: Boot Settings Configuration

    PPC-5150GS Flat Panel PC BIOS Menu 15: Boot 5.5.1 Boot Settings Configuration Use the Boot Settings Configuration menu (BIOS Menu 16) to configure advanced system boot options. IEI ® Technology, Corp.

  • Page 109: Quick Boot [Enabled]

    PPC-5150GS Flat Panel PC BIOS Menu 16: Boot Settings Configuration Quick Boot [Enabled] Use the Quick Boot BIOS option to make the computer speed up the boot process. No POST procedures are skipped Disabled Enabled Some POST procedures are skipped to decrease...

  • Page 110: Addon Rom Display Mode [Force Bios]

    PPC-5150GS Flat Panel PC AddOn ROM Display Mode [Force BIOS] Use the AddOn ROM Display Mode option to allow add-on ROM (read-only memory) messages to be displayed. Force BIOS The system forces third party BIOS to display EFAULT during system boot.

  • Page 111: Boot Device Priority

    PPC-5150GS Flat Panel PC Auto The system auto-adjusts PS/2 mouse support. EFAULT 5.5.2 Boot Device Priority Use the Boot Device Priority menu (BIOS Menu 17) to specify the boot sequence from the available devices. Possible boot devices may include: FLOPPY DRIVE...

  • Page 112: Removable Drives

    PPC-5150GS Flat Panel PC 5.5.3 Removable Drives Use the Removable Drives menu (BIOS Menu 18) to specify the boot sequence of the available FDDs. When the menu is opened, the FDDs connected to the system are listed as shown below:...

  • Page 113: Security

    PPC-5150GS Flat Panel PC 5.6 Security Use the Security menu (BIOS Menu 19) to set system and user passwords. BIOS Menu 19: Security Change Supervisor Password Use the Change Supervisor Password to set or change a supervisor password. The default for this option is Not Installed. If a supervisor password must be installed, select this field and enter the password.

  • Page 114: Chipset

    PPC-5150GS Flat Panel PC 5.7 Chipset Use the Chipset menu (BIOS Menu 20) to access the NorthBridge and SouthBridge configuration menus WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

  • Page 115: Dram Frequency [Auto]

    PPC-5150GS Flat Panel PC BIOS Menu 21: NorthBridge Chipset Configuration DRAM Frequency [Auto] Use the DRAM Frequency option to specify the DRAM frequency or allow the system to automatically detect the DRAM frequency. 200MHz Sets the DRAM frequency to 200MHz...

  • Page 116: Memory Hole [Disabled]

    PPC-5150GS Flat Panel PC the manufacturer's code. The SPD enables the BIOS to read the spec sheet of the DIMMs on boot-up and then adjust the memory timing parameters accordingly. Disabled DRAM timing parameters are manually set using the DRAM sub-items...

  • Page 117: Internal Graphics Mode Select [Enable, 8Mb]

    PPC-5150GS Flat Panel PC Internal Graphics Mode Select [Enable, 8MB] Use the Internal Graphic Mode Select option to specify the amount of system memory that can be used by the Internal graphics device. Disable 1MB of memory used by internal graphics device...

  • Page 118: Southbridge Configuration

    PPC-5150GS Flat Panel PC 640x480 EFAULT 800x600 1024x768 24bits 1280x1024 1400x1050 1024x768 18bits 1600x1200 48bits 800x600 24bits 800x600 18bits 1024x768 36bits 5.7.2 SouthBridge Configuration The SouthBridge Configuration menu (BIOS Menu 22) the southbridge chipset to be configured. BIOS Menu 22: SouthBridge Chipset Configuration...

  • Page 119: Power

    PPC-5150GS Flat Panel PC OnBoard AC97 Audio [Auto] Use the OnBoard AC97 Audio option to enable or disable the AC’97 CODEC. Auto The onboard AC’97 automatically detected and enabled EFAULT Disabled The onboard AC’97 is disabled 5.8 Power The Power menu (BIOS Menu 23) allows the advanced power management options to be configured.

  • Page 120: Video Power Down Mode [Suspend]

    PPC-5150GS Flat Panel PC Disabled Disables the Advanced Power Management (APM) feature Enables the APM feature Enabled EFAULT Video Power Down Mode [Suspend] The Video Power Down Mode BIOS option specifies in what system mode the video device can be turned off.

  • Page 121: Suspend Time Out [Disabled]

    PPC-5150GS Flat Panel PC 2 Min 4 Min 8 Min 10 Min 20 Min 30 Min 40 Min 50 Min 60 Min Suspend Time Out [Disabled] The Suspend Time Out option specifies what length of time without activity on certain components will place those components in a suspended state.

  • Page 122: Restore On Ac Power Loss [Last State]

    PPC-5150GS Flat Panel PC Restore on AC Power Loss [Last State] Use the Restore on AC Power Loss option to specify what state the system returns to if there is a sudden loss of power to the system. Power Off...

  • Page 123: Exit

    PPC-5150GS Flat Panel PC Disabled The real time clock (RTC) cannot generate a wake EFAULT event If selected, the following appears with values that Enabled can be selected: RTC Alarm Date (Days) System Time After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off.

  • Page 124: Save Changes And Exit

    PPC-5150GS Flat Panel PC Save Changes and Exit Use the Save Changes and Exit option to save the changes made to the BIOS options and to exit the BIOS configuration setup program. Discard Changes and Exit Use the Discard Changes and Exit option to exit the BIOS configuration setup program without saving the changes made to the system.

  • Page 125: Ainterface Connectors

    PPC-5150GS Flat Panel PC Appendix Interface Connectors...

  • Page 126: Floppy Disk Drive Connector

    PPC-5150GS Flat Panel PC The PPC-5150GS flat panel PC motherboard comes with a number of peripheral interface connectors and configuration jumpers listed in Chapter 2. The pinouts for these connectors are listed below: A.1 Floppy Disk Drive Connector POS-8520 board is equipped with a 34-pin daisy-chain driver connector cable.

  • Page 127: Pci E-Ide Disk Drive Connector

    PPC-5150GS Flat Panel PC A.2 PCI E-IDE Disk Drive Connector Four IDE (Integrated Device Electronics) hard disk drives can be attached to the POS-8520 IDE controller. IDE1, IDE2: Primary, Secondary IDE Connector Description Description RESET# DATA 7 DATA 8 DATA 6...

  • Page 128: Parallel Port

    PPC-5150GS Flat Panel PC A.3 Parallel Port This port is usually connected to printer. The POS-8520 includes one on-board parallel port, accessed through 25-pin D-type female connector LPT1. LPT1: (LPT1 DB-25 Female) Parallel Port Connector Description Description STROBE# DATA 0...
  • Page 129 PPC-5150GS Flat Panel PC CN20A: Serial Port DB-9 Male Connector (COM1) Description DATA CARRIER DETECT (DCD) RECEIVE DATA (RXD) TRANSMIT DATA (TXD) DATA TERMINAL READY (DTR) GROUND (GND) DATA SET READY (DSR) REQUEST TO SEND (RTS) CLEAR TO SEND (CTS)
  • Page 130 PPC-5150GS Flat Panel PC RS-485 Mode Description Description RTX- RTX+ Voltage CN20B: Serial Port DB-9 Male Connector (COM2) COM2 supports three modes: RS-232, RS-422 and RS-485 (via DB-9 Connector) RS-232 Mode Description Description RS-422 Mode Description Description TXD- TXD+ Voltage...
  • Page 131 PPC-5150GS Flat Panel PC RTX+ Voltage COM3: Serial Port 2x5 Pin Header Connector Description Description COM4: Serial Port 2x5 Pin Header Connector Description Description CN22: Serial Port DB-9 Male Connector (COM4) Description DATA CARRIER DETECT (DCD) RECEIVE DATA (RXD) TRANSMIT DATA (TXD)

  • Page 132: Keyboard / Mouse Connector

    PPC-5150GS Flat Panel PC COM5: Serial Port 2x5 Pin Header Connector Description Description COM6: Serial Port 2x5 Pin Header Connector Description Description A.5 Keyboard / Mouse Connector POS-8520 provides one keyboard and one mouse box header connector, as well as external keyboard &...

  • Page 133: External Switches And Indicators

    PPC-5150GS Flat Panel PC Description MS DATA MS CLOCK CN16: 5-pin Header Keyboard Connector Description KB CLOCK KB DATA CN15: PS/2 Mouse 5-pin Header Connector Description MS CLOCK MS DATA A.6 External Switches and Indicators CN8: Multi Panel Description Description...

  • Page 134: Usb Port Connector

    PPC-5150GS Flat Panel PC RESET SW IDE LED - IDE LED+ ATX POWER CONTROL ATX POWER BUTTON ATX 5VSB ATX 5VSB A.7 USB Port Connector POS-8520 has eight built-in USB ports for the future I/O bus expansion. CN26, CN27,CN28: 8-PIN Header USB Connectors...

  • Page 135: Vga Connector

    PPC-5150GS Flat Panel PC IR1: IrDA Connector Description IR-RX IR-TX A.9 VGA Connector The POS-8520 provides one DB-15 female connector and one built-in 10-pin VGA box header connector that can be connected directly to a monochrome CRT monitor as well as high resolution color CRT monitor.

  • Page 136: Lan Rj45 Connector

    PPC-5150GS Flat Panel PC BLUE H-SYNC V-SYNC A.10 LAN RJ45 Connector The POS-8520 is equipped with two Gigabit Ethernet Controller RTL8110SC chipsets and two GbE LAN RJ-45 connectors. CN31: Dual LAN RJ45 Connector Description Description TX+ (or MDX0+) N/C (or MDX2-)

  • Page 137: Inverter (Lcd Backlight) Connector

    PPC-5150GS Flat Panel PC Description +12V Fan Sensor FAN3: System Fan Connector Description +12V Fan Sensor A.12 Inverter (LCD Backlight) Connector CN12: Inverter (LCD Backlight) Connector Description Description +12V ENABKL A.13 LCD Panel LVDS Interface Connector The POS-8520 provides up to 48-bit color TFT LCD.

  • Page 138: Audio Connectors

    PPC-5150GS Flat Panel PC CLK2P CLK2M LCD_VDD LCD_VDD LCD_VDD LCD_VDD A.14 Audio Connectors CN7: Audio CD IN (2.54mm) Description Description CD IN_L CD IN_R CN2: Audio LINE OUT (2.54mm) Description Description LINEOUT_L LINE OUT_R CN24: Audio Jack Color Description MIC IN...

  • Page 139: Compact Flash Type Ii Storage Card Socket

    PPC-5150GS Flat Panel PC Output 3 Output 2 Output 1 Output 0 Input 3 Input 2 Input 1 Input 0 A.16 Compact Flash TYPE II Storage Card Socket The POS-8520 configures Compact Flash TYPE II Storage Card in IDE Mode.

  • Page 140: Atx Power Connector

    PPC-5150GS Flat Panel PC CARD DETECT2 GROUND A.17 ATX Power Connector PW2 is a 20-pin ATX Power Supply Connector with the following pin assignments. PW2: ATX Power Supply Connector Description Description 3.3V 3.3V -12V 3.3V PS-ON Power good 5VSB +12V A.18 ATX 12V Power Connector...

  • Page 141: Internal Switches And Indicators

    PPC-5150GS Flat Panel PC current for the use of P4 CPU. If the power is not enough, the operation of CPU could be abnormal. Be sure the power from power supply is enough, and don’t share this power with other devices, such as hard disk etc.
  • Page 142 PPC-5150GS Flat Panel PC THIS PAGE IS INTENTIONALLY LEFT BLANK IEI ® Technology, Corp.

  • Page 143: Bbios Configuration Options

    PPC-5150GS Flat Panel PC Appendix BIOS Configuration Options...
  • Page 144 PPC-5150GS Flat Panel PC B.1 BIOS Configuration Options Below is a list of BIOS configuration options described in Chapter 5. 　 System Overview ....................74 　 System Time [xx:xx:xx] ..................75 　 System Date [xx/xx/xx] ..................75 　 Max CUPID Value Limit [Disabled] ...............78 　...
  • Page 145 PPC-5150GS Flat Panel PC 　 Parallel Port Mode [Normal]..................90 　 Parallel Port IRQ [IRQ7]..................90 　 Digital I/O Address [280h] ..................90 　 Serial Port3 Address [3E8]..................91 　 Serial Port3 IRQ [11] ....................91 　 Serial Port4 Address [2E8]..................91 　 Serial Port4 IRQ [10] ....................92 　...
  • Page 146 PPC-5150GS Flat Panel PC 　 PCI Latency Timer [64] ..................104 　 Allocate IRQ to PCI VGA [Yes] ................104 　 Palette Snooping [Disabled] ................104 　 PCI IDE BusMaster [Disabled] ................105 　 OffBoard PCI/ISA IDE Card [Auto] ..............105 　...
  • Page 147 PPC-5150GS Flat Panel PC 　 Resume on PME# [Disabled] ................122 　 Resume On RTC Alarm [Disabled]..............122 　 RTC Alarm Date (Days) ..................123 　 System Time ....................123 　 Save Changes and Exit ..................124 　 Discard Changes and Exit ................. 124 　...
  • Page 148 PPC-5150GS Flat Panel PC THIS PAGE IS INTENTIONALLY LEFT BLANK IEI ® Technology, Corp.

  • Page 149: Csoftware Drivers

    PPC-5150GS Flat Panel PC Appendix Software Drivers...

  • Page 150: Introduction

    PPC-5150GS Flat Panel PC C.1 Introduction The touch panel controller enables analog resistive touch panels for four-wire, five-wire & eight-wire models. The controller directly communicates with the PC system through the touch panel communications interface. The controller design is superior in sensitivity, accuracy, and friendly operation.
  • Page 151 PPC-5150GS Flat Panel PC Figure C-1: Driver CD Pop Up Screen Step 3: Select the operating system installed on the system from the menu on the left side of the screen. NOTE: The following description is for driver installation using a Windows 2000 OS.
  • Page 152 PPC-5150GS Flat Panel PC Figure C-2: Install Shield Wizard Preparation Step 5: After the Install Shield Wizard is ready, a welcome screen appears (Figure C-3). Figure C-3: Welcome Screen Step 6: To continue the installation process click N Step 7: An Install PS/2 interface driver screen appears (Figure C-4).
  • Page 153 PPC-5150GS Flat Panel PC Figure C-4: Install PS/2 Interface Driver Step 8: Four point calibration options are then selected. Four point calibrations can be done every time a user boots up, during the next time the system boots or never.
  • Page 154 PPC-5150GS Flat Panel PC Figure C-5: Install PS/2 Interface Driver Step 9: The user is then prompted to ensure the touch monitor or the USB for the touch controller is plugged into the system (Figure C-6). Once the touch controller is plugged into the system, click OK.
  • Page 155 PPC-5150GS Flat Panel PC Figure C-7: Controller Installation Directory Step 11: The user is then prompted to select a file directory in which the program icons are saved (Figure C-8). The default folder is “TouchKit.” If a different folder must be used, select a folder from the list shown.
  • Page 156 PPC-5150GS Flat Panel PC Figure C-8: Program Icon Directory Step 12: The program then starts installing (Figure C-9). Figure C-9: Installing Step 13: Once the program is finished installing, the user is prompted to restart the IEI ® Technology, Corp.

  • Page 157: Touch Panel Driver Configuration

    PPC-5150GS Flat Panel PC computer now or to restart the computer later (Figure C-10). Select when the computer should be restarted and click F to complete the driver installation INISH procedure. Figure C-10: Installation Complete C.3 Touch Panel Driver Configuration To configure the touch panel driver options, refer to the TouchKit user manual located on the driver installation CD.
  • Page 158 PPC-5150GS Flat Panel PC THIS PAGE IS INTENTIONALLY LEFT BLANK IEI ® Technology, Corp.

  • Page 159: Diei Panel Pc Product Line

    PPC-5150GS Flat Panel PC Appendix IEI Panel PC Product Line...

  • Page 160: Iei Panel Pc Products

    PPC-5150GS Flat Panel PC D.1 IEI Panel PC Products D.1.1 Overview IEI panel PC products are flexible, multi-functional flat panel PCs that can be applied in diverse operational environments and implemented in multi-faceted applications. IEI panel PC products come fully kitted with high-performance motherboards, CPUs, power supply units and a host of other peripheral interface connectors.

  • Page 161: Series Panel Pc Solutions

    PPC-5150GS Flat Panel PC Model PPC-2706GS PPC-2708GS Backlight MTBF 50000hrs 20000hrs SBC Model WAFER-LX800 WAFER-LX800 AMD LX800 AMD LX800 1 x DDR 333/400MHz 1 x DDR 333/400MHz SO DIMM socket up to SO DIMM socket up to I/O Ports 1 x RS-232 2 x RS-232 2 x USB 2.0...
  • Page 162 PPC-5150GS Flat Panel PC Model PPC-3708GS PPC-3710GS PPC-3712GS PPC-3715GS PPC-3717GS LCD Size 8.4” TFT LCD 10.4” TFT LCD 12.1” TFT LCD 15” TFT LCD 17” TFT LCD Max. 800 x 600 800 x 600 800 x 600 1024 x 786...

  • Page 163: Series Panel Pc Solutions

    PPC-5150GS Flat Panel PC Model PPC-3708GS PPC-3710GS PPC-3712GS PPC-3715GS PPC-3717GS Expansion Slot 1 x PCI 1 x PCI HDD Drive Bay 1 x 2.5” 1 x 2.5” 1 x 2.5” 1 x 3.5” 1 x 3.5” SATA/IDE SATA/IDE SATA/IDE Removable...
  • Page 164 PPC-5150GS Flat Panel PC Model PPC-5150GS PPC-5170GS PPC-5190GS LCD Size 15” TFT LCD 17” TFT LCD 19” TFT LCD Max. 1024 x 786 1280 x 1024 1280 x 1024 Resolution Brightness 350 cd/m2 300 cd/m2 300 cd/m2 LCD Color 262K 16.2M...

  • Page 165: Series Panel Pc Solutions

    PPC-5150GS Flat Panel PC Model PPC-5150GS PPC-5170GS PPC-5190GS CD-ROM 1 x Slim CD-ROM 1 x Slim CD-ROM 1 x Slim CD-ROM Drive Bay Power Supply 180W ATX Power 180W ATX Power 180W ATX Power Mounting Stand/Rack/ Stand/Rack/ Stand/Rack/ Wall/Panel/Arm Wall/Panel/Arm...
  • Page 166 PPC-5150GS Flat Panel PC Model PPC-5150GS PPC-5170GS PPC-5190GS Celeron ® D Celeron ® D Celeron ® D 2 x DDR 400MHz 2 x DDR 400MHz 2 x DDR 400MHz DIMM socket up to 2GB DIMM socket up to 2GB DIMM socket up to 2GB...

  • Page 167: Series Panel Pc Solutions

    PPC-5150GS Flat Panel PC D.2.5 PPC-53 Series Panel PC Solutions ® All the models listed in the table below support Intel Pentium® M / Celeron ® M / ULV Celeron® M 1GHz/800MHz CPUs. Model PPC-5350GS LCD Size 15” TFT LCD Max.
  • Page 168 PPC-5150GS Flat Panel PC Model PPC-5350GS CD-ROM 1 x Slim CD-ROM Drive Bay Power Supply 150W ATX Power Mounting Stand/Rack/ Wall/Panel/Arm Dimension (WxDxH) 410 x 309 x 110 Weight 8/12kg Front Panel Protection IP 65 compliant Touch Screen Resistive Type 5-wire...

  • Page 169: Eindex

    PPC-5150GS Flat Panel PC Index...
  • Page 170 PPC-5150GS Flat Panel PC 852GME, 8, 25, 32, 34 motherboard, 18, 23, 25, 32, 36, 37, 42, 44, AC '97, 16, 33 46, 48, 50, 51, 62, 65, 66, 68, 72, 80, 124 aluminum frame, 19, 22, 54, 55, 57...

Table of Contents
