Run and Monitor Formulas
BNCLJO11 / 2019493
4.2

How to Monitor a Wash Formula

4.2.1

The Run Display

The Run display appears
when you run a formula.
From the Run display, you
can monitor the wash for-
mula progress and the ma-
chine status. You can also
change the water tempera-
ture and level, the formula
time, the drain type, and
the basket speed for the
formula in progress.
Three types of information
are given on the Run dis-
play. These types are
grouped into three areas of
the display, as shown in
Figure 11
.
4.2.1.1

The Names and Timers Area (A)

This area displays the running formula's name and number, the current step number, the total time
in the formula, and the time remaining in the formula and the current step.
Figure 12. The Names and the Timers Area
22
BNCLJO11

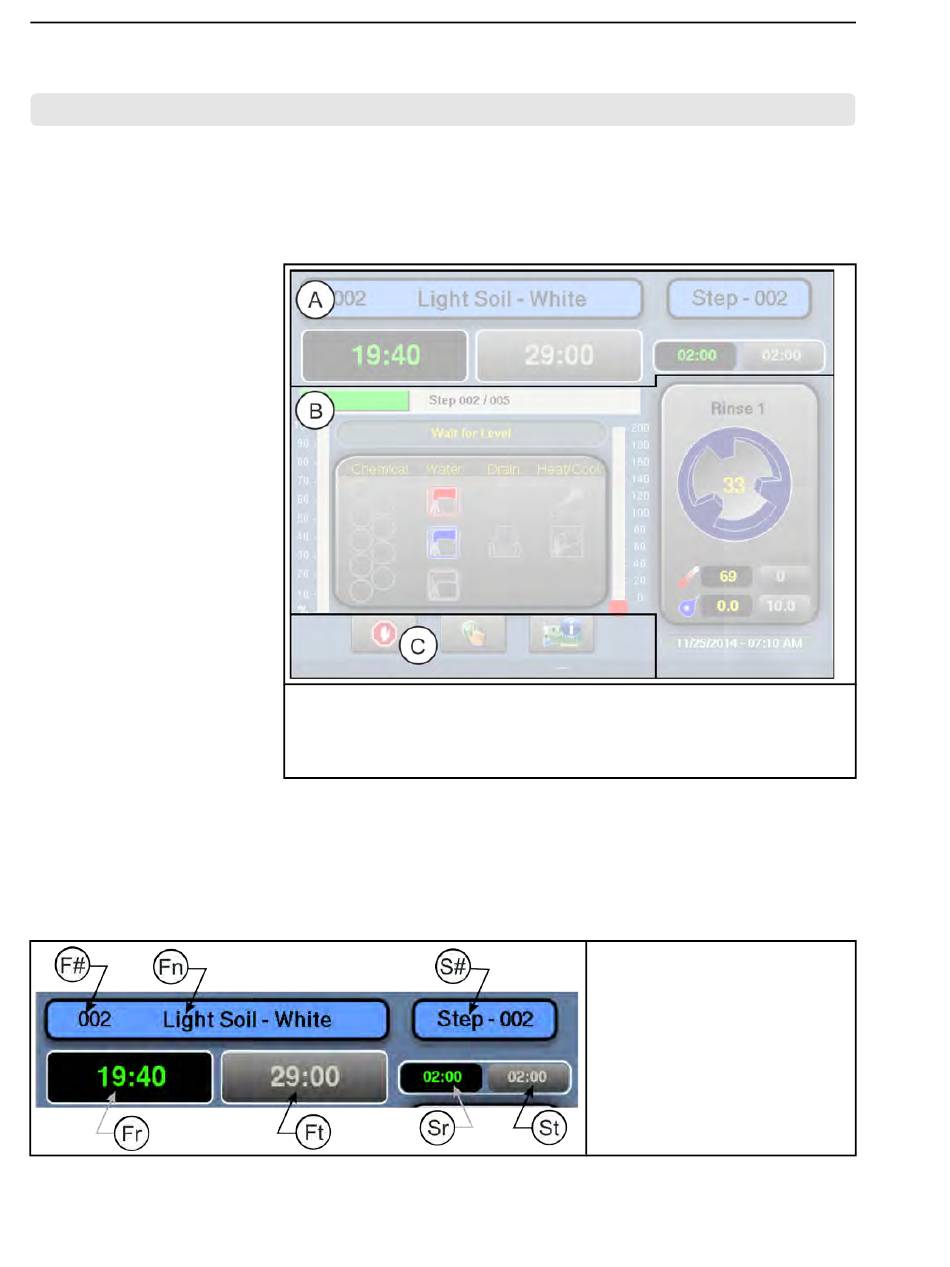

Figure 11. The Three Information Areas of the Run Display
A.
Names and Timers area
B.
Machine Status area
C.
Manual Control and Diagnostics area
0000212819
B.3
BNCLJO11.C01 0000212818 B.2 B.3 1/2/20 1:22 PM Released
BNCLJO11.C02 0000213317 B.2 B.3 1/2/20 1:22 PM Released
Legend
BNCLJO07.C02 0000187290 B.2 B.3 E.3 1/2/20 1:22 PM Released
F#..
Formula number
Fn..
Formula name
Fr..
Remaining formula time
Ft..
Total formula time
S#..
Step number
Sr..
Remaining step time
St..
Total step time
