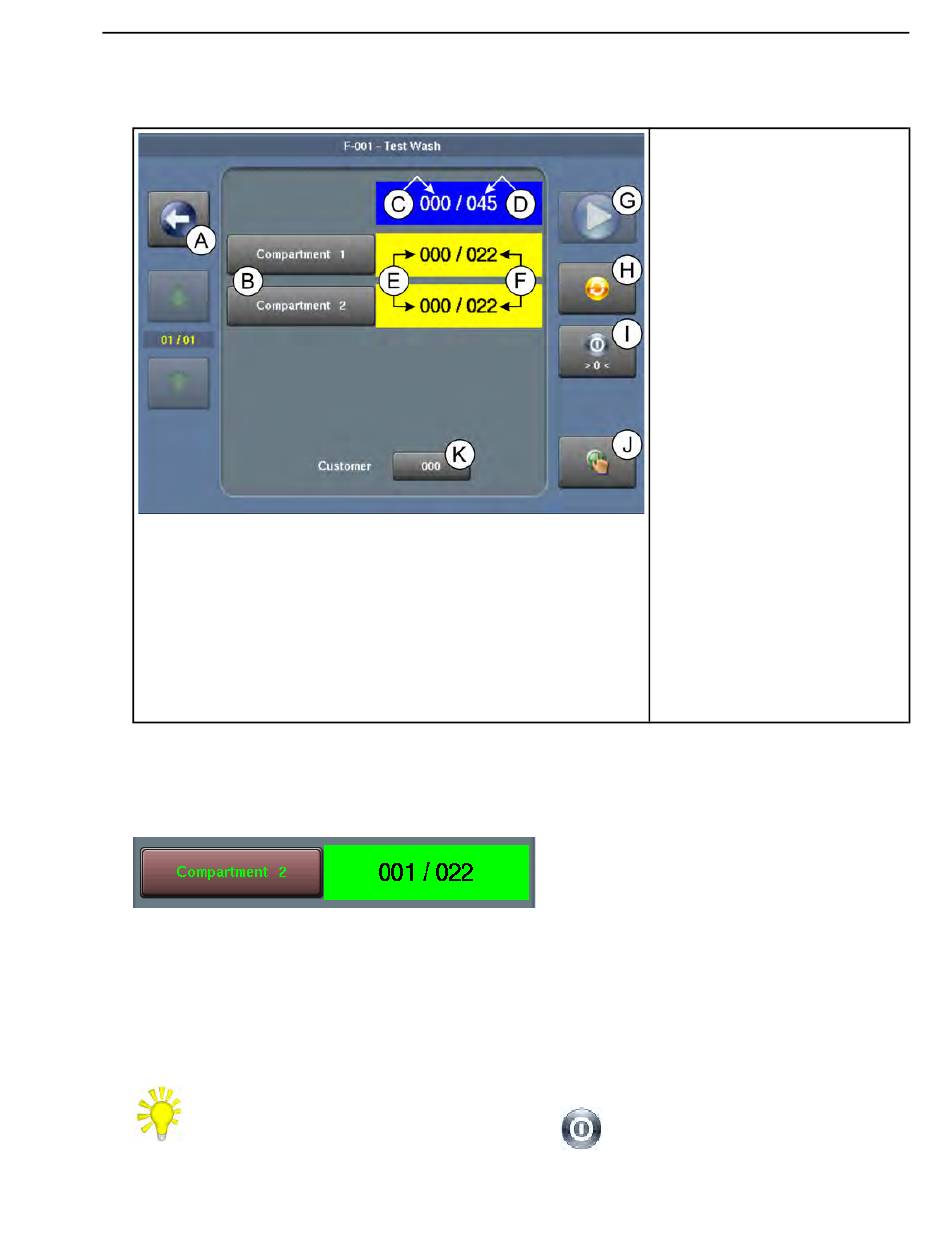

Figure 7. Weighing System Window
3. In the Weighing System window, touch a compartment button (B) to begin loading that com-
partment (the machine in
The scale tares to zero and the active compartment turns green, as shown in the following
figure.
4. Open the outer door to the soil side of the washer-extractor.
5. Open the inner door, as explained in
(s), page 9 .
6. Load the compartment. The load cells weigh the goods as you load the compartment, and the
controller displays the current weight, as indicated by item E in
Window, page 15
TIP: If you accidentally load a compartment before you activate it (Step 3), remove
the goods from the compartment, and touch
Pellerin Milnor Corporation
Figure 7: Weighing System Window, page 15
Section 3.2.1 : How to Open the Inner (Cylinder) Door
.
Load and Unload
Legend
A... Cancel the formula and re-
turn to the Home display
B... Select a compartment to load
C... The total weight of goods in
the machine
D... The maximum machine
capacity
E... The weight of goods in each
compartment
F... The maximum capacity for
each compartment (max ca-
pacity/# of compartments)
G... Start the formula
H... Rotate the cylinder with the
AutoSpot™ feature to access
the next compartment
I... Tares the scale back to zero
on the active compartment.
The total weight and locked-
in weights (in red) do not
tare.
J... Enter the weight manually
for this load (see
4.1.1.1.2 ).
K... The customer (commercial
laundry) or department (insti-
tutional laundry) the batch
(goods) belongs to
has 2 compartments).
Figure 7: Weighing System
. This tares the scale back to zero.
Section
15
