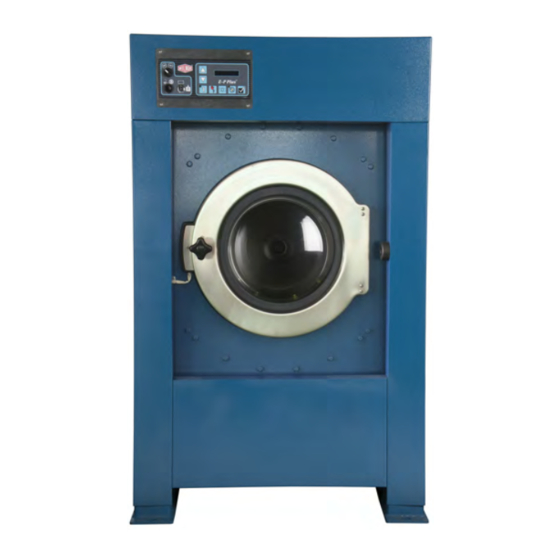

Milnor MWF27J8 Installation And Service

Washer extractors
Hide thumbs Also See for MWF27J8:
Table of Contents

Advertisement

Quick Links

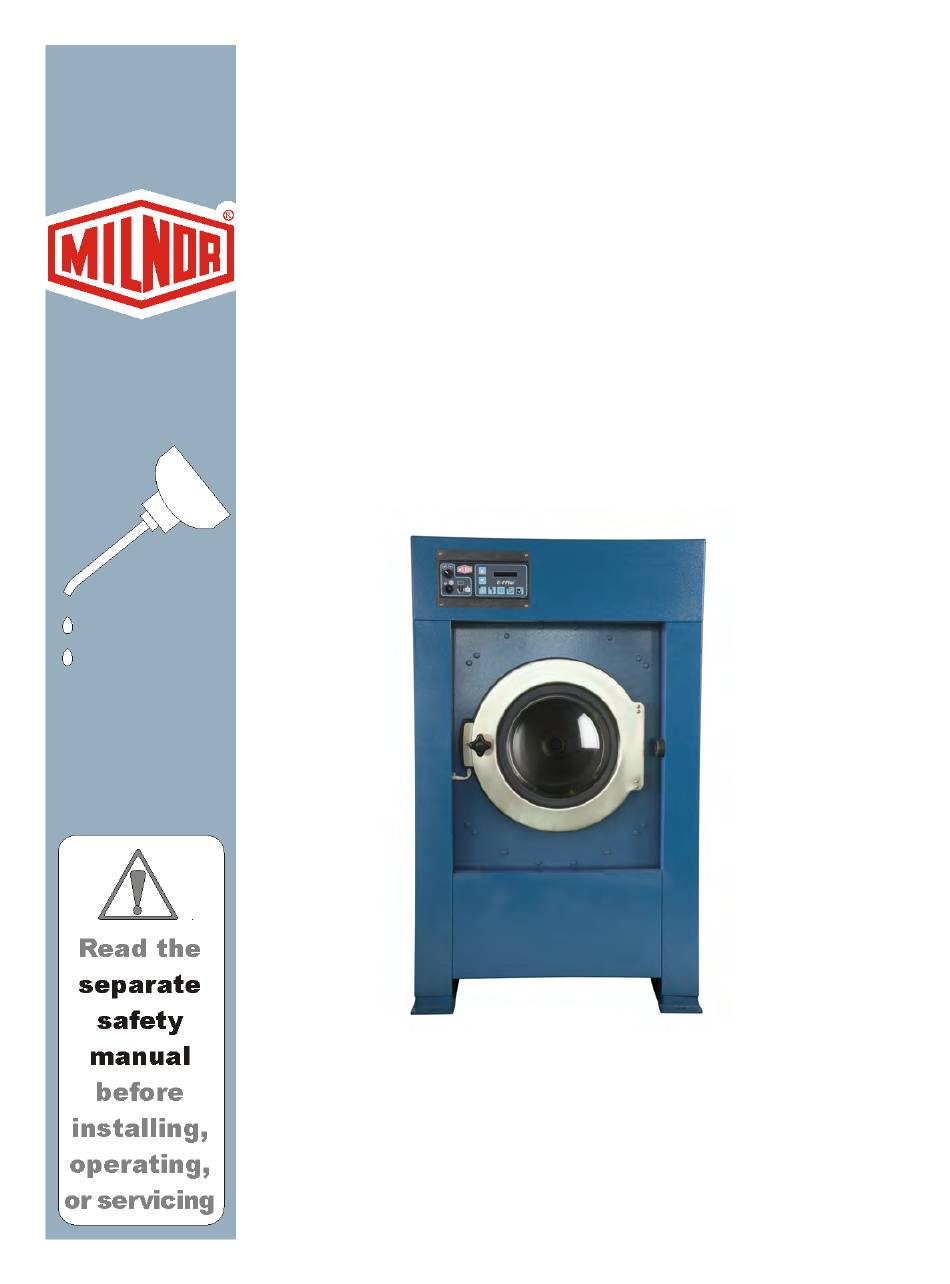

Published Manual Number/ECN: MPIMWF27AE/2019506A
• Publishing System: TPAS2
• Access date: 12/13/2019
• Document ECNs: Latest
Installation and Service
MWF27J8, MWF27Z8
Washer Extractors
PELLERIN MILNOR CORPORATION
POST OFFICE BOX 400, KENNER, LOUISIANA 70063-0400, U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MWF27J8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Milnor MWF27J8

Summary of Contents for Milnor MWF27J8

  • Page 1 Published Manual Number/ECN: MPIMWF27AE/2019506A • Publishing System: TPAS2 • Access date: 12/13/2019 • Document ECNs: Latest Installation and Service MWF27J8, MWF27Z8 Washer Extractors PELLERIN MILNOR CORPORATION POST OFFICE BOX 400, KENNER, LOUISIANA 70063-0400, U.S.A.

  • Page 3: Table Of Contents

    Safety Placards and Locations - MWF27_, MWF45_, MWF63_, MWF77_ BMP130066/2018376A Safety Placards and Locations ISO - MWF27_, MWF45_, MWF63_, MWF77_ BMP150057/2018376A 1. Installation About the Forces Transmitted by Milnor® Washer-extractors BIWUUI02/20001108 Prevent Damage from Chemical Supplies and Chemical Systems BIWUUI03/2019296A Washer-Extractor Installation BIMUUI01/20030213...
  • Page 4 Table of Contents, continued MPIMWF27AE/19506A Page Description Document 7. Chemical Supply Devices Soap Chute BMP130062/2013484A Peristaltic Supply BMP130063/2013484A 5 Compartment Supply BMP130064/2013484A 8. Dimensional Drawings Dimensional Drawing - MWF27J8, MWF27Z8 BDMWF27JAE/2019495D Dimensional Drawing - MWF27F,J,W, Options BDMWF27JAB/2019495D...

  • Page 5: Limited Standard Warranty

    (unless the time period is specifically extended for certain parts pursuant to a specific MILNOR published extended warranty) from our factory with no operating hour limitation. This warranty is contingent upon the equipment being installed, operated and serviced as specified in the operating manual supplied with the equipment, and operated under normal conditions by competent operators.

  • Page 6: How To Get The Necessary Repair Components

    • If the component is an electrical component, give the schematic number if known. • If the component is a motor or an electrical control, give the nameplate data from the used component. To write to the Milnor factory: Pellerin Milnor Corporation Post Office Box 400...

  • Page 7: Trademarks

    BNUUUU02 / 2017285A BNUUUU02 0000158094 A.3 7/13/17 1:53 PM Released Trademarks BNUUUU02.R01 0000158093 A.2 7/13/17 1:11 PM Released These words are trademarks of Pellerin Milnor Corporation and other entities: Table 1 Trademarks AutoSpot™ GreenTurn™ Milnor® PulseFlow® CBW® GreenFlex™ MilMetrix® PurePulse®...

  • Page 8: Safety-Suspended, Open Pocket, Non-Tilting Washer-Extractors

    The owner/user must familiarize himself with the contents of all machine instruction manuals. The owner/user should direct any questions about these instructions to a Milnor® dealer or the Milnor® Service department.
  • Page 9 The Safety Guide and other machine manuals must be available at all times to the appropriate personnel. See the machine service manual for safety placard part numbers. Contact the Milnor Parts department for replacement placards or manuals. Maintenance —Ensure the machine is inspected and serviced in accordance with the norms of 1.5.
  • Page 10 • Do not place any object in the turning cylinder. • Do not operate the machine with a malfunctioning door interlock. • Open pocket machines only—Keep yourself and others clear of cylinder and goods during jogging operation. PELLERIN MILNOR CORPORATION...
  • Page 11 • Do not operate a damaged or malfunctioning machine. Request authorized service. WARNING 13 : Explosion Hazards—Cylinder—A damaged cylinder can rip apart during extraction, puncturing the shell and discharging metal fragments at high speed. • Do not operate the machine with any evidence of damage or malfunction. PELLERIN MILNOR CORPORATION...
  • Page 12 WARNING 18 : Confined Space Hazards—Confinement in the cylinder can kill or injure you. Hazards include but are not limited to panic, burns, poisoning, suffocation, heat prostration, biological contamination, electrocution, and crushing. • Do not enter the cylinder until it has been thoroughly purged, flushed, drained, cooled, and immobilized. PELLERIN MILNOR CORPORATION...
  • Page 13 Safety—Suspended, Open Pocket, Non-tilting Washer-Extractors — End of BIUUUS27 — PELLERIN MILNOR CORPORATION...
  • Page 14 Read the manuals before proceeding. This symbol appears on most tags. The machine ships with safety, operator, and routine maintenance guides for customer use. Milnor dealer manuals for installing, commissioning, and servicing the machine are also available from the Milnor Parts department.
  • Page 15 Do not discard these. B2T2003001: Hold the side of the connection stationary with a wrench as you tighten the connection with another wrench. Other- wise, you may twist components, such as valves, damaging them. Pellerin Milnor Corporation...
  • Page 16 Follow applicable codes when installing water hammer arresters. Maintain incoming water pressure between 10 and 75 psi (between 0.7 and 5.1 bar). Pressures outside this range can damage the water valves in this machine. End of document: BNWMAI01 Pellerin Milnor Corporation...
  • Page 17 Page (1 / 3) Safety Placards and Locations- Safety Placards and Locations- MWF27J8, MWF27Z8; MWF45J8, MWF45Z8; MWF63J7, MWF63Z7; MWF77J7, MWF77Z7 MWF63C7, MWF63Y7; MWF77C7, MWF77Y7 If the placard is removed or you cannot read it, replace the placard immediately. If the placard is aluminum, the mounting holes are on the machine. Use self-tapping screws.
  • Page 18 BMPXX/XXA BMP130066/2018376A Page (2 / 3) Safety Placards and Locations- MWF27J8, MWF27Z8; MWF45J8, MWF45Z8; MWF63J7, MWF63Z7; MWF77J7, MWF77Z7 MWF63C7, MWF63Y7; MWF77C7, MWF77Y7 MWF63J7, MWF63Z7 MWF77J7, MWF77Z7 (alternate location) Front View Rear View MWF63 7, MWF63 7 MWF77C7, MWF77Y7 Front View...
  • Page 19 BMP130066/2018376A Page (3 / 3) Safety Placards and Locations- MWF27J8, MWF27Z8; MWF45J8, MWF45Z8; MWF63J7, MWF63Z7; MWF77J7, MWF77Z7 MWF63C7, MWF63Y7; MWF77C7, MWF77Y7 Parts List Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
  • Page 20 BMP150057/2018376A Page (1 / 3) Safety Placards and Locations- ISO MWF27J8, MWF27Z8; MWF45J8, MWF45Z8; MWF63J7, MWF63Z7; MWF77J7, MWF77Z7 MWF63C7, MWF63Y7; MWF77C7, MWF77Y7 If the placard is removed or you cannot read it, replace the placard immediately. If the placard is aluminum, the mounting holes are on the machine. Use self-tapping screws.
  • Page 21 BMP150057/2018376A Page (x / x) Page (2 / 3) Safety Placards and Locations- ISO MWF27J8, MWF27Z8; MWF45J8, MWF45Z8; MWF63J7, MWF63Z7; MWF77J7, MWF77Z7 MWF63C7, MWF63Y7; MWF77C7, MWF77Y7 MWF63J7, MWF63Z7 MWF77J7, MWF77Z7 (alternate location) Front View Rear View MWF63 7, MWF63 7...
  • Page 22 BMP150057/2018376A Page (3 / 3) Safety Placards and Locations- ISO MWF27J8, MWF27Z8; MWF45J8, MWF45Z8; MWF63J7, MWF63Z7; MWF77J7, MWF77Z7 MWF63C7, MWF63Y7; MWF77C7, MWF77Y7 Parts List Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...

  • Page 23: Installation

    Installation...

  • Page 24: About The Forces Transmitted By Milnor® Washer-Extractors

    • the liquor level and chemical conditions in the bath preceding extraction, and • other miscellaneous factors. ® Estimates of the maximum force normally encountered are available for each Milnor model and ® size upon request. Floor or foundation sizes shown on any Milnor...
  • Page 25 All data is subject to change without notice and may have changed since last printed. It is the sole responsibility of every potential owner to obtain written ® confirmation that any data furnished by Milnor applies for the model(s) and serial number(s) of the specific machines.

  • Page 26: Prevent Damage From Chemical Supplies And Chemical Systems

    The company that does these procedures must make sure that these procedures do not cause dam- age. Pellerin Milnor Corporation accepts no responsibility for chemical damage to the ma- chines it makes or to the goods in a machine.
  • Page 27 Figure 1. Incorrect Configurations That Let the Chemical Supply Go In the Machine by a Siphon Schematic Views Legend P... Pump T... Chemical tank S... The siphon occurs above here. Liquid in the gray parts of the chemical tube and tank can go in the machine. Pellerin Milnor Corporation...
  • Page 28 Prevent Damage from Chemical Supplies and Chemical Systems Figure 2. Incorrect Configurations That Let the Chemical Supply Go In the Machine by Gravity Schematic Views Legend P... Pump T... Chemical tank D... Chemical tube. Liquid in the gray areas can go in the machine. Pellerin Milnor Corporation...
  • Page 29 — There is a manifold on the machine to at- tach chemical tubes from a chemical pump system. The manifold has a source of water to flush the chemical supplies with water. Figure 3. Examples of Manifolds for Chemical Tubes. Your equipment can look different. Pellerin Milnor Corporation...
  • Page 30 — When you do maintenance on the chemical pump system: • Use the correct components. • Make sure that all connections are the correct fit. • Make sure that all connections are tight. End of document: BNUUUR02 Pellerin Milnor Corporation...
  • Page 31 Do not hesitate to file a claim with the carrier if the machine is damaged in any way during shipment. Milnor will be glad to assist you in filing your claim, but is not responsible for any shipping damage to the machine once it has been delivered to the carrier in good condition.
  • Page 32 GQcXUb5hdbQSd_b 9^cdQ\\QdY_^ Figure 1: Vibration warning 20DC8>= ) <PRWX]T 3P\PVT 7PiPaSb —Improperly installed suspension type machines can “walk” out of position during extract, endangering personnel and damaging equipment. • Roughen floor. Install anchor bolts and grout under all base pads to prevent “teeter-totter” and sideways movement.
  • Page 33 • Remove the red shipping bracket stands. • Remove the tie wrap that secures the vibration safety switch. • Check the perforated cylinder for smoothness before placing machine in service. Milnor cannot accept cylinder finish damage claims after machine is in service.

  • Page 34: Shipping Brackets

    BMP160003/2016092A Page (1 / 2) Shipping Brackets MWF27J8, MWF27Z8 Before operating, remove the shipping brackets (painted red). The shipping brackets may be retained in the event the machine must be moved. See BIMUUI01. 2,3,4 2,3,4 (Typical 4 Places) PELLERIN MILNOR CORPORATION...
  • Page 35 BMP160003/2016092A Page (2 / 2) Shipping Brackets MWF27J8, MWF27Z8 Parts List—Shipping Brackets Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the parts list to the illustration.

  • Page 36: Covers

    BMP130050/2018383A Page (1 / 2) Covers MWF27J8, MWF27Z8 All covers are the same color as the frame (Pre-production model shown.) PELLERIN MILNOR CORPORATION PELLERIN MILNOR CORPORATION...
  • Page 37 BMP130050/2018383A Page (2 / 3) Covers MWF27J8, MWF27Z8 (Typical) PELLERIN MILNOR CORPORATION PELLERIN MILNOR CORPORATION...
  • Page 38 BMP130050/2018383A Page (3 / 3) Covers MWF27J8, MWF27Z8 Parts List—Covers Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the parts list to the illustration.

  • Page 39: Service And Maintenence

    Service and Maintenence...

  • Page 40: Service Connections

    5. When connecting water and steam inlets, always install unions and shut off valves at the point of connection to permit removal of the machine components for servicing, when necessary. Figure 1. Flush water valve pressure regulator Pellerin Milnor Corporation...
  • Page 41 CAUTION: Machine Damage Hazards — Voltage fluctuations of more than 10% above or below the specified voltage for your machine can damage electri- cal components, especially motors. Any such conditions should be corrected prior to commissioning your � machine. Pellerin Milnor Corporation...
  • Page 42 Voltage Switch Set for 240 Volt Operation, page 4 ). Place the line voltage switch in the 208 volt position if the supply voltage is 208 volts. Figure 2. Correct Rotation During Drain and Extract (when viewing front of machine) Pellerin Milnor Corporation...
  • Page 43 Remove all shipping restraints (usually marked in red). Restraints may be located behind access panels. Restraints may include the vibration switch restraint (Figure 4: Typical Vibration Switch Showing Restraint in Place, page 4 Figure 4. Typical Vibration Switch Showing Restraint in Place Pellerin Milnor Corporation...
  • Page 44 Service Connections 5. Check Cylinder Surface BNWBUI01.C06 0000204319 A.3 A.2 9/20/18 4:18 PM Released Check the perforated cylinder for smoothness. Milnor ® will not accept responsibility for the cyl- inder finish after the machine is placed in service. End of document: BNWBUI02...

  • Page 45: Servicing The Door To Open It With Power Off Or With A Malfunctioning Door Lock

    Hold one hand or a cup under the handle to catch the contents, then remove your finger, allowing the spring and ball to fall out, as in Figure 2. Shake the handle if necessary, to work the components free. PELLERIN MILNOR CORPORATION...
  • Page 46 The spring can stretch and be damaged if it does not separate from the shaft cam. • Be prepared to work the end of the spring out of the hole in the shaft cam as the door is opened. PELLERIN MILNOR CORPORATION...
  • Page 47 2. Using a screwdriver, push down the door lock slider pin (Figure 6) and rotate the shaft (Figure 7) counterclockwise to remove it from the lock mechanism. Figure 6: Door Lock Slider Pin in the Door Lock Figure 7: Removing the Shaft from the Lock Mechanism Mechanism PELLERIN MILNOR CORPORATION...
  • Page 48 Tighten the set screw until the set screw is flush with the handle. This will provide roughly the correct spring tension. c. Rotate door handle counterclockwise 90 degrees to ratchet it to the next position (with the next spoke on top). PELLERIN MILNOR CORPORATION...
  • Page 49 Make 1/4 turn adjustments to all four set screws if necessary to achieve the proper tension. 9. Install the black plastic cap over the center of the handle. — End of BIRH3M02 — PELLERIN MILNOR CORPORATION...
  • Page 50 CUddY^W 4__b 9^dUb\_S[ CgYdSXUc 29B8#= ! @eR\YcXUT 2__[ c`USc 4QdUc* " # "!$  " # "!$  " # "!$ <Q^W* 5>7 ! 1``\YS* B8# BTccX]V3^^a8]cTa[^RZBfXcRWTb 7^fCWT3^^a8]cTa[^RZBfXcRWTbF^aZ 30=64A ) 0\_dcPcX^] 7PiPaS —Turning cylinder can twist off arms. • Do not permit this machine to be operated unless door interlock switch SMD (Figure 1 item 3) is set according to these instructions.
  • Page 51 CUddY^W 4__b 9^dUb\_S[ CgYdSXUc Figure 1: Door locking sequence Legend Door pushed shut, door handle (item 2) in unlocked position, door lock slider down (item 5), interlock switch SMD (item 3) and SME (item 1) not actuated. Note the minimum sixteenth of an inch (1.6 mm) gap between the lever on interlock switch SMD and the door lock slider.
  • Page 52 CUddY^W 4__b 9^dUb\_S[ CgYdSXUc 1. Remove the cover plate. Manually push the door slider assembly (item 5) down until it stops. Check for a minimum of one sixteenth of an inch clearence (1.6 mm), between the raised portion of the door slider (item 6), and the lever of interlock switch SMD (item 3). 2.

  • Page 53: Torque Requirements For Fasteners

    These tables give the standard dimension, grade, threadlocker, and torque requirements for ® fasteners frequently used on Milnor equipment. ® Note 1: Data from the Pellerin Milnor Corporation “Bolt Torque Specification” (bolt_torque_milnor.xls/2002096). Fasteners Made of Carbon Steel 1.1. Without a Threadlocker 1.1.1.
  • Page 54 Table 3: Torque Values for Plated Fasteners with Maximum 5/16-inch Diameters and No Lubricant The Grade of the Bolt Grade 2 Grade 5 Grade 8 Grade BC Dimension Pound-Inches Pound-Inches Pound-Inches Pound-Inches 1/4 x 20 1/4 x 28 5/16 x 18 5/16 x 24 PELLERIN MILNOR CORPORATION...
  • Page 55 Specific applications sometime require that a LocTite product is applied to a bolt size outside the ranges shown here. For example, Milnor specifies LocTite 242 for use on certain 1" bolt applications and has confirmed this usage with the LocTite manufacturer. You may see variances such as this in the documentation for specific machine assemblies.
  • Page 56 Table 8: Torque Values if You Apply LocTite 262 The Grade of the Bolt Grade 2 Grade 5 Grade 8 Grade BC Dimension Pound-feet Pound-feet Pound-feet Pound-feet 3/4 x 10 3/4 x 16 7/8 x 9 7/8 x 14 PELLERIN MILNOR CORPORATION...
  • Page 57 1.2. Table 11: Torque Values for Stainless Steel Fasteners 5/16-inch and Smaller 18-8 Stainless with 316 Stainless 18-8 Stainless Loctite 767 Pound-Inc Pound-Inc Pound-Inc Dimension 1/4 x 20 1/4 x 28 5/16 x 18 5/16 x 24 PELLERIN MILNOR CORPORATION...
  • Page 58 CAUTION 3 : Malfunction Hazard—Heat, vibration, or mechanical shocks can let the fasteners loosen if you do not apply the threadlocker correctly. Loose fasteners can cause malfunctions of the equipment. • Read the threadlocker manufacturer's instructions and warnings. Obey these instructions. PELLERIN MILNOR CORPORATION...
  • Page 59 No threadlocker here Apply the threadlocker to this area Nut depth Disassembly —For high-strength threadlocker, apply heat for five minutes. Disassemble with 3.3. hand tools while the parts are hot. For low-strength and moderate-strength threadlocker, disassemble with hand tools. PELLERIN MILNOR CORPORATION...
  • Page 60 Torque Requirements for Fasteners Figure 4: Disassembly Apply Heat to a Small Area Legend How to apply heat to a small fastener How to apply heat to a large fastener — End of BIUUUM04 — PELLERIN MILNOR CORPORATION...

  • Page 61: Drive Assemblies Drive

    Drive Assemblies...
  • Page 62 BMP130052/2013484A Page (1 / 2) Drive MWF27J8, MWF27Z8 PELLERIN MILNOR CORPORATION PELLERIN MILNOR CORPORATION...
  • Page 63 BMP130052/2013484A Page (2 / 2) Drive MWF27J8, MWF27Z8 Parts List—Drive Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the parts list to the illustration.

  • Page 64: Bearing Housing Components Mwf27

    12/11/17 3:34 PM Released Bearing Housing Components MWF27 1 of 4 BPWMAB03.R01 0000166674 B.2 12/11/17 3:34 PM Released Figure 1. Bearing Assembly Cross Section Legend Detail view of the bearing housing front Detail view of the bearing housing rear Pellerin Milnor Corporation...
  • Page 65 BPWMAB03 / 2017502A BPWMAB03 0000166675 12/11/17 3:34 PM Released Bearing Housing Components MWF27 2 of 4 Figure 2. Bearing Housing Front Legend Detail view of the bearing housing front. Apply anti-seize compound to the bolt. Clean the shaft and the inner sleeve. Make sure that they are clean and free from oil. Apply adhesive, then the sleeve.
  • Page 66 Apply primer and adhesive to the rear bearing cup and holder housing. The seal holders must be fully down before you tighten the fasteners. instances 8 instances 4 Pellerin Milnor Corporation...
  • Page 67 BPWMAB03 / 2017502A BPWMAB03 0000166675 12/11/17 3:34 PM Released Bearing Housing Components MWF27 4 of 4 Find the assembly for your machine and the letter shown in the "Item" column. The components for your machine will show this letter or the word "all"...

  • Page 68: Bearing Installation Mwf27

    Connection between the bearing housing and the pulley Shell Cylinder Holes to lift the machine Shell rear Shell front This dimension must be in this range: .25 inches [6mm] — .625 inches [15mm]. Bearing Housing Components, see BPWMAB03. Pellerin Milnor Corporation...
  • Page 69 BPWMAB04 / 2017502A BPWMAB04 0000168667 12/11/17 3:42 PM Released Bearing Installation MWF27 2 of 4 Figure 2. Details A & B: Shell front to Shell, Shell rear to Bearing Legend Top connection between the shell front and the shell side sheet Connection between the shell rear and the bearing housing instances 24 Apply adhesive to the bolt, torque to 44 FT.
  • Page 70 Connection between the cylinder rear and the bearing housing Connection between the bearing housing and the pulley Apply adhesive to the bolt torque to 361 FT. LBS. Apply adhesive to the bolt, torque to 236 FT. LBS. Key. See Bearing Housing Components, BPWMAB03. Pellerin Milnor Corporation...
  • Page 71 BPWMAB04 / 2017502A BPWMAB04 0000168667 12/11/17 3:42 PM Released Bearing Installation MWF27 4 of 4 Find the assembly for your machine and the letter shown in the "Item" column. The components for your machine will show this letter or the word "all" in the "Used In" column. The numbers shown in the "Item" column are those shown in the illustrations. Description/Nomenclature Used In Item...
  • Page 73 Suspension...

  • Page 74: Marshmallow Suspension

    BMP130054/2013484A Page (1 / 2) Marshmallow Suspension MWF27J8, MWF27Z8 View A-A 4 Places PELLERIN MILNOR CORPORATION PELLERIN MILNOR CORPORATION...
  • Page 75 BMP130054/2013484A Page (2 / 2) Marshmallow Suspension MWF27J8, MWF27Z8 Parts List—Marshmallow Suspension Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the parts list to the illustration.

  • Page 76: Shocks

    BMP130055/2013484A Page (1 / 2) Shocks MWF27J8, MWF27Z8 Rear Shocks Front Shocks PELLERIN MILNOR CORPORATION PELLERIN MILNOR CORPORATION...
  • Page 77 BMP130055/2013484A Page (2 / 2) Shocks MWF27J8, MWF27Z8 Parts List—Shocks Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the parts list to the illustration.

  • Page 79: Shell And Door Assemblies

    Shell and Door Assemblies...

  • Page 80: Door Assembly And Installation

    Door Assembly and Installation BMP130057/2013484A (1 / 3) MWF27J8, MWF27J8 Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Door Installation 10,11 BMP130002. Shims Add or remove shims until the door locks properly and seals.
  • Page 81 Door Assembly and Installation BMP130057/2013484A (2 / 3) MWF27J8, MWF27J8 Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 (See BMP130002.) Section B-B: Door Installation Ensure that the gasket joint Section A-A: Door Installation is at top-dead-center.
  • Page 82 30" SHELL DOOR 02 03251 DOOR GLASS, 3022H7 02 03200 DOOR GASKET, 3022H7 98CMCR0925 ASSY=DR HNDL MECH 98CMCR0971 DOOR INTERLOCK ASSY V8Z VRJ MILNOR ASSY A33 03226B 02 03260 30" SHELL DOOR HINGE RIGHT 15K031 BUTSOKCAPSCR 1/4-20X1/2 SS18-8 02 03260A 30"...

  • Page 83: Door Lock Mechanism

    BMP130002/2016434A Page (1 / 3) Door Lock Mechanism MCR27E5, MWR27E5; 3015T6X,VRJ,V8Z,VZZ; 30022T6X,VRJ,V8Z,VZZ; MWF27J8, MWF27Z8; 30022X8R 36021V5Z, 36021V7Z, 36026V5Z, 36026V7Z, 42026V6Z, 42030V6Z Figure 1: Components DOOR LOCK SOLENOID DOOR LOCK SWITCH DETAILS A & B DETAIL C DOOR CLOSED SWITCH PELLERIN MILNOR CORPORATION...
  • Page 84 BMP130002/2016434A Page (2 / 3) Door Lock Mechanism MCR27E5, MWR27E5; 3015T6X,VRJ,V8Z; 30022T6X,VRJ,V8Z; MWF27J8, MWF27Z8; 30022X8R 36021V5Z, 36021V7Z, 36026V5Z, 36026V7Z, 42026V6Z, 42030V6Z Figure 2: Slider and Settings INSERT ITEM 2. INSERT ITEM ADJUST THE 2. ADJUST THE SWITCH TO BE SWITCH TO BE “OFF”.
  • Page 85 "Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the parts list to the illustration. Item Description Used In Part Number Comments --------------------------------------------------------------------------------------------------COMPONENTS------------------------------------------------------------------------------- 98CMCR0971 DOOR INTERLOCK ASSY V8Z VRJ MILNOR ASSY A33 03226B X2 03306A MACH=GAGE DR LOCK SWITH,MCR PELLERIN MILNOR CORPORATION...

  • Page 86: Door Handle And Lock Actuator

    BMP130065/2013484A Page (1 / 3) Door Handle and Lock Actuator MWF27J8, MWF27Z8 Figure 1: Detailed Views Shims Adhesive Legend Detailed view Cross section Detailed view Instances 4 Torsion spring Flange bearing Bolt Thrust washer Retaining ring Do not open the ring more than necessary to get it on the shaft.
  • Page 87 BMP130065/2013484A Page (2 / 3) Door Handle and Lock Actuator MWF27J8, MWF27Z8 Figure 2: Add or remove shims until the door locks correctly and seals. Shims,N1,U Shims,U Legend Add shims to make the latch looser. Remove shims to make the latch tighter. To add shims, add a notch to the shims as shown.
  • Page 88 Page (3 / 3) Door Handle and Lock Actuator MWF27J8, MWF27Z8 Parts List—Door Handle and Lock Actuator Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
  • Page 89 Water and Steam Piping and Assemblies...

  • Page 90: Water & Steam Components

    BMP130059/2013484A Page (1 / 2) Water & Steam Components MWF27J8, MWF28Z8 Figure 1: Water and Steam Schematic Shell Drain Trough Soap Chute or 5 Compartment Supply Hot water for supply Cold Steam Drain trough PELLERIN MILNOR CORPORATION PELLERIN MILNOR CORPORATION...
  • Page 91 BMP130059/2013484A Page (2 / 4) Water & Steam Components MWF27J8, MWF28Z8 Figure 2: Water and Steam Inlets PELLERIN MILNOR CORPORATION PELLERIN MILNOR CORPORATION...
  • Page 92 BMP130059/2013484A Page (3 / 4) Water & Steam Components MWF27J8, MWF28Z8 Figure 3: Steam Inlet PELLERIN MILNOR CORPORATION PELLERIN MILNOR CORPORATION...
  • Page 93 Page (4 / 4) Water & Steam Components MWF27J8, MWF28Z8 Parts List—Water & Steam Components Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
  • Page 94 BMP130060/2016082A Page (1 / 2) Drain MWF27J8, MWF27Z8 PELLERIN MILNOR CORPORATION PELLERIN MILNOR CORPORATION...
  • Page 95 BMP130060/2016082A Page (2 / 2) Drain MWF27J8, MWF27Z8 Parts List—Drain Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the parts list to the illustration.

  • Page 97: 93 7. Chemical Supply Devices

    Chemical Supply Devices...

  • Page 98: Soap Chute

    BMP130062/2013484A Page (1 / 2) Soap Chute MWF27J8, MWF27Z8 PELLERIN MILNOR CORPORATION PELLERIN MILNOR CORPORATION...
  • Page 99 "Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the parts list to the illustration. Item Description Used In Part Number Comments --------------------------------------------------------------------------------------------COMPONENTS------------------------------------------------------------------ AWS30211A PLASTIC SOAP ASSY 98CX972828 51BB0KN00B BULKHD FITT 1/2"BARBED,POLYPRO 98CX489041 FLEXIBLE HOSE 02 03870D FLEXTUBE=2"ID X 14"LG W/CUFFS PELLERIN MILNOR CORPORATION...

  • Page 100: Peristaltic Supply

    BMP130063/2013484A Page (1 / 3) Peristaltic Supply MWF27J8, MWF27Z8 Figure 1: Cross Section Peristaltic Inlet View A-A Cross section Cold water line Hot water line Hot water to flush the chemical supplies Water and chemical supplies to the shell Hot and cold water to the shell Apply adhesive to the surfaces that connect.
  • Page 101 BMP130063/2013484A Page (2 / 3) Peristaltic Supply MWF27J8, MWF27Z8 Cross Section Legend BB. Cross section Vent Air space: 1 inch(25MM) PELLERIN MILNOR CORPORATION PELLERIN MILNOR CORPORATION...
  • Page 102 BMP130063/2013484A Page (3 / 3) Peristaltic Supply MWF27J8, MWF27Z8 Parts List—Peristaltic Supply Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the parts list to the illustration.

  • Page 103: Compartment Supply

    BMP130064/2013484A Page (1 / 4) 5 Compartment Supply MWF27J8, MWF27Z8 Figure 1: 5 Compartment Supply PELLERIN MILNOR CORPORATION PELLERIN MILNOR CORPORATION...
  • Page 104 BMP130064/2013484A Page (2 / 4) 5 Compartment Supply MWF27J8, MWF27Z8 Figure 2: Water Nozzles PELLERIN MILNOR CORPORATION PELLERIN MILNOR CORPORATION...
  • Page 105 BMP130064/2013484A Page (3 / 4) 5 Compartment Supply MWF27J8, MWF27Z8 Figure 3: Valve Manifold PELLERIN MILNOR CORPORATION PELLERIN MILNOR CORPORATION...
  • Page 106 BMP130064/2013484A Page (4 / 4) 5 Compartment Supply MWF27J8, MWF27Z8 Parts List—5 Compartment Supply Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the parts list to the illustration.

  • Page 107: Dimensional Drawings

    Dimensional Drawings...
