IP addresses and component IDs

Management network B addresses
Engine 4:
Director 4B
Director 4A
Engine 3:
Director 3B
Director 3A
FC switch B 128.221.253.34
Engine 2:
Director 2B
Director 2A
Engine 1:
Director 1B
Director 1A

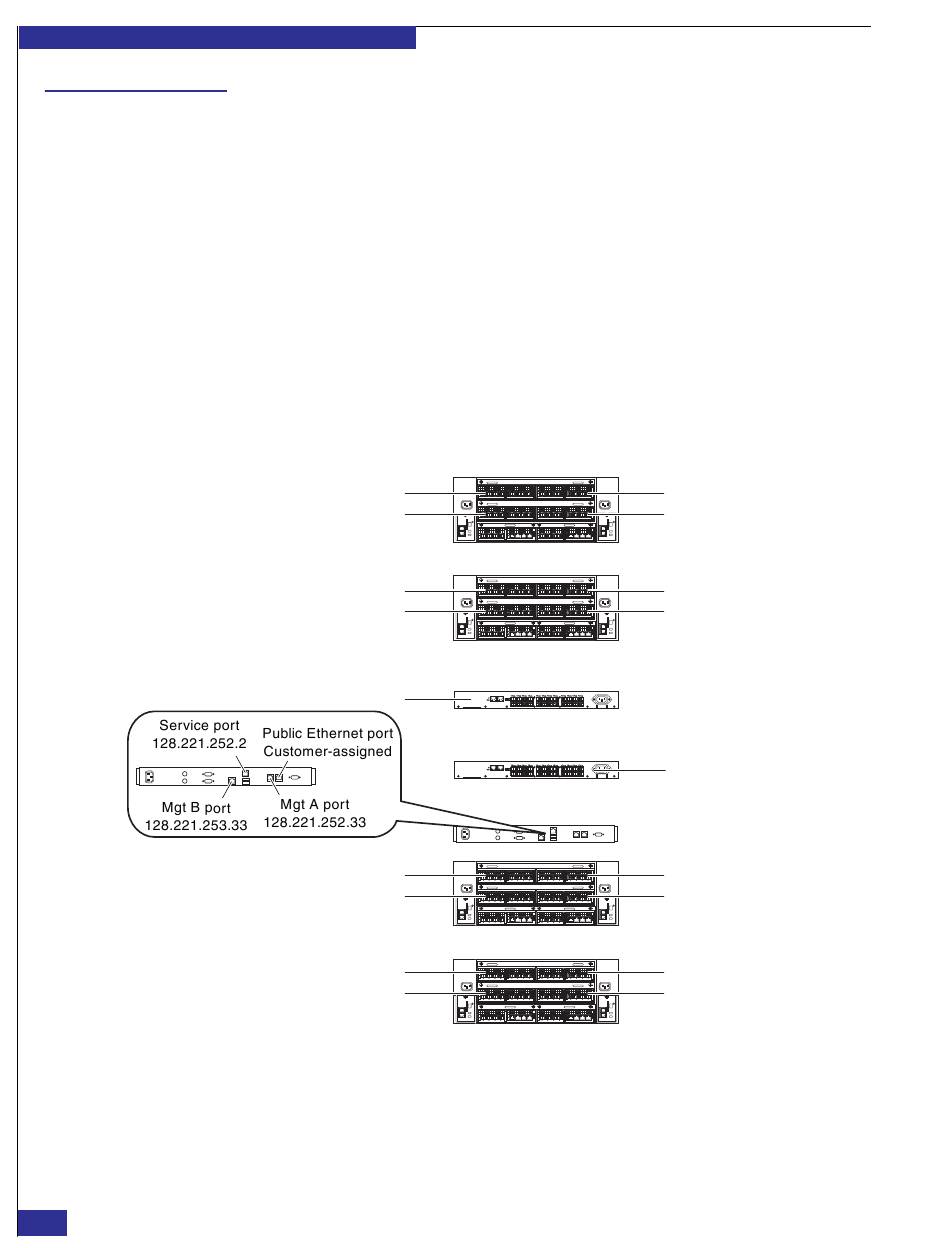

Figure 35
72 EMC VPLEX with GeoSynchrony 4.2 Installation and Setup Guide
The IP addresses of the VPLEX hardware components are determined by a set of
formulae that depend on the internal management network (A or B), the Cluster IP
Seed, and (for directors) the Enclosure ID (which matches the engine number).
Figure 35 shows the IP addresses in a cluster with a Cluster IP Seed of 1, and
Figure 36 on page 73 shows the addresses for a Cluster IP Seed of 2. Note that the
Cluster IP Seed is the same as the Cluster ID, which depends on the VPLEX
implementation:
VPLEX Local - The Cluster ID is always 1.
◆
VPLEX Metro - The Cluster ID for the first cluster that is set up is 1, and the
◆
second cluster is 2.
Cluster IP Seed = 1
Enclosure IDs = engine numbers
128.221.253.42
128.221.253.41
128.221.253.40
128.221.253.39
128.221.253.38
128.221.253.37
128.221.253.36
128.221.253.35

Component IP addresses in cluster 1

Management network A addresses
Management server
Engine 4:
Director 4B 128.221.252.42
Director 4A 128.221.252.41
Engine 3:
Director 3B 128.221.252.40
Director 3A 128.221.252.39
FC switch A 128.221.252.34
Engine 2:
Director 2B 128.221.252.38
Director 2A 128.221.252.37
Engine 1:
Director 1B 128.221.252.36
Director 1A 128.221.252.35
Zep-028_1
