Installing the Hardware
Figure 13
Figure 14
28 EMC VPLEX with GeoSynchrony 4.2 Installation and Setup Guide
ON
I
O
OFF
ON
I
O
OFF
ON
I
O
OFF
PDP power
switch
To 30 A, 220 VAC
power source 2

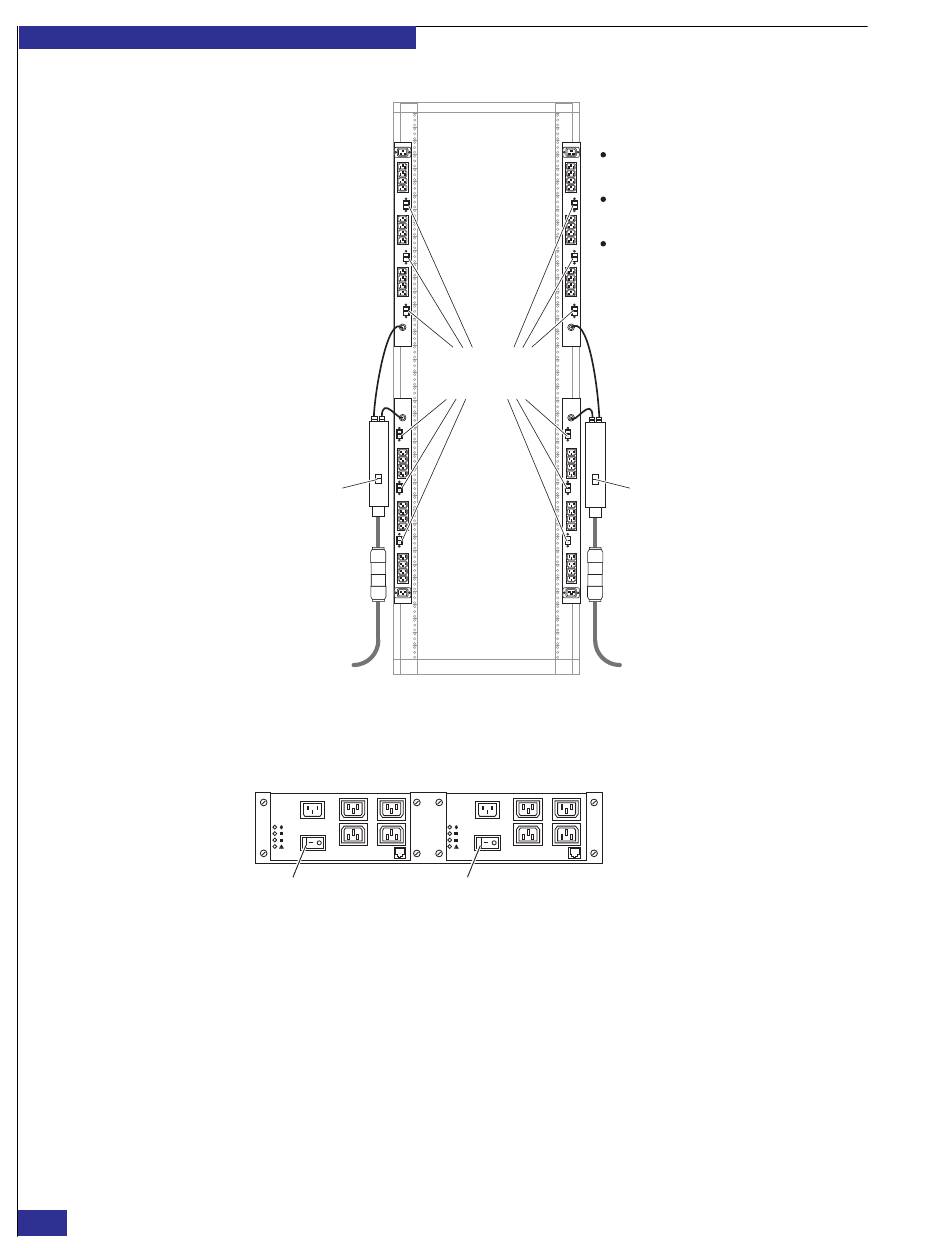

Cabinet power switches and circuit breakers

4. Switch all SPS power switches (shown in
ON

SPS power switches

5. Switch both lower PDPs ON.
6. Switch ON each PDU circuit breaker that has components plugged into its power
strip. (Figure 49 on page 85
power strip.)
7. Verify that the LED status on each SPS and director is as shown in
page 29.
Generally, the SPS On-Battery LED stays on while the SPS units fully charge
(which could be a few minutes or a few hours, depending on the state of the
battery). If any amber LED not related to the SPS recharge remains on for
more than 10 minutes, verify that the components are cabled correctly.
Notes:
If the cabinet contains four PDPs,
note that the upper PDPs are not used.
The upper PDUs are not used in a
ON
I
O
OFF
single-engine configuration.
The upper PDUs are installed
ON
I
upside-down from the lower PDUs.
O
OFF
ON
I
O
OFF
PDU circuit
breakers
To 30 A, 220 VAC
power source 1
Figure
ON
CL4171-zep
identifies the circuit breaker associated with each
PDP power
switch
14) ON.
Figure 15 on
Zep-013
