Omcan MS-IT-0300-V, MS-0330-V,MS-0350-V, MS-0370-V Instruction Manual page 20

Maintenance
• Spread a small quantity of oil on the bar and move the assembly 3 or 4 times;
• Clean as required to remove excess of oil.

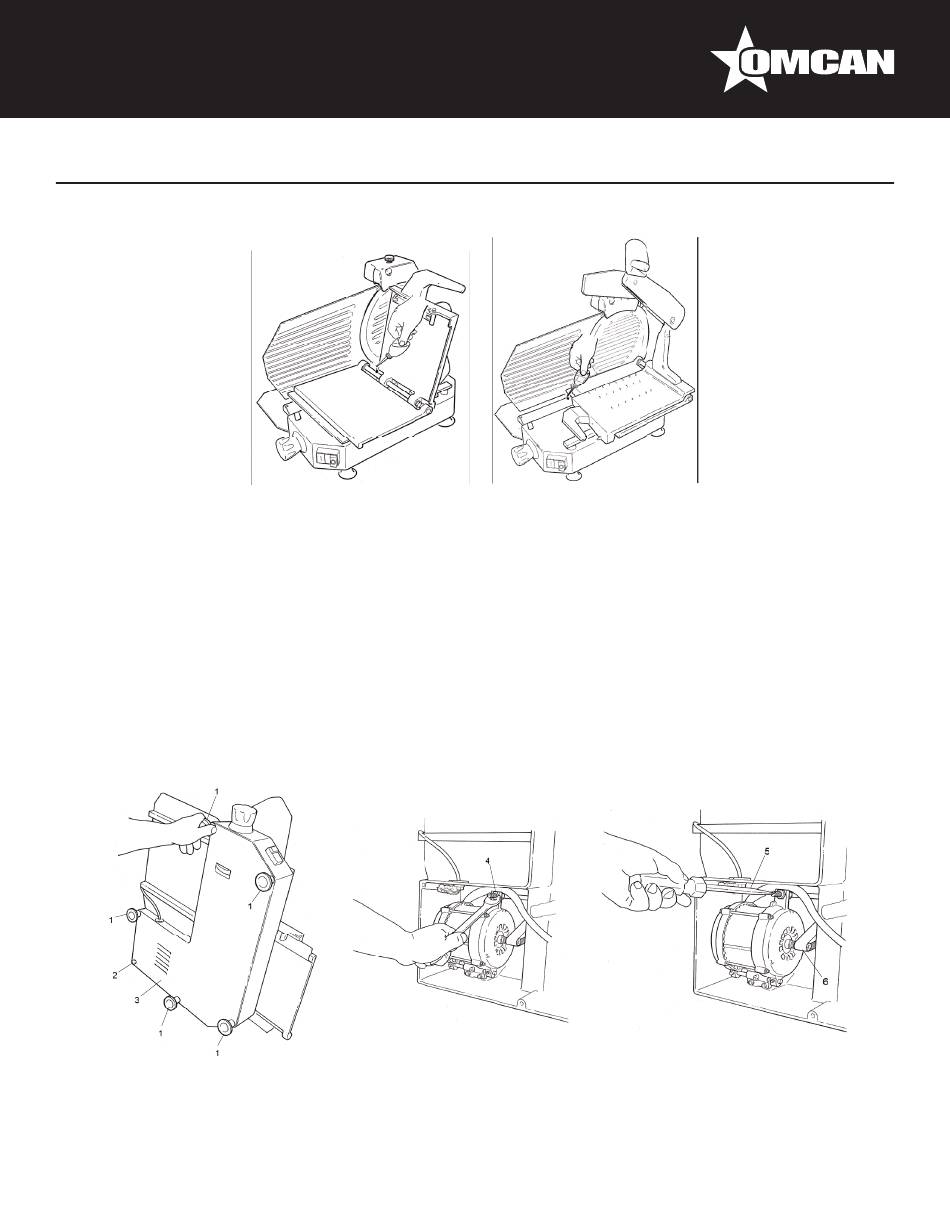

ADJUSTMENT OF MOTOR BELT TENSION
After a given period of service an unusual noise may occur because of the belt bedding. In this case, tighten
the belt-stretcher on the side of the motor under the machine base.
• Disconnect the plug from the mains;
• Lift the machine and turn it on one side as shown in the picture;
• Unscrew the feet (1), unloose the screw (2) and remove the guard (3);
• Partially unscrew the nut (4);
• Turn the belt-stretcher (5) until the optimal tension of the belt is obtained (6);
• Tighten the nut (4) and install the guard (3), the screw (2) and the feet (1).
20
