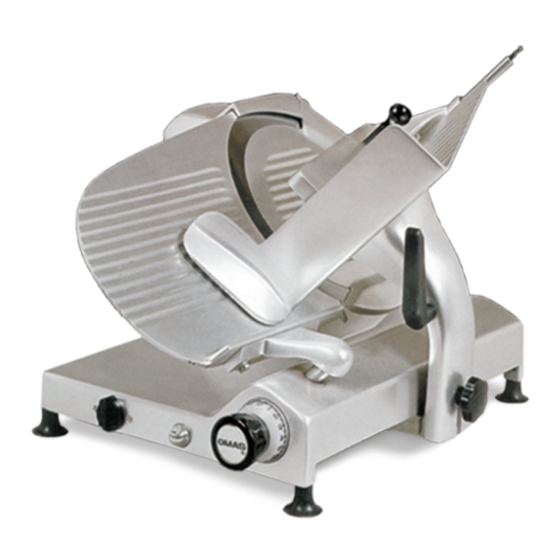

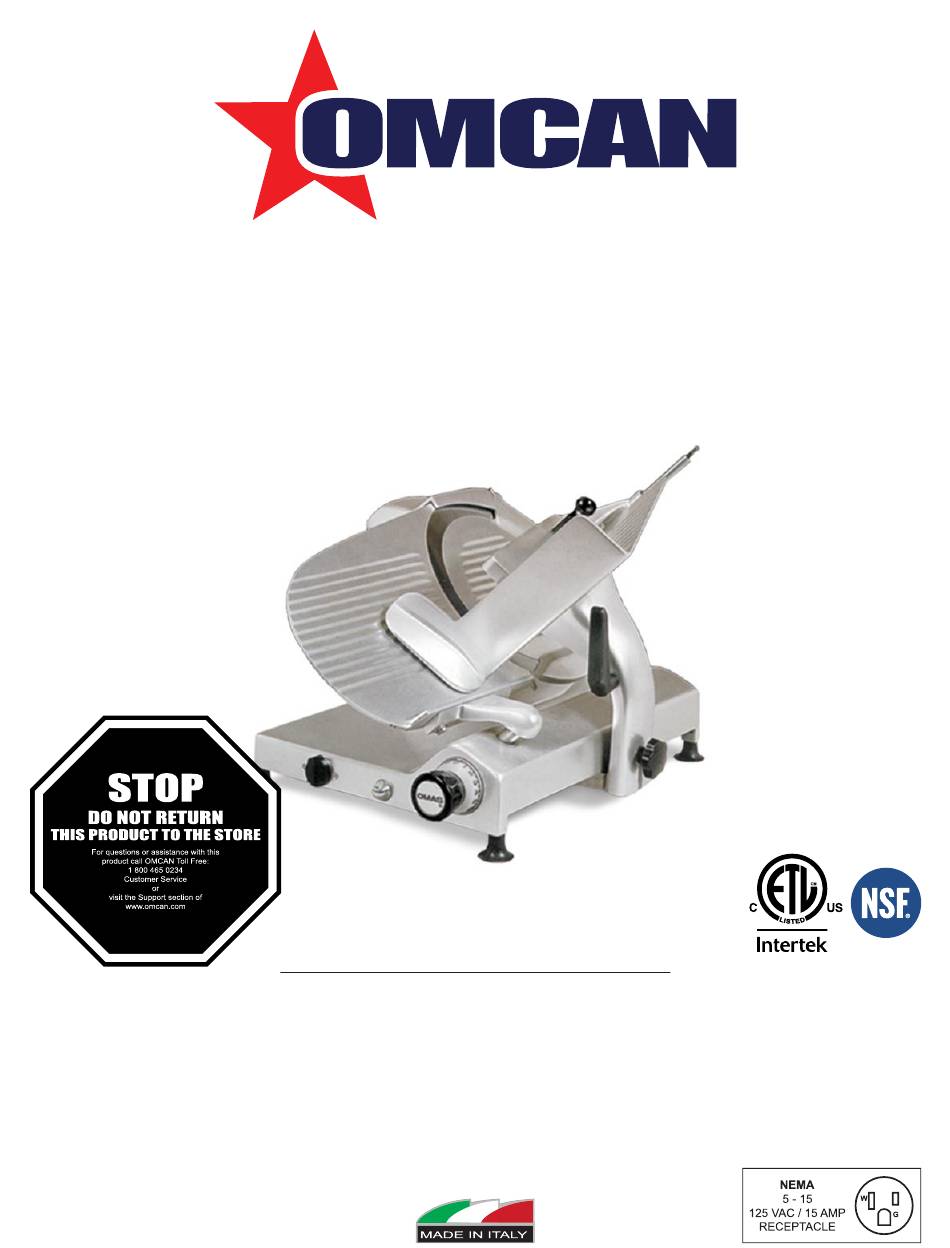

- Page 1 Meat Slicers Models MS-IT-0300-G, 0330-G, 0350-G Items 13641, 13642, 13643 Instruction Manual Revised - 10/01/2021 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model MS-IT-0300-G / Model MS-IT0330-G / Model MS-IT-0350-G Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications -------------------------------------------------------------------------- 7 Installation -------------------------------------------------------------------------------------------- 7 Operation --------------------------------------------------------------------------------------------- 7 Maintenance ------------------------------------------------------------------------------------- 8 - 9... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 Safety and Warranty prevent the edge of the blade from being exposed. Always UNPLUG the power cord before cleaning or moving the slicer. SLICING Pull the product holder 3 toward you until it stops and place the product to be sliced on the product holder tray.
- Page 6 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
-
Page 7: Technical Specifications
Technical Specifications Model MS-IT-0300-G MS-IT-0330-G MS-IT-0350-G Blade Size 12” / 300mm 13” / 330mm 14” / 350mm Power 0.35 HP Cutting Size 5.9” x 9.8” / 150 x 249mm 6.5” x 10.6” / 165 x 270mm 7.3” x 11.4” / 185 x 290mm Cutting 0”... -
Page 8: Maintenance
Maintenance CLEANING This machine must be thoroughly cleaned and sanitized after installation and before being put into service. ATTENTION: Use protection gloves BLADE SHARPENING Your slicer blade will provide long service in normal deli, food store, or commercial kitchen use. However, in high volume applications where it is a practice to sharpen the blade frequently or even daily, the blade will be expended in a shorter time. - Page 9 Maintenance Replace the sharpener to normal horizontal position, by lifting the pin (item 7 ) and close the cover fig. 6. The grinding stone (item 6 ) , fitted on its pin, can be easily removed, by just drawing it fig. 7. To get a nice sharpening, the grinding stone must be clean and free of grease.
-
Page 10: Parts Breakdown
Parts Breakdown Model MS-IT-0300-G 13641 Model MS-IT-0330-G 13642 Model MS-IT-0350-G 13643... - Page 11 Parts Breakdown Model MS-IT-0300-G 13641 Model MS-IT-0330-G 13642 Model MS-IT-0350-G 13643...
- Page 12 Parts Breakdown Model MS-IT-0300-G 13641 Model MS-IT-0330-G 13642 Model MS-IT-0350-G 13643...
- Page 13 Parts Breakdown Model MS-IT-0300-G 13641 Model MS-IT-0330-G 13642 Model MS-IT-0350-G 13643...
- Page 14 Parts Breakdown Model MS-IT-0300-G 13641 Model MS-IT-0330-G 13642 Model MS-IT-0350-G 13643...
- Page 15 Parts Breakdown Model MS-IT-0300-G 13641 Model MS-IT-0330-G 13642 Model MS-IT-0350-G 13643...
- Page 16 Parts Breakdown Model MS-IT-0300-G 13641 Model MS-IT-0330-G 13642 Model MS-IT-0350-G 13643...
- Page 17 Parts Breakdown Model MS-IT-0300-G 13641 Model MS-IT-0330-G 13642 Model MS-IT-0350-G 13643...
- Page 18 Parts Breakdown Model MS-IT-0300-G 13641 Item No. Description Position Item No. Description Position Item No. Description Position Sharpening Assy (Support & Stones) 17272 A1003 36590 AG35-C-H Carriage for 13641 C1854 36651 Sharpener Support Nut for 13641 D0183 for 13641 Carriage Shock Absorber Spacer for 16902 Ring EL.Benzing 8 for 13641...
- Page 19 Parts Breakdown Model MS-IT-0300-G 13641 Item No. Description Position Item No. Description Position Item No. Description Position 19776 Spring 14x1.5x60 for 13641 M7032 17444 Stud Carriage for 13641 P7431 19870 Stator 120/60 for 13641 S8562 17381 Spring 22 5x1 8x18 for 13641...
- Page 20 Parts Breakdown Model MS-IT-0300-G 13641 Item No. Description Position Item No. Description Position Item No. Description Position Screw TBTC AUT.U6954 2.9x9.5 for Stainless Steel Screw TSP U6109 M5x12 37054 V6301 37078 V7013X 19715 Screw Sharpener for 13641 V7910 13641 for 13641...
- Page 21 Parts Breakdown Model MS-IT-0330-G 13642 Item No. Description Position Item No. Description Position Item No. Description Position Sharpening Assy (Support & Stones) 17272 A1003 36590 Carriage for 13642 C1854 36651 Sharpener Support Nut for 13642 D0183 for 13642 Carriage Shock Absorber Spacer for 16902 Ring EL.Benzing 8 for 13642 A5406...
- Page 22 Parts Breakdown Model MS-IT-0330-G 13642 Item No. Description Position Item No. Description Position Item No. Description Position 19776 Spring 14x1.5x60 for 13642 M7032 17444 Stud Carriage for 13642 P7431 19870 Stator 120/60 for 13642 S8562 17381 Spring 22 5x1 8x18 for 13642 M7052 AI228 Stud Motor Cover for 13642...
- Page 23 Parts Breakdown Model MS-IT-0330-G 13642 Item No. Description Position Item No. Description Position Item No. Description Position Screw TBTC AUT.U6954 2.9x9.5 for Stainless Steel Screw TSP U6109 M5x12 37054 V6301 37078 V7013X 19715 Screw Sharpener for 13642 V7910 13642 for 13642 Screw TSP U6109 M5x15 Stainless Steel Bar Screw M6x14 Stainless Steel for 37058...
- Page 24 Parts Breakdown Model MS-IT-0350-G 13643 Item No. Description Position Item No. Description Position Item No. Description Position 16899 Sharpening Assy for 13643 A1006 36590 Carriage for 13643 C1854 36651 Sharpener Support Nut for 13643 D0183 Carriage Shock Absorber Spacer for 16902 Ring EL.Benzing 8 for 13643 A5406...
- Page 25 Parts Breakdown Model MS-IT-0350-G 13643 Item No. Description Position Item No. Description Position Item No. Description Position 19776 Spring 14x1.5x60 for 13643 M7032 17443 End Grip for P4425A & S7702 for 13643 P7018 19867 Pin D10 M6 L26 for 13643 S7594 Foot Support Pin D.10 M8 L.37 for 17381...
- Page 26 Parts Breakdown Model MS-IT-0350-G 13643 Item No. Description Position Item No. Description Position Item No. Description Position 19706 Screw for 13643 V6278 37066 Screw TE U5737 M6x15 for 13643 V6421 17503 Screw M5x13 for 13643 V7908 Screw TCTC AUT.D7981 3.5x9.5 for 37048 V6279 37067...
-
Page 27: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 28 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
