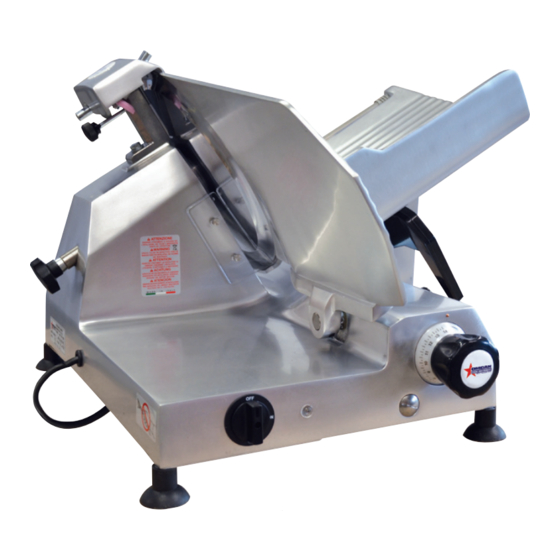

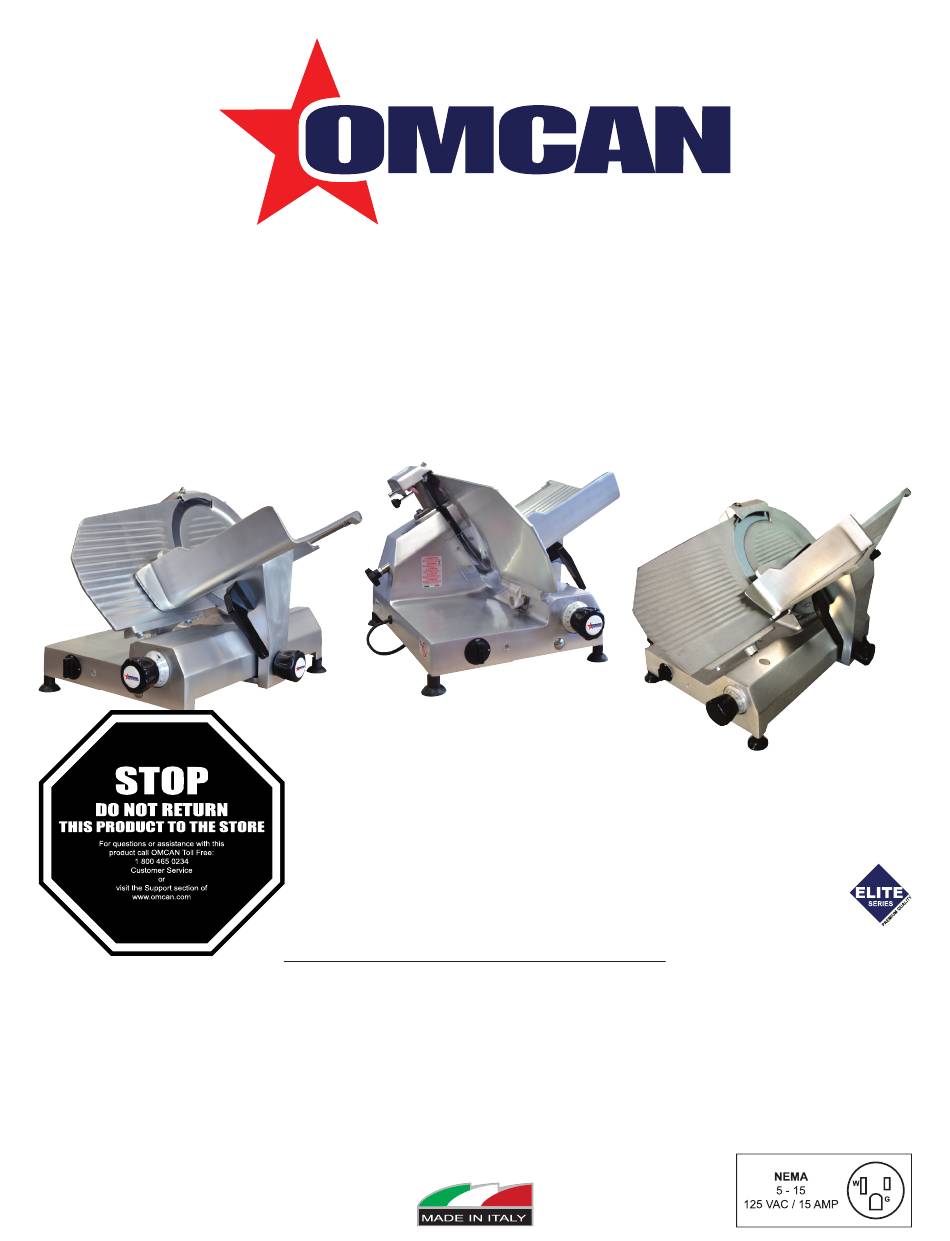

- Page 1 Gravity Meat Slicers Models MS-IT-0300-IP, 0330-L, 0350-L Items 13629, 13635, 13637 Instruction Manual 13635 13629 13637 Revised - 09/27/2016 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Models MS-IT-0300-IP / MS-IT-0330-L / MS-IT-0350-L Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications ---------------------------------------------------------------------- 6 - 8 Installation -------------------------------------------------------------------------------------- 9 - 10 Maintenance --------------------------------------------------------------------------------- 10 - 13... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 1 YEAR PARTS AND LABOR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 6: Technical Specifications
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms. DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT! Technical Specifications Model MS-IT-0300-IP MS-IT-0330-L MS-IT-0350-L Blade Size 12” / 300mm 13”/330mm... - Page 7 Technical Specifications The machine is essentially made of a base supporting a circular blade mounted in a tilted position. This blade is driven by an electrical motor to slice foodstuffs. The machine is equipped with a carriage holding a product tray and sliding on a bar mounted under the base top, parallel to the blade.
- Page 8 Technical Specifications MAIN COMPONENTS MS-IT-0300-IP MS-IT-0330-L MS-IT-0350-L 1. Switch 10. Blade 2. N.A. 11. Product Grip Handle 3. Slice Thickness Control Knob 12. Manufacturer Identification Plate, Machine Data and UE Marks 4. Adjustable Foot 13. Pusher Plate Extension 5. Carriage Tray Support 14.
-
Page 9: Installation
Installation INSTALLING THE MACHINE Position the machine on a well leveled, smooth and dry top suitably dimensioned to withstand the machine weight. ELECTRICAL CONNECTION Install the machine near a compliant outlet derived from a system meeting the local norms. The user is responsible for ascertaining that the electrical system is suitably dimensioned and functions correctly (supply line, outlet, distribution panel, differential protecting breaker, grounding). -
Page 10: Maintenance
Installation USING THE MACHINE LOADING THE PRODUCT ON THE TRAY AND SLICING • Ascertain that the thickness control knob is correctly positioned to ‘0’; • Draw back the carriage completely (towards the operator) to loading position; • Lift the product grip by pulling it away by 10 cm from the blade and put it in rest position; •... - Page 11 Maintenance DISASSEMBLING THE MACHINE FOR CLEANING • Disconnect the plug from the mains; • Turn the gauge plate know to ‘0’; • Remove the various components as described in the following paragraphs; • Unscrew (counterclockwise) the blade guard tie-rod; • If the blade guard is blocked, press on the rod knob to move it a little;...
- Page 12 Maintenance WARNING Maintenance must always be carried out when the machine is disconnected from the mains and if no other position is specifically required, with the thickness control knob on ‘0’. The following maintenance operations are to be entrusted only to personnel authorized by the manufacturer: •...
- Page 13 LUBRICATION Carriage sliding guides product grip (once a week) Use the Omcan oil #27336, otherwise use white Vaseline oil. DO NOT USE VEGETABLE OILS. • Spread a small quantity of oil on the bar and move the assembly 3 or 4 times;...
-
Page 14: Troubleshooting
Troubleshooting The table below indicates the most common problems that may arise during slicing and the necessary remedies. PROBLEM POSSIBLE CAUSE REMEDY Ascertain that the plug is correctly No power supply inserted The machine does not start when the white or green button is The blade guard is not correctly Check pressed... - Page 15 For parts or service call 1-800-465-0234. REFERENCE Item Number Model Number Description Manufacturer Model Number Meat Slicer Belt Driven 12” / 300mm Blade 13629 MS-IT-0300-IP 300F 0.5 HP / 373 W 110V/60/1 Meat Slicer Belt Driven 13” / 330mm Blade 13635 MS-IT-0330-L 330F 0.5 HP / 373 W 110V/60/1...
-
Page 16: Parts Breakdown
Parts Breakdown Model MS-IT-0300-IP 13629... - Page 17 Parts Breakdown Model MS-IT-0300-IP 13629 Item No. Description Position Item No. Description Position Item No. Description Position 34442 Housing for 300F 34477 Washer for 300F 34506 Meat Deflector for 300F 34443 Screw for 300F 34478 Screw TC for 300F 15169...
- Page 18 Parts Breakdown Model MS-IT-0330-L 13635...
- Page 19 Parts Breakdown Model MS-IT-0330-L 13635 Item No. Description Position Item No. Description Position Item No. Description Position 34636 Housing for 330F 34671 Washer for 330F 34706 Meat Deflector for 330F 34637 Screw for 330F 34672 Screw TC for 330F 34707 Screw for 330F 34638 Nut for 330F...
- Page 20 Parts Breakdown Model MS-IT-0350-L 13637...
- Page 21 Parts Breakdown Model MS-IT-0350-L 13637 Item No. Description Position Item No. Description Position Item No. Description Position 15204 Housing for 350F 34771 Clip for 350F 34805 Set Screw for 350F 34736 Screw for 350F 34772 Bearing for 350F 34806 Cam Plate for 350F 34737 Stop Plate for 350F 15206...
-
Page 22: Electrical Schematics
Electrical Schematics Model MS-IT-0300-IP 13629 Model MS-IT-0330-L 13635 Model MS-IT-0350-L 13637... -
Page 23: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 24 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
