Omcan MS-IT-0370-H Instruction Manual

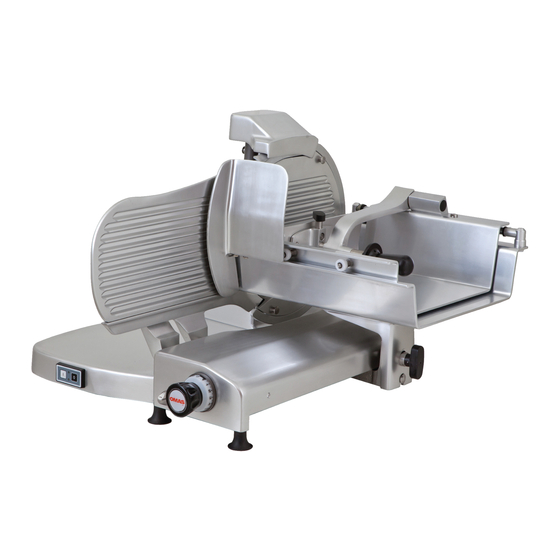

Gear-driven slicer
Hide thumbs Also See for MS-IT-0370-H:
Table of Contents

Advertisement

Quick Links

Download this manual
Gear-Driven Slicer
Model MS-IT-0370-H
Item 38915
Instruction Manual
Revised - 08/20/2021
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-IT-0370-H and is the answer not in the manual?

Questions and answers

Related Manuals for Omcan MS-IT-0370-H

Summary of Contents for Omcan MS-IT-0370-H

  • Page 1 Gear-Driven Slicer Model MS-IT-0370-H Item 38915 Instruction Manual Revised - 08/20/2021 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model MS-IT-0370-H Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 6 Installation --------------------------------------------------------------------------------------- 6 - 7 Operation ----------------------------------------------------------------------------------------- 7 - 8 Maintenance ----------------------------------------------------------------------------------- 8 - 11 Troubleshooting...

  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.

  • Page 6: Technical Specifications

    Technical Specifications Model MS-IT-0370-H Blade 15” / 370mm Power 0.4 HP / 0.3 kW Cheese Slicing Slicing Volume* 8 hours or more Cutting Size 14.6” x 10.2” / 370 x 260mm Cut Thickness 0 - 25mm Electrical 110V / 60Hz / 1 Weight 125 lbs.

  • Page 7: Installation

    Installation MANUAL FUNCTIONING 1. Press push button blade start. AUTOMATIC FUNCTIONING 1. See manual functioning. 2. Press push button carriage start. SLICER FUNCTIONING AND USE The following products can be sliced: sausages, ham, cheese, bread. If large quantities of bread or cheese are usually cut it is advisable to mount a teflon coating.

  • Page 8: Operation

    10mm less than the nominal diameter. For the replacement, ask the assistant service closest to you. WARNING The replacement of the blade is dangerous operation. Should the sharpening quality be not satisfactory, replace the stones by contacting Omcan.

  • Page 9: Maintenance

    Maintenance SHARPENING OPERATION DANGER The sharpening operation must be performed during the manual functioning. For a correct sharpening of the blade follow these instructions: 1. Clean the blade removing any greasy residue. 2. Make sure that the machine is off. 3.
  • Page 10 Maintenance CHECK OF THE ELECTRIC CABLE It is recommended to check the wear of the electric cable at regular intervals. SPARE PARTS In the event that replacement parts need to be fitted, request only original spare parts. CLEANING The machine must be cleaned once a day or more frequently if necessary. Clean all the parts using a cloth sprinkled with water and washing up liquid (do not use strong detergents) and a brush.

  • Page 11: Troubleshooting

    Maintenance direction of the arrow. 6. Follow these instructions to clean the back side of the blade. 7. With a cloth dry both sides of the blade following this procedure. 8. Insert a damp cloth between the blade and the protection ring. Pull it outwards and rotate it to clean the internal side of the protection ring.

  • Page 12: Parts Breakdown

    Parts Breakdown Model MS-IT-0370-H 38915...
  • Page 13 Parts Breakdown Model MS-IT-0370-H 38915...
  • Page 14 Parts Breakdown Model MS-IT-0370-H 38915...
  • Page 15 Parts Breakdown Model MS-IT-0370-H 38915...
  • Page 16 Parts Breakdown Model MS-IT-0370-H 38915...
  • Page 17 Parts Breakdown Model MS-IT-0370-H 38915...
  • Page 18 Parts Breakdown Model MS-IT-0370-H 38915...
  • Page 19 Parts Breakdown Model MS-IT-0370-H 38915...
  • Page 20 Parts Breakdown Model MS-IT-0370-H 38915 Item No. Description Position Item No. Description Position Item No. Description Position Bushing to Hold Carriage Springs for 16900 Sharpening Assembly for 38915 A1026 36566 B6221 77612 Self-Locking Nut M3 UNI7473 for 38915 D0110 38915 Ring EL.Benzing 6 Stainless Steel for...
  • Page 21 Parts Breakdown Model MS-IT-0370-H 38915 Item No. Description Position Item No. Description Position Item No. Description Position 17351 Locknut for 38915 G5018 19791 Oiler Oil Cap with Screw for 38915 O4040 77566 Pivot Pusher for 38915 P3663 36689 Stainless Steel Locknut M8 for 38915...
  • Page 22 Parts Breakdown Model MS-IT-0370-H 38915 Item No. Description Position Item No. Description Position Item No. Description Position 36889 Washer 10.5x16x1 for 38915 R6816 77573 Hand Grip Arm Support for 38915 S9425 19700 Screw M6x16 for 38915 V6240 Stainless Steel Screw TCEI U5931 16969 Washer 18.2x25x0.5 for 38915...
  • Page 23 Parts Breakdown Model MS-IT-0370-H 38915 Item No. Description Position Item No. Description Position Item No. Description Position 19720 Screw M6 for 38915 V7934 37102 Screw M6x20 for 38915 V8035 77581 Special Screw M10x18 for 38915 V8103 37095 Screw for Rod 6x13 for 38915...

  • Page 24: Electrical Schematics

    Electrical Schematics Model MS-IT-0370-H 38915 Position Description Position Description Position Description Spina Capacitor 220uF Power Relay Transformer Capacitor 100uF Power Relay Fuse 500mA Capacitor 20uF Command Relay Straightener 1A Resistance 1k Command Relay Protective Diode Resistance 1k Stop Button LED Orange Line...

  • Page 25: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
  • Page 26 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 27: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 28 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
