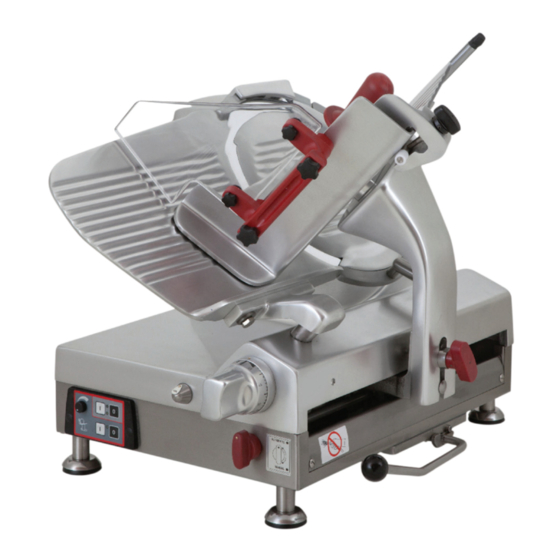

Gear-Driven Slicer
Model MS-IT-0330-N
Item 39477
Instruction Manual
Revised - 10/13/2021
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-IT-0330-N and is the answer not in the manual?

Questions and answers

Related Manuals for Omcan MS-IT-0330-N

Summary of Contents for Omcan MS-IT-0330-N

  • Page 1 Gear-Driven Slicer Model MS-IT-0330-N Item 39477 Instruction Manual Revised - 10/13/2021 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model MS-IT-0330-N Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 6 Installation ---------------------------------------------------------------------------------------- 6 - 7 Operation ----------------------------------------------------------------------------------------- 7 - 8 Maintenance ----------------------------------------------------------------------------------- 8 - 11 Troubleshooting...

  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.

  • Page 6: Technical Specifications

    Technical Specifications Model MS-IT-0330-N Blade 13” / 330mm Power 0.6 HP / 0.45 kW Cheese Slicing Slicing Volume 8 hours or more Slicing Capacity 10.2” x 6.7” / 259 x 170mm | 9.25” / 235mm (Dia.) Cut Thickness 0 - 0.55” / 0 -14mm...

  • Page 7: Installation

    Installation MANUAL FUNCTIONING 1. Press push button blade start. 2. See manual functioning. 3. Press pushbutton carriage start. SLICER FUNCTIONING AND USE The following products can be sliced: sausages, ham, cheese, bread. If large quantities of bread or cheese are usually cut it is advisable to mount a teflon coating.

  • Page 8: Operation

    10 mm less than the nominal diameter. For the replacement, ask the assistant service closest to you. WARNING The replacement of the blade is dangerous operation. Should the sharpening quality be not satisfactory, replace the stones by contacting Omcan. SHARPENING OPERATION DANGER The sharpening operation must be performed during the manual functioning.

  • Page 9: Maintenance

    Maintenance For a correct sharpening of the blade follow these instructions: 1. Clean the blade removing any greasy residue. 2. Make sure that the machine is off. 3. Rotate the slice thickness control to zero to make sure that the blade is covered by the slice thickness plate.
  • Page 10 Maintenance CHECK OF THE ELECTRIC CABLE It is recommended to check the wear of the electric cable at regular intervals. SPARE PARTS In the event that replacement parts need to be fitted, request only original spare parts. CLEANING The machine must be cleaned once a day or more frequently if necessary. Clean all the parts using a cloth sprinkled with water and washing up liquid (do not use strong detergents) and a brush.

  • Page 11: Troubleshooting

    Maintenance direction of the arrow. 6. Follow these instructions to clean the back side of the blade. 7. With a cloth dry both sides of the blade following this procedure. 8. Insert a damp cloth between the blade and the protection ring. Pull it outwards and rotate it to clean the internal side of the protection ring.

  • Page 12: Parts Breakdown

    Parts Breakdown Model MS-IT-0330-N 39477...
  • Page 13 Parts Breakdown Model MS-IT-0330-N 39477...
  • Page 14 Parts Breakdown Model MS-IT-0330-N 39477...
  • Page 15 Parts Breakdown Model MS-IT-0330-N 39477...
  • Page 16 Parts Breakdown Model MS-IT-0330-N 39477...
  • Page 17 Parts Breakdown Model MS-IT-0330-N 39477...
  • Page 18 Parts Breakdown Model MS-IT-0330-N 39477...
  • Page 19 Parts Breakdown Model MS-IT-0330-N 39477...
  • Page 20 Parts Breakdown Model MS-IT-0330-N 39477...
  • Page 21 Parts Breakdown Model MS-IT-0330-N 39477 Item No. Description Position Item No. Description Position Item No. Description Position 36535 Assy Sharpener for 39477 A1036 18648 Bushing for 39477 B6212 36623 Foot Cover for 39477 C6682 Ring EL.Benzing 6 Stainless Steel for...
  • Page 22 Parts Breakdown Model MS-IT-0330-N 39477 Item No. Description Position Item No. Description Position Item No. Description Position Carriage Shock Absorber Spacer for 36661 D5762 17369 Switch 4x20 for 39477 I3647 77617 Strain Relief for 39477 P2009 39477 36665 Locknut Spacer for 39477...
  • Page 23 Parts Breakdown Model MS-IT-0330-N 39477 Item No. Description Position Item No. Description Position Item No. Description Position 65640 Oil Receiver for 39477 R1027 36915 Pin Stainless Steel D.6x28 for 39477 S7516 AI242 Cap PG7 for 39477 T1030 36873 Resistor 50W 22 OHM for 39477...
  • Page 24 Parts Breakdown Model MS-IT-0330-N 39477 Item No. Description Position Item No. Description Position Item No. Description Position Stainless Steel Screw M8x60 U5931 Screw TE U5739 M8x20 Stainless Steel 37044 V625815 37072 V6460X 19917 Screw BS for 39477 V7960 for 39477...

  • Page 25: Electrical Schematics

    Electrical Schematics Model MS-IT-0330-N 39477 Position Description Position Description Position Description Printed Circuit Board Blade Stop Push Button LED Power Supply Power Cord Blade Start Push Button Blade Motor Carriage Stop Push Button Capacitor 20uF Resistance 50W Carriage Start Push Button...

  • Page 26: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 27: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
